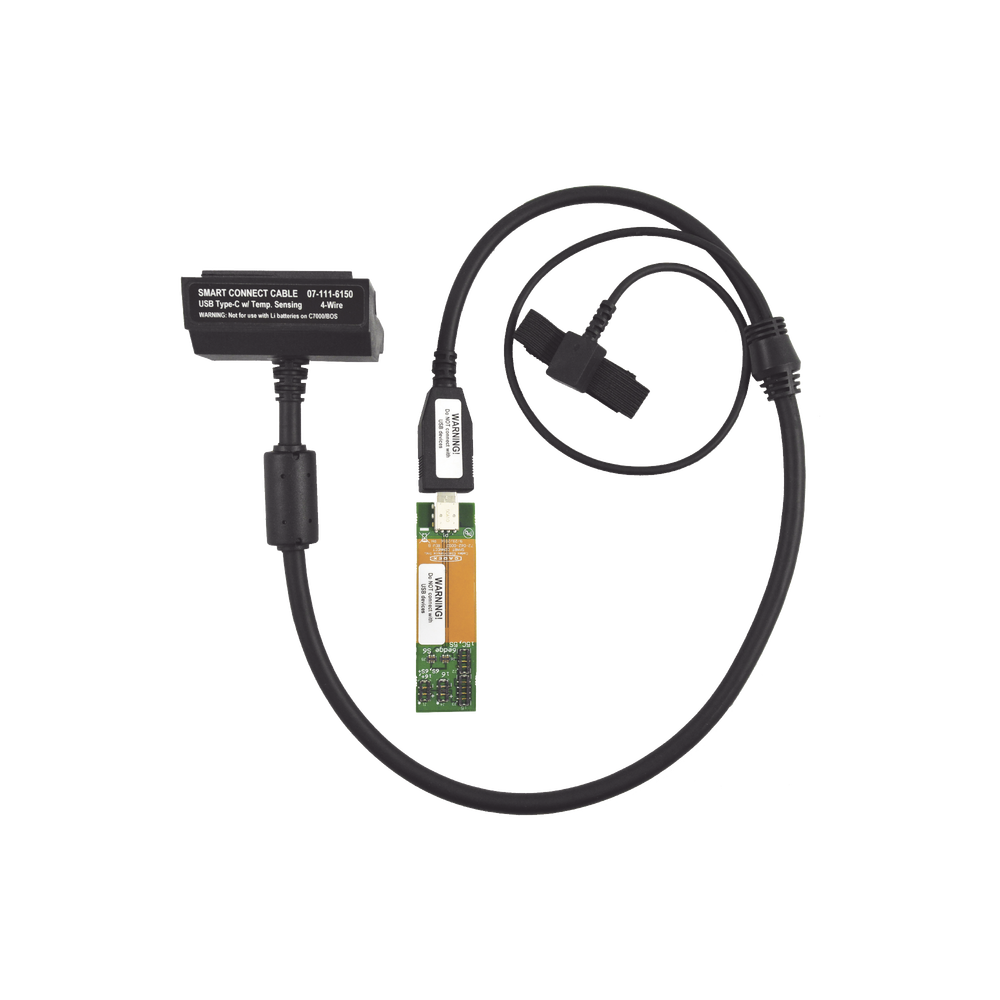

Battery Adapter for C7X00-C SERIES ANALYZER for Apple iPhone and Samsung (Smart Connect Adapter)

Battery Adapter for C7X00-C SERIES ANALYZER for Apple iPhone and Samsung (Smart Connect Adapter)

Battery Adapter for C7X00-C SERIES ANALYZER for (Smart Connect Adapter) APPLE IPHONE 5 / 6 SERIES

Some smartphones have non-removable batteries, but these

also requires testing. The SmartConnect with FlexStrip allows

Perform the test without removing the battery. With the device open,

Unplug the battery cable from the phone jack and insert it

into the corresponding socket on the FlexStrip.

Compatibility:

iPhone

5, 5c, 5s, 6, 6 Plus, 6s, 6s Plus, 7, 7 Plus

Samsung

S6, S6 EDGE, S7, S7 EDGE, S8, S9, NOTE 5, NOTE 8

All Cadex Universal Battery Adapters are electrically backward and forward compatible with all Cadex Analyzers.

Please refer to the Analyzer for further specification information.

Mechanics:

SnapLock ^TM design, interchangeable with custom battery adapters.

Contacts:

RigidArm: Gold-plated contacts*, rated at 3A

FlexArm: Gold-plated contacts*, rated at 3A

SmartCable: two alligator clips, red and black, connected by banana plugs; rated at 3A

SmartConnect with FlexStrip*: Micro-connector for select iPhone/Samsung batteries, rated at 3A

* Replaceable field

Electrical:

16kb of non-volatile memory. Battery configurations (C-Code) are entered via the analyzer. Battery parameters are stored in the adapter.

Each unique Cadex battery adapter has 10 unique C-Codes.

Types of Battery Chemistry:

Lithium Ion/Polymer (Li-ion/Li-Po), Nickel Metal Hydride (NiMH), Nickel Cadmium (NiCd),

Lead acid (SLA).

Warranty:

1 year warranty

Against defective materials and workmanship (or manufacturing defects) from the date of purchase.

2-year warranty

When purchased with a Cadex C-7X00-C series analyzer.

SnapLock™ Adapter compatible with our C5100B, C7000 Series Battery Analyzers and C8000 Battery Test System.

For Samsung S6 S6 Edge, Apple iPhone 5 5c 5s 6 6+ 6S 6S+:

Apple, iPhone 5, Li-Ion, 3.6 V, 1425 mAh
Apple, iPhone 5c/s, Li-Ion, 3.6 V, 1550 mAh
Samsung, Galaxy S6, Li-Ion, 3.6 V, 2550 mAh
Samsung, S6 Edge, Li-ion, 3.6 V, 2600 mAh
Apple, iPhone 6, Li-Ion, 3.6 V, 1800 mAh
Apple, iPhone 6+, Li-ion, 3.6 V, 2900 mAh
Apple, iPhone 6S, Li-Ion, 3.6 V, 1700 mAh
Apple, iPhone 6S+, Li-Ion, 3.6 V, 2750 mAh
