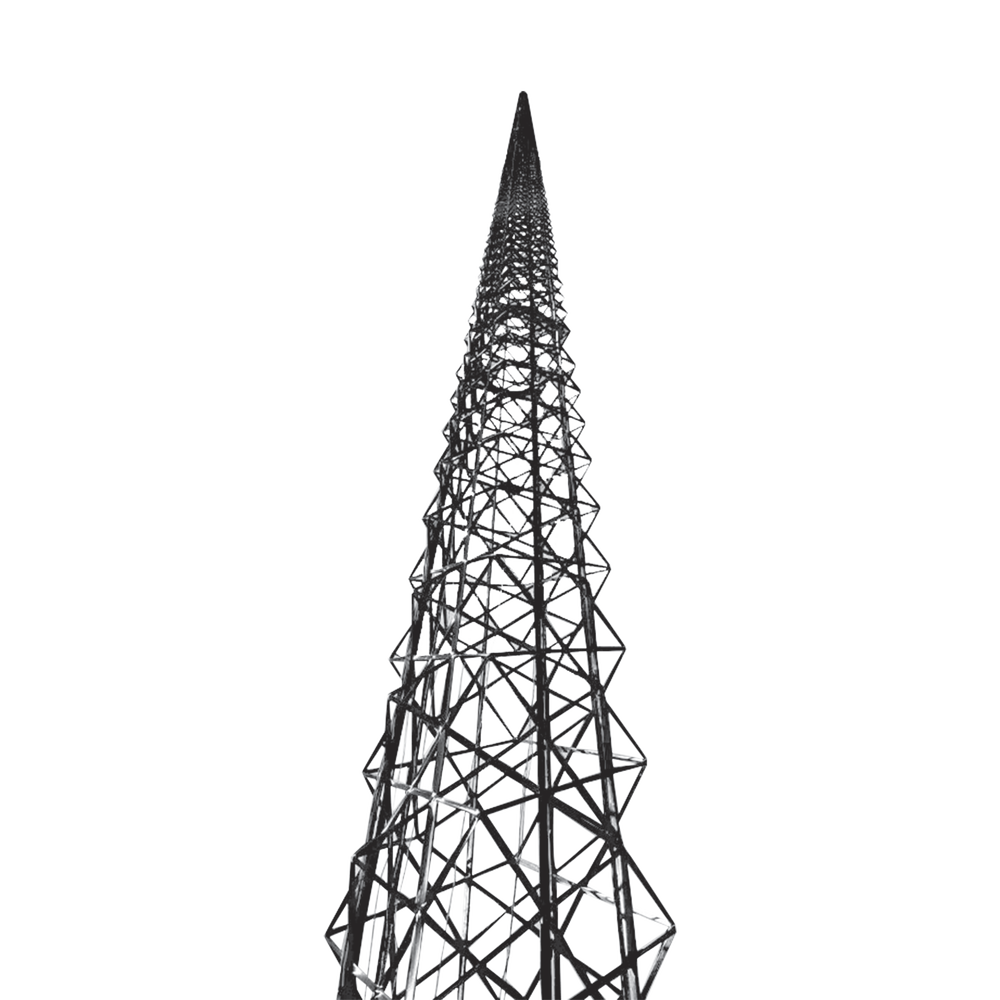

Carbon Fiber Tower 18.3 meters (60 feet) Self-supporting - ULTRA LIGHTWEIGHT.

Carbon Fiber Tower 18.3 meters (60 feet) Self-supporting - ULTRA LIGHTWEIGHT.

The New Steel of the World
IsoTruss is the ultra-lightweight alternative to traditional structures made of wood, steel, aluminum and other metals.
It generates significant savings for tower installers, operators, and the facility owner. It also provides an attractive, symmetrical, and highly durable design at an extremely affordable price.

Physical Characteristics:

• Height: 18.3 m (60 ft).
• Weight: 172.4 kg (380 lb).
• Diameter: 68.5 cm (27”).
• Ceiling mount capability.
• Up to 100% transparency for RF.
• Option to install antennas inside or outside the tower.

Design features:

• EPA (permissible antenna area): 10 square feet.
• Designed for wind gusts up to: 90 MPH
• Class structure: II
• Topographic category: 1
• Exhibition category: C
• Axial load capacity: 2268 kg (5000 lbs)
• Design according to TIA-222-G standard

*Requires custom fittings depending on the installation. Consult the engineering department for recommendations.

Direct Savings in Installation Cost.
· 20% reduction in foundation.
· Without the use of cranes or helicopters.
· 25% reduction in concrete drying.
· 75% reduction in tower installation time.
· 2 to 3 people for installation.
· Reduction in freight and fuel costs.
· Improved site accessibility.

Patented Structure

• It does not corrode.
• 1/12 the weight of steel.
• 70% less CO2 compared to steel.
• 2X lifespan of steel.
• 100% transparency for RF.

IsoTruss® Applications

• Towers for repeater sites.
• Internet distribution tower.
• Rooftop, lighting, mobile, and surveillance towers.
• Monopole replacement.
• Marine radio bases.
• Broadcasting towers.

Reference Videos:

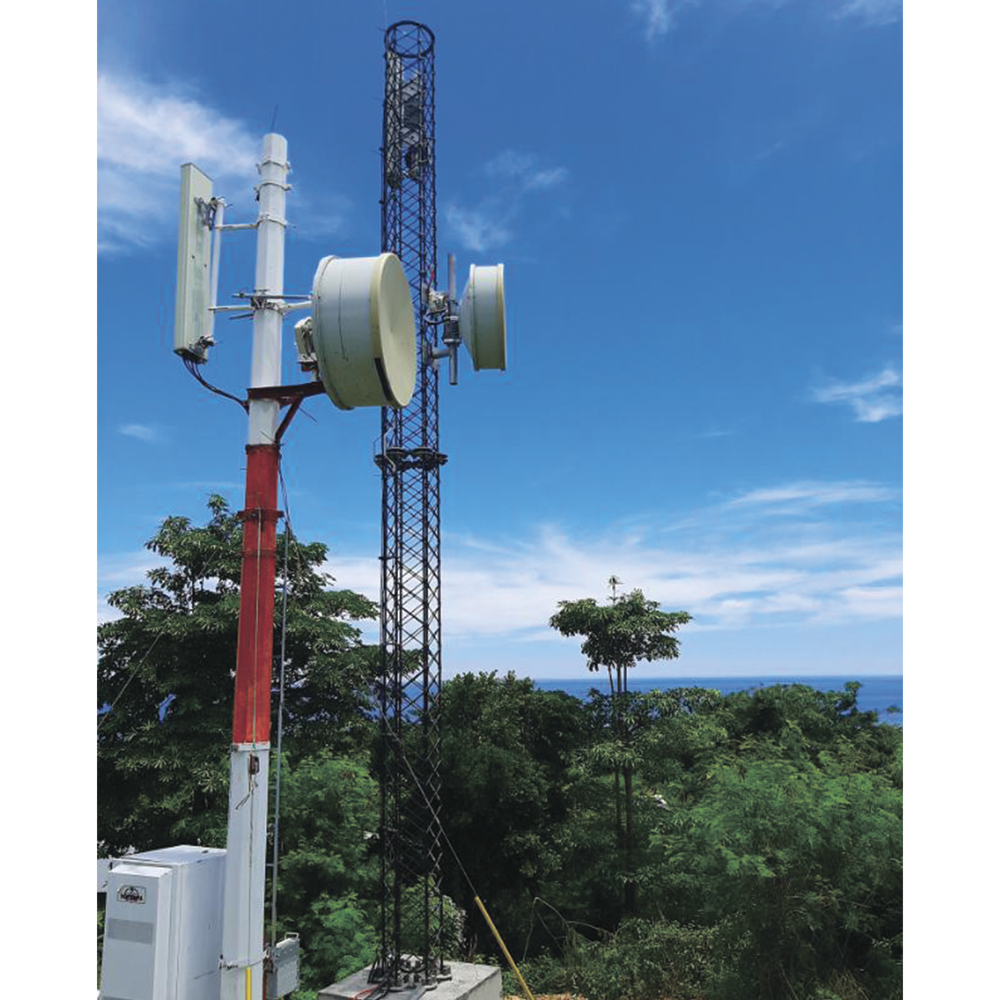

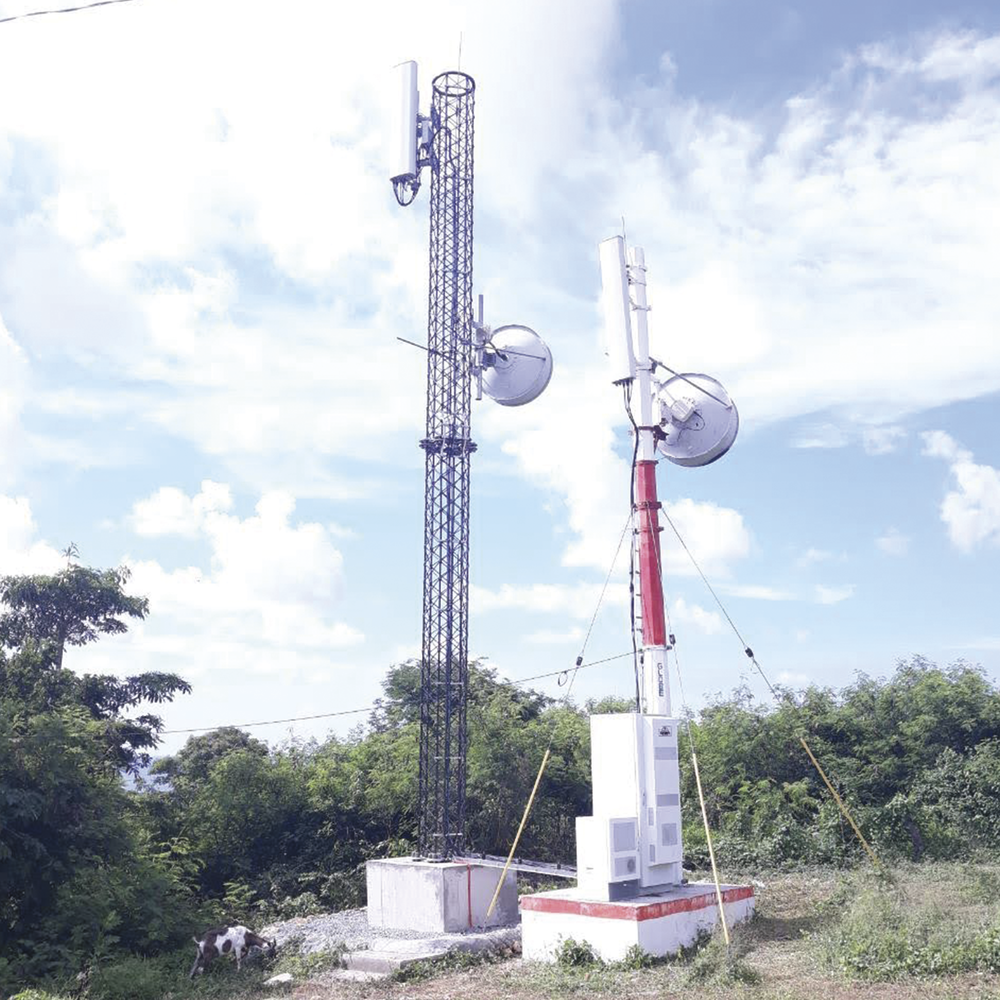

Reference Images:
