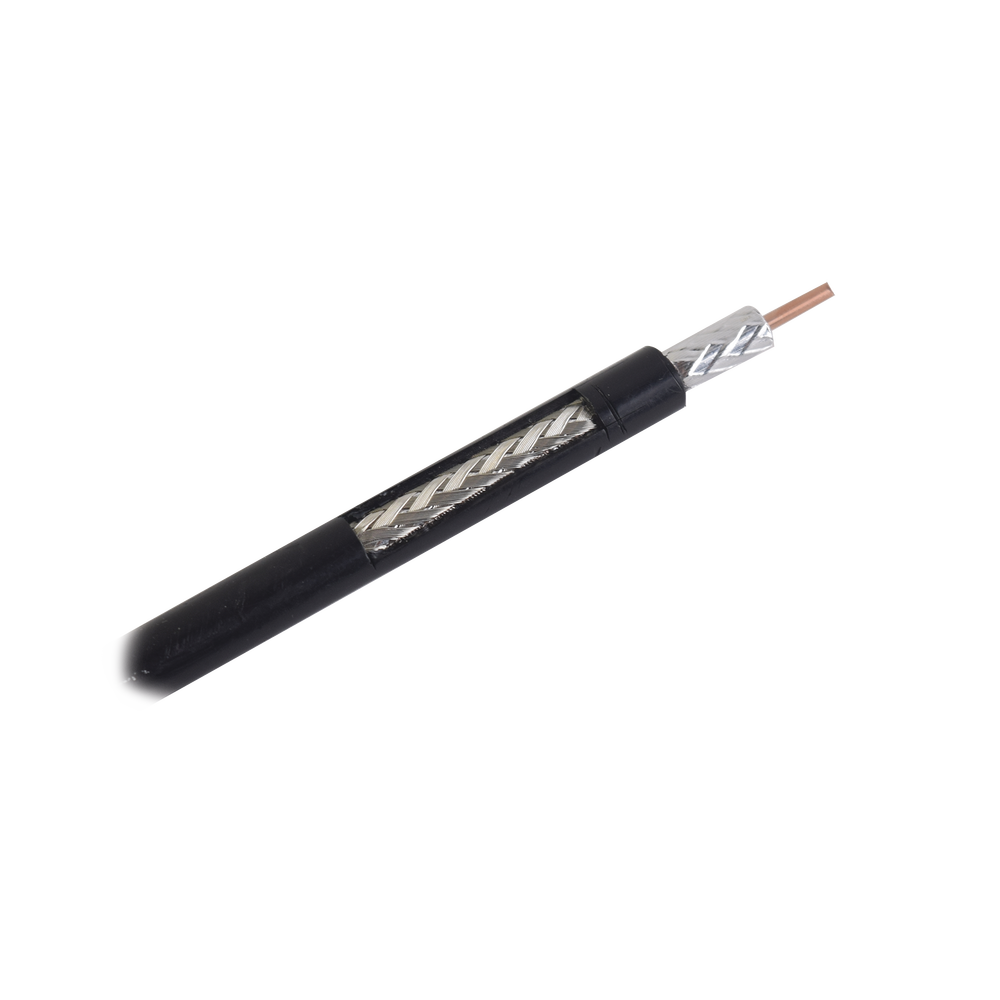

RG-8X, Low Loss Coaxial Cable Meter, Copper Center Conductor, 50 Ohms

RG-8X, Low Loss Coaxial Cable Meter, Copper Center Conductor, 50 Ohms

Times LMR high-performance coaxial cable. Superior design with high flexibility and low loss, recommended for a wide variety of applications requiring a low-loss, easy-to-install RF cable.

Advantages of the LMR-LW240 cable

• Direct replacement for RG-8/X and Belden 9258 models.
• Cost and weight reduction thanks to its aluminum mesh .
• Performance similar to that offered by corrugated copper cables.
• Superior flexibility.
• Easier and faster installation.
• Better shielding and lower loss compared to other RG type cables.

Ideal for:

• Short cable installations.
• Jumpers for communication systems.
• Any application such as: radio communication systems, GPS, WiMax, Satellite, RF ID, DAS Systems, Etc.

Technical Specifications

• Impedance: 50 Ohm.
• Attenuation at 30 mts. at 150 MHz: 3.0 dB.
• Attenuation at 30 mts. at 450 MHz: 5.3 dB.
• Shielding Effectiveness: greater than 90 dB
• Speed ​​Factor: 83%.
• Nominal Power: 0.38 kW at 450 MHz.

Construction Specifications

• Center Conductor Material: Solid Copper.
• Cable Outer Diameter: 6.10 mm (0.240 In)
• Inner Conductor Diameter: 1.42 mm (0.056 In)
• Shielding: Aluminum mesh + Aluminum tape.
• Dielectric Insulation: Polyethylene foam.
