5.9-6.4 GHz- Punto - Punto/ Multipunto Conectorizado (SIN GPS) - C060900A221A

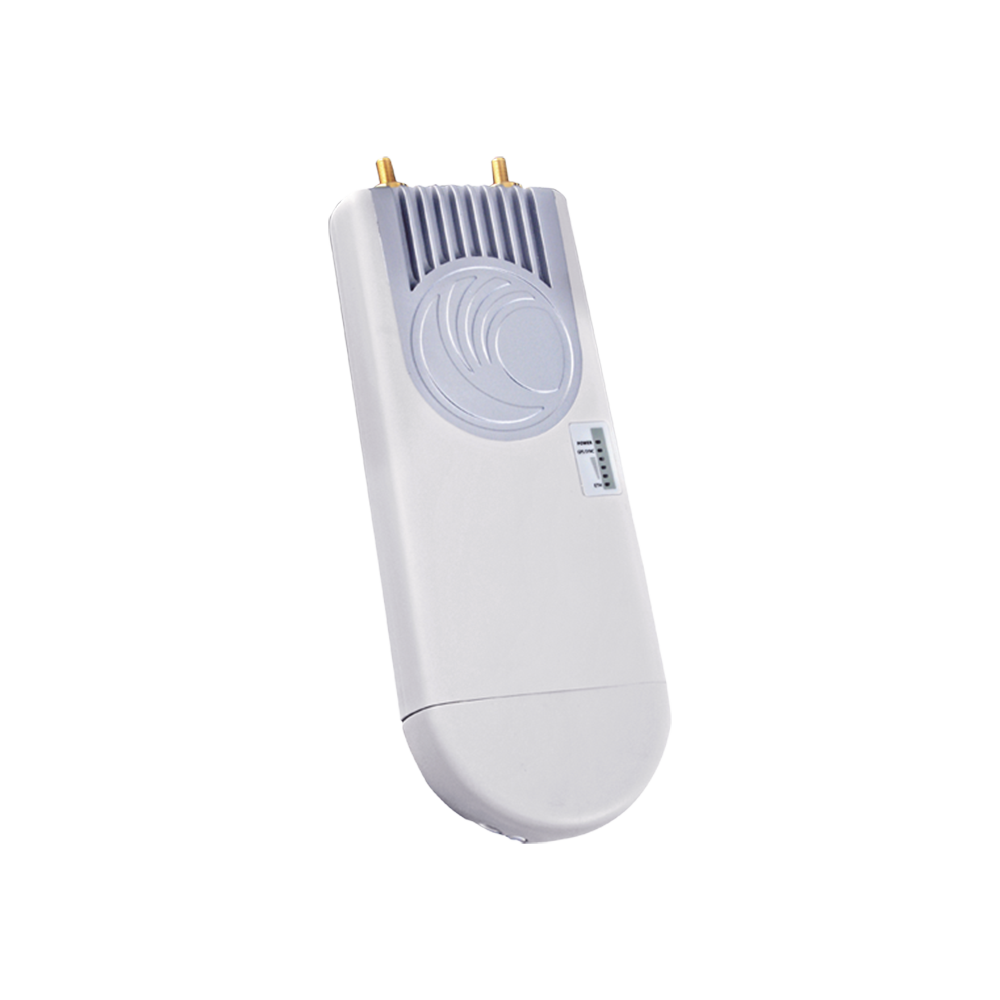

5.9-6.4 GHz - Point - Point/Multipoint Connectorized (NO GPS) - C060900A221A

Sale price  $933,736 Regular price  $1,167,097
Skip to product information
5.9-6.4 GHz- Punto - Punto/ Multipunto Conectorizado (SIN GPS) - C060900A221A

5.9-6.4 GHz - Point - Point/Multipoint Connectorized (NO GPS) - C060900A221A

Sale price  $933,736 Regular price  $1,167,097
Shipping calculated at checkout.
Marca
CAMBIUM NETWORKS
Referencia / SKU
EPMP-6C
Disponibilidad
Agotado por ahora
Descripción y especificaciones

5.9-6.4 GHz - Point - Point/Multipoint Connectorized (NO GPS) - C060900A221A




FOR LICENSED BAND USE ONLY

Cambium Networks' ePMP solution provides stable coverage across large service areas and enhances existing infrastructure to deliver reliable, high-quality broadband connectivity that can be deployed rapidly.

MIMO and modulation 2x2 MIMO/OFDM
Bandwidth 5/10 MHz, 20/40 MHz
Frequency range 5.9 – 6.4 GHz
Maximum power output 30 dBm combined
Revenue Depending on the connected antenna
Maximum power consumption 7 W Maximum, 5 W Typical
Exterior protection IP55
Management HTTPS, SSH, FTP, SNMPv2c
Antenna connector External (RP-SMA connectors)
Channel spaces Configurable in 5 MHz increments
MAC Layer Cambium Proprietary
Ethernet structure 100BaseT, rate auto negotiated (Cambium PoE)
Protocols used IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, FTP
VLAN 802.1Q with 802.1p priority
Input voltage 24 to 30 V
Encryption 128-bit AES (CCMP mode)
Dimensions 269 ​​x 110 x 77 mm
Weight 520 g
Number of subscribers 120
PoE included and power cable

* 1 year warranty

Quick Setup Guide


cnMaestro

LINKPlanner

cnArcher

cnHeat

cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers.

LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool.

LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide.

Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules.

Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world.

    Envíos y entregas

    Despachamos a toda Colombia. El valor del envío se calcula en el pago según el peso del pedido y el destino.

    Una vez despachado, te enviamos la guía para que sigas tu pedido.

    Pagos, factura y garantía

    Paga con tarjeta, PSE o Mercado Pago de forma segura. Los precios se muestran sin IVA: el IVA se suma en el pago y se incluye en tu factura electrónica.

    Todos los productos son nuevos y cuentan con garantía. ¿Necesitas asesoría? Escríbenos por WhatsApp al +57 350 810 8100.
