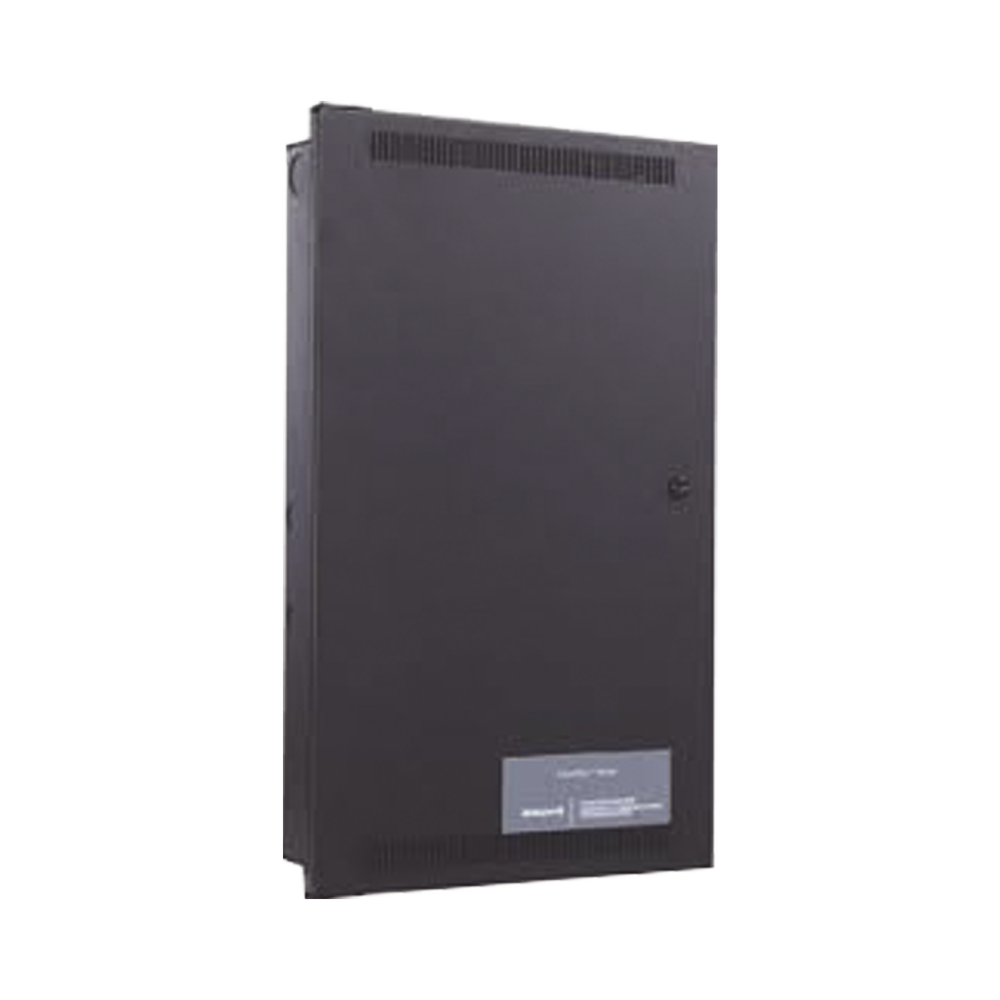

50 Watt Smart Amplifier in Black Cabinet

50 Watt Smart Amplifier in Black Cabinet

ECS-50W

The ECS-50W is a 50-watt intelligent amplifier for use with the IFP-100ECS, IFP-1000ECS, IFP-2000ECS, IFP-300ECS, and IFP2100ECS. The ECS-50W is used to amplify audio messages for distribution throughout the facility. Since it is designed as a self-contained distributed amplifier, it can be conveniently located near the protection zone to reduce wiring demands.

Each ECS-50W is capable of producing 50 watts of audio power. Up to eight ECS-50Ws can be used in the voice evacuation system.

The ECS-50W has its own battery-backed power supply and four speaker circuits, which can be expanded to eight speaker circuits with the optional ECS-CE4. The ECS-50W is fully monitored by the main panel for trouble conditions.

Characteristics:

• Addressable SBUS, up to eight ECS-125Ws per system for a total of 400 Watts.

• Each ECS-50W is supervised and has four built-in audio circuits expandable to eight with the ECS-CE4 for a total system of 64 audio circuits.

• ECS-50W uses easy wire harness installation to connect the ECS-CE4 expansion audio circuit.
• Can be mounted up to 1.8 km away from the ECS-Series panel.

• The ECS-50W has its own power supply and backup battery.

• Selection of 25 volts or 70.7 volts operation.

• Six-wire ECS system connection: two wires for the voice bus and four wires for SBUS connections.

• UL 864 and UL 2572.
• OSHPD (CA) OSP-0065-10.

• CSFM 7300-0559: 0173.
