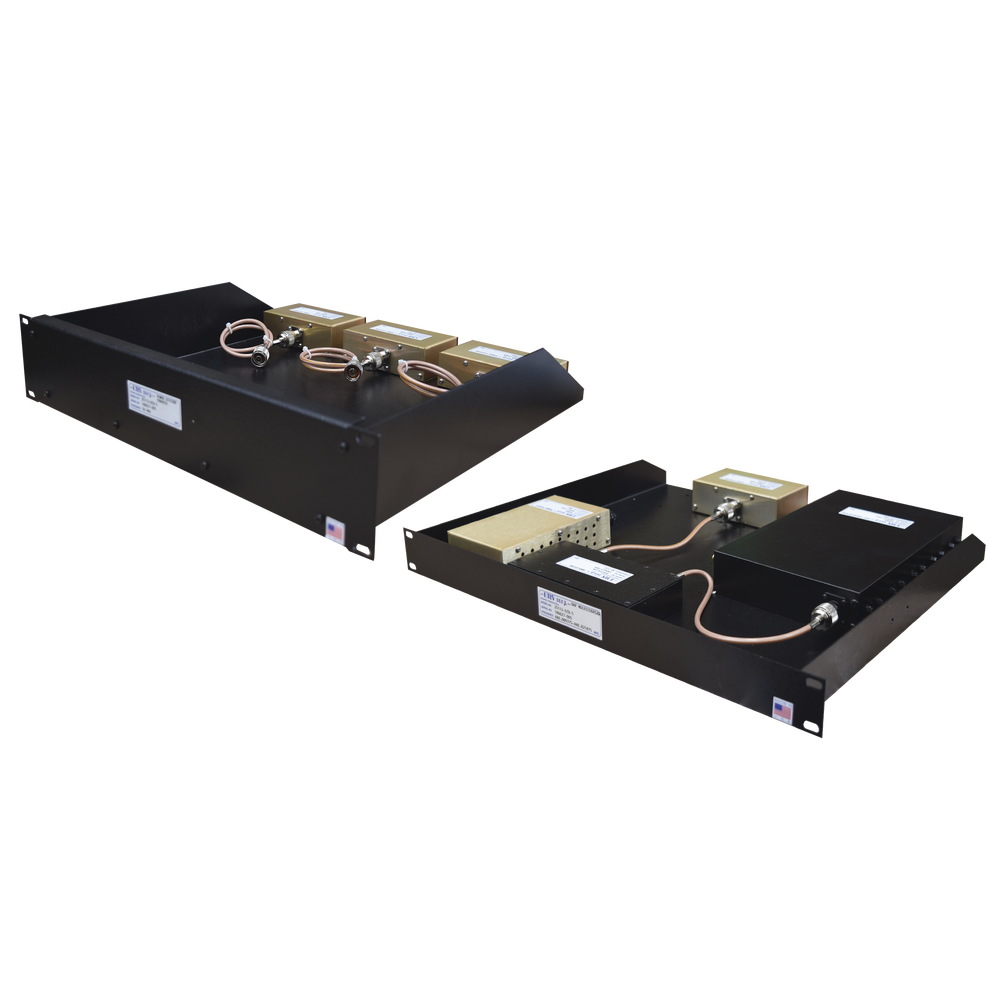

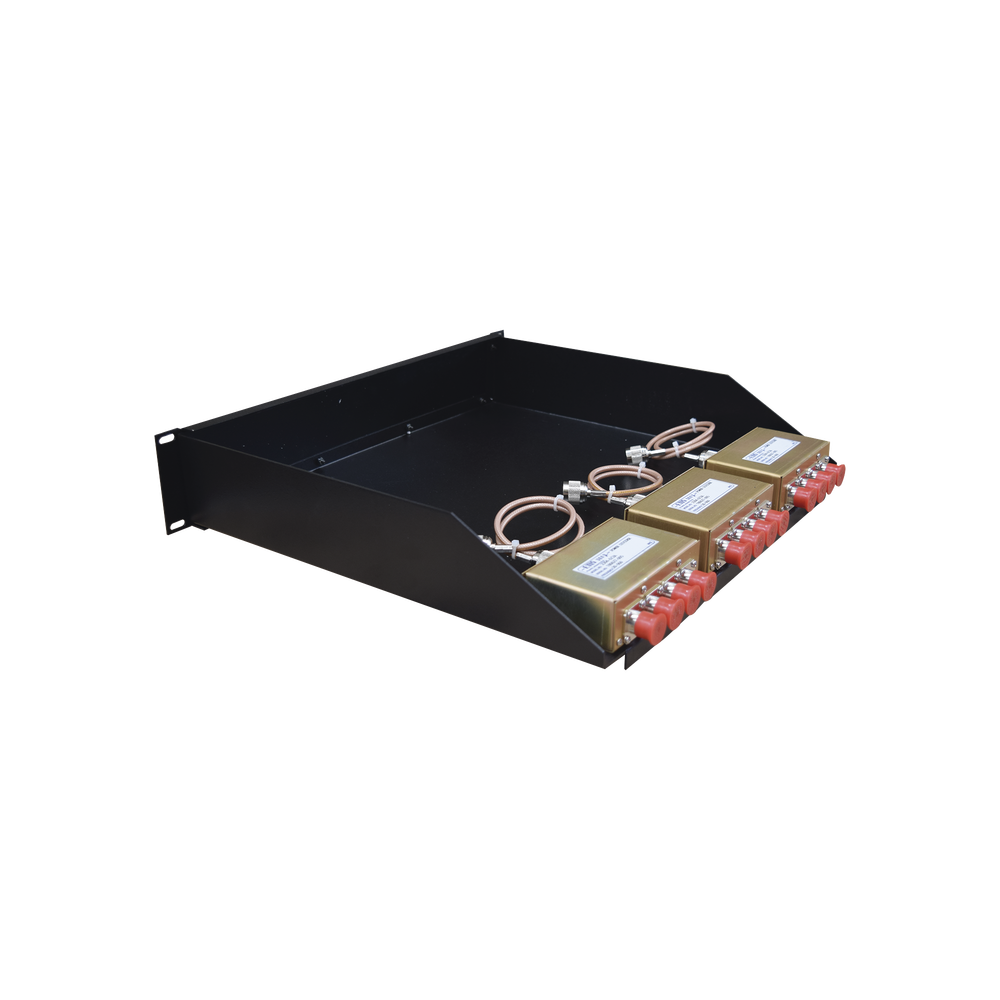

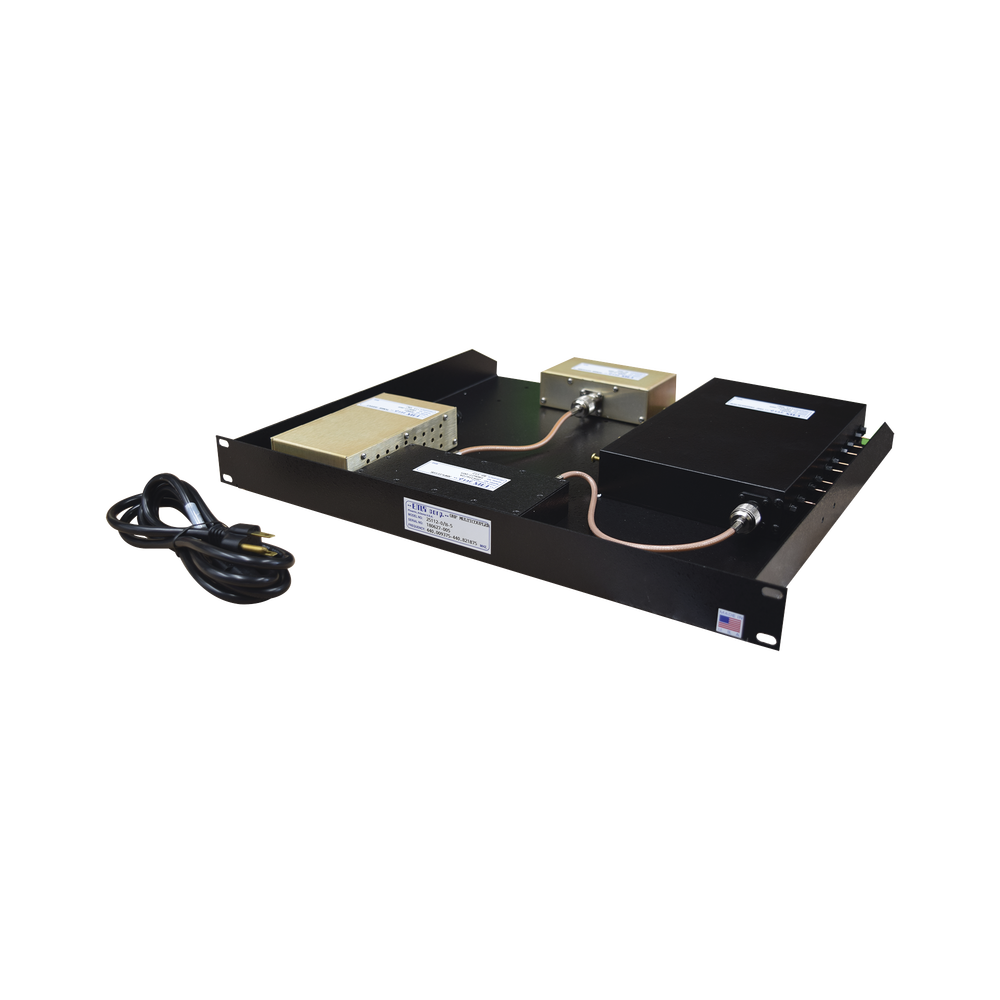

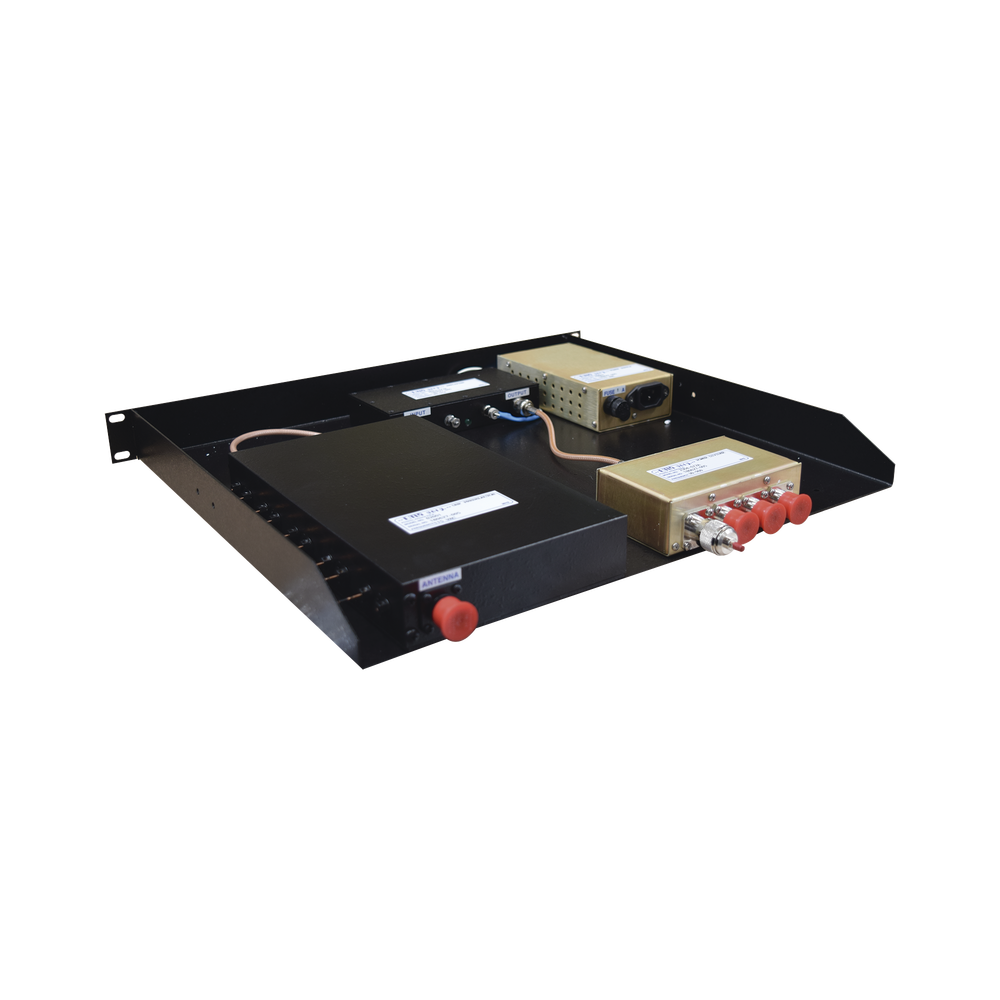

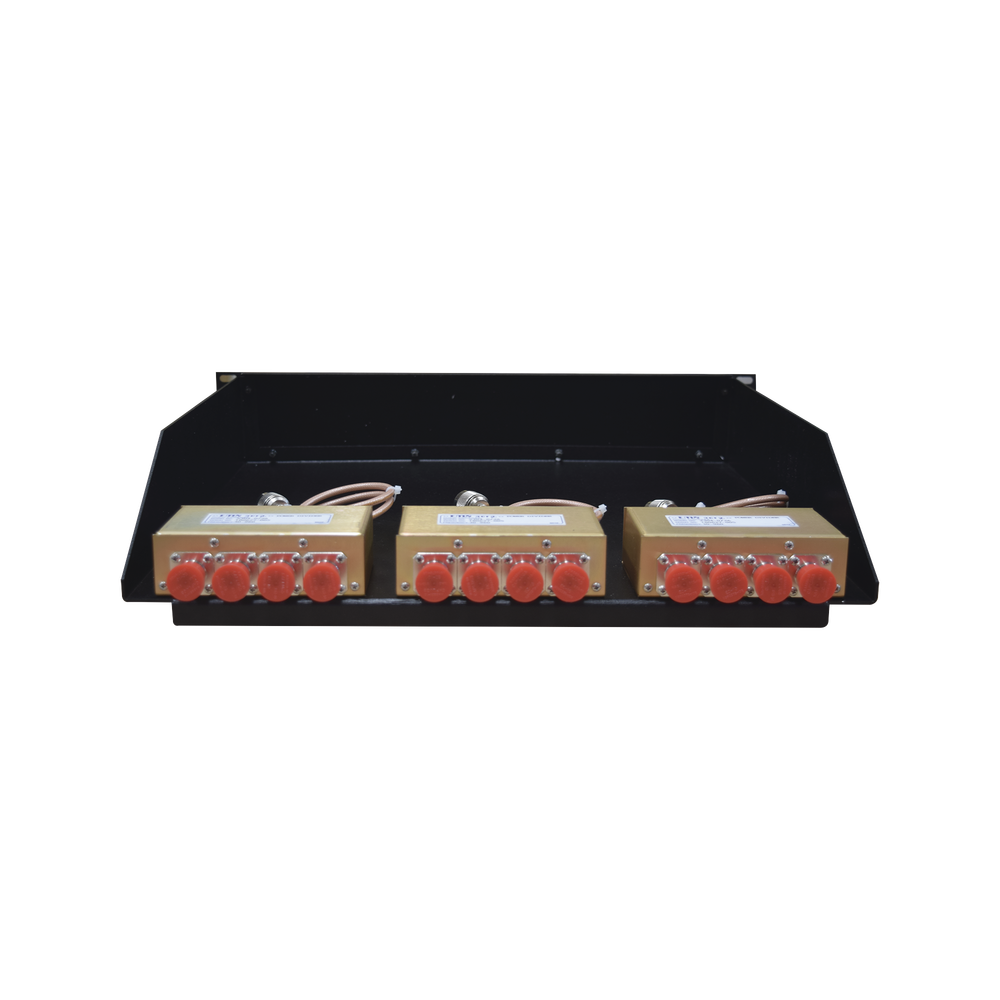

Multicoupler with Preselector 375-512 MHz, 12 Channels, 2-8 MHz, N Females.

• Frequency Range: 375-512 MHz.
• Number of Channels: 12 Max.
• Bandwidth: 2-8 MHz.
• Number of Resonators: 5.
• Rx-Rx isolation: +25 dB.
• System Voltage: 115 or 220 Vac.
• Amplifier Gain: +30 dB.
• Amplifier Type: Bipolar.
• Amplifier Noise Figure: <2.8 dB.
• Compression at 1 dB Amplifier: +21 dBm.
• Amplifier Bias Voltage: 13.6 Vdc.
• Amplifier Consumption Current: 250 mA.
• System NF (Typical): 5 dB.
• Nominal Impedance: 50 Ohm.
• Max VSWR @ Resonance: 1.25:1
• Temperature Range: -30ºC to +60ºC.
• Dimensions (Height x Width x Depth): 90 x 482 x 381 mm.
• Connectors (Input/Output): N/N Females.
• Weight for Packaging: 6.35 kg.

* Ask for Delivery Time.
