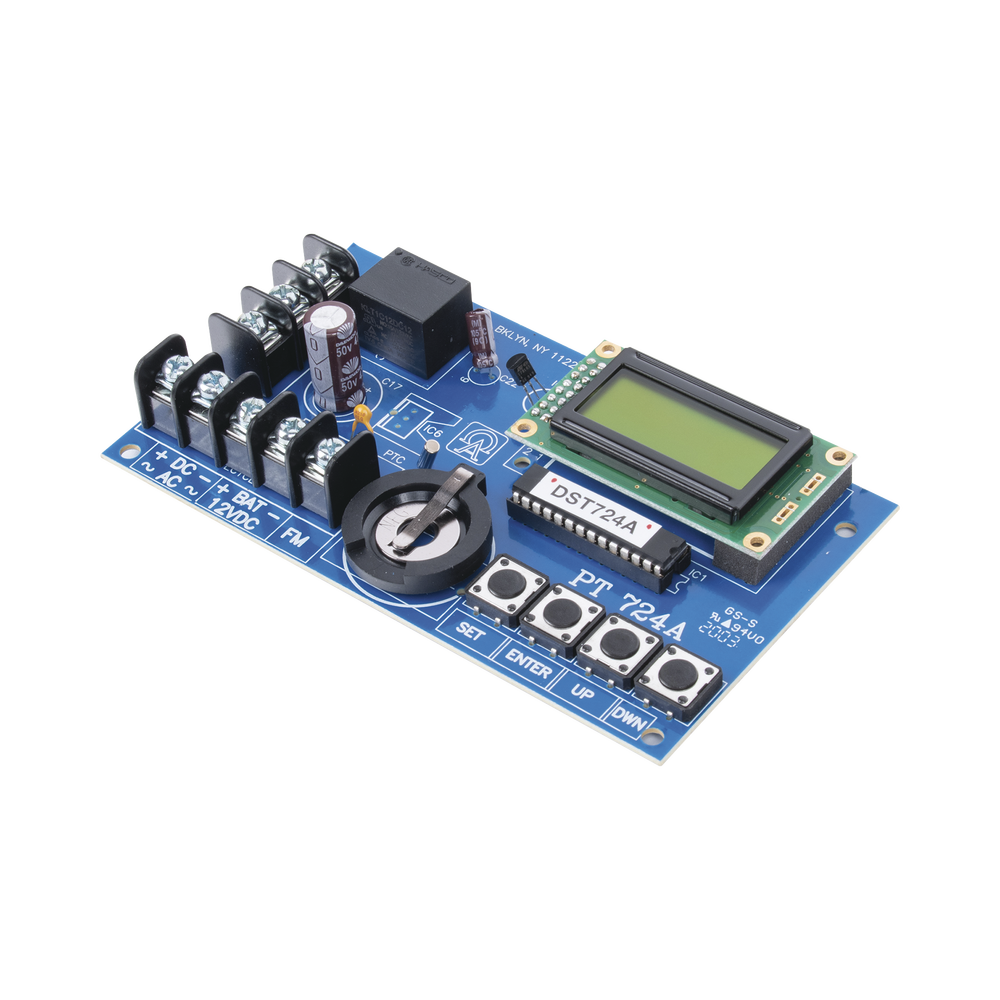

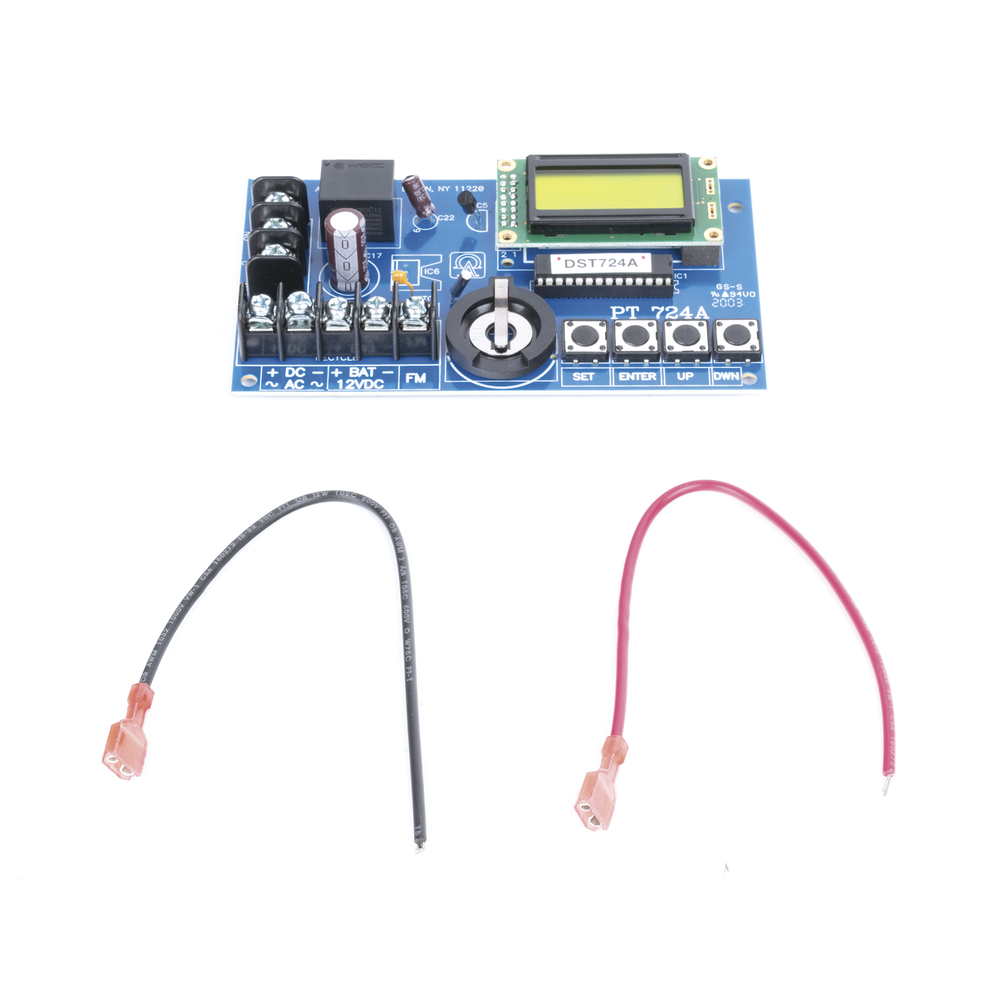

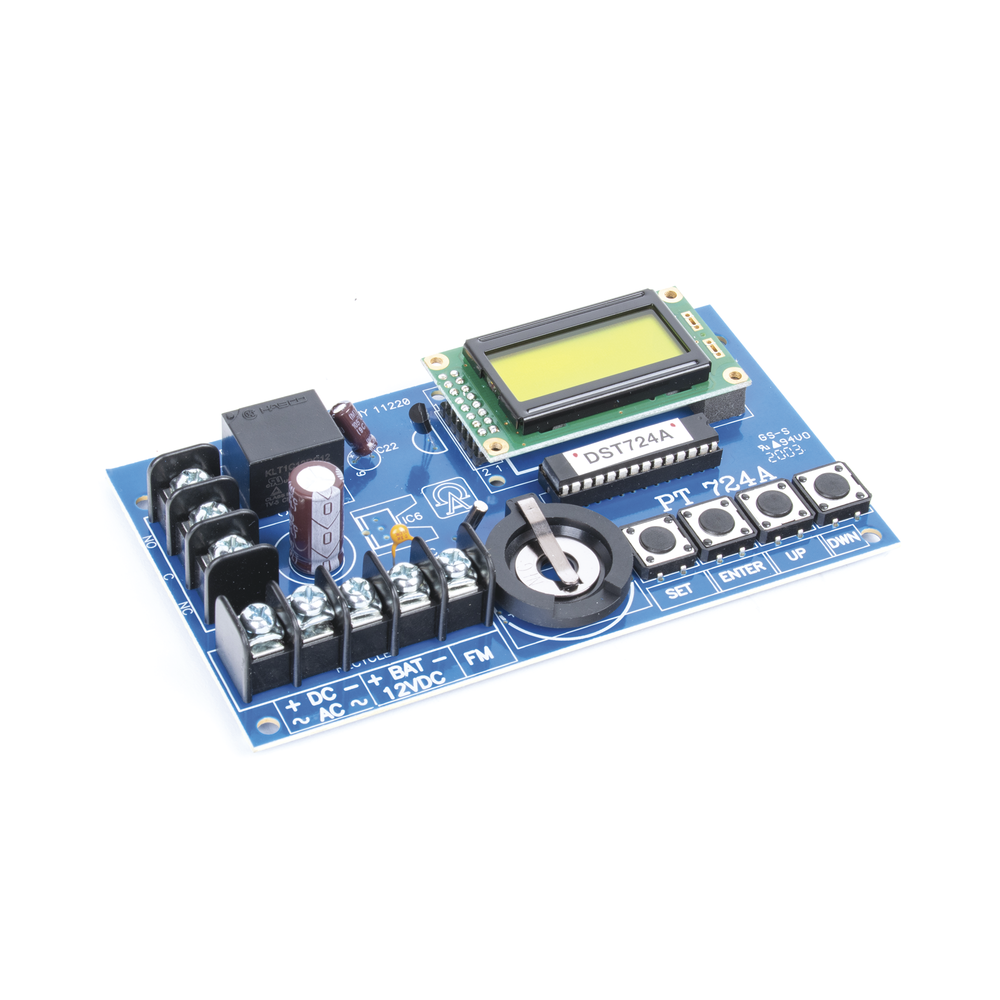

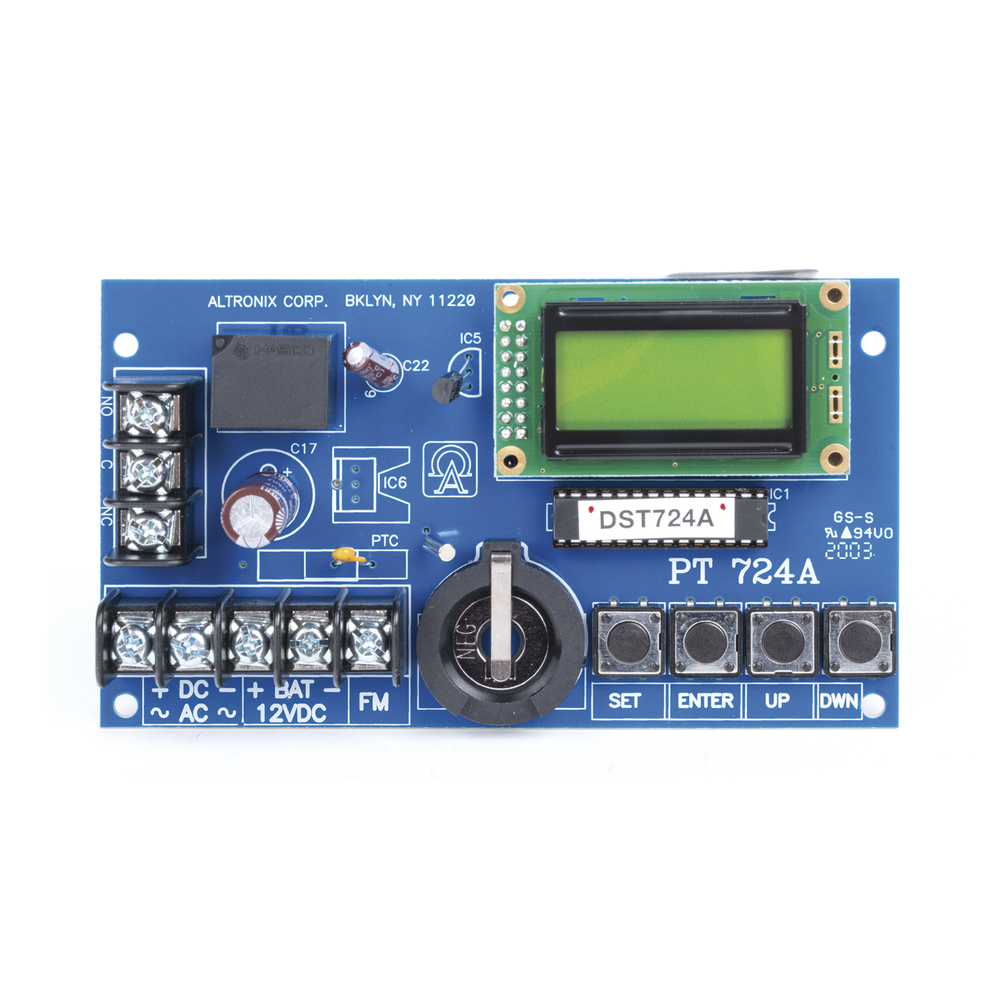

1-Channel 24-Hour, Up to 365-Day Event Card Timer with LCD Display and Backup Capability

1-Channel 24-Hour, Up to 365-Day Event Card Timer with LCD Display and Backup Capability

Specifications:

• Power supply: 12 - 24 Vac/ Vdc
• Relay: Type "C", 10 A capacity at 120 VAC / 28 VDC.
• Standby current: 10 mA (relay off) 50 mA (relay on).

Characteristics

• EEProm memory protects against loss of programming due to a power failure.
• Precisely controlled crystal clock.
• Momentary or latch events.
• Capacity for 50 programming events.
• 10 programmable vacation dates.
• "First man in" option.
• Setting standard time or daylight saving time.
• Automatic leap year compensation.
• Visual indicators
• The alphanumeric LCD display simplifies programming.
• Backup battery capacity
• Built-in charger for 12VDC sealed lead acid or gel batteries (maximum charging current 100 mA).
• The optional lithium battery backup keeps the clock running.
• Temperature: Operating -20ºC to 49ºC (-4ºF to 120ºF).
