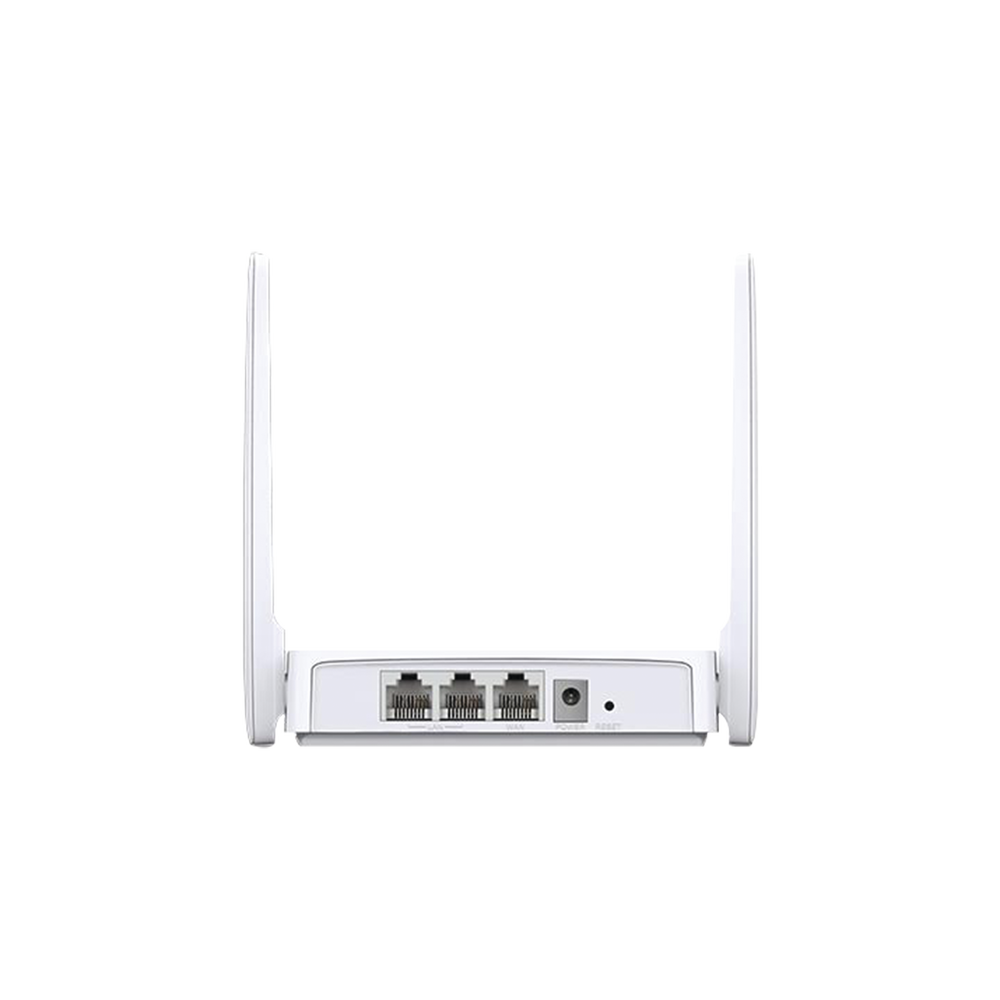

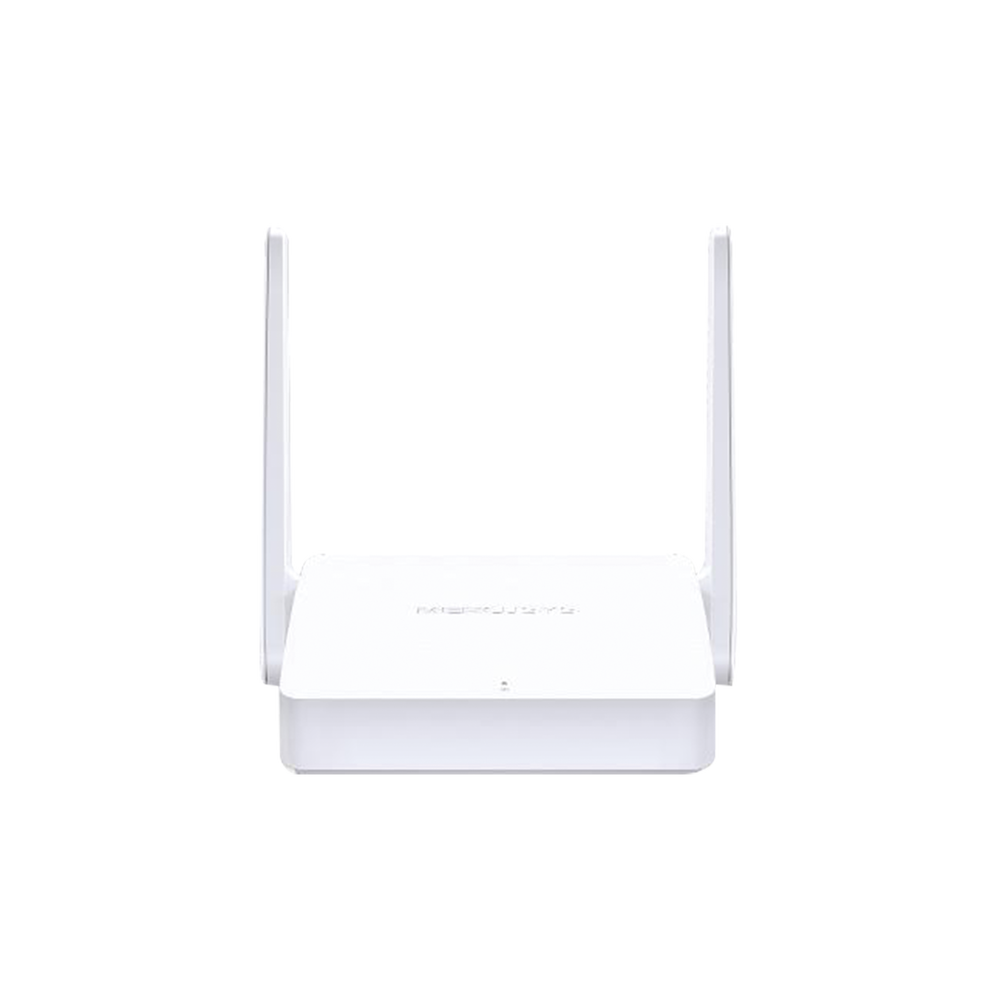

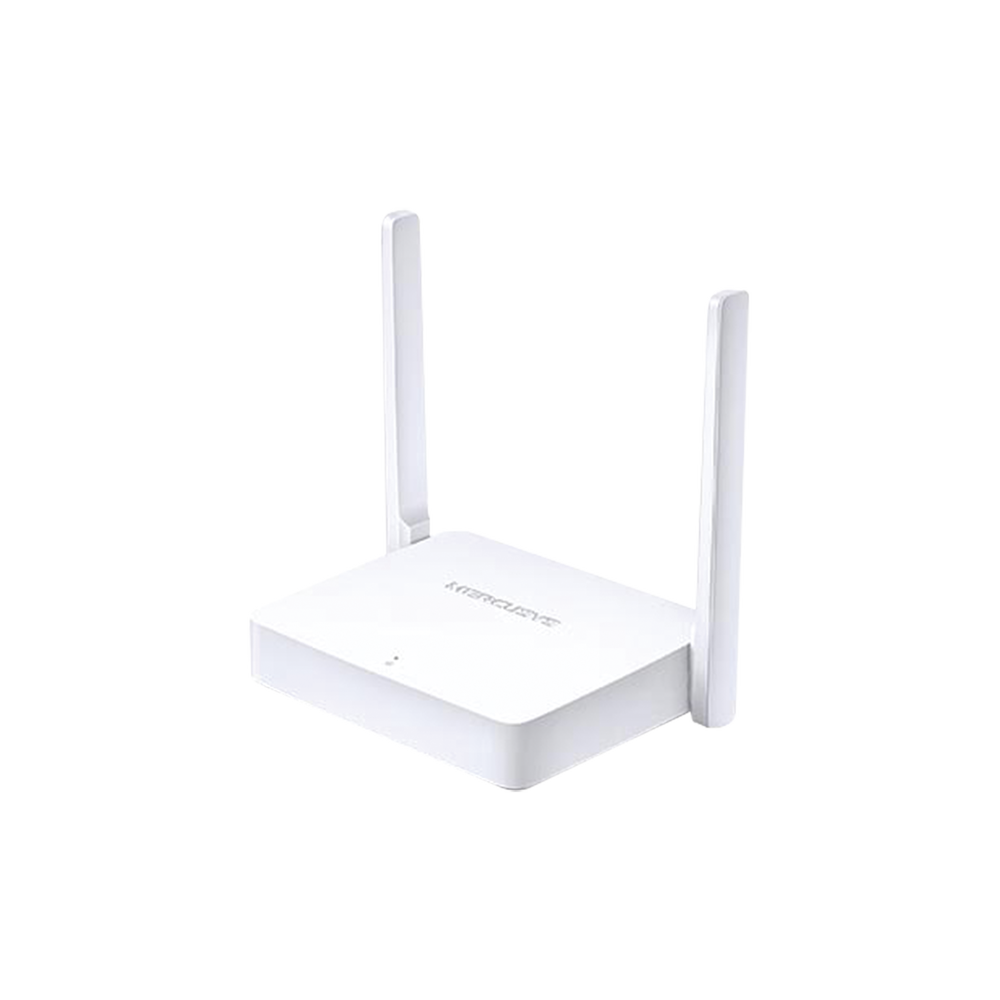

300Mbps WISP N 2.4GHz Wireless Router 1 10/100Mbps WAN port 2 10/100Mbps LAN ports version with 2 x 5dBi antennas

300Mbps WISP N 2.4GHz Wireless Router 1 10/100Mbps WAN port 2 10/100Mbps LAN ports version with 2 x 5dBi antennas

The Mercusys MW301R contains all the ideal functions for Wireless Internet Service Providers (WISPs), the main function is the possibility of making a completely personalized configuration and converting it into the factory (default) configuration of the device, with this when the user tries to return to factory settings, the device will have the personalized configuration that was loaded at the beginning, eliminating service failures due to this cause!

Agile Configuration

Download the Agile tool

The password to open .ZIP files is = Tplinkonly1

Main features

• The 300 Mbps wireless speed is ideal for HD streaming, online gaming, and large file downloads.
• Three 5dBi antennas significantly increase the strength, size and stability of the wireless signal.
• The intuitive website guides you through the setup process in minutes.

Specs

• 2 10/100Mbps LAN ports
• 1 10/100Mbps WAN port
• Transmission speed 300 Mbps
• 2 external omni-directional 5 dBi antennas
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
• Frequency 2.4 - 2.4835GHz
• WPA-PSK / WPA2-PSK wireless security
• Transmission power <20dBm

Physical and electrical characteristics

• Operating temperature: 0â °C ~ 40â °C (32â °F ~ 104â °F)
• Storage temperature: -40â °C ~ 70â °C (-40â °F ~ 158â °F)
• Dimensions (WxDxH) 114 x 94 x 26 mm
• External power supply 5 VDC/0.6 A

Includes

• MW301R Wireless Router
• Power adapter
• Quick installation guide
• Ethernet cable
