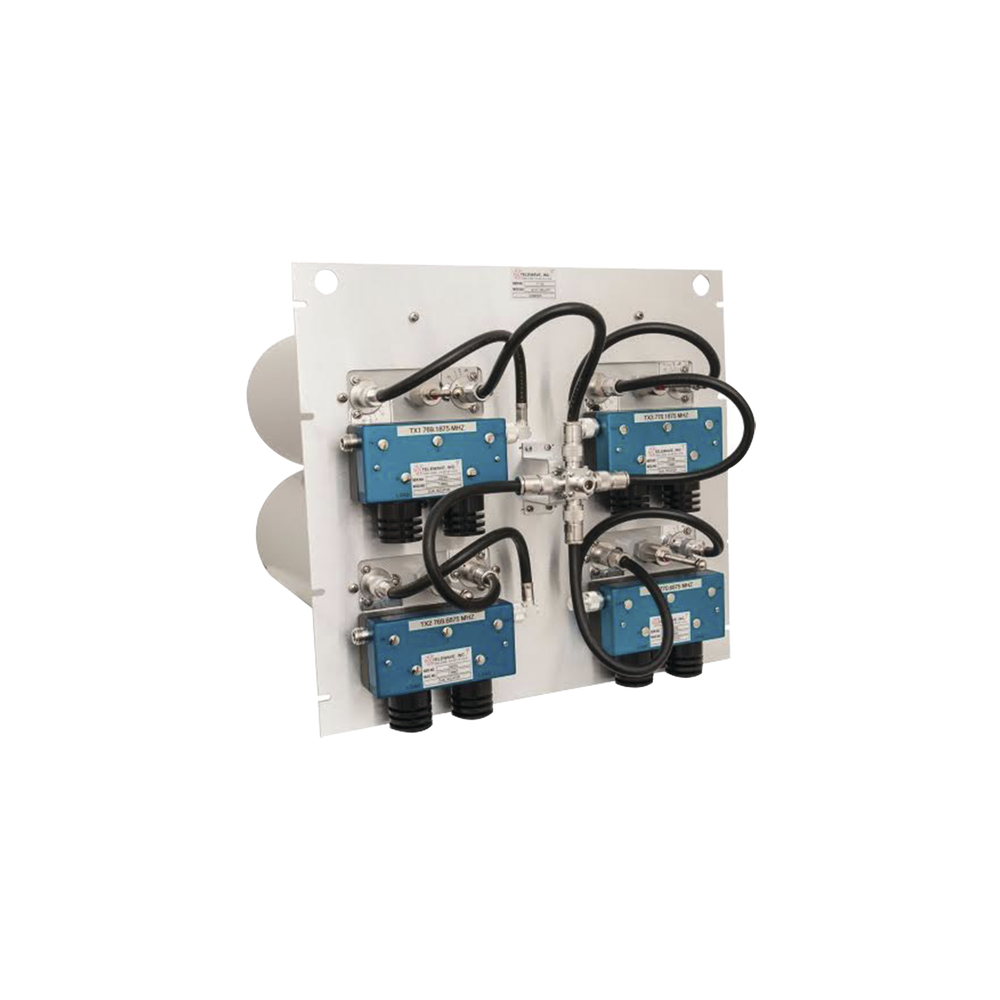

19" Rack Panel Combiner 300-400 MHz, 4 Channels (7" Diam.) 250 kHz Sep, 100/150 Watt, N Females.

19" Rack Panel Combiner 300-400 MHz, 4 Channels (7" Diam.) 250 kHz Sep, 100/150 Watt, N Females.

Combiner in Panel/Rack 19', 300-400 MHz, 4 Channels (7'Dia.) 250 KHz, 100/150 W.

• Frequency Range: 300-400 MHz.
• Number of Channels: 4 (7' Diameter-Cavity) 1/4 Wave.
• The Rack and Panel for Power Monitoring are Optional.
• Channel Separation (min.): 250 kHz.
• Input Power (Std./Opt.): 100/150 Watt per Channel.
• Input Impedance / VSWR (typical): 50 Ohm / 1.25:1
• Insertion Loss per Channel: 3.5 dB at 275 kHz Separation.
• Isolation between Tx-Tx (typical): 80 dB.
• Isolation between Antenna-Tx (typical): 75 dB.
• 2nd Harmonic Suppression (typical): 90 dB.
• Operating Temperature: -30º to +60ºC.
• Mounting / Connectors: 19' Rack Mount / N Female.
• Panel Dimension / 4 Channels (Height x Width x Depth): 44.5 x 48.3 x 66 cm.
• Weight: 19.1 kg.

 *Ask for Delivery Time.
