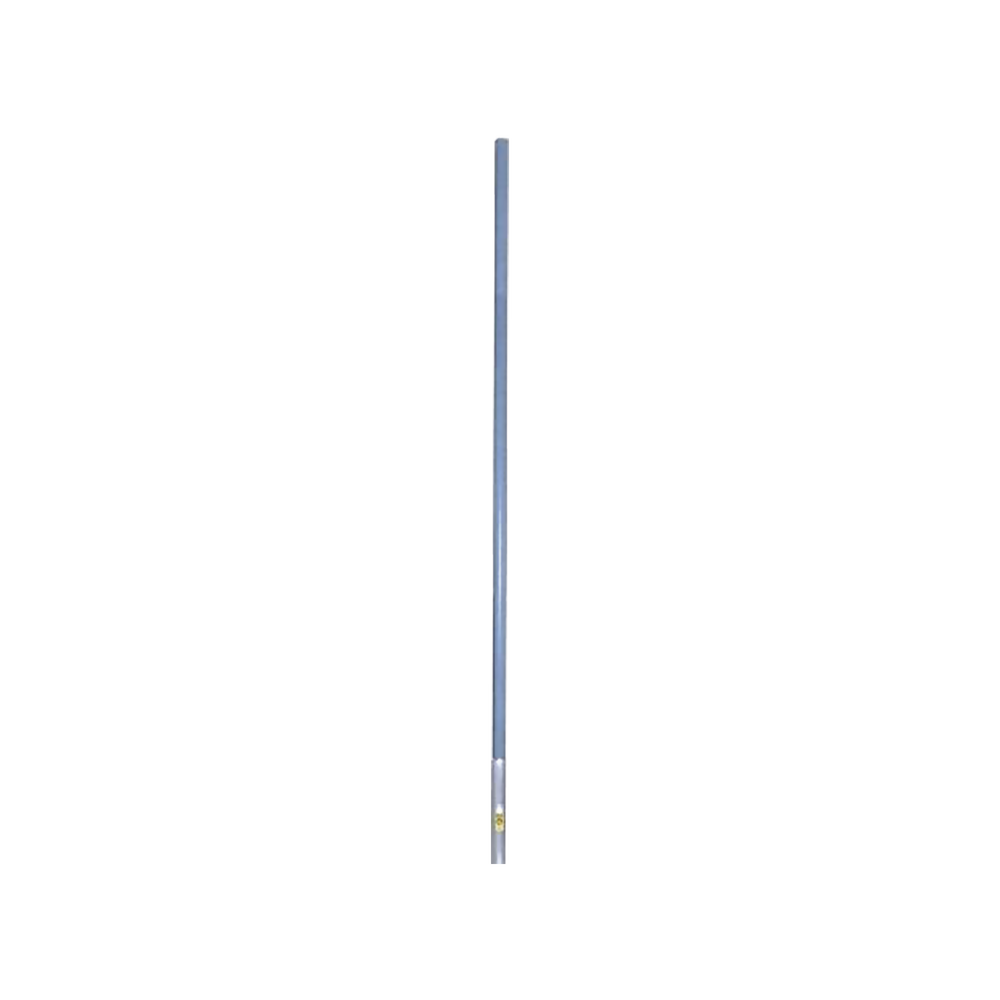

Omnidirectional Fiberglass Collinear/Base Antenna, 148-168 MHz, 5 dBd, 7-16 DIN-Female Connector.

Omnidirectional Fiberglass Collinear/Base Antenna, 148-168 MHz, 5 dBd, 7-16 DIN-Female Connector.

Fiberglass Collinear Omni Antenna, 148-168 MHz, 5 dB, 7-16 DIN-Female.

• Frequency Range: 148 -168 MHz.
• Bandwidth: 20 MHz.
• Gain (nominal): 5 dBd (7.1 dBi).
• VSWR (max): 1.5:1
• Polarization: Vertical.
• Impedance: 50 Ohm.
• Pattern: Omni-directional.
• Vertical Opening (typ.): 18º
• Average Power Input: 500 Watt.
• Passive Intermodulation (2 x 20W, 3rd order): -150 dBc.
• Discharge protection: DC grounding.
• Connector: 7-16 DIN-Female.
• Dimensions (Height/Width/Depth): 6312/ 127/ 127 mm.
• Tube Base Diameter: 127 mm.
• Base Tube Mount Length: 762 mm.
• Weight: 35.87 kg .
• Wind resistance: 274 km/h.
• Assembly not included.
• Requires 2 CLAMP-006C per antenna (5 in. Diam.)

*Ask for delivery time.

Requires 2 CLAMP-006C Mounts per antenna.
