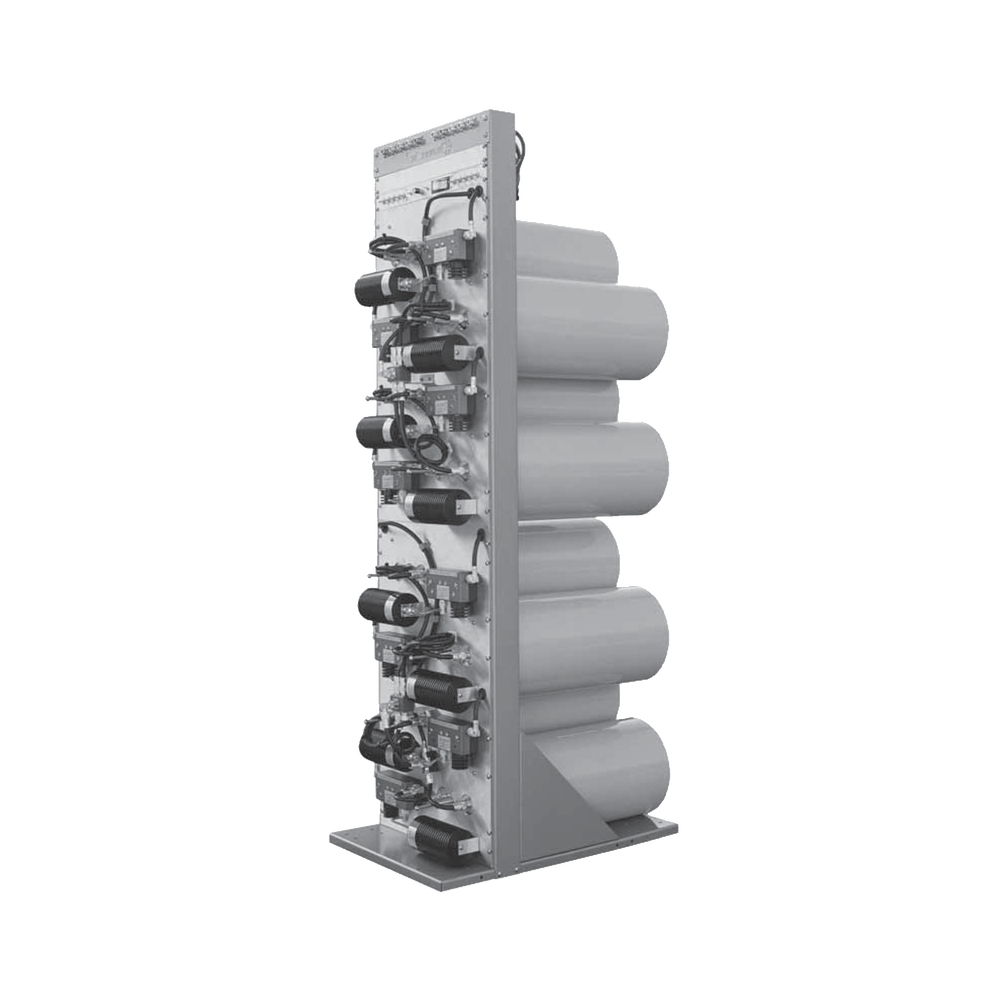

High-Q Rack Combiner 19", 400-512 MHz, 4Channels (10"Dia.) 2dB @ 150KHz (min.) 150Watt, N Females.

High-Q Rack Combiner 19", 400-512 MHz, 4Channels (10"Dia.) 2dB @ 150KHz (min.) 150Watt, N Females.

High-Q Combiner, 400-512 MHz, 4 Ch. (10' Dia.), 150 KHz (min.), N Females.

• Frequency range: 400-512 MHz.
• Number of Channels: 4.
• Cavity Size: 10' Diameter, 3/4 Wave.
• Channel Separation (min.): 150 kHz (175 kHz, typical).
• Input Power (max): 150 Watts per Channel.
• Input Impedance / VSWR (typical): 50 Ohm / 1.25:1
• Insertion Loss per Channel: 2.0 dB at 150 kHz Separation.
• Isolation between Tx-Tx (typical): 80 dB.
• Isolation between Antenna-Tx (typical): 75 dB.
• 2nd Harmonic Suppression (typical): 90 dB.
• Operating Temperature: -30ºC to + 60ºC.
• Mounting / Connectors: 19' Rack Mount / N Female.
• Dimensions (Height x Width x Depth): 214 x 51 x 66 cms.
• Weight: 113.5 kg.

*Ask for Delivery Time.
