MU-MIMO CPE subscriber up to 500+ Mbps, 4.9 - 6.2 GHz, 20 dBi Antenna, IP 67, Gigabit Port, For Point-to-Multipoint links

MU-MIMO CPE subscriber up to 500+ Mbps, 4.9 - 6.2 GHz, 20 dBi Antenna, IP 67, Gigabit Port, For Point-to-Multipoint links

Mimosa Networks Direct Support Link (Help Center)
http://client.help.mimosa.co/home

Firmware update go to this link
http://client.help.mimosa.co/c5-firmware

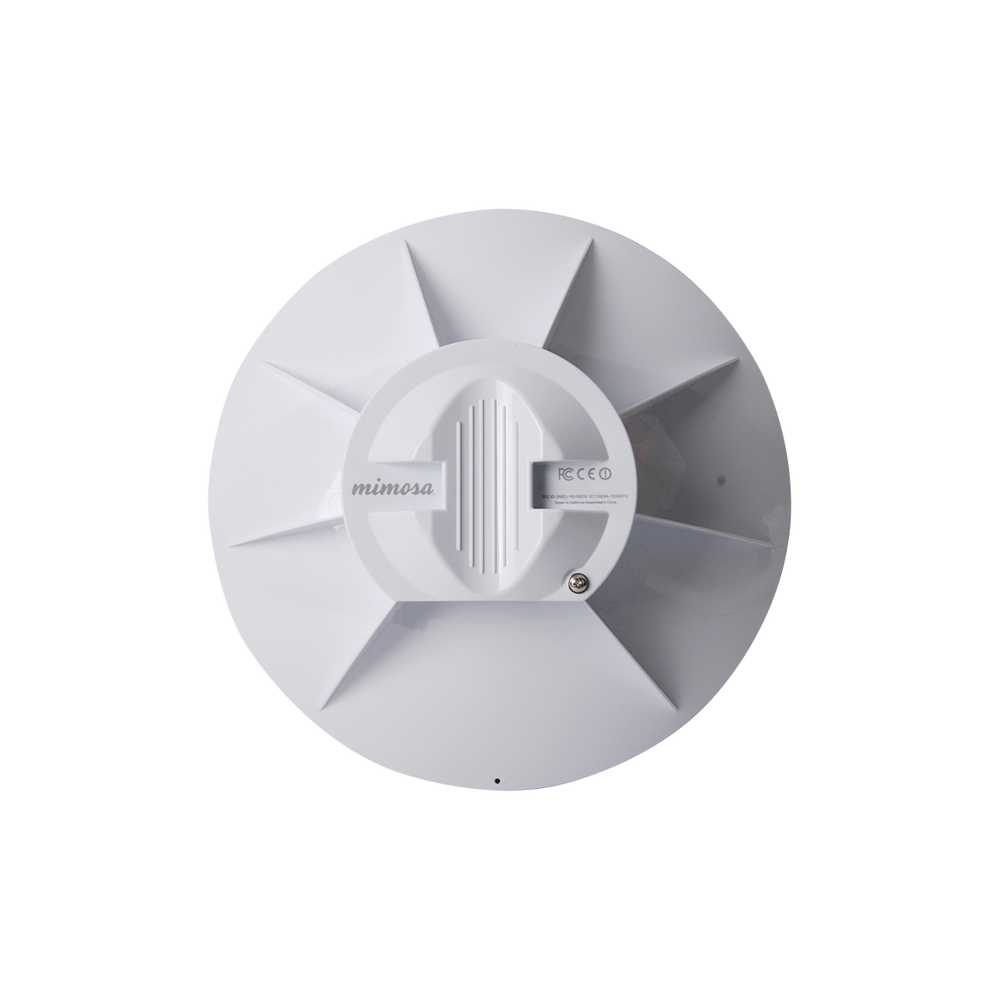

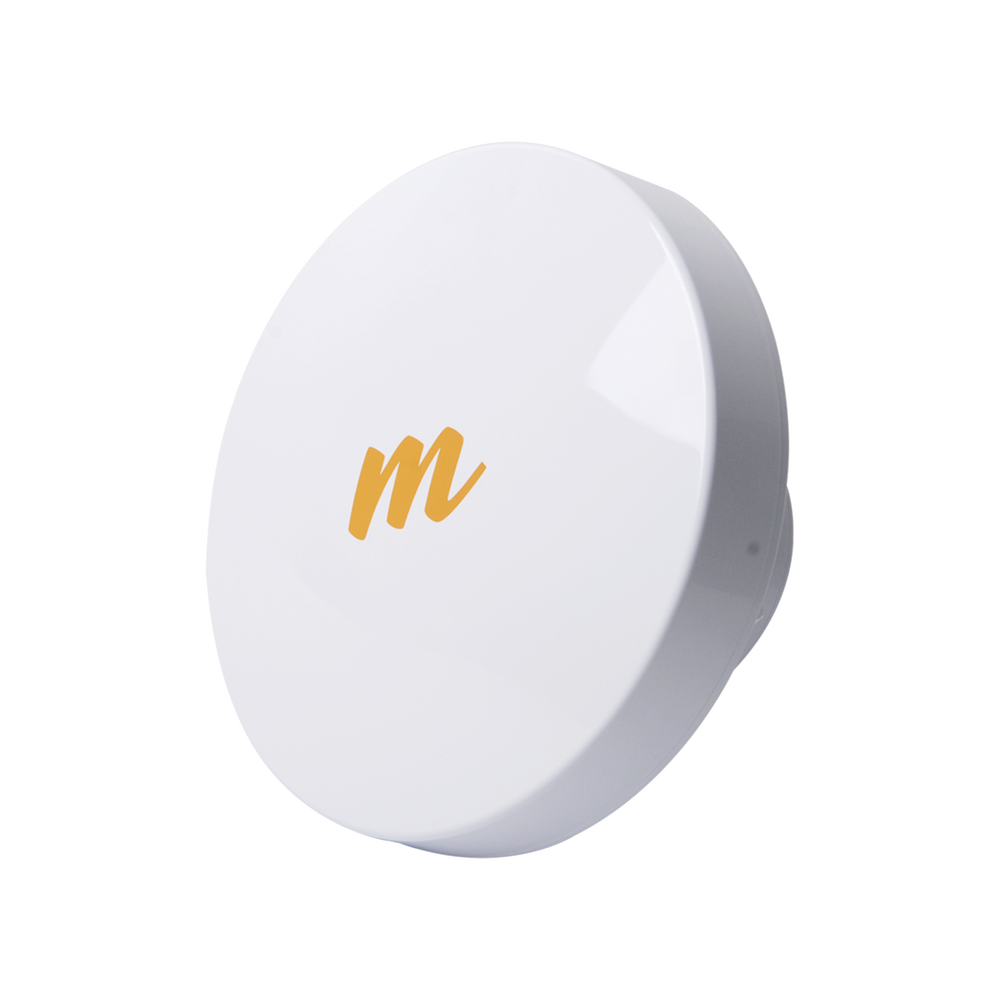

MC5 Integrated Client 20 dBi, 500 Mbps MU-MIMO 2x2:2, 802.11ac

(Estimated distance from 0 to 5 km depends on the conditions of each site such as noise levels and bandwidth sought)

• Frequency: PTMP 4900 - 6200 MHz client only.
• 20 dBi antenna , dual polarization slant 45°, azimuth 14° H / elevation 14° V.
• Transmission power: 20 dBm.
• Maximum power consumption: 7 W ideal for solar powered systems.
• Power supply: 48 - 56 Vdc via passive PoE injector POE-48V (included).

Some general features of 2x2:2ac MU-MIMO CPE clients

• Bandwidth: up to 500+ Mbps.
• MIMO and modulation: 2x2:2 MIMO OFDM up to 256 QAM.
• Channel widths : 20 / 40 / 80 MHz.
• Supports multi-user MU-MIMO.
• Weatherproof: IP 55.
• Wind resistance: 200 km/h (125 mph).
• Temperature range : -40 to 55 °C (-40 to 131 °F).

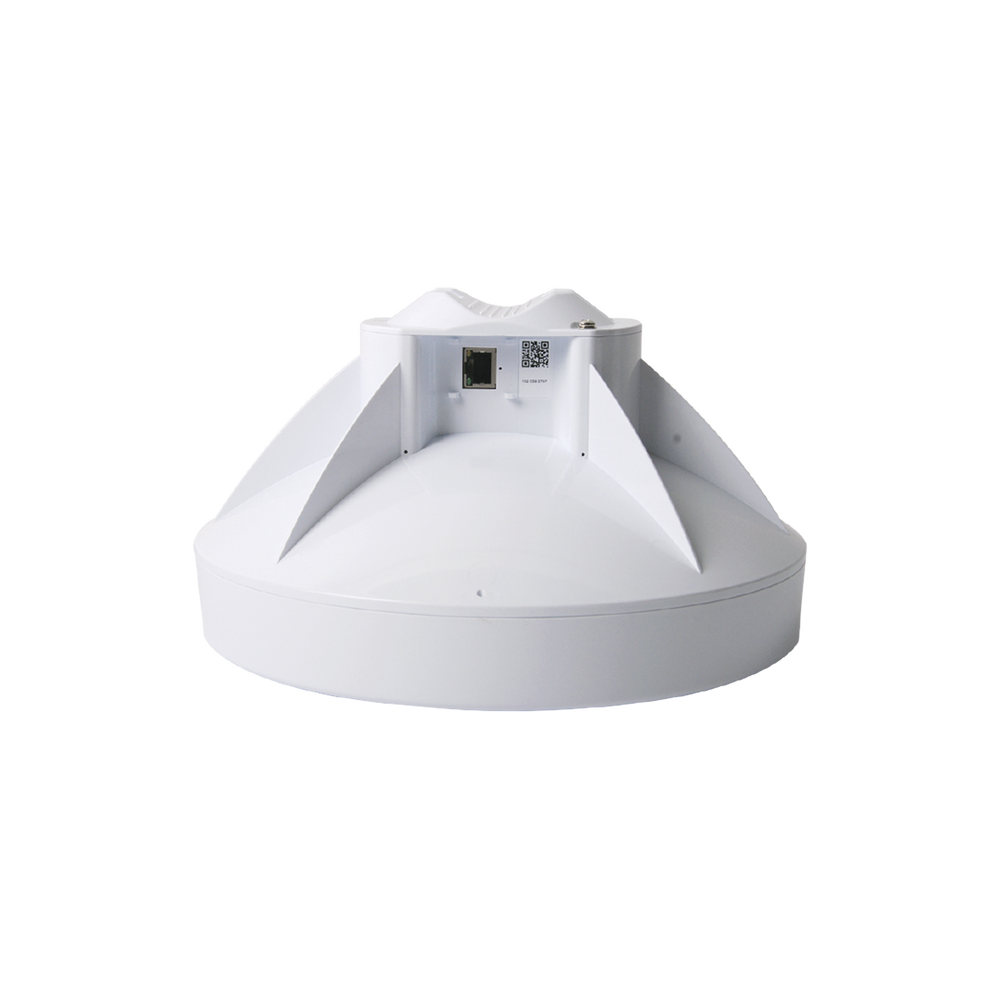

• Network interface: Gigabit Ethernet.
• Advanced security: WPA2 + Mimosa 802.1x RADIUS.
• Supports 4 pre-configured levels of QoS management.

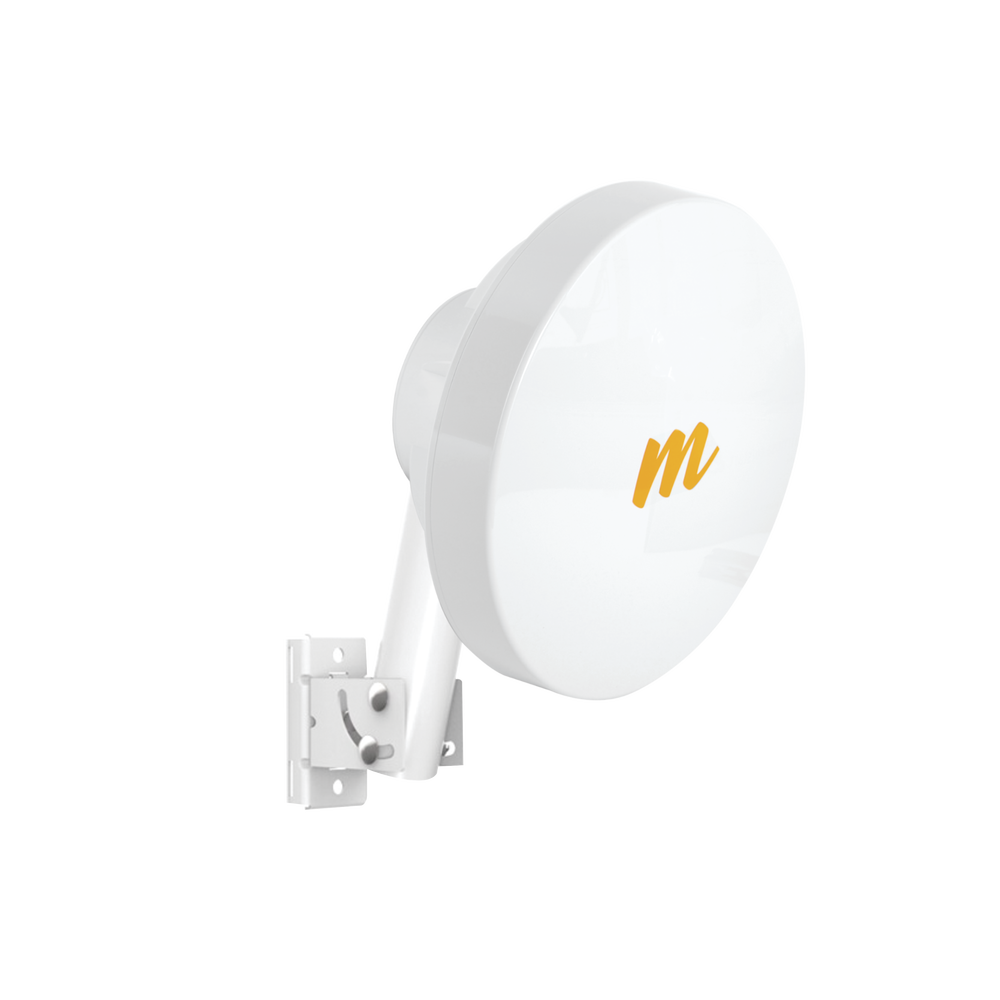

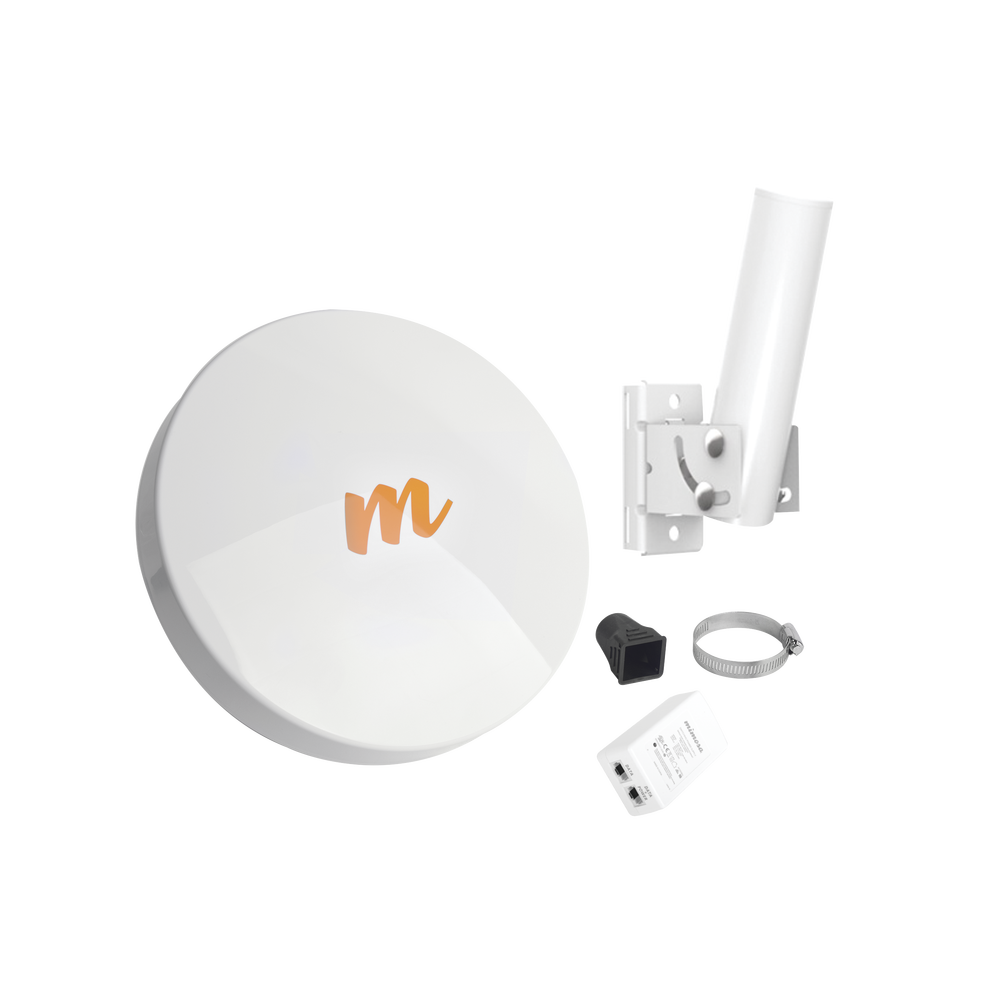

Includes POE-48V and FLEXIMOUNT mount.
