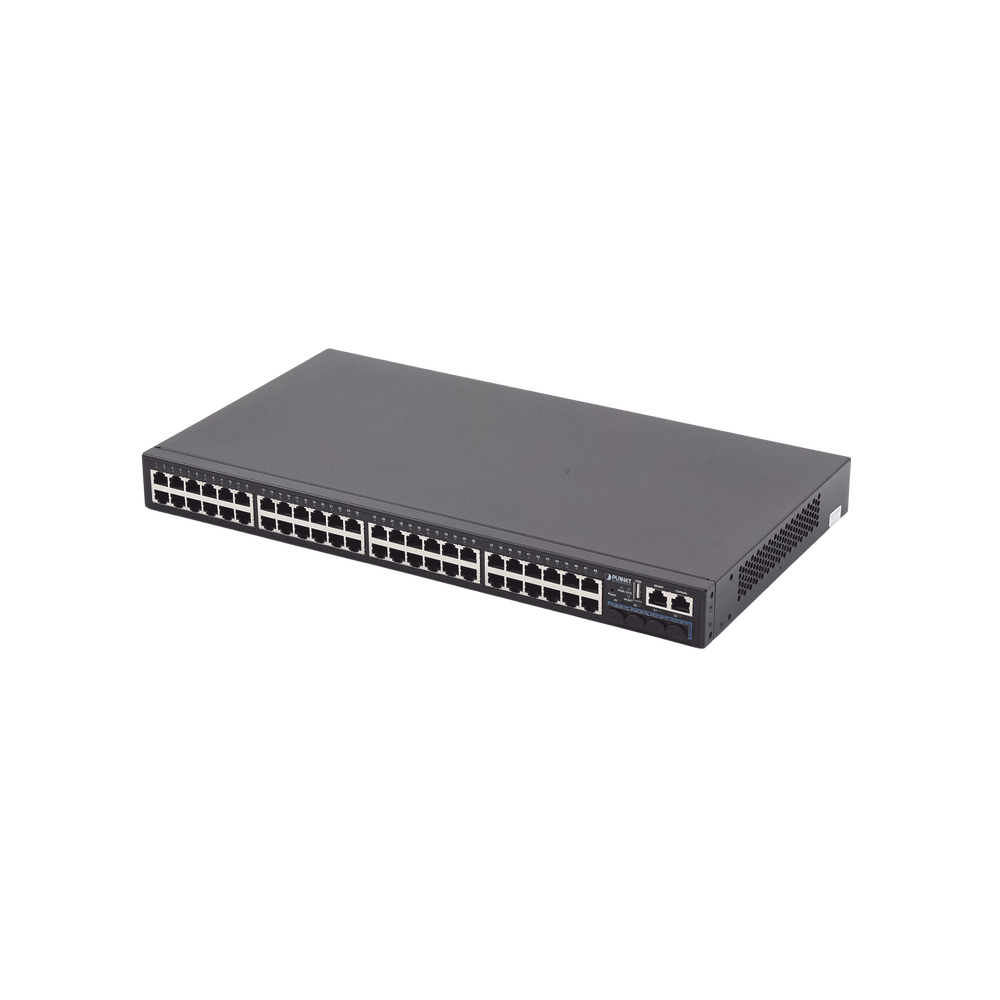

Layer 3 Stackable Managed Switch, 48 10/100/1000T Ports, 4 10G SFP+ Ports

Layer 3 Stackable Managed Switch, 48 10/100/1000T Ports, 4 10G SFP+ Ports

IP stacking management The SGS-6341-48T4X supports IP stacking feature which helps network administrators easily configure up to 24 switches of the same series via a single IP address instead of connecting and configuring each unit one by one.

Powerful Layer 3 routing solution for enterprise and data center networks
PLANET SGS-6341-48T4X is a stackable managed Layer 3 Gigabit switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol), and OSPF (Open Shortest Path First) . With 176Gbps switching fabric and 4 *10Gbps uplink ports , the SGS-6341-48T4X can handle large amounts of data in a secure topology that links to an enterprise backbone or high-capacity servers. Powerful network security and WRR (Weighted Round Robin) features make the SGS-6341-48T4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.

High-performance 10 Gbps Ethernet capacity
The four SFP+ slots built into the SGS-6341-48T4X feature a high-performance switching architecture that is capable of providing non-blocking switch technology and speed performance up to 176Gbps, greatly simplifying the tasks of upgrading the LAN to meet the increasing bandwidth demands. Each of the SFP+ slots supports Dual-Speed , 10GBASE-SR/LR, or 1000BASE-SX/LX , which means the administrator can flexibly choose the appropriate SFP/SFP+ transceiver according to the transmission distance or transmission speed needed to extend the network efficiently.

IP stacking management
The SGS-6341-48T4X supports IP stacking, which helps network administrators easily configure up to 24 switches of the same series via a single IP address instead of connecting and configuring each unit individually. IP Stacking technology groups PLANET SGS-6341 series switches together to enable centralized management via a single unit, regardless of the physical location or switch type, as long as they are connected to the same local network.

Layer 3 routing support
The SGS-6341-48T4X allows the administrator to conveniently boost network efficiency by manually configuring Layer 3 static routing and automatically configuring RIP or OSPF settings. RIP can employ hop count as a routing metric and prevent routing cycles by enforcing a limit on the number of hops allowed in a path from source to destination. OSPF is a link-state interior dynamic routing protocol for an autonomous system. The protocol builds a link-state database by exchanging link states between Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Full support for IPv6
The SGS-6341-48T4X provides IPv6 management and enterprise-grade security features such as SSH, ACL, WRR , and RADIUS authentication . Therefore, it helps enterprises advance into the IPv6 era with the lowest investment. Moreover, there is no need to replace network infrastructure when building an IPv6 FTTx edge network.

Robust Layer 2 features
The SGS-6341-48T4X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol (MSTP), WRR, bandwidth control, and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN, and GVRP protocol functions. By supporting port aggregation, the SGS-6341-48T4X enables high-speed trunking combined with multiple ports. It allows up to 16 trunking groups with a maximum of 8 ports for each group.

Excellent traffic control from level 2 to level 4
The SGS-6341-48T4X is loaded with powerful traffic management and WRR features to enhance telecom services. WRR features include wire-speed Layer 4 traffic classifiers and bandwidth throttling, which are particularly useful for multi-tenant, multi-enterprise, telco, or network applications. It also enables businesses to make the most of limited network resources and ensures optimal VoIP streaming and video conferencing performance.

Powerful security
The SGS-6341-48T4X supports comprehensive ACL policies. Traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time intervals, and ToS. Various policies can also be implemented to forward traffic.
The SGS-6341-48T4X also provides IEEE 802.1x port-based access authentication, which can be implemented with RADIUS, to ensure port-level security and block illegal users.

Efficient and secure administration
For efficient management, the SGS-6341-48T4X managed Gigabit switch is equipped with console, web, and SNMP management interfaces. With its built-in web-based management interface, the SGS-6341-48T4X offers easy-to-use, platform-independent configuration and management. The SGS-6341-48T4X supports Simple Network Management Protocol (SNMP) and can be managed through any standards-based management software.
To reduce product learning curve, the SGS-6341-48T4X offers Cisco-style commands via Telnet or the console port, eliminating the need for customers to learn new commands for these switches. Additionally, the SGS-6341-48T4X offers secure remote management by supporting SSH connections that encrypt packet content during each session.

SFP Intelligent Diagnostic Mechanism
The SGS-6341-48T4X supports SFP-DDM (Digital Diagnostic Monitor) function which helps network administrator easily monitor real-time parameters of SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

Physical ports

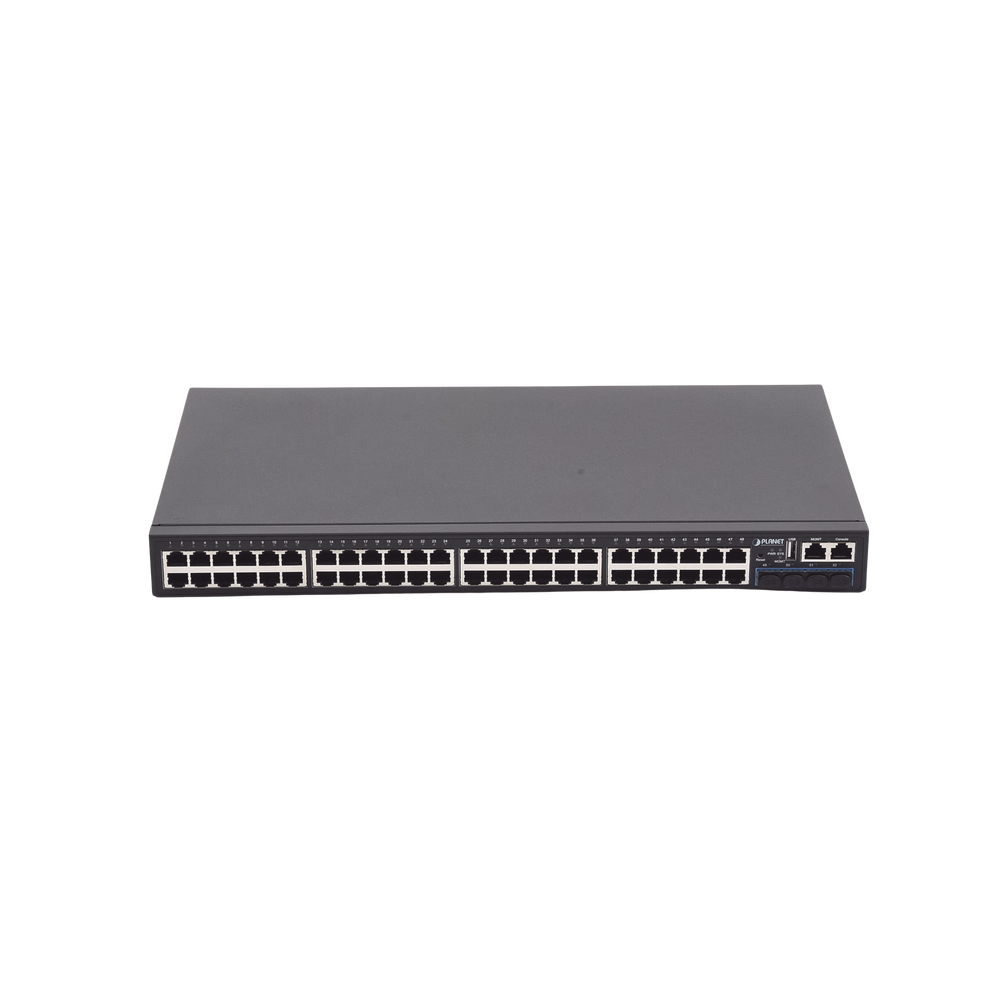

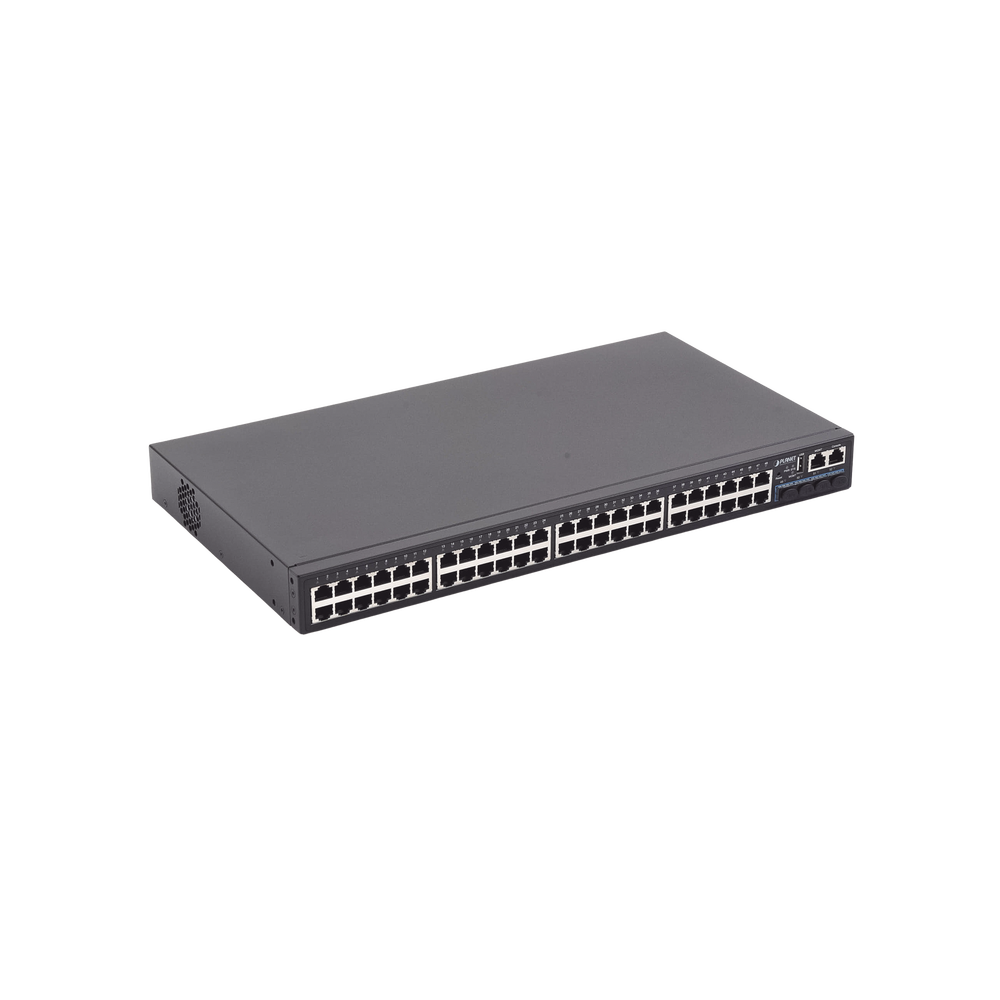

• 48 10/100/1000BASE-T Gigabit Ethernet RJ45 ports

• 4 10GBASE-SR/LR SFP+ slots , compatible with 1000BASE-SX/LX/BX SFP

• RJ45 to DB9 console interface for basic switch management and configuration

IP stacking

• Connects to the stack member via Gigabit TP and SFP interfaces

• Single IP address management, supports up to 24 stacked units

IP Routing Features

• The IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/4+

• Routing interface provides per VLAN routing mode

• VRRPv1/v3 protocol for redundant routing deployment

• Supports route redistribution

Multicast Routing Functions

• Supports PIM-DM (Protocol Independent Multicast - Dense Mode) and PIM-SM (Protocol Independent Multicast - Sparse Mode) and PIM-SSM (Protocol Independent Multicast - Source Specific Multicast)

• Supports DVMRP (Distance Vector Multicast Routing Protocol)

• Supports IGMP v1/v2/v3 and MLD v1/v2

Layer 2 Functions

- IEEE 802.3x pause frame flow control in full duplex mode

- Backpressure flow control in half-duplex mode

- IEEE 802.1Q tag-based VLAN

- GVRP for dynamic VLAN management

- Up to 256 VLAN groups, 4041 VLAN IDs

- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) supported

- Supports Private VLAN Edge (PVE)

- GVRP protocol for VLAN management

- Protocol-based VLAN

- MAC-based VLAN

- IP subnet VLAN

- Maximum 12 link groups, up to 8 ports per link group

- IEEE 802.3ad LACP (Link Aggregation Control Protocol)

- Cisco ether-channel (static link)

- STP, IEEE 802.1D (Classical Spanning Tree Protocol)

- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)

- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, per-VLAN spanning tree)

- Supports BPDU and root guard

• Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standards

• Supports auto-negotiation and half/full duplex modes for all 10BASE-T, 100BASE-TX, and 1000BASE-T ports

• Automatic MDI/MDI-X detection on each RJ45 port

• Avoid packet loss flow control

• High-performance Store-and-Forward architecture, broadcast storm control, port loop detection

• 16K MAC address table, automatic source address learning and aging

• Supports VLAN

• Supports link aggregation

• Supports Spanning Tree protocol

• Port mirroring to control incoming or outgoing traffic on a particular port (many-to-many)

• Provides port mirroring (many to 1)

Quality of service

- IEEE 802.1p CoS / ToS

- IPv4 / IPv6 DSCP

- Port-based WRR

• 8 priority queues on all switch ports

• Support for strict priority and WRR (Weighted Round Robin) CoS policies

• Traffic classification

• Strict priority and WRR CoS policies

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3; IPv6 MLD v1 and v2 snooping

• Querier mode support

• Supports Multicast VLAN Registration (MVR)

Security

• IEEE 802.1x port-based network access authentication

• Access authentication
