8-CHANNEL ACTIVE TRANSCEIVER KIT / VIDEO+POWER on a single UTP cable
The KIT-TT8PV-TURBOX is an 8-channel Active video transceiver (Balun) that allows you to send video from your analog cameras and power through the same Cat 5e or 6 network cable (UTP), reaching distances of 150 meters in 4K, 200 meters in 5Mp and 250 meters in 1080P. This is possible because the receiving equipment generates and sends 36 Vdc to the transmitters and this regulates the voltage to 12 Vdc thus allowing it to be sent over long distances.
The equipment is designed to be placed in your Telecommunications SITE since it has the accessories to be installed in a Standard Rack, allowing to consolidate all the cabling of the CCTV system in a single point resulting in a clean, tidy installation, without added or loose cables.
Main Features
- 8-Channel Active Transceiver Kit
- Video and camera power via a network cable
- 150 meters in 4K, 200 meters in 5Mp and 250 meters in 1080P.
- Receiver voltage output: 36Vdc
- Transceiver voltage output: 12Vdc
- The receiver sends 36Vdc, thus ensuring that the voltage reaches 150 m in 4K using 100% copper cable.
- The transmitter receives 36Vdc and regulates to 12Vdc to power the camera without compromising performance.
- Current consumption per channel 0.8 A
- Supports OSD (On Screen Display)
- BNC and RJ45 connectors
- Real-time streaming, no delays
Physical and Electrical Characteristics:
- Power supply: 110-220 Vac; 50/60 Hz
- Power consumption: 150 W
- Receiver voltage output: 36Vdc
- Power output per channel: 18.5 W

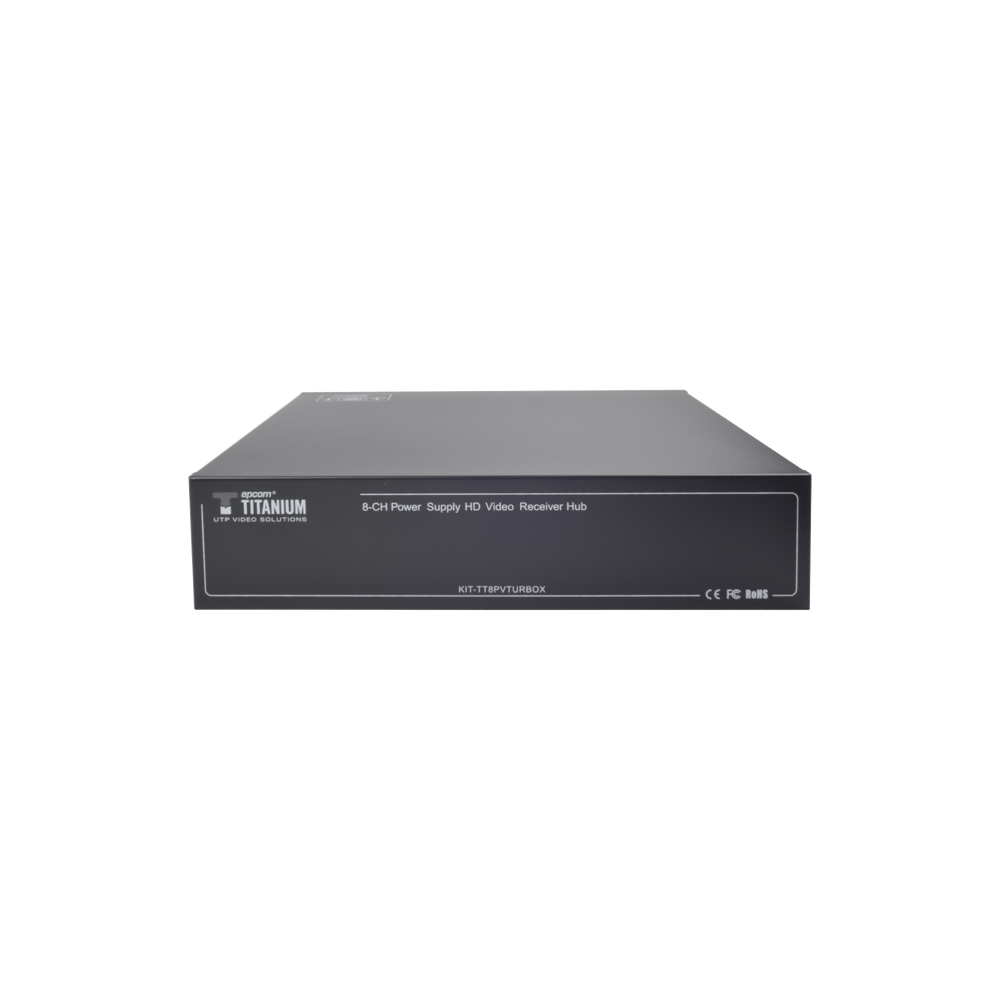

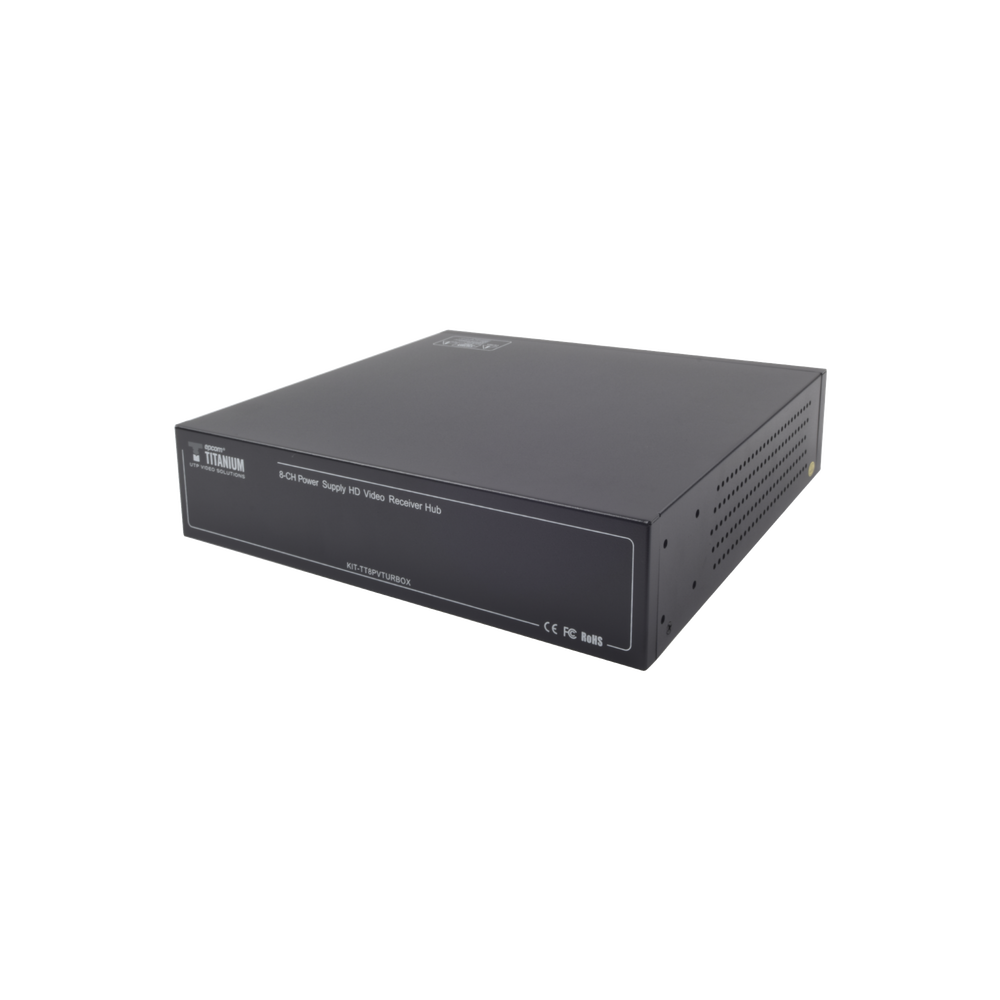

- Receiver Dimensions 351 mm (L) x 183 mm (W) x 44.5 mm (H) not including mount
- Transmitter Dimensions (balum) 80 mm (L) x 30 mm (W) x 23 mm (H)
- Net Weight 6.85 Kg.
- Black color
- 1 Year Warranty for manufacturing defects
Highlighted Features:

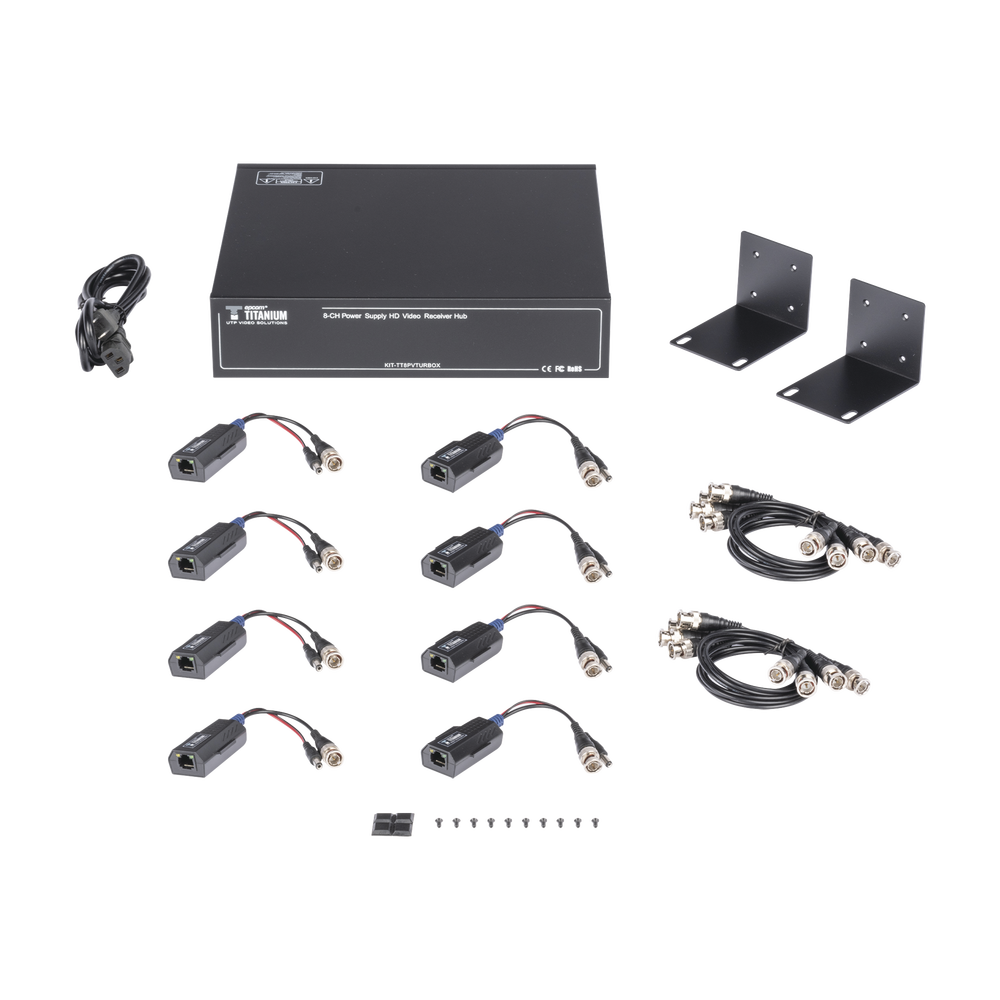

The Kit includes:
- 1 8-channel active receiver
- 8 video/voltage transceivers
- 8 BNC cables for LOOP
- Rack ears and hardware
- Power cable
Grades:
- If you will be connecting this equipment to a UPS, make sure it is a pure sine wave.
- Does not support Coaxitron
- Certifications: CE, FCC, RoHS
- For PTZ domes (Consider distance and power consumption)
- If you require compatible transmitters for this Kit, use model TT4816PVTURBOTX click here
- For more product information, click here.
- Essential for your CCTV system
Out of stock
MODELO: KITTT8PVTURBOX
