Industrial Outdoor Ultra PoE 802.3bt/at Gigabit Extender

Industrial Outdoor Ultra PoE 802.3bt/at Gigabit Extender

Ultra PoE solution to break the 100m RJ45 limitation

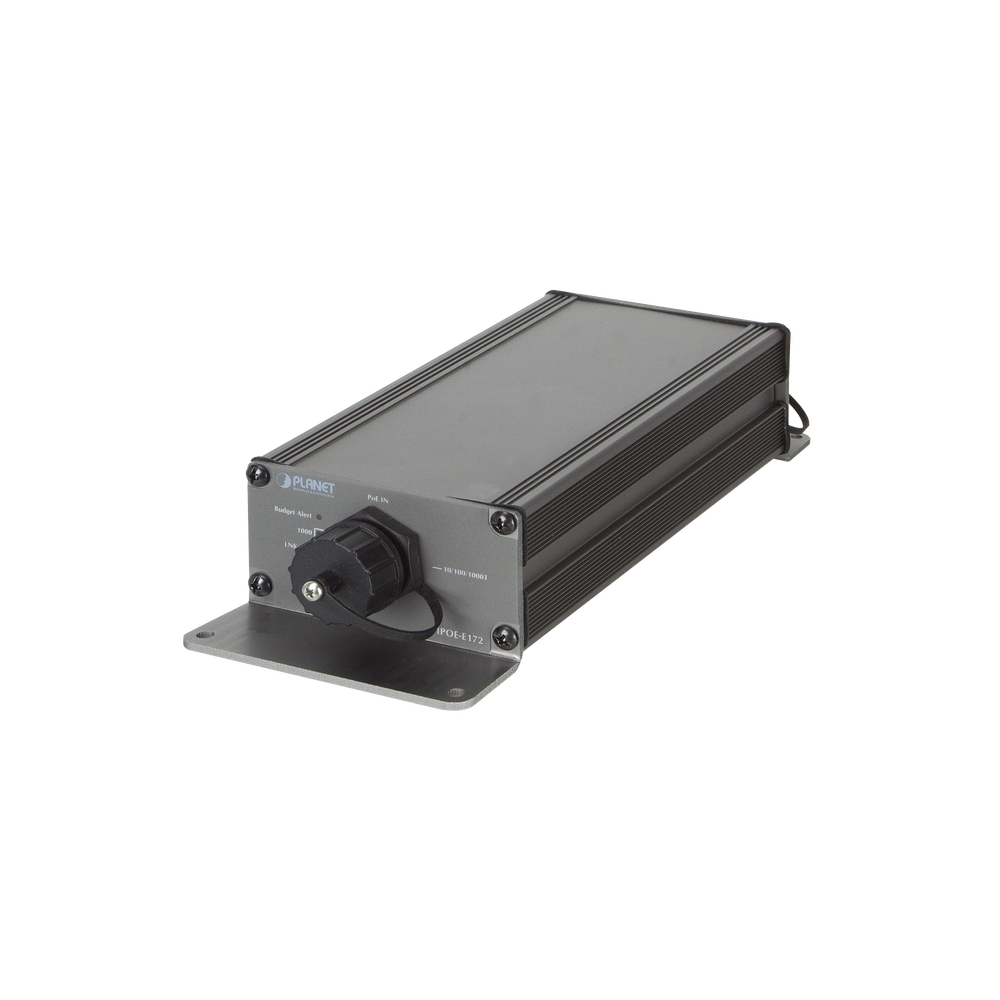

PLANET IPOE-E172 is an industrial IP63 rated 1-port Ultra PoE and 2-port 802.3bt/at Gigabit PoE Extender specially designed for Point-to-Multipoint PoE application. The IPOE-E172 can source a maximum of 95 watts of PoE from the Ultra PoE input port and supply a maximum of 60 watts of PoE power for 2 PoE output ports, extending both Gigabit Ethernet data and IEEE 802.3bt/802.3at power over Ethernet via UTP cable. The IPOE-E172 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without the need for an external power adapter.

Weatherproof RJ45 Ethernet Connector & Shielded Plug The IPOE-E172 is ideal for installing a wide range of outdoor PoE devices such as outdoor PoE wireless access points, outdoor PoE IP cameras, outdoor PoE IP intercoms, and more. The IPOE-E172 is equipped with 3 ports 10/100/1000BASE-T auto-negotiation weatherproof RJ45 connectors and 3 shielded RJ45 sockets for direct connection applications. These shielded RJ45 sockets can make general UTP cable weatherproof. When connected to the weatherproof RJ45 connector, it provides a strong and firm connection, and ensures that it has the IP63 industrial protection rating capable of withstanding moisture, dirt, dust, shock, vibration, heat, and cold.

Environmentally hardened design
Featuring an industrial-grade IP63-rated aluminum housing, the IPOE-E172 provides a high level of immunity against electromagnetic interference, and is capable of protecting itself from dust and water ingress and operating under the temperature range of -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any harsh environment.

Physical port

- Data input + 1 port input

- 2-port data + power output

• 3 10/100/1000BASE-T Gigabit RJ45 Interfaces

Power over Ethernet

- Complies with IEEE 802.3bt/en Power over Ethernet end-span/mid-span PD

- Supports PoE input power up to 95 watts

- Compliant with IEEE 802.3af/802.3at/802.3bt Power over Ethernet/end-span + half-span

- Up to 1 powered IEEE 802.3bt device

- Up to 2 powered IEEE 802.3af/802.3at devices

- Supports a total PoE budget of up to 60 watts for two PoE output ports. Automatically detects the powered device (PD).

• Data input + 1 port input
• 2 data ports + power output
• Extends PoE range to another 100 meters (328 feet)
• Sends Ethernet and PoE data to remote devices

3 RJ-45 ports; 1 data + power input; 2 data + power output ports, 802.3bt 95 watt PoE power supply, 802.3bt/at up to 60 watts on one port, 802.3at/af up to 30 watts on two ports, Range up to 100 meters (Cat5e, Cat6)
