HIGH PERFORMANCE power supply of 11 - 15 Vdc @ 6 Amp, with capacity of 4 to 8 cameras, with input voltage of: 85-264 Vac

HIGH PERFORMANCE power supply of 11 - 15 Vdc @ 6 Amp, with capacity of 4 to 8 cameras, with input voltage of: 85-264 Vac

HIGH PERFORMANCE source of 11 - 15 Vdc @ 6 Amp, capacity of 4 to 8 cameras, with input voltage of: 85-264 Vac.

Characteristics:

• Easy to install fountain.
• Short circuit, over current and over voltage protection.
• Air convection cooling system.
• Built-in EMI filter against electromagnetic interference.

Protection:

• Overcurrent protection: 105~150% (At rated output voltage)
• Overvoltage protection: 1.5 times (At rated output voltage)
• Short circuit protection: cuts off the output voltage, with automatic reset.

Physical and electrical specifications:

• Approvals: CE, FCC, UL
• Input voltage: 90 ~ 264 Vac

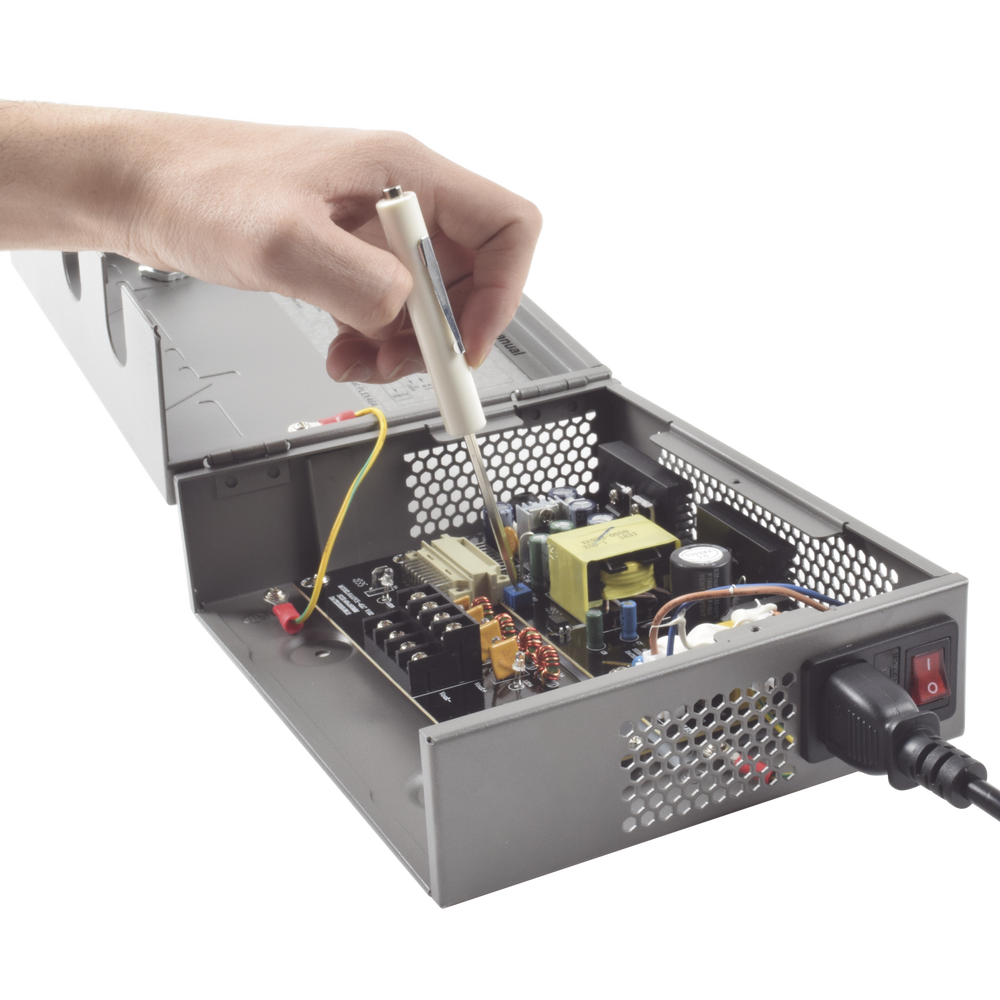

• Voltage output: 11.5~15Vdc. (adjustable)
• Current output: 6 A

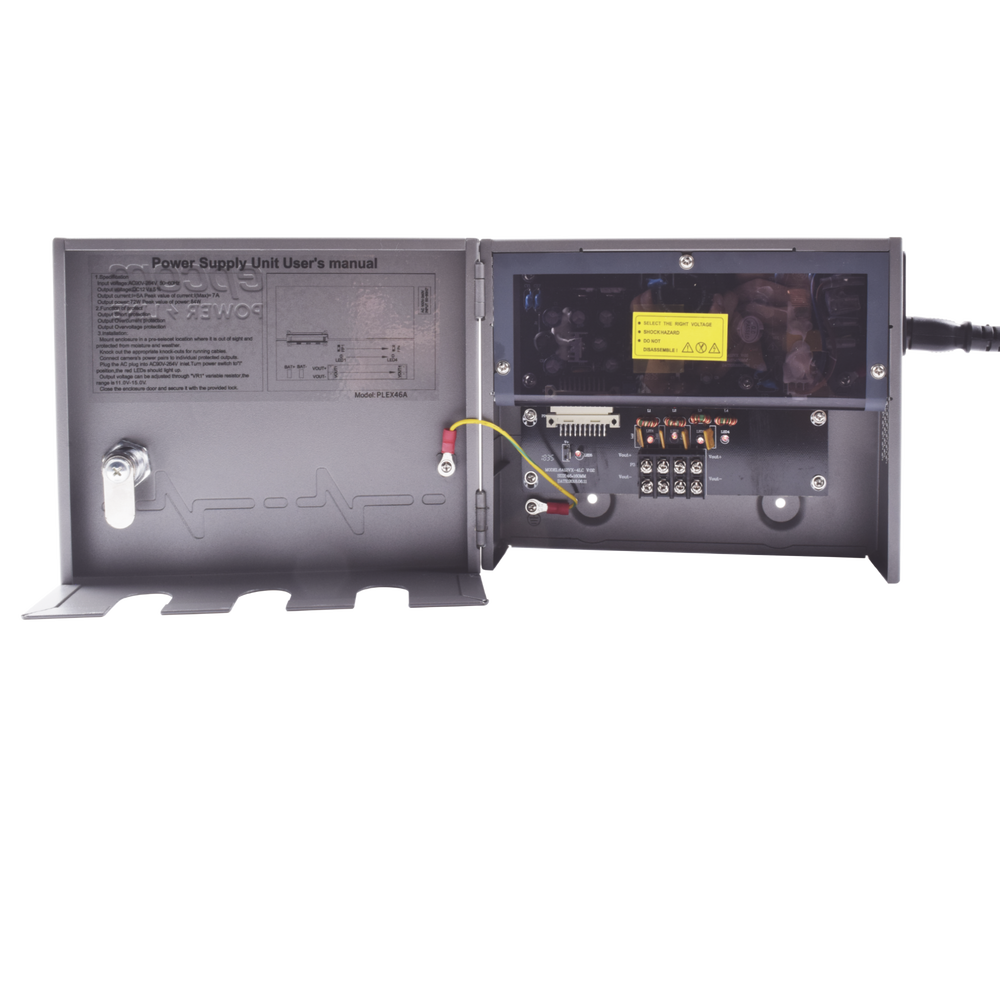

• Distribution board: 4 outputs for 4 cameras. (Supports up to 2 cameras per output).
• Dimensions: 214 x 165 x 71.5 mm
• Operating temperature: -20°C ~ 65°C
• Weight: 1.1 Kg

Warranty: 4 years.
