PLANET
Unmanaged PoE+ switch, 4 802.3af/at ports, 250 m distance + 2 10/100 Uplink ports, Throughput: 0.89 Mpps, Internal Power Supply
Unmanaged PoE+ switch, 4 802.3af/at ports, 250 m distance + 2 10/100 Uplink ports, Throughput: 0.89 Mpps, Internal Power Supply
Couldn't load pickup availability
Unmanaged PoE+ switch, 4 802.3af/at ports, 250 m distance + 2 10/100 Uplink ports, Throughput: 0.89 Mpps, Internal Power Supply
Centralized power distribution for the HD IP surveillance system

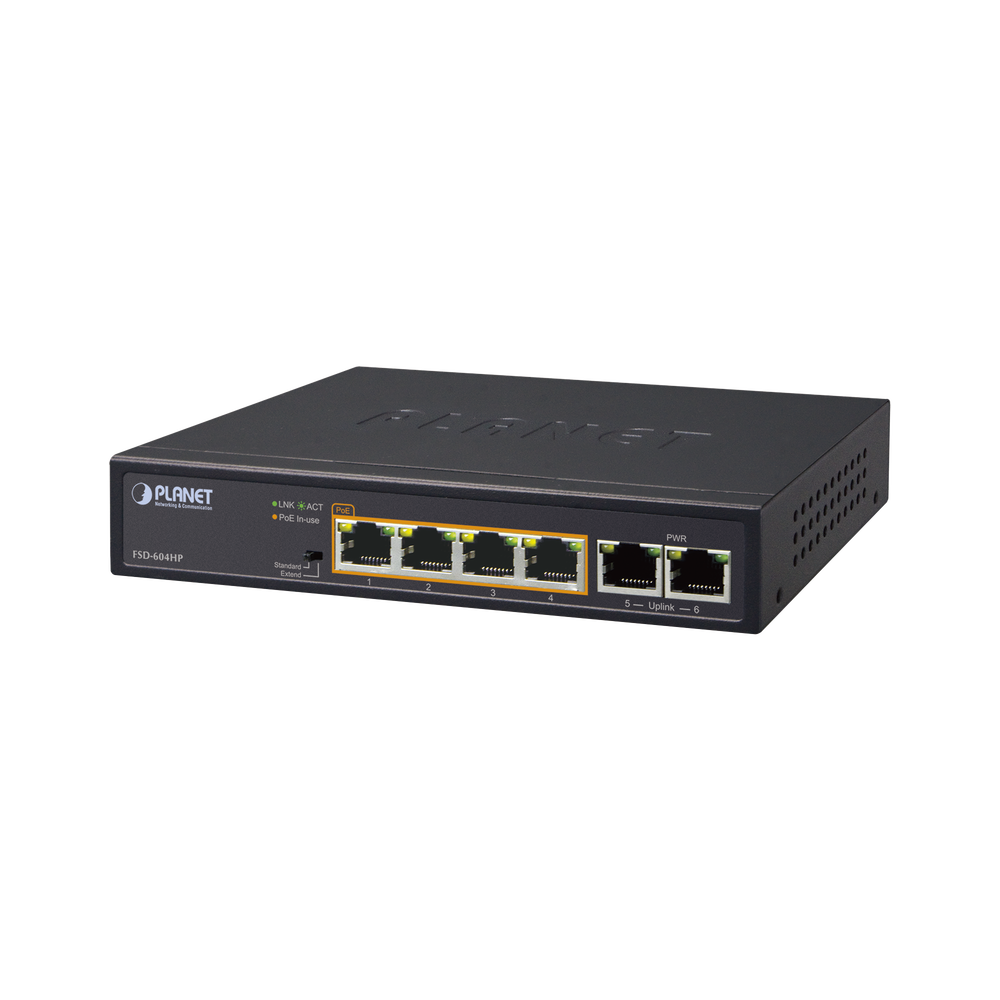

The PLANET FSD-604HP desktop switch provides four 802.3at PoE+ ports to support small-scale IP surveillance networks at a lower total cost. With dual 10/100BASE-TX uplink ports, recorded HD video files from the four PoE IP cameras powered by the FSD-604HP are saved to the 4-channel NVR system. Its surveillance software provides comprehensive security monitoring and manages the surveillance system on the local LAN or at a remote site via the Internet.
Two 10/100Mbps uplink ports
The FSD-604HP comes with two uplink ports with a transfer rate of 100Mbps to ensure high-speed data and video transmission, a reliable guarantee for the connection between the surveillance system and the outdoor network where all four PoE+ ports can be utilized to their full potential.
Innovative
Port-Based VLAN Protection The FSD-604HP features 'Port-Based VLAN Protection' where ports can be isolated from each other via a DIP switch. This can help prevent IP camera broadcast or multicast storms from influencing each other.
Extended distance for power and data transmission
The built-in solid DIP switch provides 'Standard' and 'Extend' operation modes . The FSD-604HP operates as a normal IEEE 802.3at/af PoE switch in 'Standard' operation mode. In 'Extend' operation mode , the FSD-604HP operates per port in 10Mbps full duplex mode, but can support 30W PoE power output over a distance of up to 250 meters which exceeds the 100m limit on UTP Ethernet cable. With this new feature, the FSD-604HP provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
| Hardware specifications | |
|---|---|
| Network connector | 6-port RJ45 for 10/100BASE-TX, auto MDI/MDIX |
| PoE injection port | 4 ports with 802.3af/at PoE injector function (Port-1 to Port-4) |
| LED screen |
System: Food ( orange ) per PoE port: PoE ( orange , port 1 to port 4) LNK/ACT ( green , port 1 to port 6) |
| Dip switch |
100 m distance in standard mode 250m distance in extended mode (depending on cable category) |
| Switch architecture | Store and Forward |
| MAC Address Table | 2K MAC address table with machine learning feature |
| Switch Bandwidth | 1.2Gbps |
| Switch Throughput | 0.89Mpps @ 64bytes |
| Maximum package size | 1536 bytes |
| Flow control | Backpressure for half duplex. IEEE 802.3x pause frame for full duplex |
| energy requirements | AC 100~240V, 2A max. |
| Energy consumption | Max. 63 Watts, 214 BTU |
| Dimensions (W x D x H) | 168 x 93 x 32 mm |
| Weight | 499g |
| ESD protection |
±4KV DC contact discharge ±6KV DC air discharge |
| Surge immunity | ± 4KV |
| Power over Ethernet | |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE IEEE 802.3at Power over Ethernet Plus / PSE |
| PoE power supply type | End-span |
| Power pin assignment | 1/2 (+), 3/6 (-) |
| PoE power output |
Per port 52V DC, 300mA. max. 15.4 Watts (IEEE 802.3af) per port 52 VDC, 600 mA. max. 30 Watts (IEEE 802.3at) |
| PoE Power Budget | 60 Watts |
| Number of PDs, 7 Watts | 4 |
| Number of PDs, 15.4 Watts | 4 |
| Number of PDs, 30 Watts | 2 |
- 6 x 10/100 Mbps Fast Ethernet ports, 4 x 802.3af/at PoE ports at 30 watts per port, totaling 60 watts, throughput: 0.89 Mbps @ 64 bytes; bandwidth: 1.2 Gbps, "Extend" function for a distance of 250 meters at 10 Mbps, 3-year warranty.
Out of stock
MODELO: FSD-604HP
