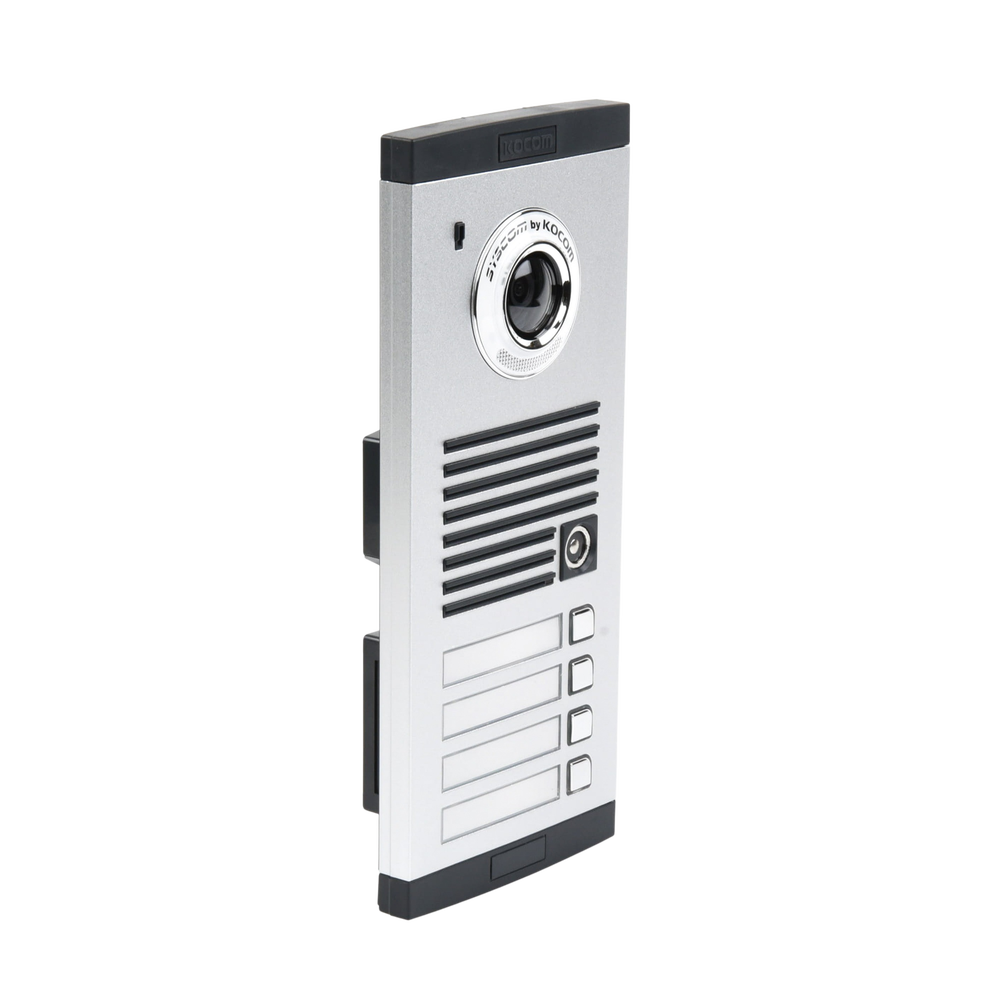

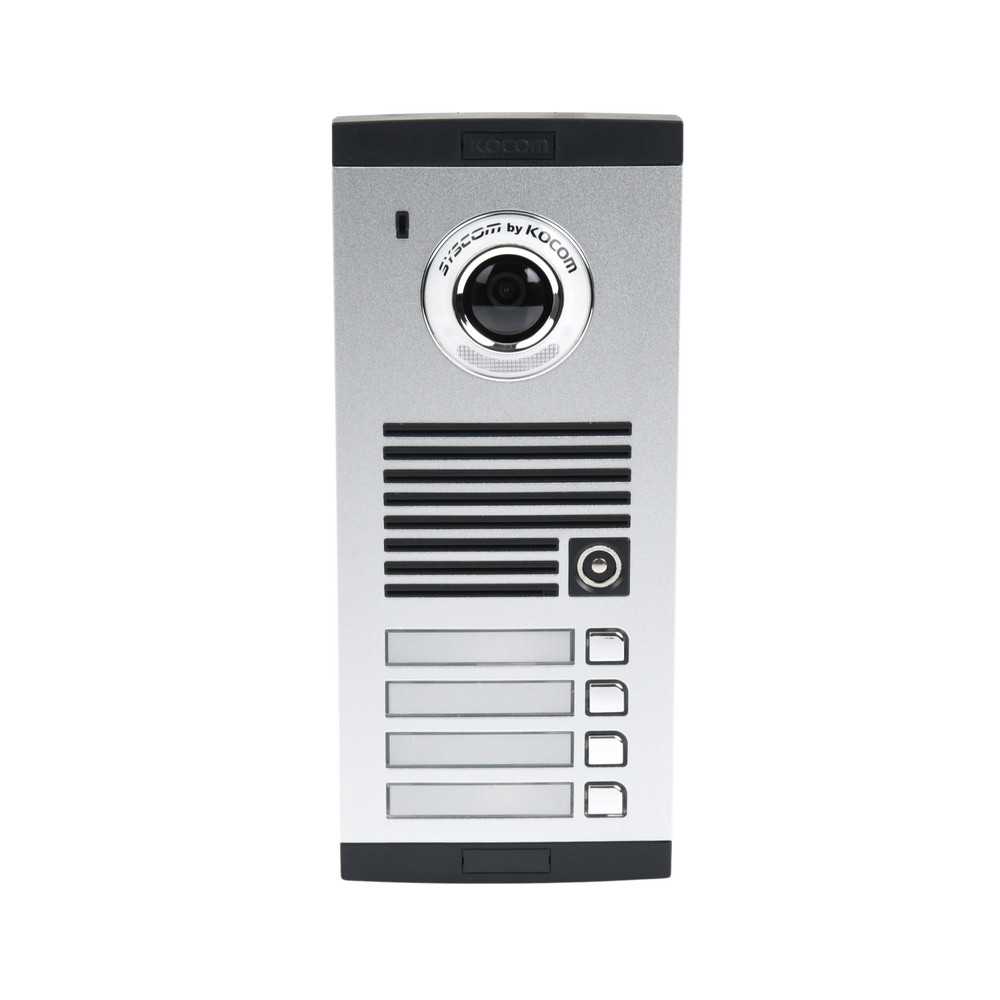

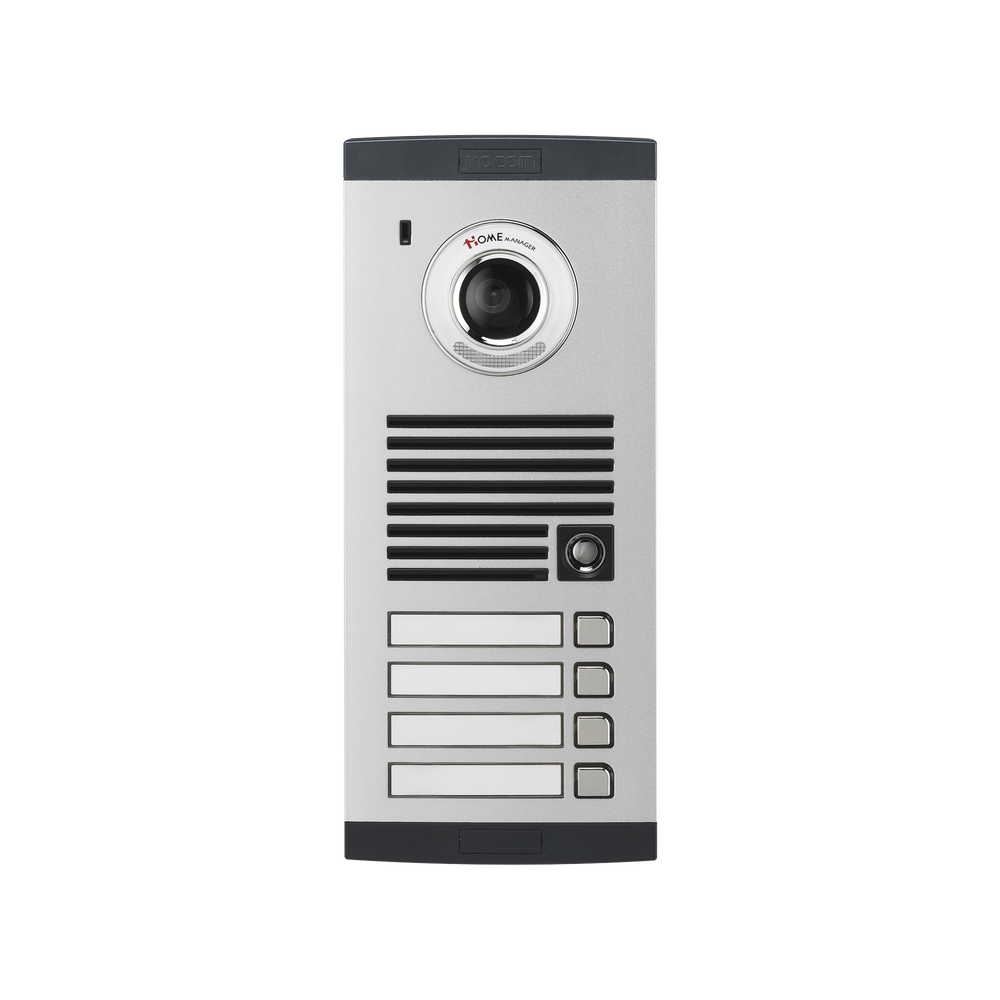

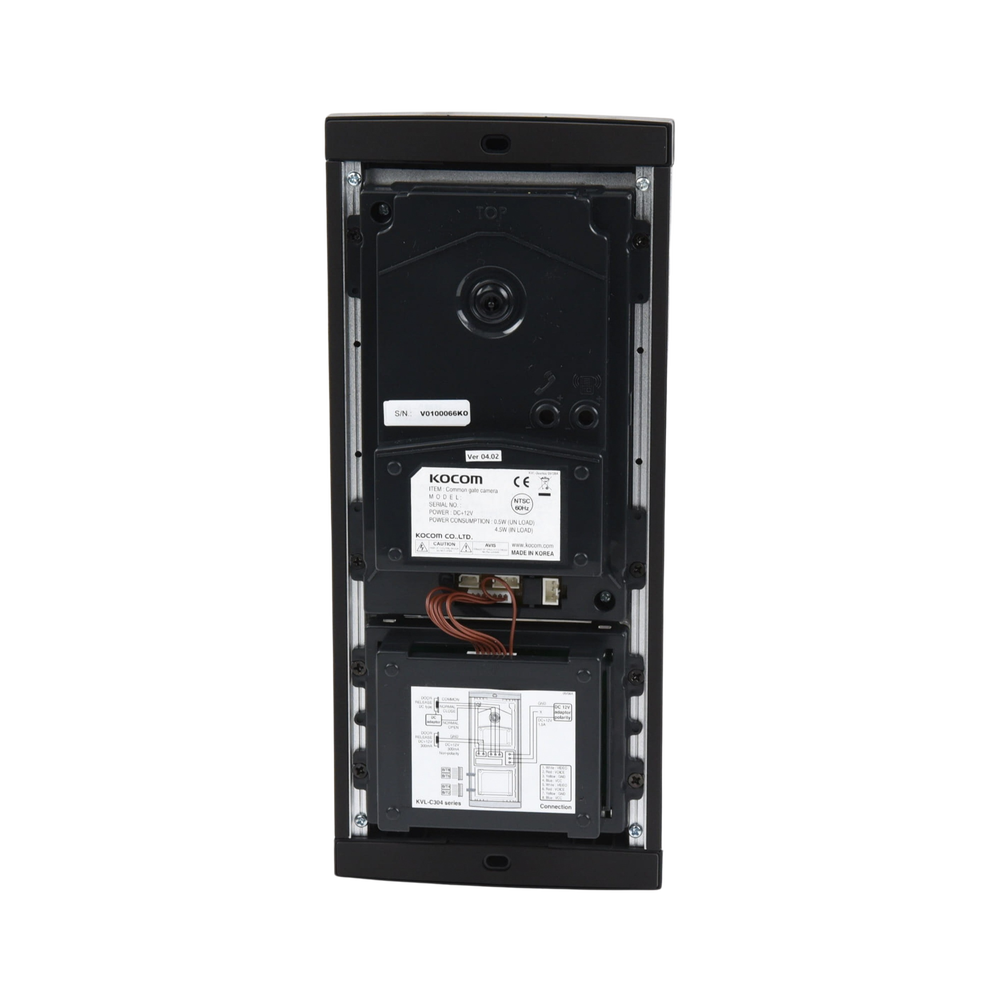

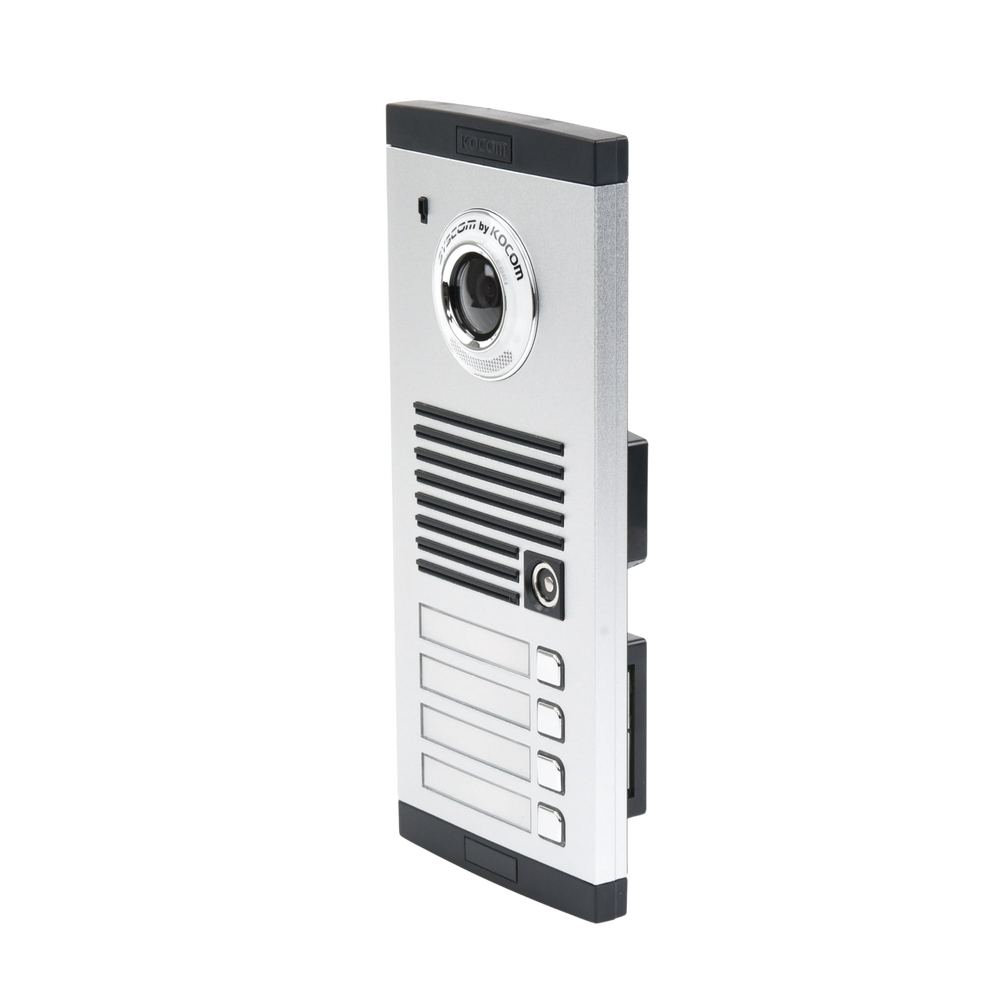

Street front for 4 Apartments

• Strong metal street front
• Supports the following Apartment Monitor models KCV301M , KCV-A374B , KCV-S701M
• Up to 16 apartments using the KEL-312 expander or Up to 28 apartments using the KEL-T324 expander
• 4-wire wiring to the monitors .
• Door opening with KIB*01U ignition key
• Record of 1,022 KIB01U ignition keys
• White light for visitor night vision

• 12Vdc power supply (not included) recommended PSD1202D or P12DC3A .
• Dimensions: 125 x 290 x 48.4 mm.
• Power consumption 6W.
• Camera Angle Adjustment (Adjustable)
• Wiring distance with 18 gauge cable at 150 meters

The KVLC304I video intercom systems are very cost-effective since, being analog equipment, their installation is very simple and reliable. For these devices, it is recommended to use 18-gauge 100% copper cable, preferably shielded, to achieve the greatest distance and video quality.

Suggested cables 9274 1119-5501/500 92-70 ACCESS-184/500

*2 Years Warranty.
