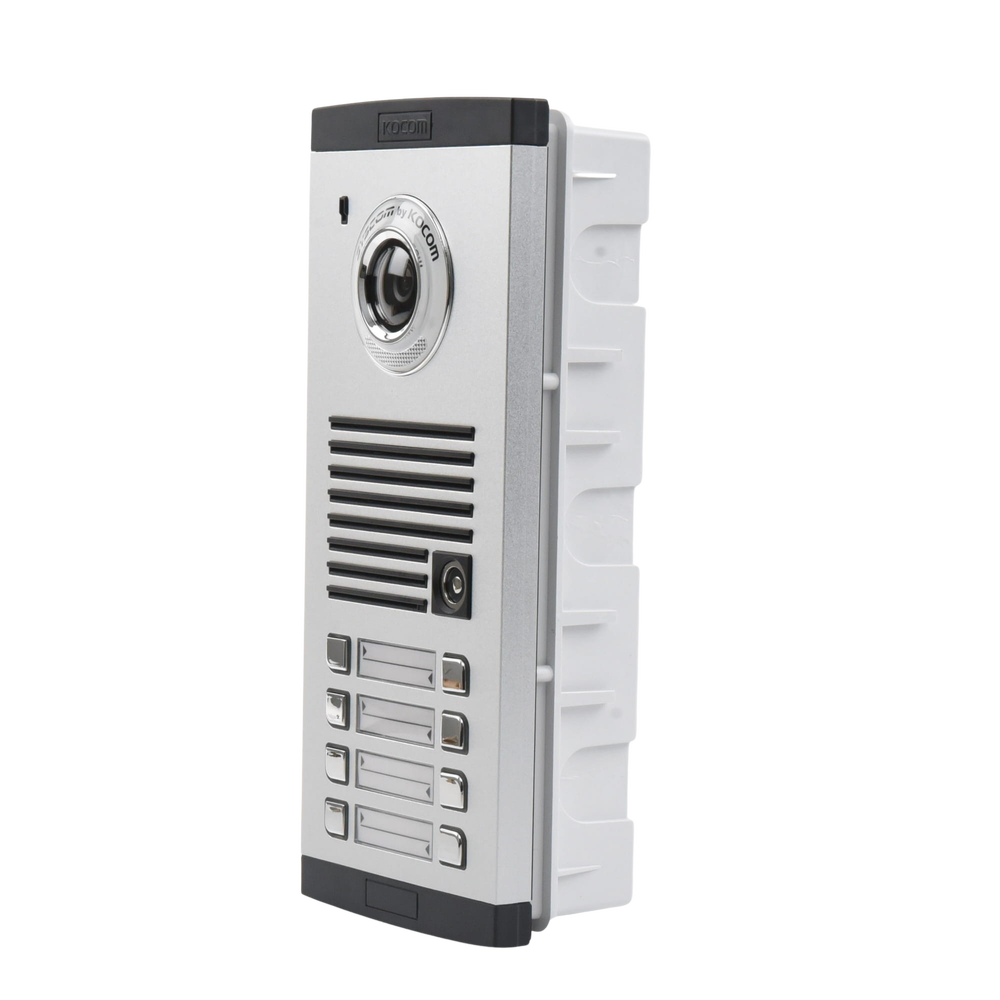

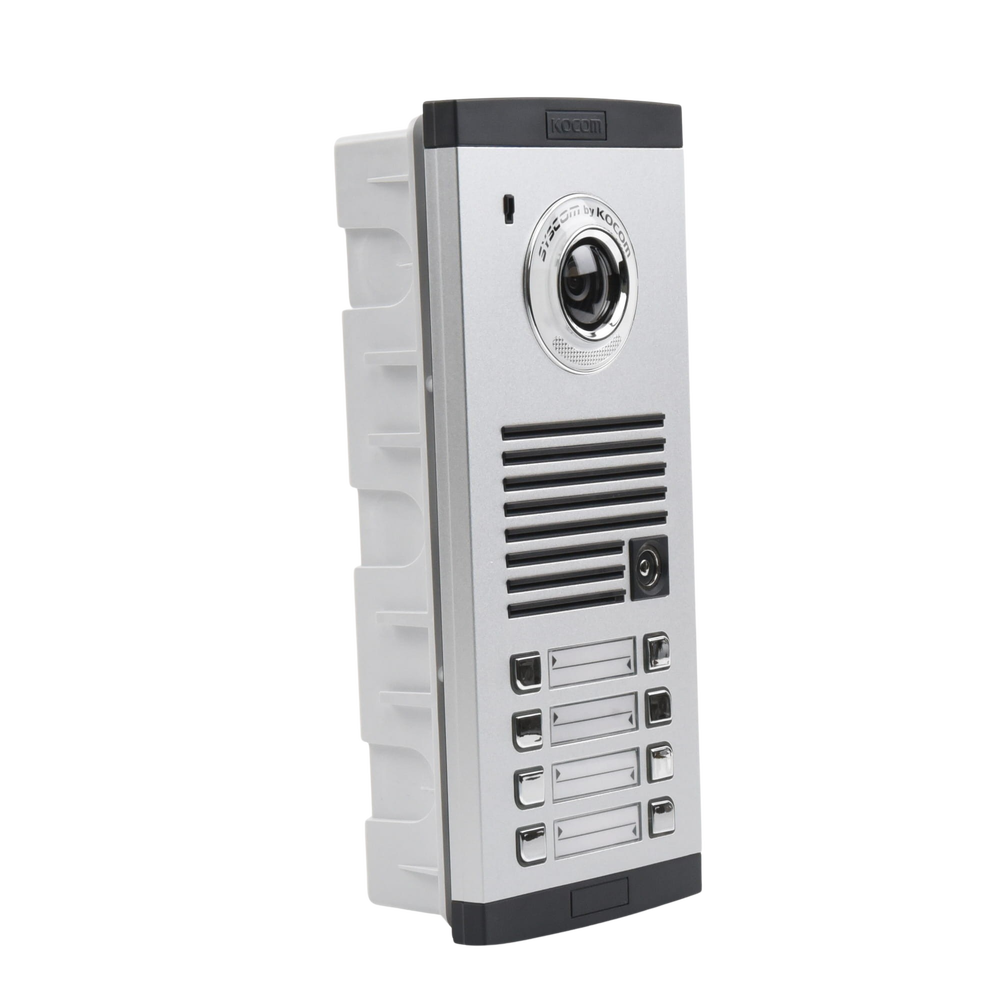

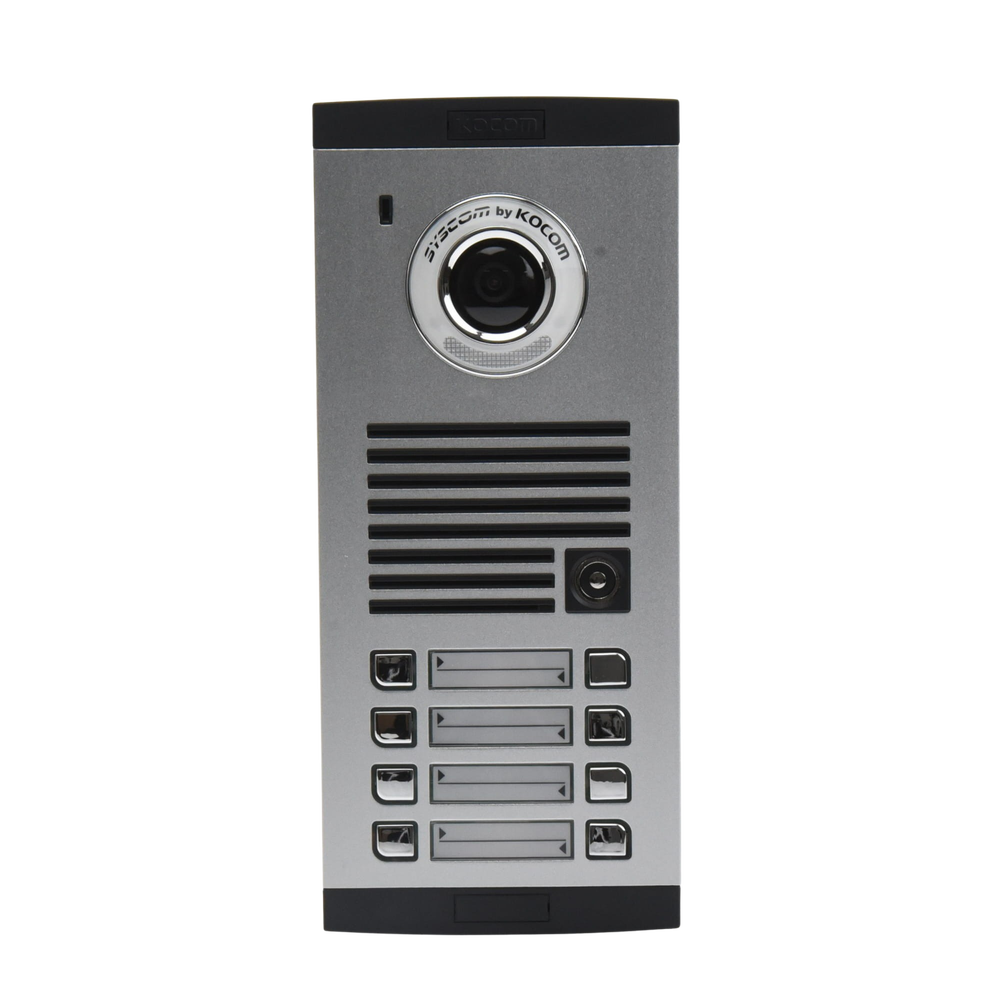

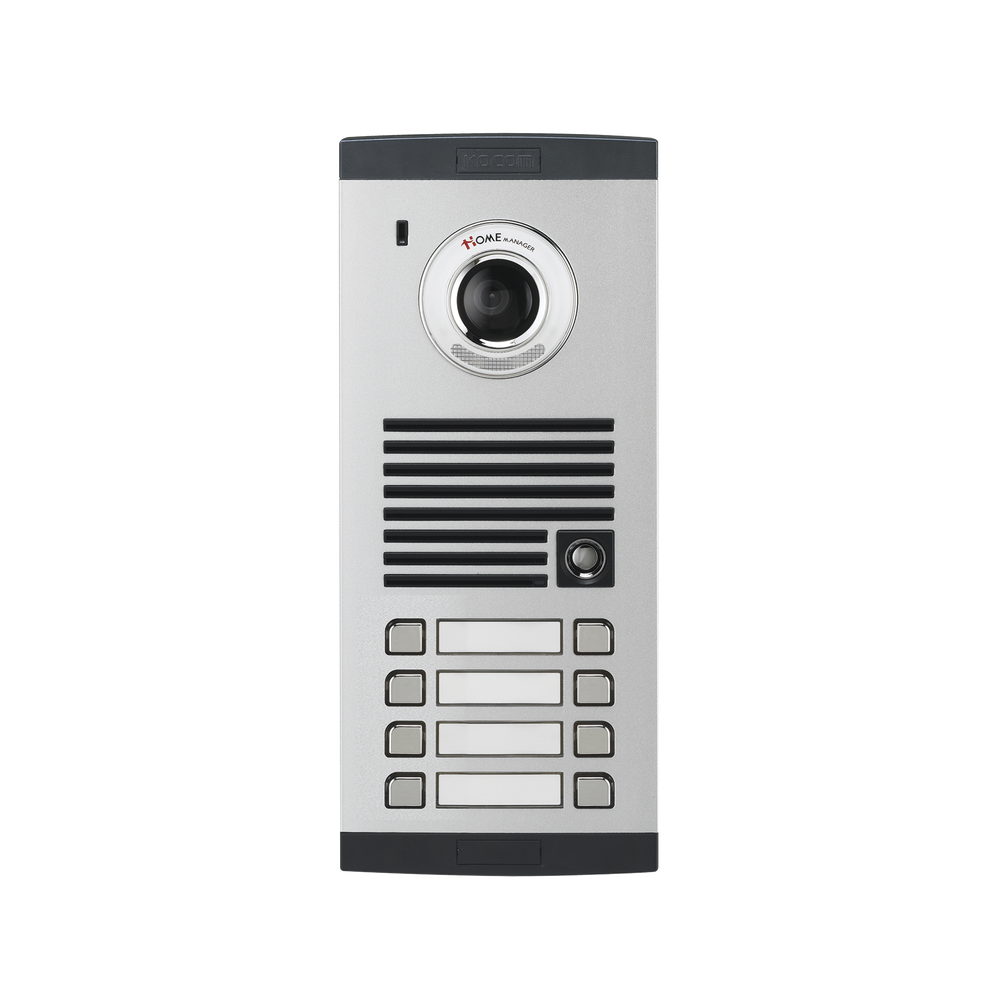

Frente de calle para 8 Apartamentos, compatible con monitores de 4 hilos, expandible a 20 o 32 deptos.

Street front for 8 apartments, compatible with 4-wire monitors, expandable to 20 or 32 apartments.

$342,872 $543,668
Skip to product information
Frente de calle para 8 Apartamentos, compatible con monitores de 4 hilos, expandible a 20 o 32 deptos.
  • Frente de calle para 8 Apartamentos, compatible con monitores de 4 hilos, expandible a 20 o 32 deptos.
  • Street front for 8 apartments, compatible with 4-wire monitors, expandable to 20 or 32 apartments.
  • Street front for 8 apartments, compatible with 4-wire monitors, expandable to 20 or 32 apartments.
  • Street front for 8 apartments, compatible with 4-wire monitors, expandable to 20 or 32 apartments.
Street front for 8 apartments, compatible with 4-wire monitors, expandable to 20 or 32 apartments.

Street front for 8 apartments, compatible with 4-wire monitors, expandable to 20 or 32 apartments.

$342,872 $543,668
Shipping calculated at checkout.
Marca
KOCOM
Referencia / SKU
KVL-C308I
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Street front for 8 apartments, compatible with 4-wire monitors, expandable to 20 or 32 apartments.

SYSTEM FOR 8 APARTMENTS

Main features:
  • Strong metal street front
  • Supports the following Apartment Monitor models KCV301M , KCV-A374B , KCV-S701M
  • Up to 20 apartments using the KEL-312 expander or Up to 32 apartments using the KEL-T324 expander
  • 4-wire wiring to the monitors .
  • Door opening with KIB*01U ignition key
  • Record of 1,022 KIB01U ignition keys
  • White light for visitor night vision
Physical and Electrical Characteristics:
  • 12Vdc power supply (not included) recommended PSD1202D or P12DC3A .
  • Dimensions: 125 x 290 x 48.4 mm.
  • Power consumption 6W.
  • Camera Angle Adjustment (Adjustable)
  • Wiring distance with 18 gauge cable at 150 meters
Highlighted Features:

The KVLC308L video intercom systems are very cost-effective since they are analog equipment and are very simple and reliable to install. For these devices, it is recommended to use 18-gauge, 100% copper cable, preferably shielded, to achieve the greatest distance and video quality.

Suggested cables 9274 1119-5501/500 92-70 ACCESS-184/500

*2 Years Warranty.

Note : The audio operation of the equipment may be affected by ambient noise conditions generated by the environment of each site or location.

Note: 'The equipment should be protected from water and sun if it is to be used outdoors.'
