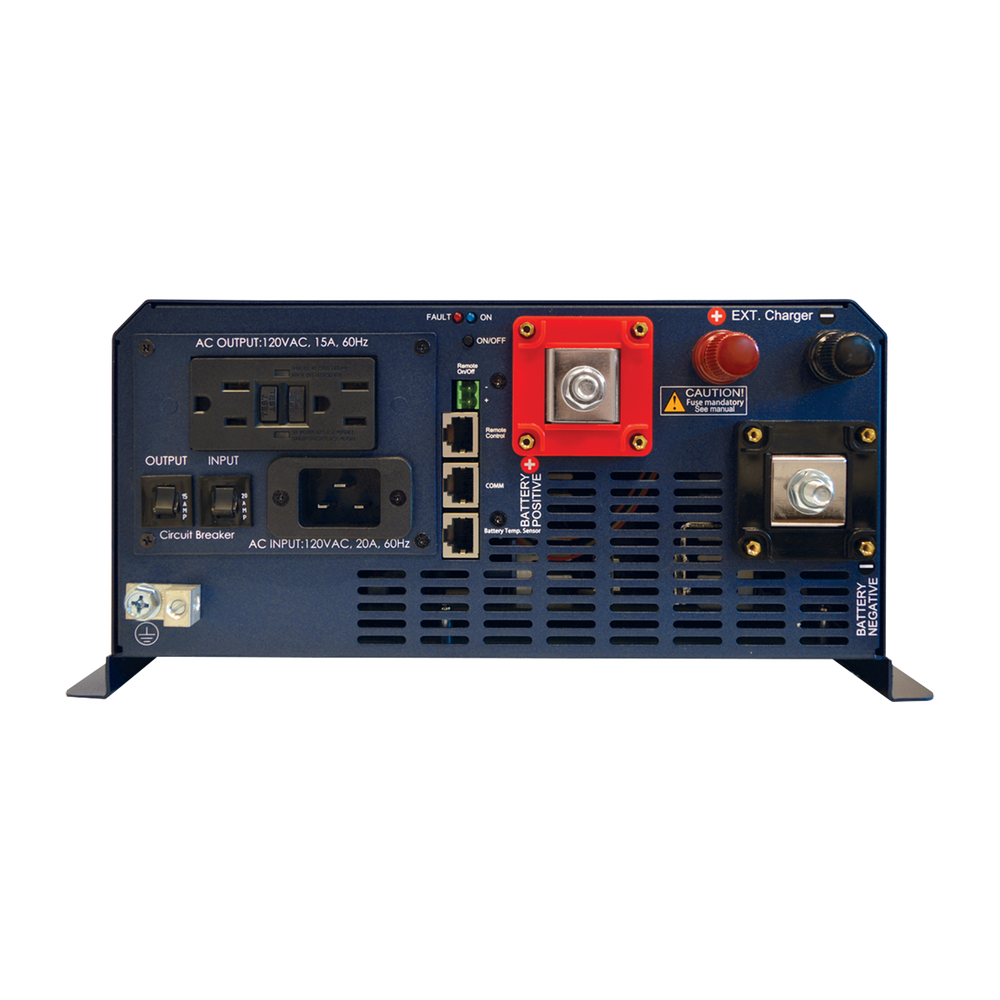

UPS Pure Wave Charger Inverter 1200W, In: 24V, Out: 120Vac

UPS Pure Wave Charger Inverter 1200W, In: 24V, Out: 120Vac

Adaptive battery charger option for lead acid batteries
6 programmable charging profiles: 2, 3 and 4 stages with equalization
Bulk charge monitoring assesses the battery's condition. The remaining charging stages are based on the battery's condition rather than a preset charging time.
Reduces excessive charging time and extends battery life

Transfer switch
Zero transfer time when switching from the inverter to the AC input source. When the AC input source is turned on, the inverter synchronizes with the incoming waveform and then instantly transfers to the zero crossing without interrupting the load.
Surge capacity (Active Power Boost)

Connect a solar charge controller (up to 50A) directly to the EVOTM via the external DC input.
The external charging current is monitored to release more power from the grid.
ONLINE mode can be used to prioritize Batteries/Inverter over the grid, ideal for those who want to operate primarily on solar power, even when the grid is available (when the grid is expensive).

AC power cord inlet and duplex GFCI outlet: EVO-1212F/1224F; wiring: EVO-1212F-HW/1224F-HW
The EVO-RC-PLUS remote control (sold separately) can be used to capture detailed EVOTM performance data, stored on a removable 16GB SD card. Advanced features for programming various parameters and operating modes. Four rows of 20-character alphanumeric LCD display for messages.
The EVOTM uses five temperature sensors placed throughout the unit to determine the operation of two speed-controlled cooling fans. It reduces unnecessary fan noise and energy consumption by only running the fans when and where they are needed.

Specification:

- 24 VDC input
- Output 120 Vac Double NEMA5-15P (GFCI)
- Power 1200 Watts
- Programmable for lithium batteries with EVO-RC-PLUS
- Weight 17.6 kg
- Dimensions 324 x 415 x 148 mm
- Intertek-ETL Listed Safety: Certified to CAN/CSA STD. C22.2 No. 107.1-01; Meets ANSI/UL STD. 458. Certified to FCC Part 15(B), Class A. ABYC (Marine Environment) Certification

Requires battery bank (not included)

Optional remote control model EVO-RCPLUS (not included)

NOTE: Power cable not included.

UPS function, 6 programmable load profiles, Transfer switch
