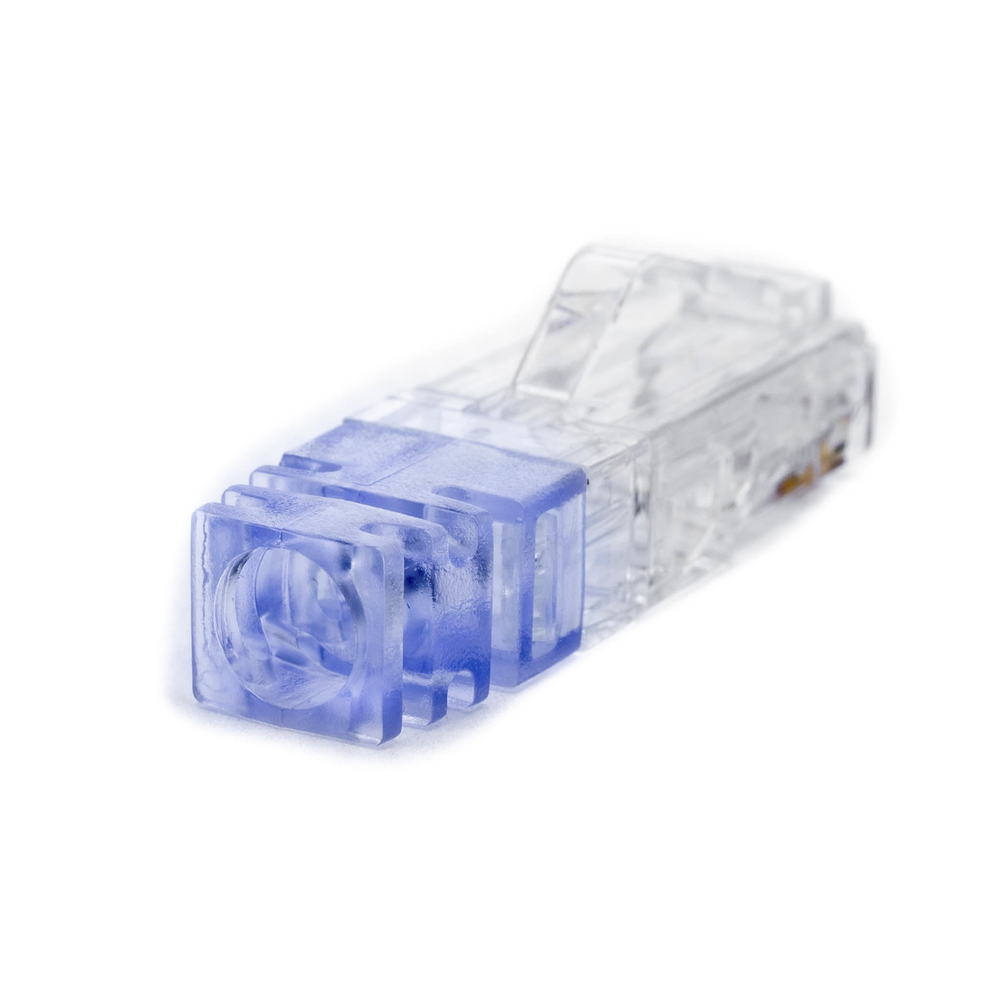

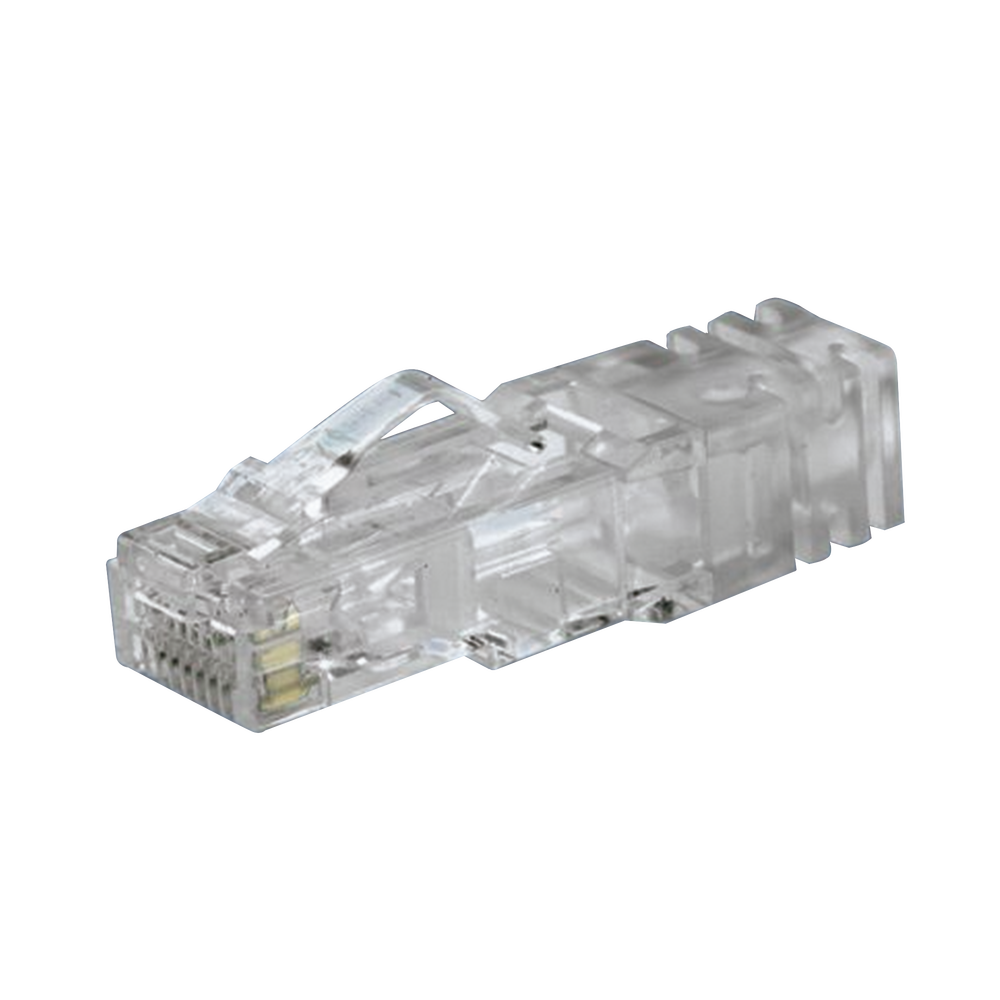

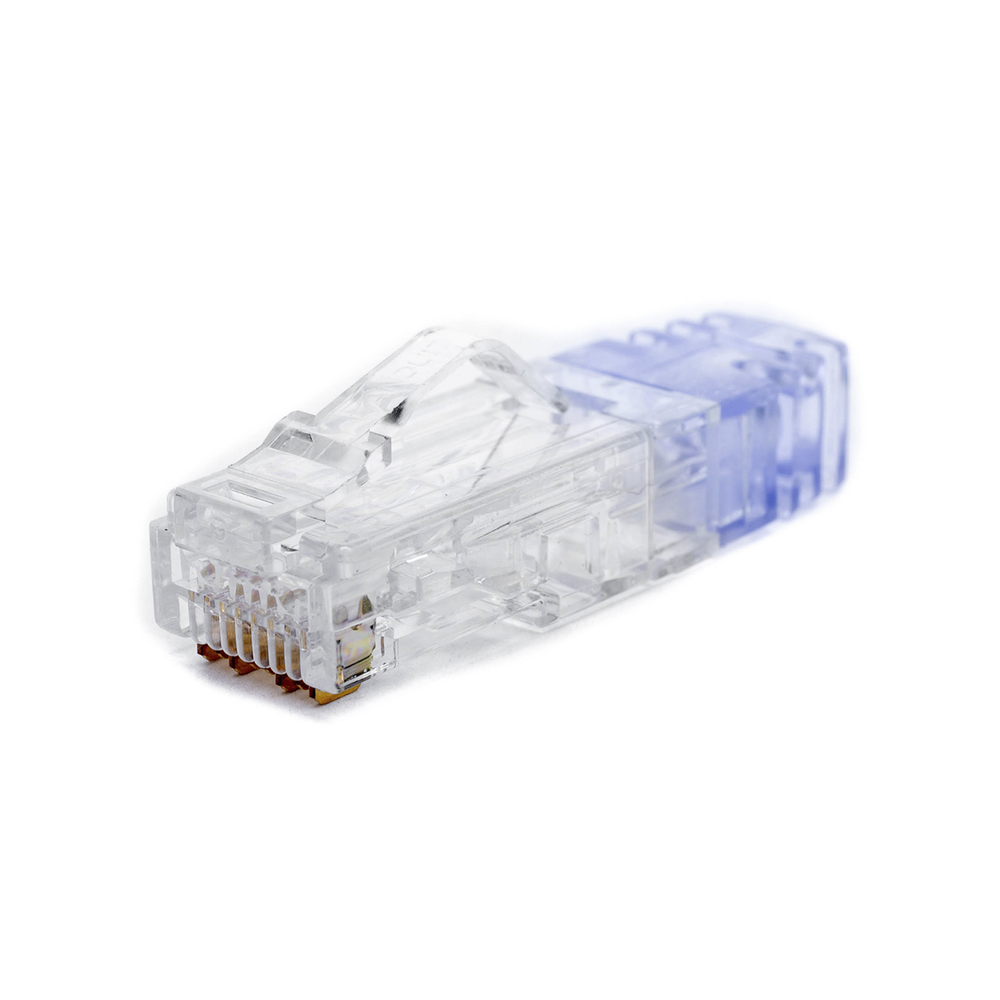

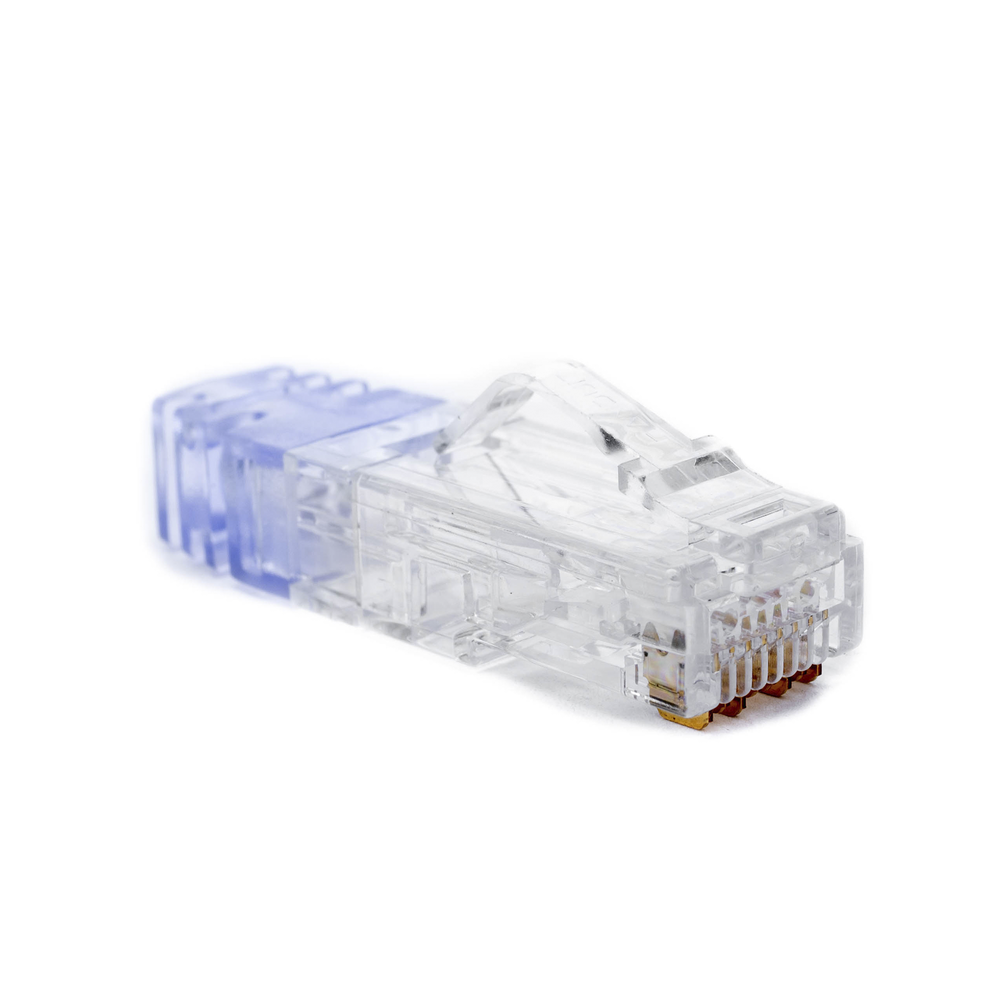

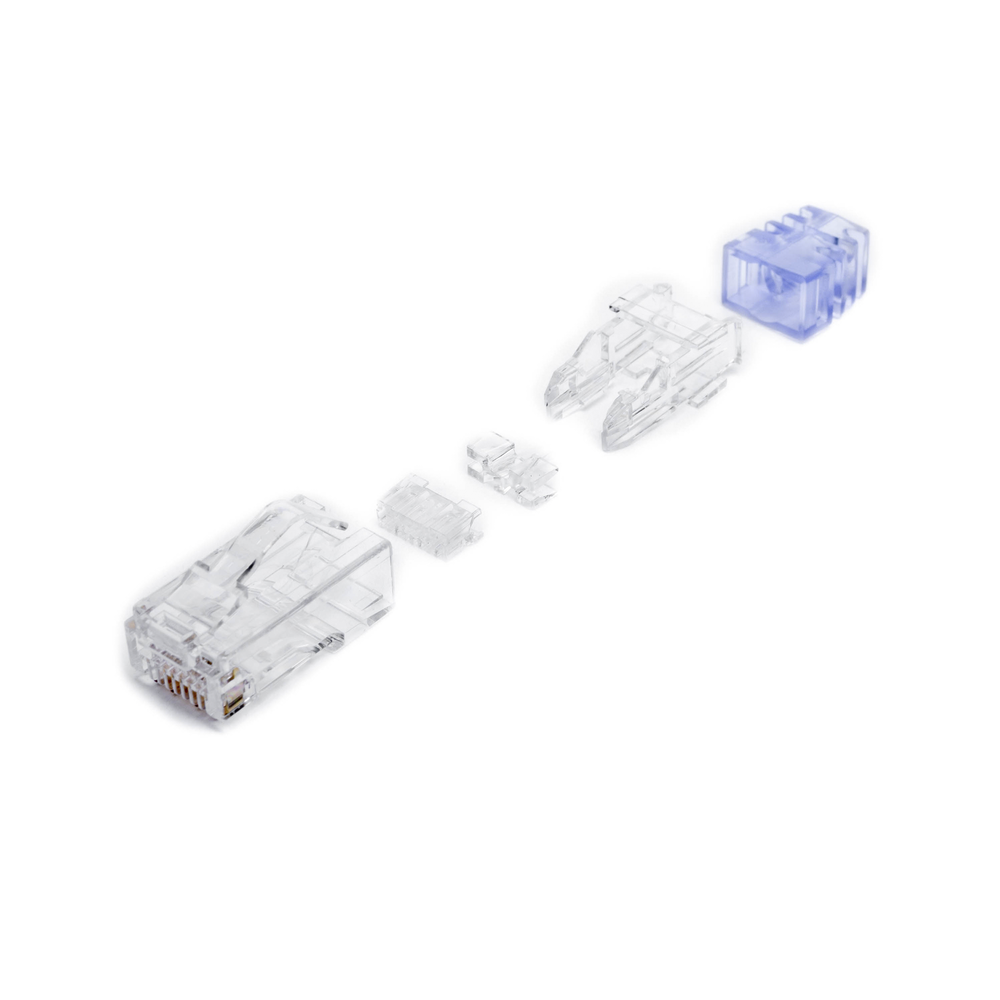

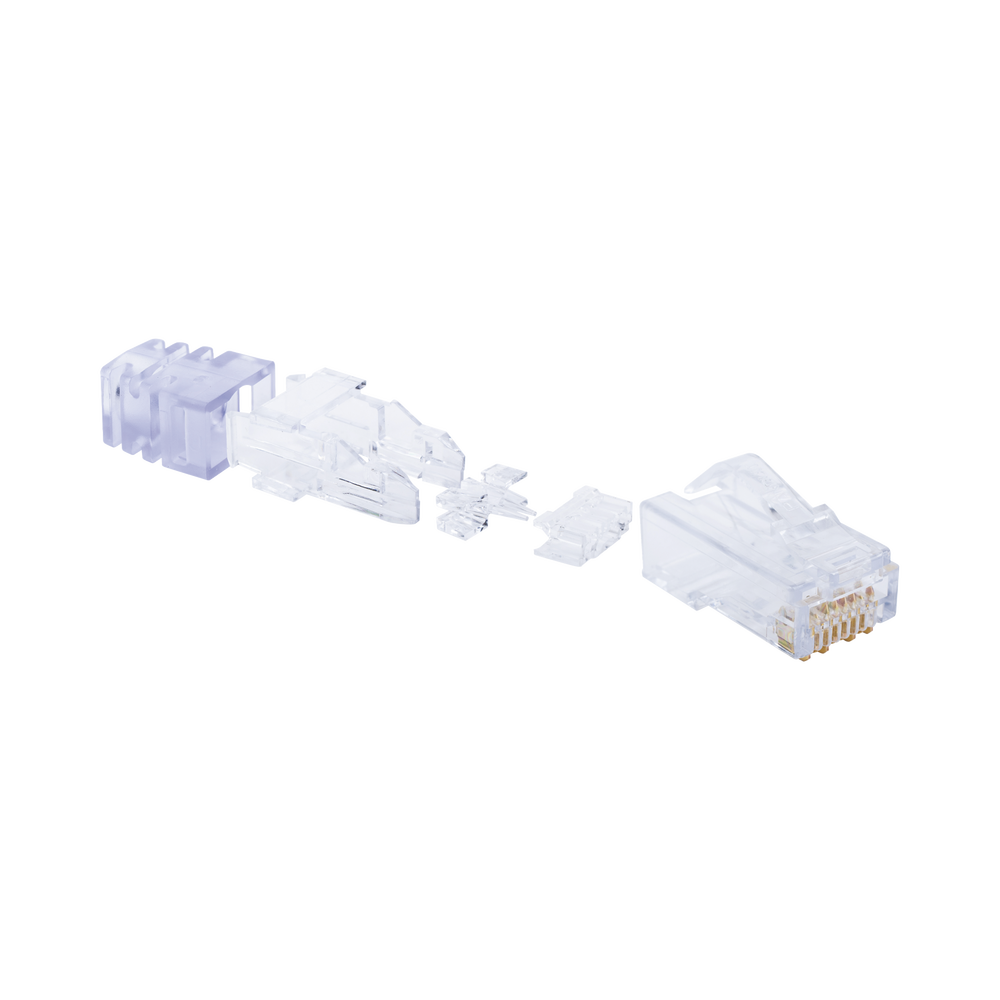

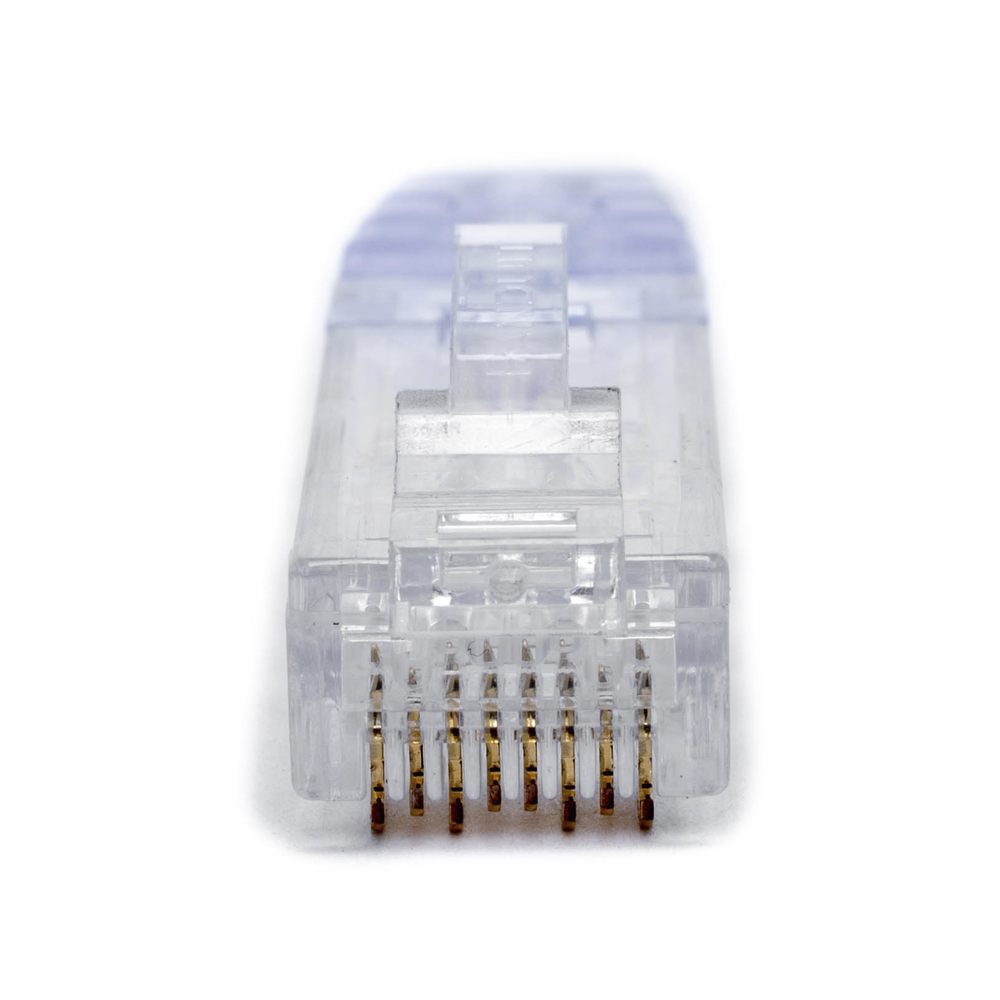

The Category 6/Class E, 8-position, 8-wire UTP modular plug can be terminated to Panduit 4-pair, 23-24 AWG, 100 ohm, solid or stranded unshielded twisted pair cable with a maximum conductor insulation diameter of 0.042 in. (1.07 mm) and a maximum jacket diameter of 0.250 in. (6.35 mm).
Technical specifications:
Performance: Category 6 or lower
Number of insertion cycles: 2500
Supported conductor: 23 to 24 AWG solid or stranded, with 0.91 to 1.07 mm diameter
Cable diameter: 5.72 to 6.35 mm
Contact Material: 50 micro inches of gold plating over nickel
PoE Compliance: Supports PoE, PoE+, Type 3 and Type 4 for applications above 100 W
Plastic materials: Polycarbonate, UL 94 V0
RoHS Compliant
Lead-free, halogen-free and PVC-free
Operating temperature: -10 to 60ºC
Maximum wire diameter: 6.35 mm, 50 micro inches of gold plating over nickel for maximum durability and performance, Plastic materials: Polycarbonate, UL 94 V0, Lead-free, halogen-free, and PVC-free, Supported conductor: 23 to 24 AWG solid or stranded
