Fiber Optic Distribution Box, Up to 96 Splices, Outdoor IP65, Black

Fiber Optic Distribution Box, Up to 96 Splices, Outdoor IP65, Black

The FDP-420F is a fiber optic access box used for the first layer of FTTH networks. It is designed for in-line applications to provide a protected access point between the fiber backbone cable and the distribution cable. Its flexible configuration supports two cable inputs and two outputs.

• Online application and easy installation
• Outdoor use, excellent UV protection
• Supports Micro-Splitters with splicing method
• Made of polypropylene + fiberglass
• Compatible with ADSS, Mini ADSS and Mini Figure 8 fiber*

*It is recommended to add more fusion tape (sealing mud) at the cable entry when used with Mini Figure 8 fiber ( OC-FIG8-06C , OC-FIG8-12C )

Characteristics:

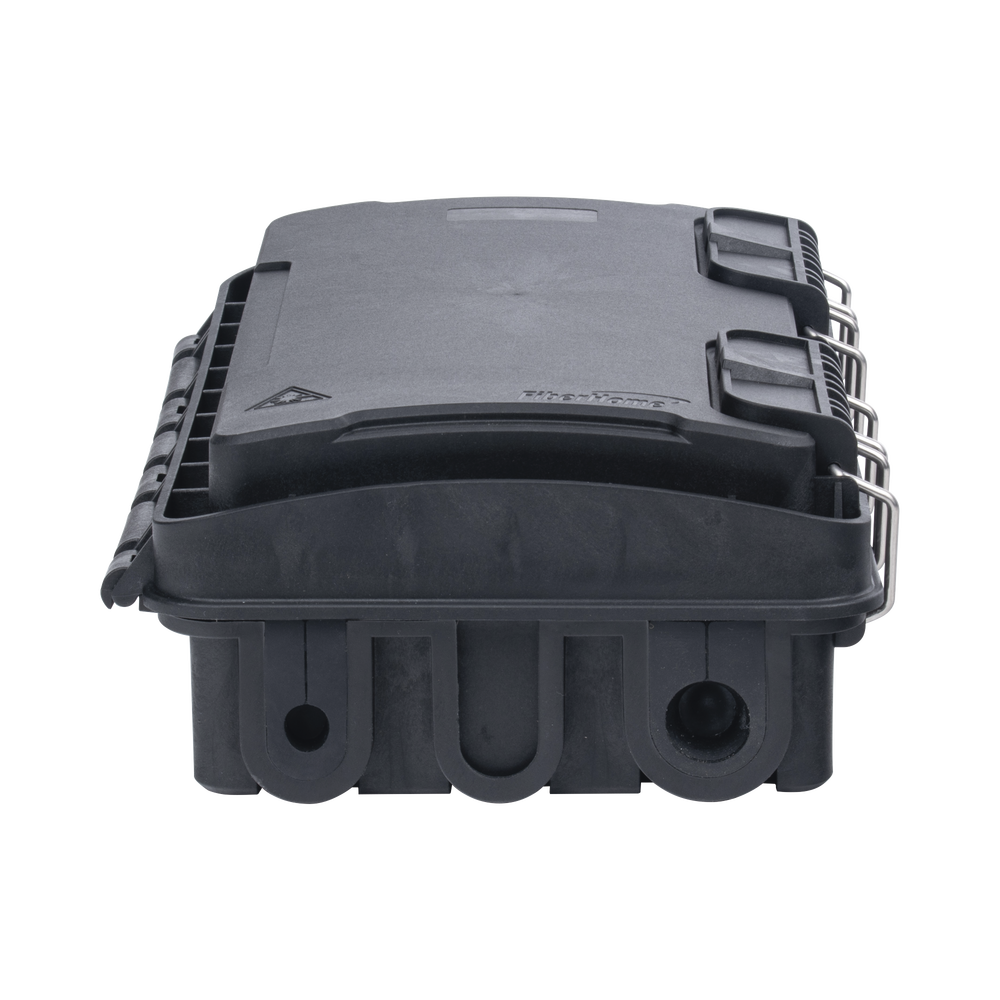

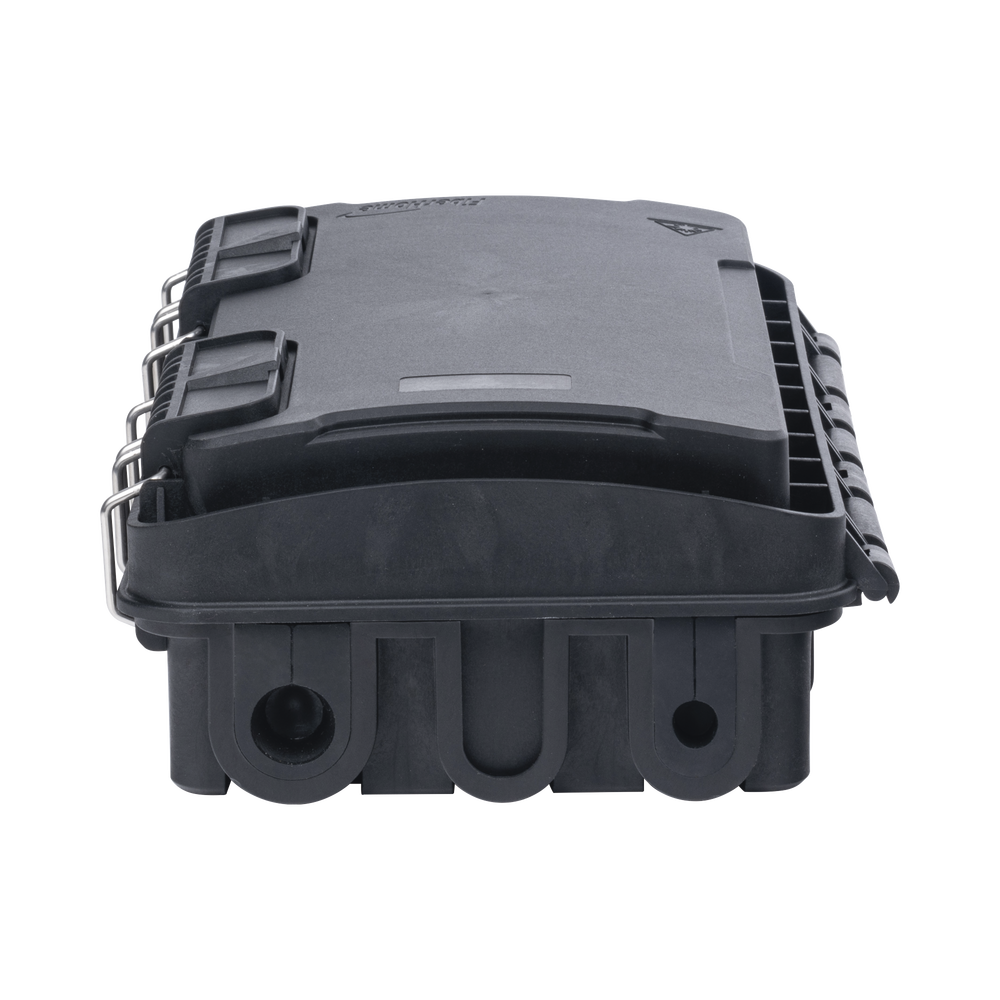

• 2 cable entries ( Ø8mm～ Ø20mm)
• 2 cable entries (Ø5mm～Ø16mm)
• Weight: 1.4~1.6kg
• Dimensions (mm): 175.5 x 285 x 92
• Splicing capacity: 96 Fibers
• 4 Slots for splitter installation (1:2, 1:4, 1:8) Not included
• Protection level: IP65
• Color: Black
• Operating temperature: -25 ~+75ºC
• Relative Humidity: 5%~95%
• Atmospheric Pressure: 62kpa ~ 106kpa

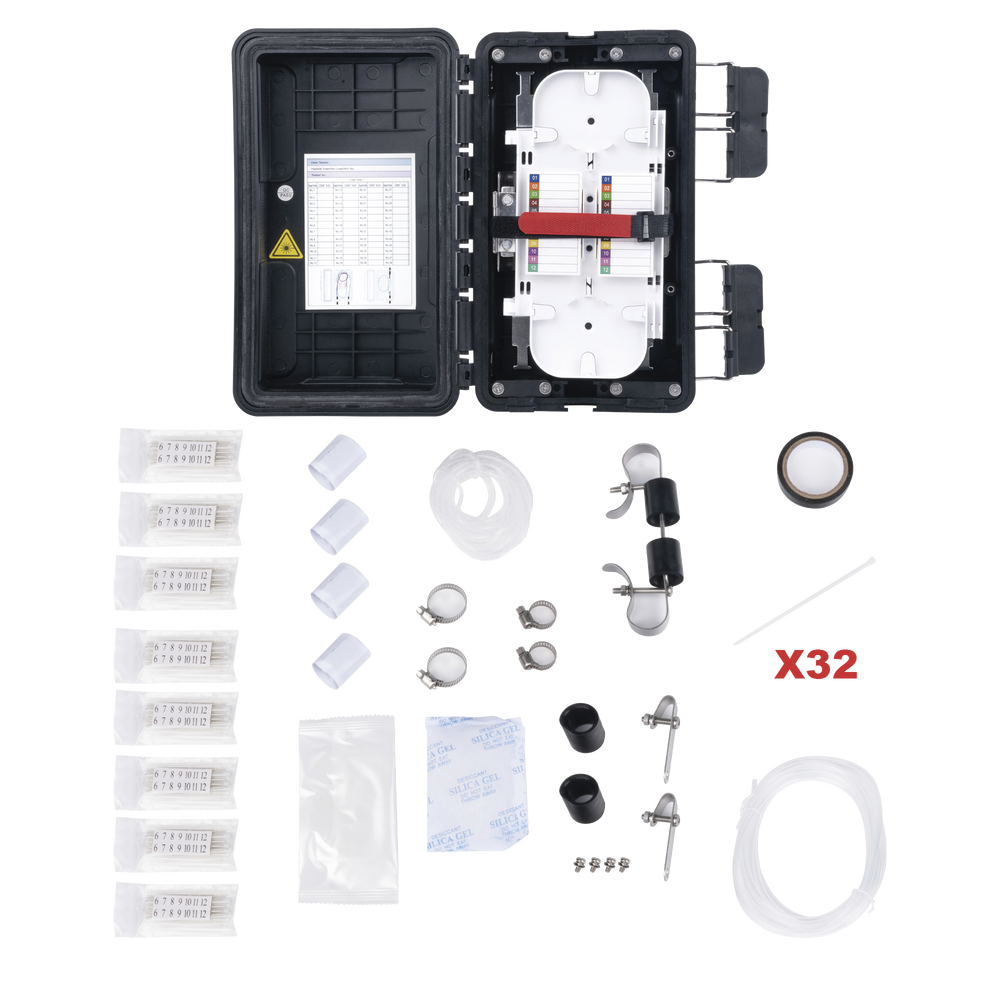

Includes:

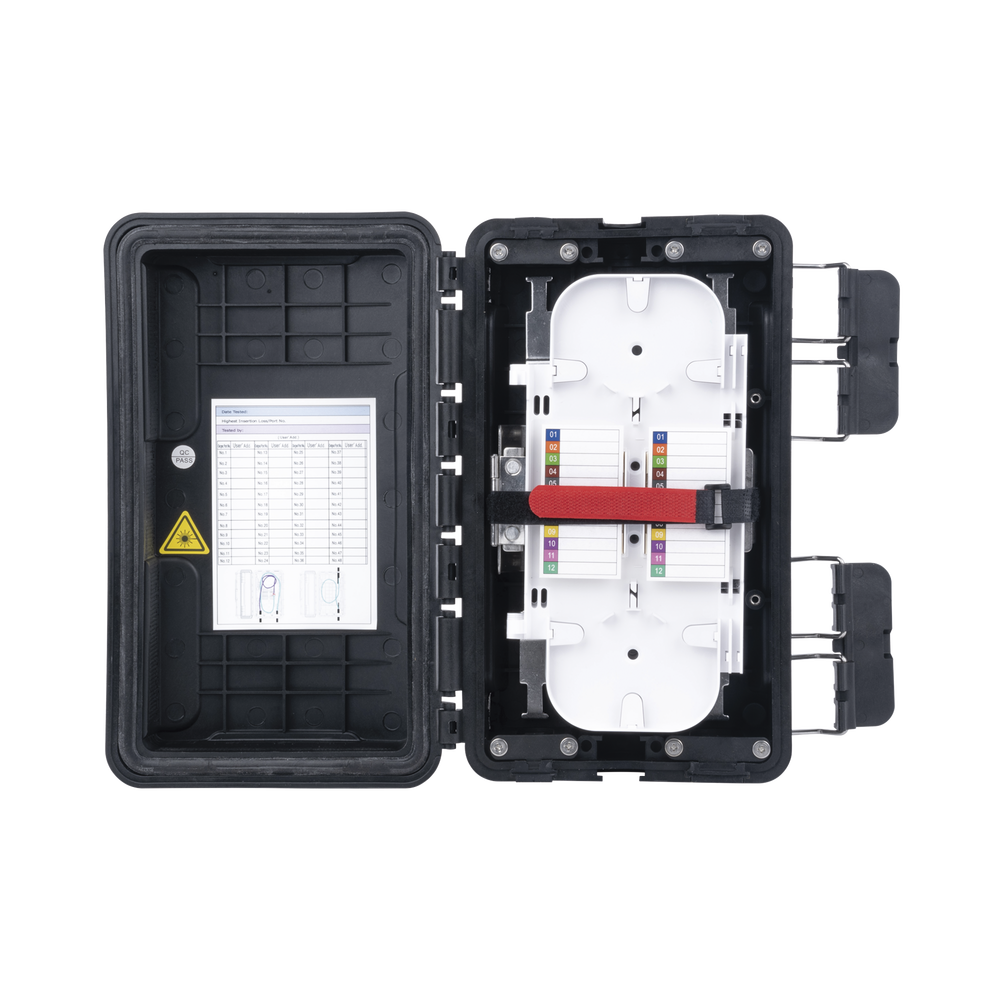

• 4 trays of 24 joints each (96 in total)
• 1 Bare fiber protection tube (4 m)
• 1 PVC tape
• 1 Grouper (2 m)
• 32 Cable Ties (3*120mm)
• 96 Splice sleeves (60 mm)
• 1 fiber optic cleaning towel
• 1 Instructions
• 2 small clamps (Ø10 - Ø16 mm)
• 2 large clamps (Ø16 - Ø25 mm)
• 2 Junction Box Hanging Accessory Kit
• 4 Fusion Tapes

Aerial installation on fiber cable, Recommended for LCP, for branching from trunk fiber to distribution fiber, 4 cable entries, Horizontal
