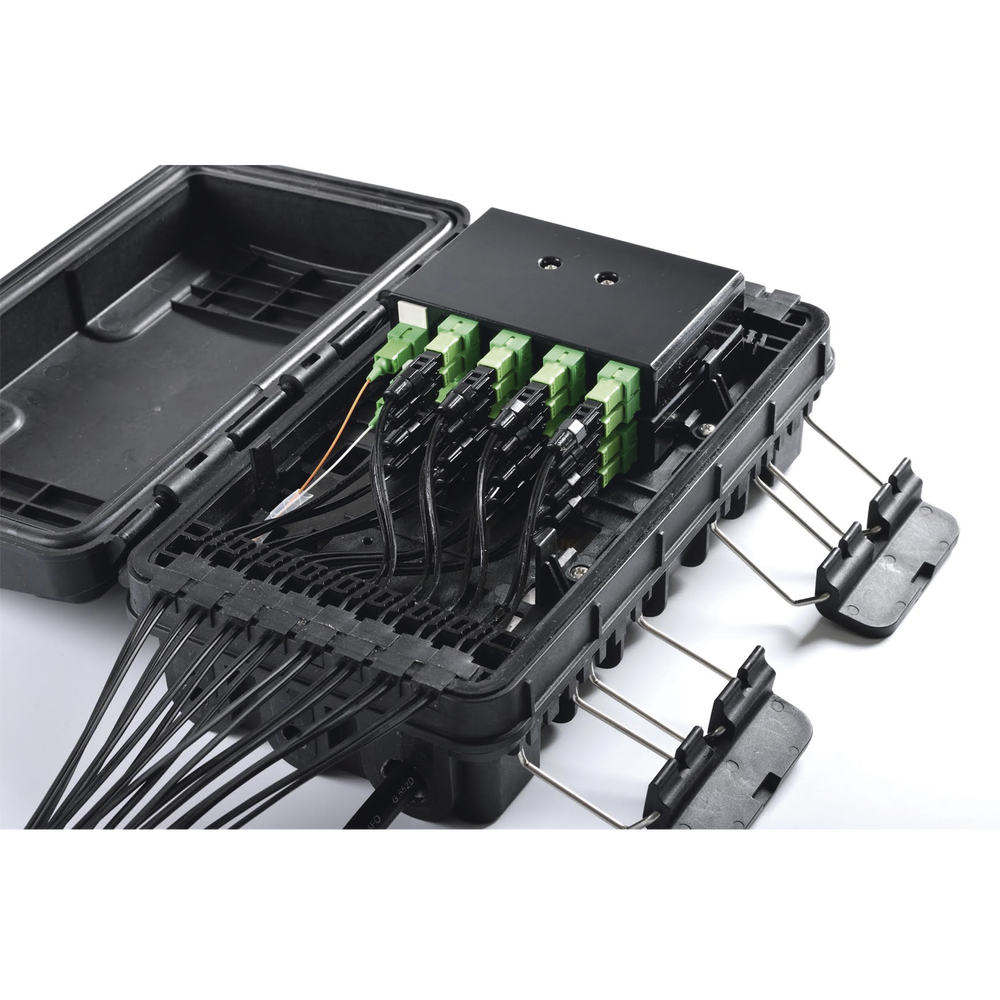

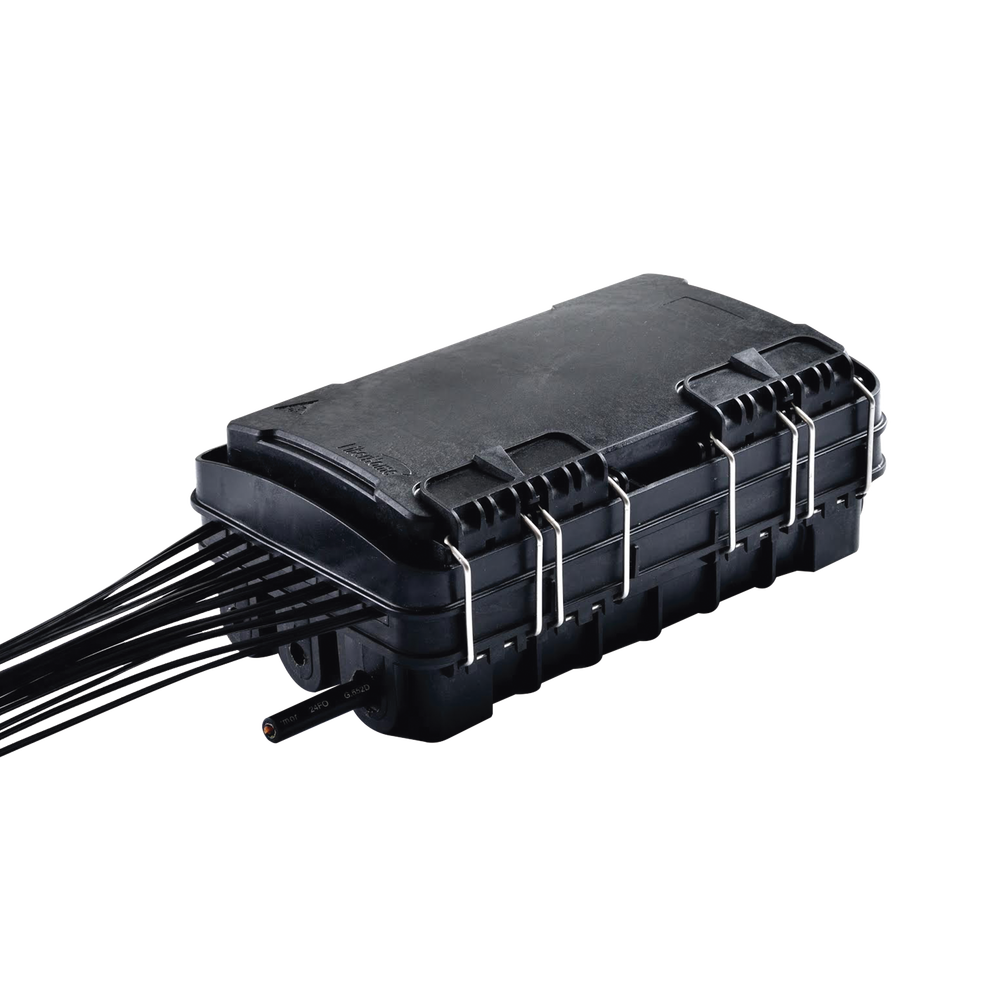

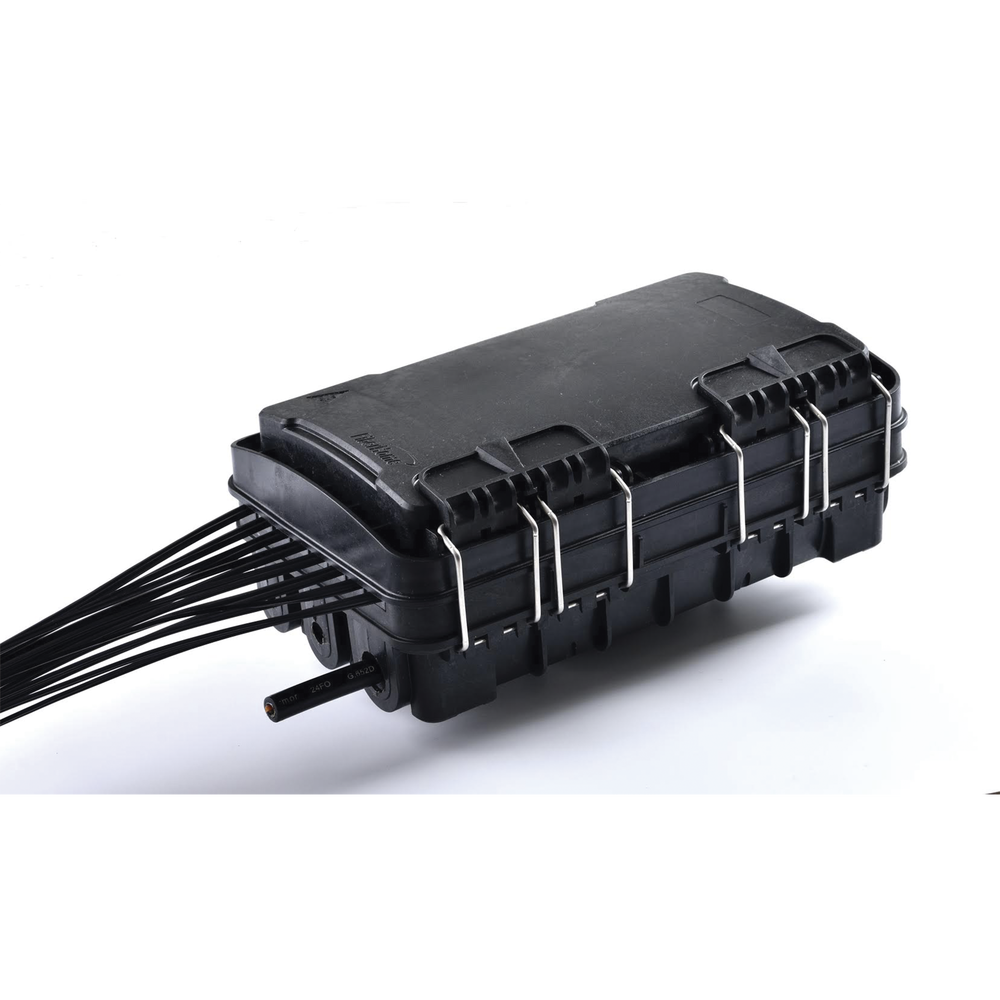

Fiber Optic Distribution Box for 24 Splices, with 16 SC/APC Simplex Couplers, IP65 Exterior, Black

Fiber Optic Distribution Box for 24 Splices, with 16 SC/APC Simplex Couplers, IP65 Exterior, Black

The FDP-420E box is designed for in-line applications to provide an access point for distribution and drop cable. It supports up to 24 fiber splices. It features protection to protect internal components from any risks posed by the outdoor environment. The splitter input is spliced ​​to the fiber, and the splitter outputs are ready to be spliced ​​with drop cable.

• Designed with PP materials, fire resistant, UV resistant, and rounded edges.
• Easy opening and closing of the box without the use of tools
• Supports 16-wire DROP output.
• Weather-resistant material
• Protection level: IP65

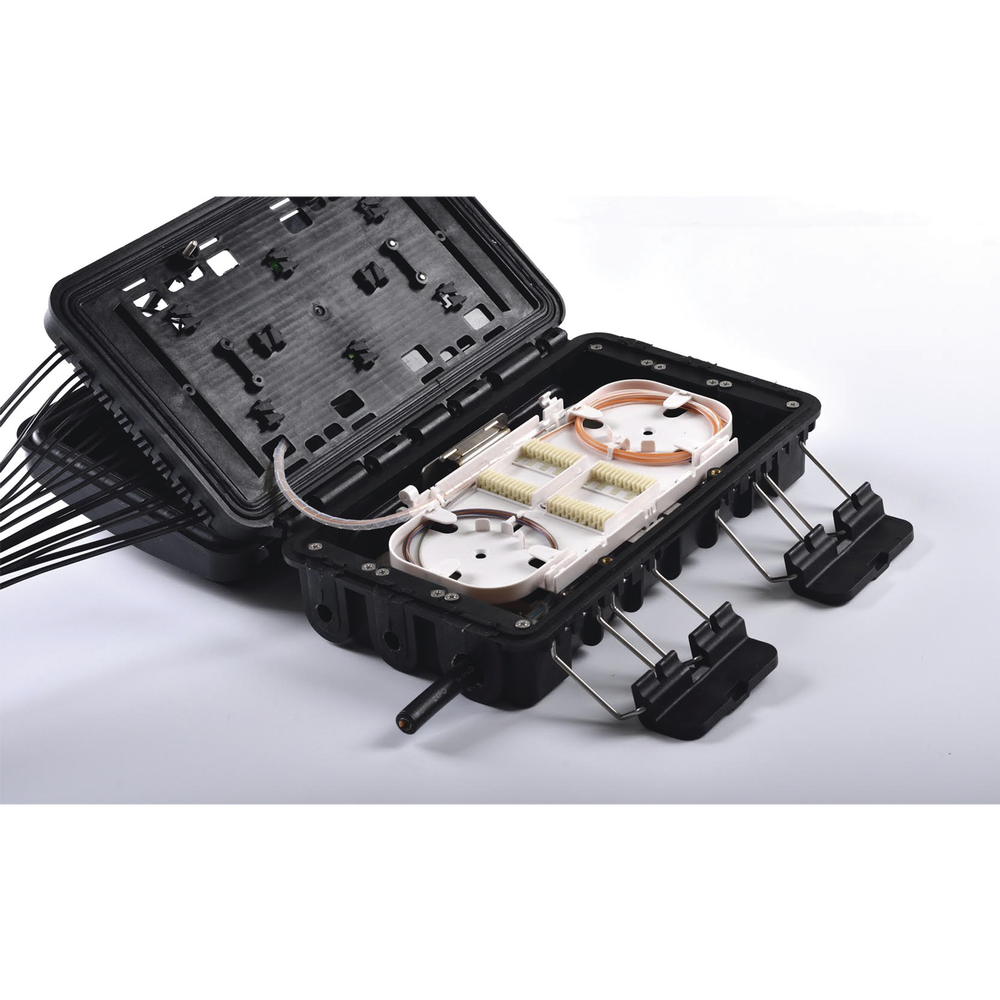

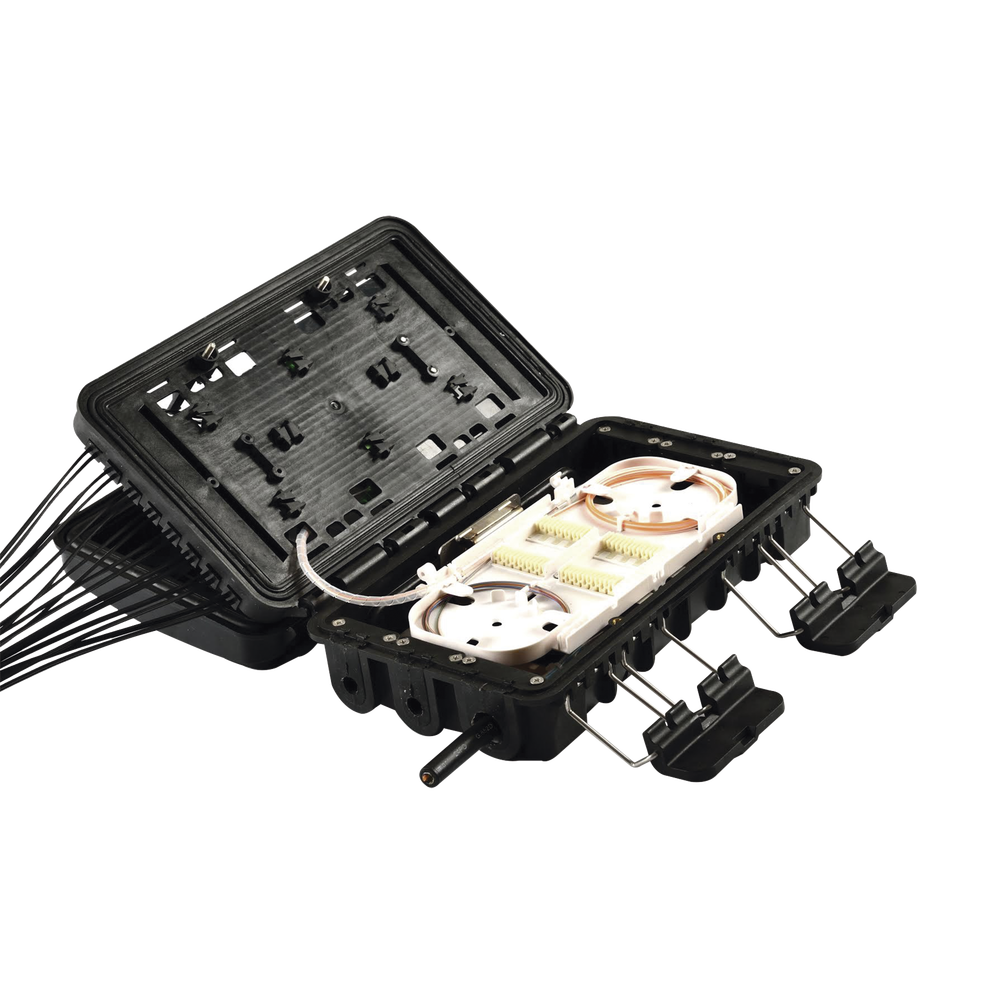

• Internal 2-layer design
• Compatible with ADSS, Mini ADSS and Mini Figure 8 fiber*

*It is recommended to add more fusion tape (sealing mud) at the cable entry when used with Mini Figure 8 fiber ( OC-FIG8-06C , OC-FIG8-12C )

Characteristics:

• Weight: 1.0~1.7kg
• Dimensions: 285 x 170 x 100mm
• Maximum splice capacity: 24 Fibers
• Splitter Quantity: 2 x 1:4, 2 x 1:8, 1 x 1:16 (Not included)
• Color: Black

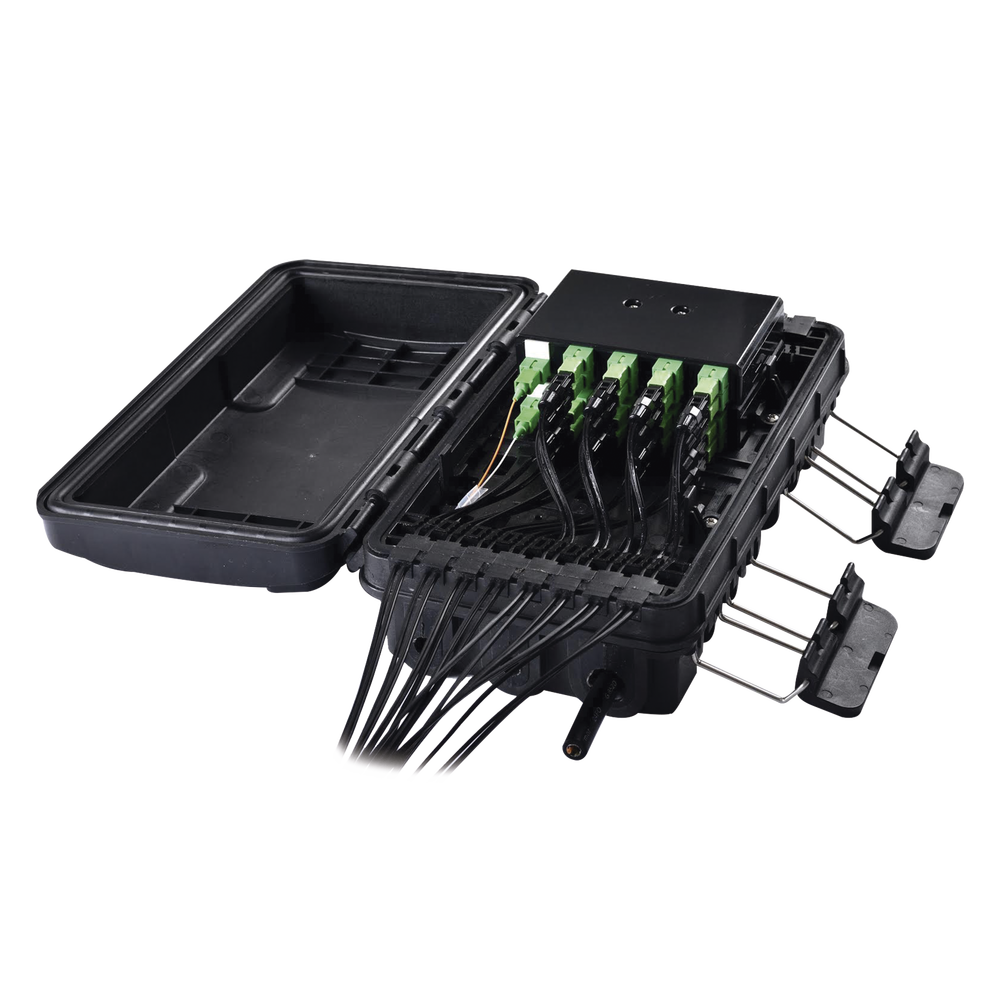

• Includes 16 SC/APC simplex couplers
• Includes 12 splice sleeves
• Operating temperature: -40 ~+65ºC
• Relative Humidity: 95% (+40ºC)
• Atmospheric Pressure: 70kpa ~ 106kpa

For aerial installation in fiber optic cable, Recommended for NAP, to derive from distribution fiber to Drop fiber, 16 outputs for Drop fiber
