Fiber Optic Terminal Box (Rosette) with one SC/APC Coupler, White

Fiber Optic Terminal Box (Rosette) with one SC/APC Coupler, White

The FTB-501 box provides a compact and aesthetic design for customer service. It features fiber protection for single-point termination, ready for connections to the optical network unit (ONT/ONU).

Characteristics:

• Compact faceplate measurement

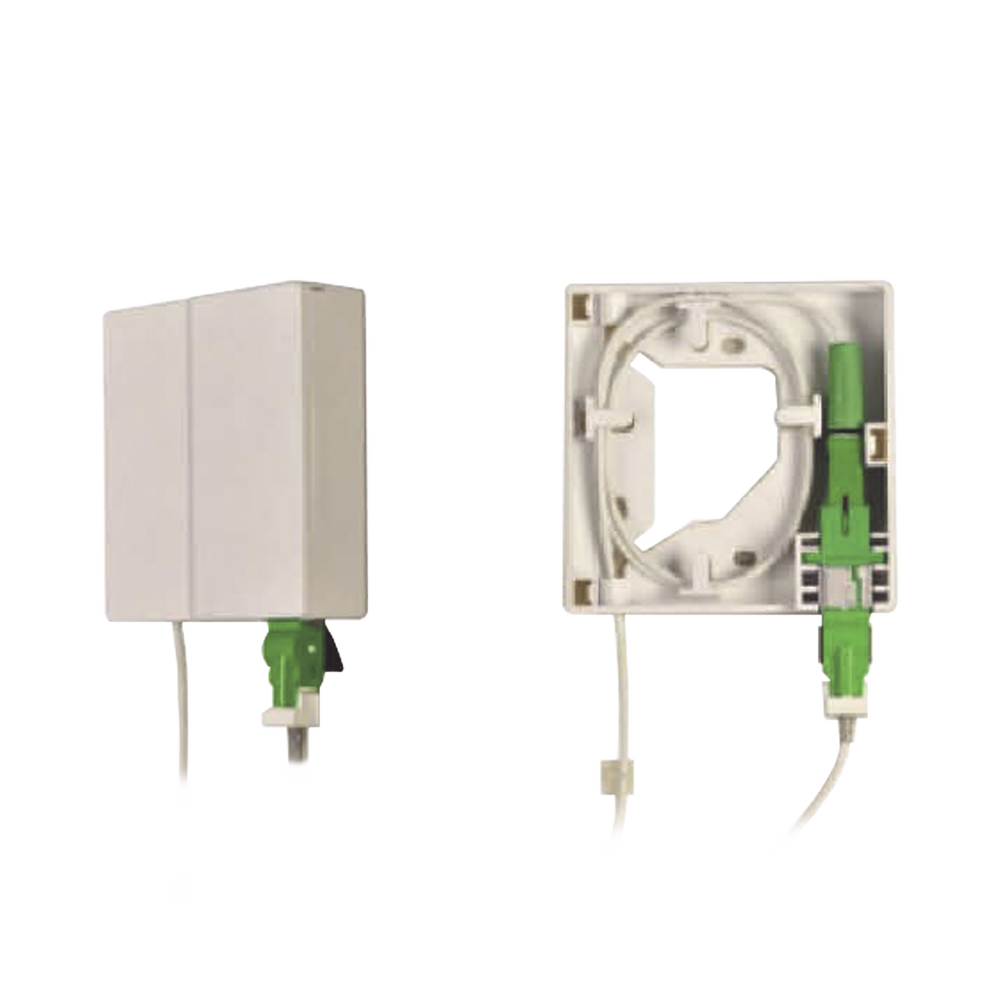

• Possibility of allowing cable entry from the back or bottom of the unit
• Proper cable routing, bend radius protection, and strain relief of incoming cable
• Automatic SC coupler included
• DROP type cable terminated with field connectors or pigtail splicing
• Flame retardant ABS plastic material

Specs:

• Dimensions: 86 x 86 x 23 mm
• Adapter Type: SC/APC
• Installation: Wall mount, for indoor applications
• Maximum cable diameter: ≤Φ 4mm (DROP type cable)
• Protection level: IP30
• Color: White

Accommodates 1 fusion or 1 field-terminated connector, Made of fire-retardant ABS materials, Allows entry of drop cables up to 4 mm in diameter, Compact size
