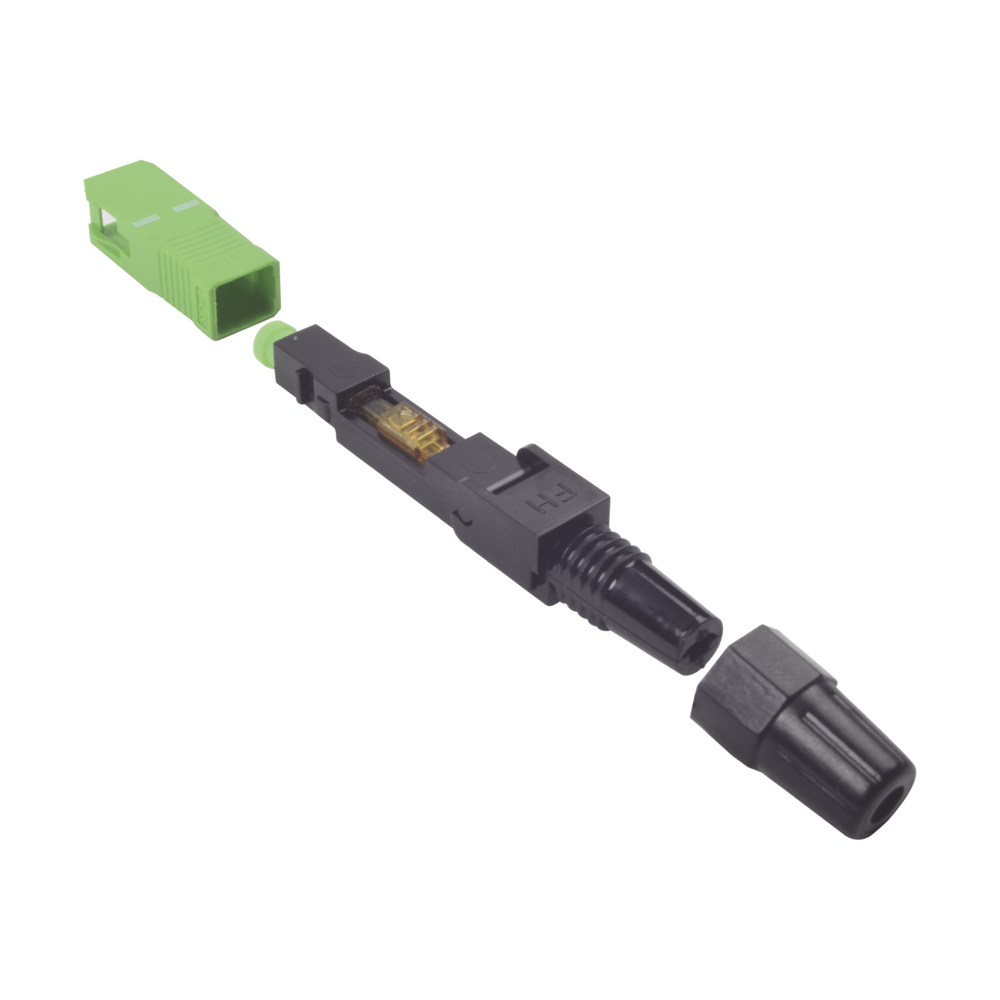

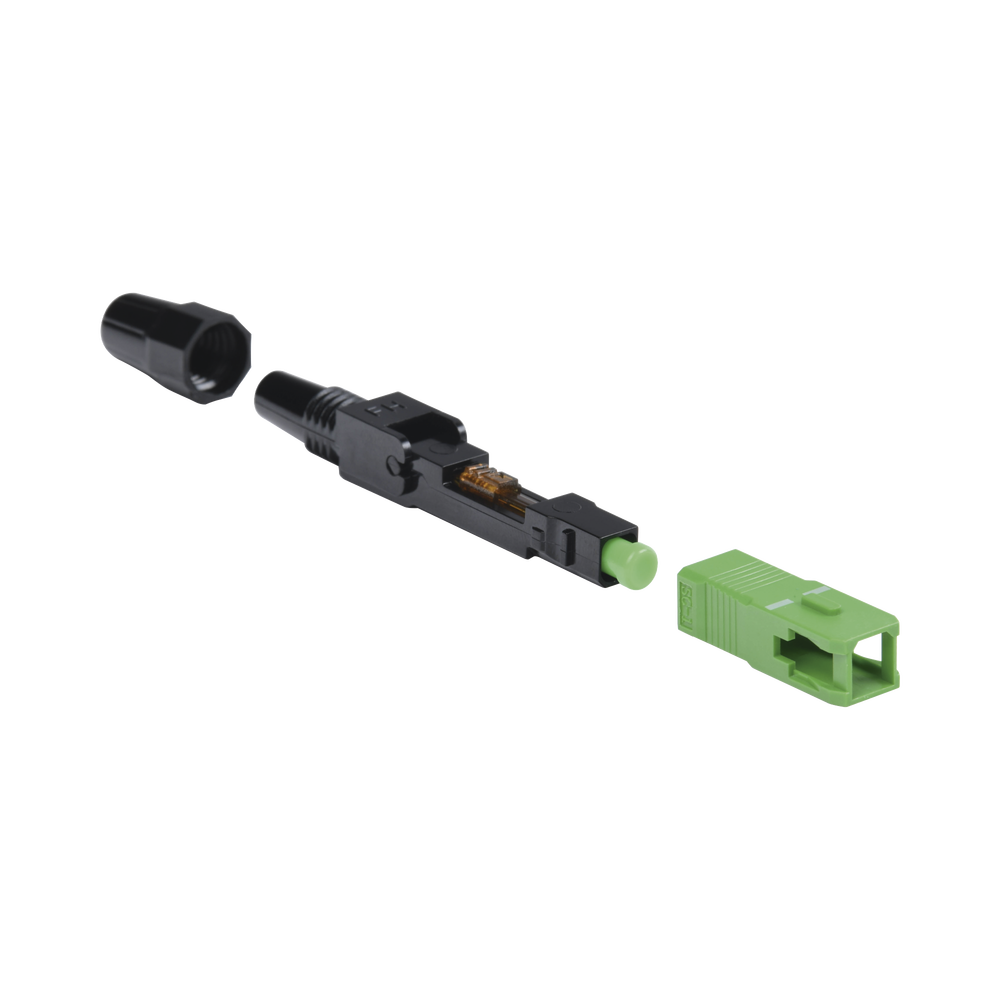

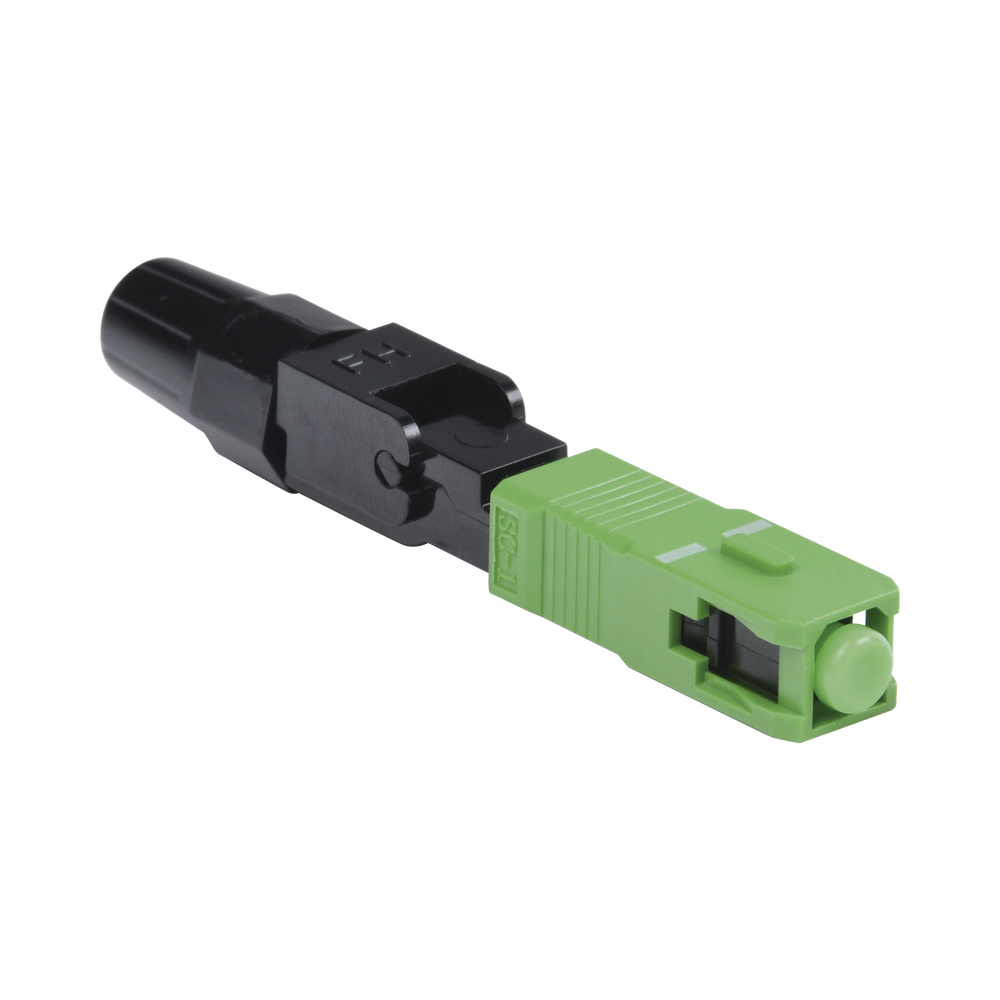

Field-Installable Quick Connector, Single-Mode, SC/APC, Pre-Polished, Re-Terminatable, Ideal for FTTx Applications

Field-Installable Quick Connector, Single-Mode, SC/APC, Pre-Polished, Re-Terminatable, Ideal for FTTx Applications

Field-installable SC quick connectors provide simple deployment for FTTH applications without the need for polishing and are the best option for terminating DROP-type fiber optic cables.

• Easy installation without the need for special tools to open or close the connector
• Connection easily verifiable after installation

Specs:

• Connector Type: SC/APC
• For Tight Buffer fiber (900µm) or Drop fiber
• Reterminable (up to 3 times)
• Insertion loss:
  • Maximum ≤ 0.50 dB
  • Typical ≤ 0.30 dB
• Return loss:
  • UPC ≤ 50 dB
  • APC ≤ 55 dB
• Operating temperature: -40 to 70ºC

For Tight Buffer (900µm) or Drop fiber, Operating temperature: -40 to 70ºC, Connection easily verifiable after installation, Reterminable (up to 3 times)
