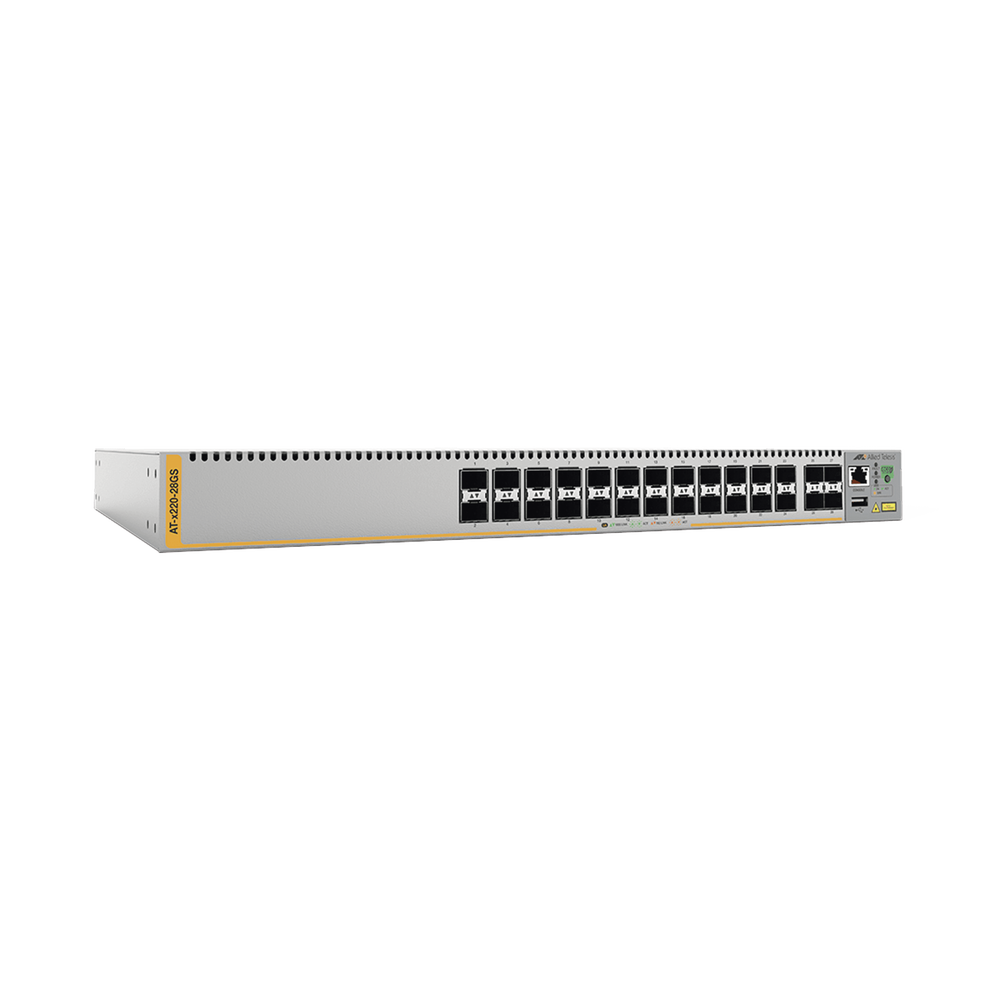

Layer 3 fiber optic switch, 28 ports 100/1000X SFP Gigabit

Layer 3 fiber optic switch, 28 ports 100/1000X SFP Gigabit

Ports:

28 100/1000X SFP ports.

Forwarding rate: 41.7 Million packets per second (Mpps).

Switching fabric: 56 Gbps.

Operating system:

AlliedWare Plus™.

Administration:

Command Line Interface (CLI).

Graphical user interface (GUI).

Telnet.

SSH.

SNMP v1, v2c & v3 monitoring.

General characteristics:

Voice VLAN.

VLAN Mirroring (RSPAN).

Access Control Lists (ACLs).

VLAN ACLs.

Storm protection.

Loop protection.

Multicast support -IGMP snooping (v1, v2 and v3)

Tri-authentication.

QoS (Quality of Service):

• 8 priority queues.
• Limit bandwidth by port or traffic class.

Routing protocols :

Static routing.

Routing Information Protocol (RIP).

Redundancy features:

G.8032 Ethernet Ring Protection ( license required ).

Ethernet Protection Switched Ring (EPSRing).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).

Physical and electrical characteristics:

Power supply: 100-240 VAC, 50/60 Hz.

Dimensions: 1 U Rack, 441 x 323 x 44 mm.

Weight: 4.3 kg.

Operating Temperature: 0 to 50° C.

Warranty:

1 year.

Example of a high-performance business network.

Stacking for management., Up to 4094 VLANs., Routing protocols (static and RIP)., Multicast support (IGMP snooping).
