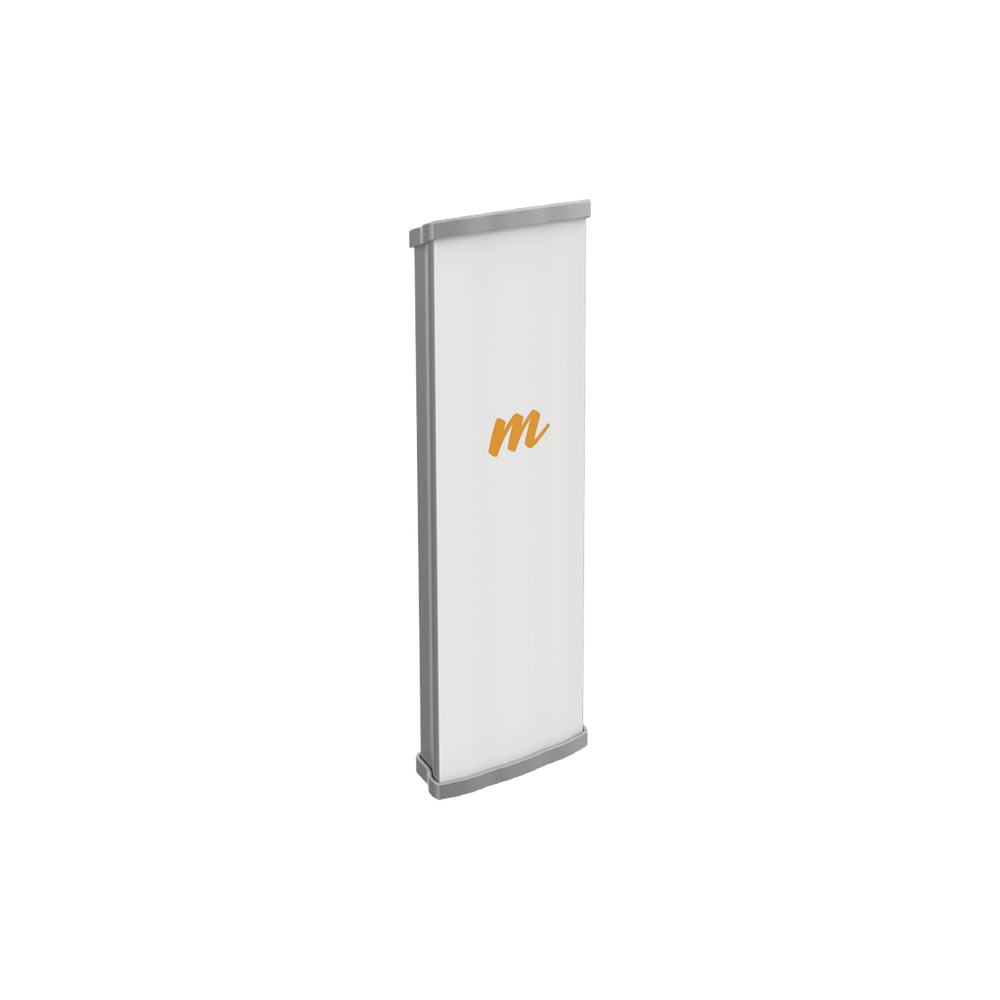

45º 2X2 MIMO Sector Antenna, 4.9 - 6.4 GHz, 19 dBi Gain, Sidelobe Free, Wide Noise Rejection, Jumper and Mount Included

45º 2X2 MIMO Sector Antenna, 4.9 - 6.4 GHz, 19 dBi Gain, Sidelobe Free, Wide Noise Rejection, Jumper and Mount Included

Specs

• Frequency range 4.9 to 6.4 GHz.
  Gain: 19 dBi.
  Beam spread: 45º H azimuth / 9º V elevation.
  Mechanical tilt adjustment of 20º up and down.
  Polarization: Dual Slant 45º.
  Cross polarization isolation > 30 dB.
  Port-to-port isolation > 10 dB.
  Great front-to-back ratio FTB of 43 dB min.
  Impedance: 50 ohms.
  Maximum input power 30 dBm.
  Wind resistance: 200 km/h (125 mph).
  Supports IP55 protection.
  Temperature range: -40 to 55º C.
  Weight: 2.81 kg (6.2 lb).

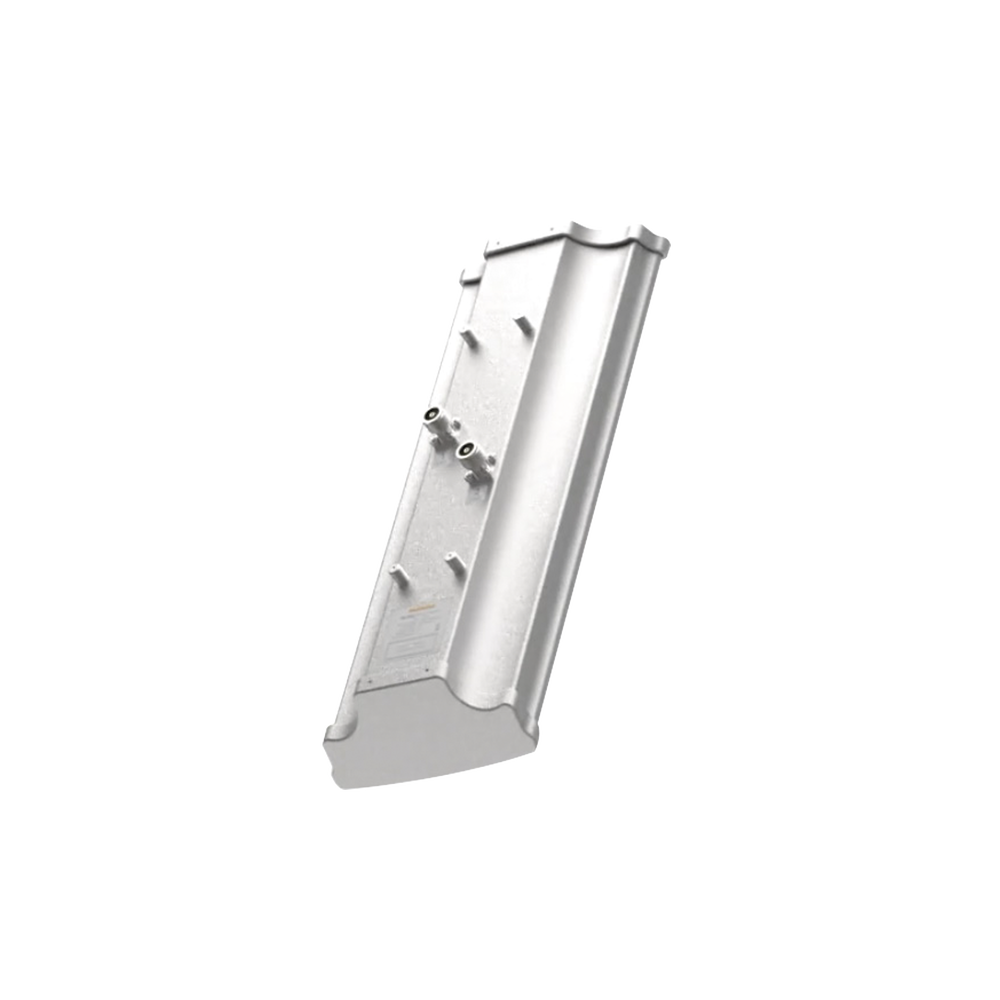

• 2 x N-Female Connector
• Includes N-male to N-male jumpers

Mechanical Specifications

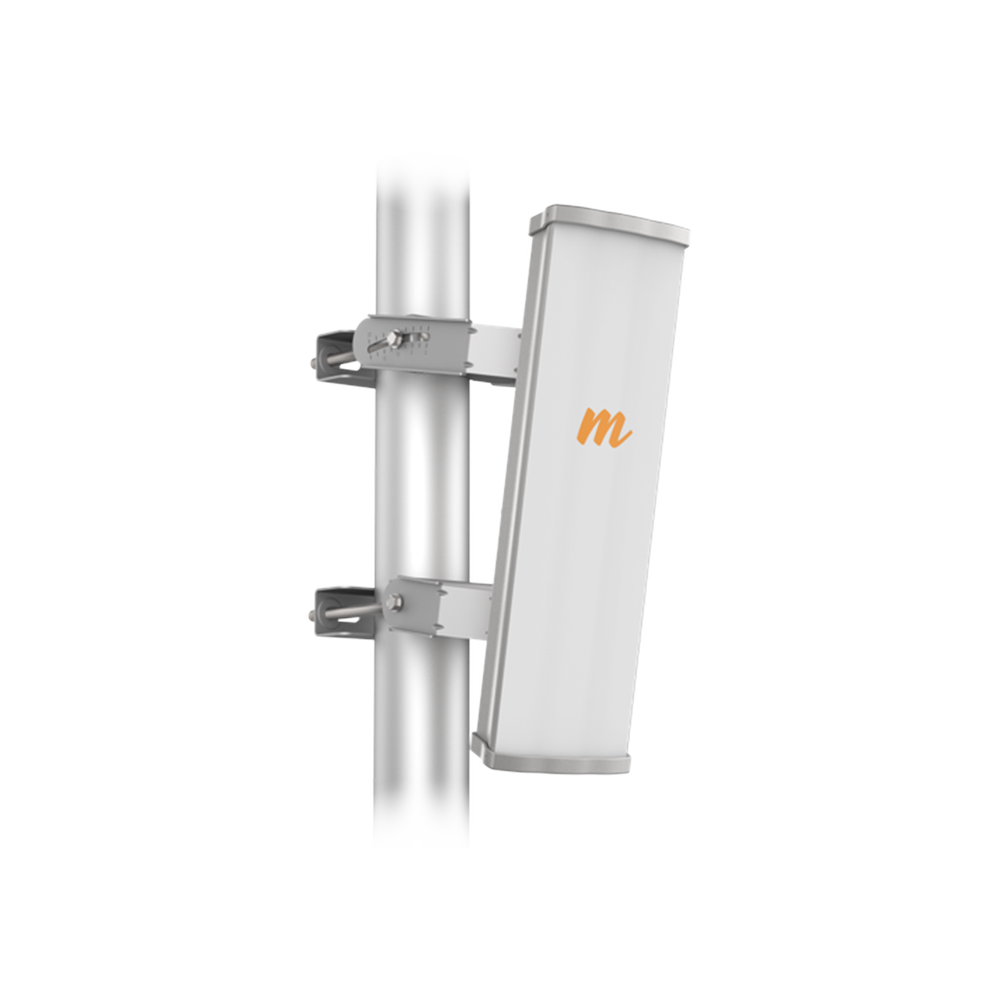

Hardware included for 90mm (3.5”) max and 38mm (1.5”) min post.

Antenna dimensions

Height: 427 mm (16.81”).
Width: 143 mm (6.63 “).
Depth: 76 mm (3.0”).

Shipping Dimensions

Height: 662 mm (26.06”).
Width: 166 mm (6.53 “).
Length: 100 mm (3.94”).

Highest performing sector antennas in the industry

The Mimosa N5-45 antennas provide all the gain and ground coverage of a sector antenna, with the incredible front-and-back performance of a horn. These 45-degree sector antennas at 4.9 to 6.4 GHz are custom-designed for a variety of multipoint applications.

No Losses

Featuring a state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º medium-power beamwidth with unmatched sidelobes.

Highest performing sector antennas in the industry

The Mimosa N5-45 antennas provide all the gain and ground coverage of a sector antenna, with the incredible front-and-back performance of a horn. These 45-degree sector antennas at 4.9 to 6.4 GHz are custom-designed for a variety of multipoint applications.

Supports third-party access points

Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.

What's in the box

N5-45x2

Two LMR-240 cables with heated boots

Pivot support

Sliding support

Warranty and compliance sheet

Super extended frequency range 4.9 - 6.4 GHz, Lossless side and back lobe, Compatible with any brand of 2X2 MIMO radio, Great long distance performance, High gain of 19 dBi, High noise rejection
