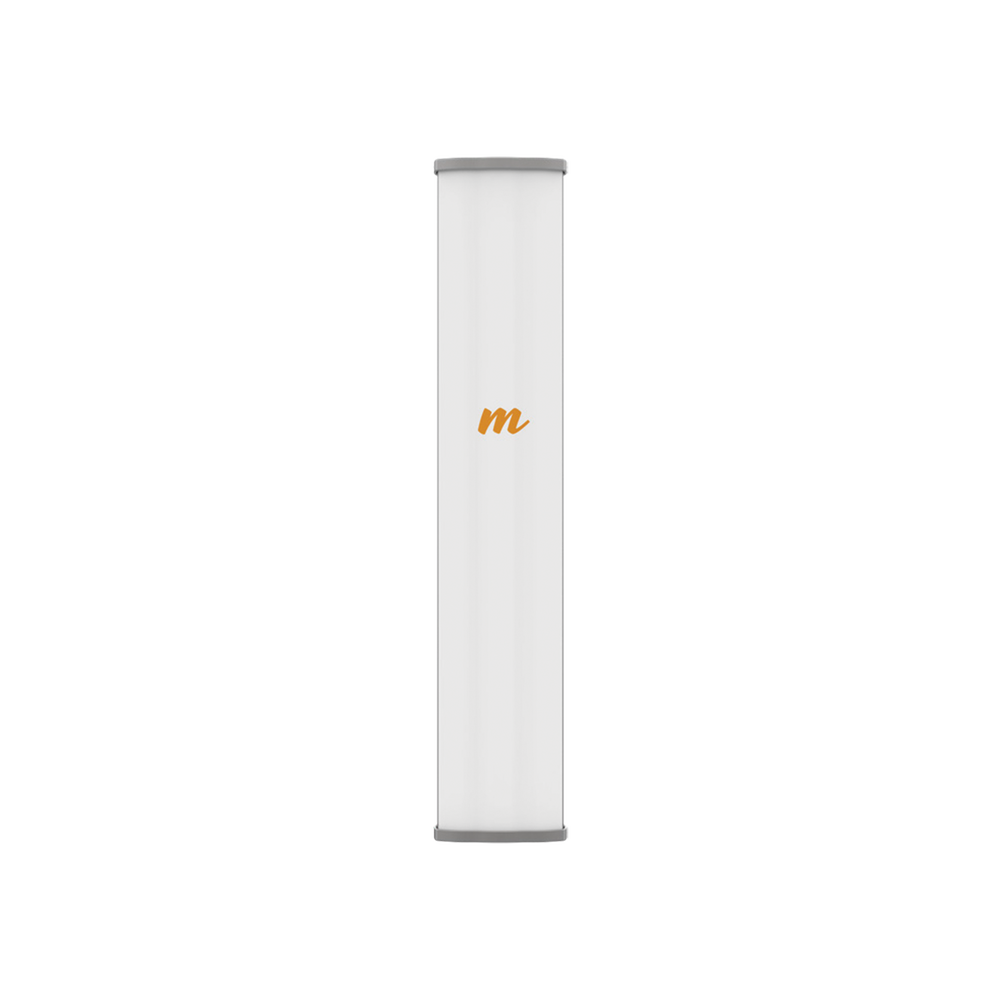

45º 4X4 MIMO Sector Antenna, 4.9 - 6.4 GHz, IP55, 22 dBi Gain, 4 N-female Connectors, Mounting and N-type Jumper included.

45º 4X4 MIMO Sector Antenna, 4.9 - 6.4 GHz, IP55, 22 dBi Gain, 4 N-female Connectors, Mounting and N-type Jumper included.

4X4 MIMO Sector Antenna for High Interference, ideal for MicroPoP applications with A5c from Mimosa Networks

• No loss of side and rear lobes of the antenna.
• High interference attenuation.
• Great ground-level coverage to minimize dead zones.
• Great long distance performance.
• Compatible with any brand of 2X2 MIMO or 4X4 MIMO radio.
• Compatible with Mimosa Networks A5c 4X4 MIMO radio to connect two antennas and reuse spectrum.

Extended frequency range from 4.9 to 6.4 GHz.
Gain : 22 dBi + 3 dBi by Beamforming.
Beam spread : 45º H azimuth / 9º V elevation.
Mechanical tilt adjustment of 20º up and down.
Hardware included for 90mm (3.5”) max and 38mm (1.5”) min post.
Connectors: 4xN-Female (includes 1m LMR240 RF cables).
Polarization : Dual Slant 45º.
Cross polarization isolation > 30 dB.
Port-to-port isolation > 10 dB.
Great front-to-back ratio FTB of 43 dB min.
Impedance: 50 Ω
Maximum input power 3 0 dBm.
Wind resistance: 200 km/h (125 mph).
Supports IP55 protection .
Temperature range : -40 to 55º C.
Weight: 4.08 kg (9 lb).

Antenna dimensions

Height: 734 mm (28.88”).
Width: 143 mm (6.63 “).
Depth: 76 mm (3.0”).

Shipping Dimensions

Height: 981 mm (38.62”).
Width: 166 mm (6.53 “).

Length: 105 mm (4.13 “).

Highest performing sector antennas in the industry

The Mimosa N5-45 antennas provide all the gain and ground coverage of a sector antenna, with the incredible front-and-back performance of a horn. These 45-degree sector antennas at 4.9 to 6.4 GHz are custom-designed for a variety of multipoint applications.

No Losses

Featuring a state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º medium-power beamwidth with unmatched sidelobes.

Highest performing sector antennas in the industry

The Mimosa N5-45 antennas provide all the gain and ground coverage of a sector antenna, with the incredible front-and-back performance of a horn. These 45-degree sector antennas at 4.9 to 6.4 GHz are custom-designed for a variety of multipoint applications.

Supports third-party access points

Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.

What's in the box

N5-45X4

Four LMR-240 cables with heated boots

Pivot support

Sliding support

Warranty and compliance sheet

Super extended frequency range 4.9 - 6.4 GHz, Weight 4.08 kg (9 lb), Compatible with any brand of 2X2 MIMO or 4X4 MIMO radio, Great long distance performance, High gain of 22 dBi + 3 dBi Beamforming
