8800-SX Analog and Digital Systems Analyzer for Laboratory and Field.

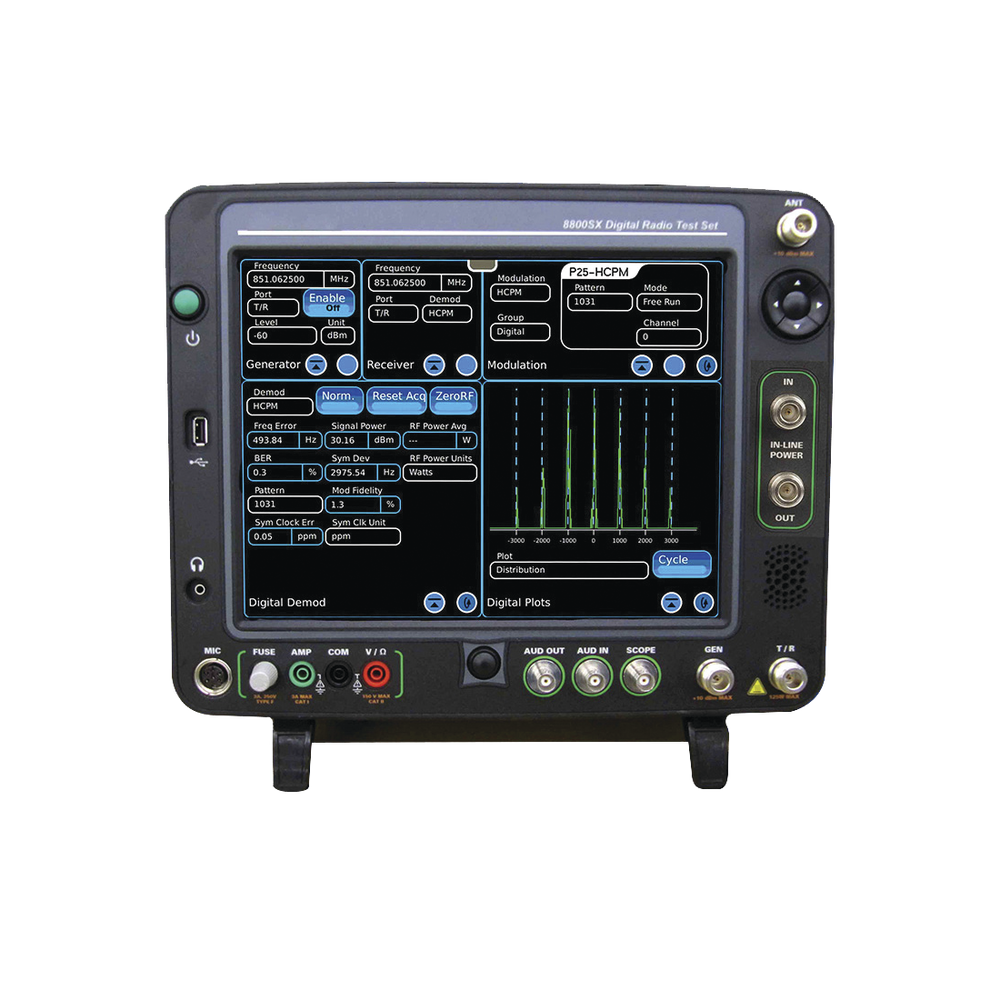

• The 8800SX ( 139942 ) combines the performance and portability features of a field-level test suite with the ruggedness of a benchtop instrument in the lab.
• Weighing in at just 7.71 kg (17 lbs), with an internal battery for 2.5+ hours of operation and a robust 30G shock rating, testing professionals will no longer have to compromise portability against critical test features.
• Advanced features ranging from automated testing and alignment to digital modulation analysis, to a 500W (4% accuracy) online power meter are available in a single-device solution.
• Dimensions (Width x Height x Depth): 34.3 x 29.3 x 14.6 cm.
• Screen Size: 30.5 cm.
• Base Unit Weight: 7.71 kg.
• Internal Battery : 2.5+ Hours at Full Backlight (Optional).
• Hardness: Impact grade 30G, MIL-STD 28800F Class 3
• Direct Input Power: 50 W Continuous, 125 W Periodic.
• In-Line Power Meter: 500W, Accuracy to 4%.
• Digital Audio Quality in Recording and Playback.
• Ultra-fast test setup with logical presets.
• Frequency Lists: Tx Frequency, Tx Level, and Rx Frequency.
• Quick Stacking of Multiple Meters for Instant Access.
• Options for Tracking Generator, VSWR, Return Loss, Cable Fault, Duplexer Adjustment.

Optional Licenses:

• 113334-----88XXOPT01 DMR / DMR OPTION FOR 8800SX
• 113336-----8800OPT03 NXDN / NXDN OPTION FOR 8800SX
• 113337-----88XXOPT04 P25 / OPTION P25 FOR 8800SX
• 113339-----8800OPT10 TRACKING GENERATOR / TRACK-GEN OPTION P/8800SX
• 138525-----8800OPT101 KENWOOD NXDN SERIES SELF-TEST FOR 8800SX

General Options:

• 113334-----8800OPT01 DMR
• 113335-----8800OPT02 dPMR
• 113336-----8800OPT03 NXDN
• 113337-----8800OPT04 P25
• 138895-----8800OPT05 P25 Phase 2
• 140215-----8800OPT06 DMR Repeater Test
• 113338-----8800OPT09 ARIB T98
• 113339-----8800OPT10 Tracking Generator
• 113340-----8800OPT11 Occupied Bandwidth
• 113309-----8800OPT12 Precision Internal Power Meter (Meter + Sensor)
• 113342-----8800OPT13 External Precision Thru-Line Meter (With Bird WPS Sensor)
• 113343-----8800OPT14 PTC
• 113344-----8800OPT15 AAR Channel Plan
• 139836-----8800OPT20 R&S NRT-Z Power Sensor Bracket
• 139837-----8800OPT21 Selectable Notch Filters
• 139838-----8800OPT22 SNR Meter
• 138525-----8800OPT101 Kenwood NXDN Self Test
• 138526-----8800OPT102 Kenwood 5X20 P25 ​​Series Self Test
• 138527-----8800OPT103 Motorola APX Self Test
• 138528-----8800OPT104 Motorola MOTOTRBO™ Self Test
• 139315-----8800OPT105 Motorola ASTRO® 25 XTS®/XTL™ Self Test
• 113352-----8800OPT302 Spanish Language

Accessories:

• 138313------Calibration Certificate for Series-8800
• 82560-------AC27003 20 dB/150 Watt attenuator
• 67076-------Internal Battery Replacement
• 114479------External Battery Charger
• 114477------Heavy Duty Transit Case
• 114478------Lightweight Carrying Case
• 114475------Antenna Set
• 114348------Precision DTF/VSWR Accessory Kit for 8800
• 140747------NEON Mapping Signal Package for Internal Coverage Maps
• 63927-------AC25081 Site Survey Software
• 92793-------Bird 5017D Power Sensor
• 114312------112861 Microphone Mounting Hardware
• 62404-------Cigarette Adapter on CD Cable
• 63936-------AC24009 Test Terminals for DMM
• 112277-----10 AMP, 0.01 Ohm Current Shunt
• 67411-------Oscilloscope Tip Set

Extended Warranties:

• 114481 Standard Extended Warranty for 36 Months
• 114482 Standard Extended Warranty for 60 Months
• 114483 Standard Extended Warranty for 36 Months with Scheduled Calibration
• 114484 Standard Extended Warranty for 60 Months with Scheduled Calibration
