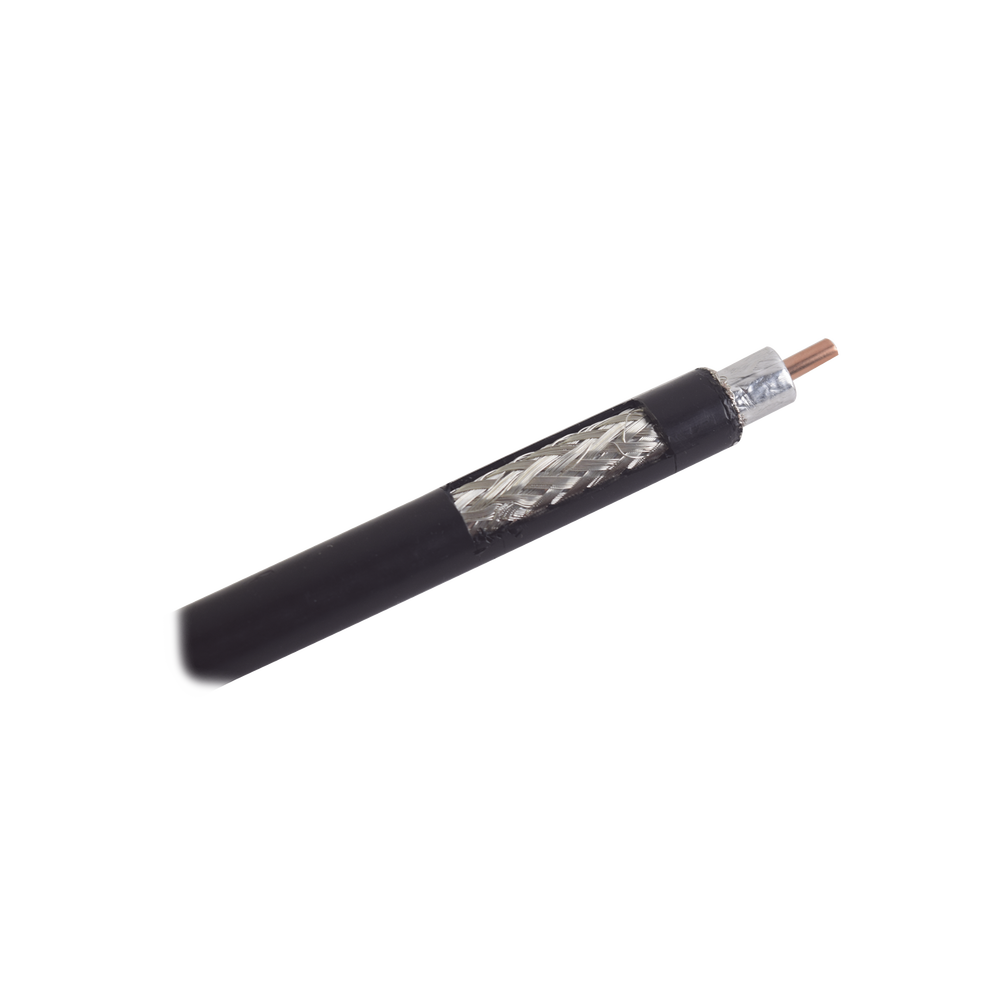

One Foot of Low Loss RG-8 LMR400 Coaxial Cable, 50 Ohms

One Foot of Low Loss RG-8 LMR400 Coaxial Cable, 50 Ohms

Times LMR high-performance coaxial cable. Superior design with high flexibility and low loss, recommended for a wide variety of applications requiring a low-loss, easy-to-install RF cable.

Advantages of LMR-400 cable

• Direct replacement for models 9913 and CNT400.
• Performance similar to that offered by corrugated copper cables.
• Superior flexibility.
• Easier and faster installation.
• Better shielding and lower loss compared to other RG type cables.

Ideal for:

• Short cable installations.
• Jumpers for communication systems.
• Any application such as: radio communication systems, GPS, WiMax, Satellite, RF ID, DAS Systems, Etc.

Technical Specifications

• Impedance: 50 Ohm.
• Attenuation at 30 mts. at 150 MHz: 1.5 dB.
• Attenuation at 30 mts. at 450 MHz: 2.7 dB.
• Shielding Effectiveness: greater than 90 dB
• Speed ​​Factor: 85%.
• Nominal Power: 0.83 kW at 450 MHz.

Construction Specifications

• Center Conductor Material: Copper Clad Aluminum.
• Cable Outer Diameter: 10.29 mm
• Inner Conductor Diameter: 2.74 mm.
• Shielding: Tinned Copper Mesh.
• Dielectric Insulation: Polyethylene foam.
