• Switch Administrable Capa 3, 8 Puertos 10/100/1000 Mbps c/PoE 802.3bt, 2 Puertos Gigabit Uplink, 2 Puertos SFP+ 10 G
1 3

PLANET

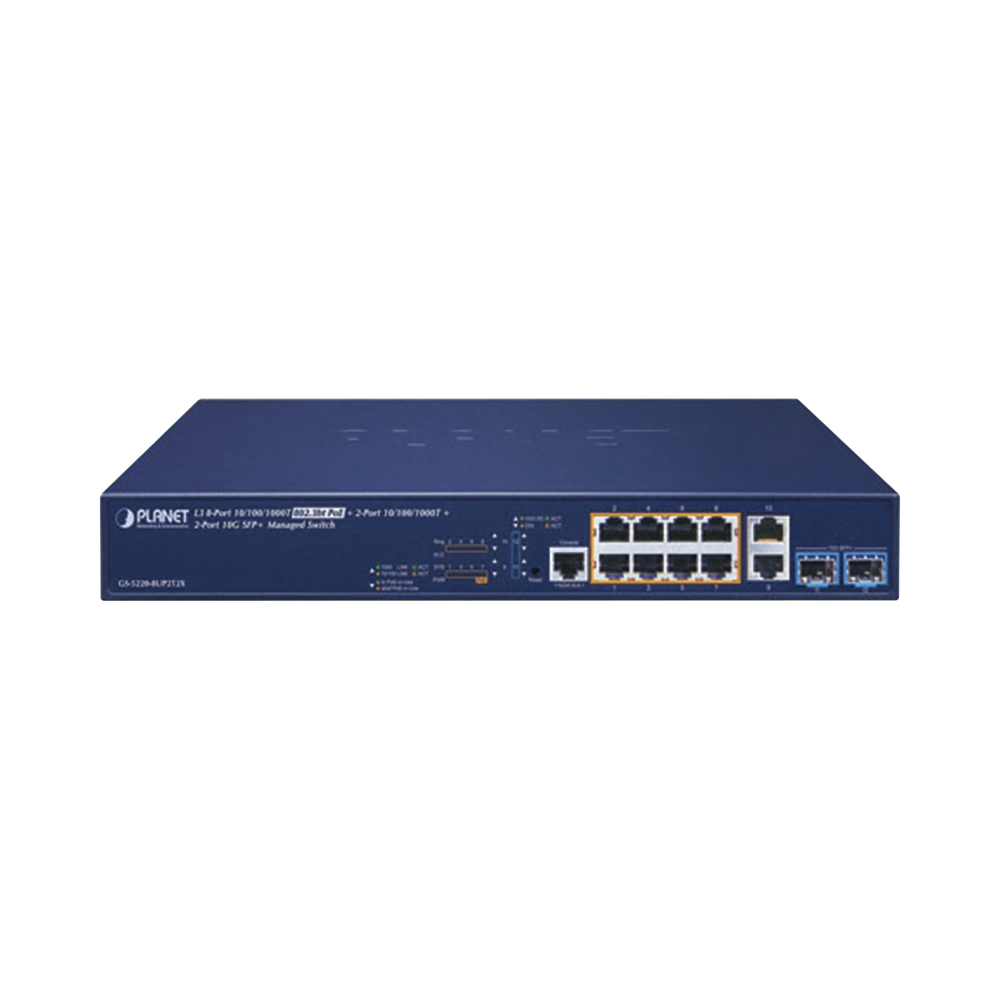

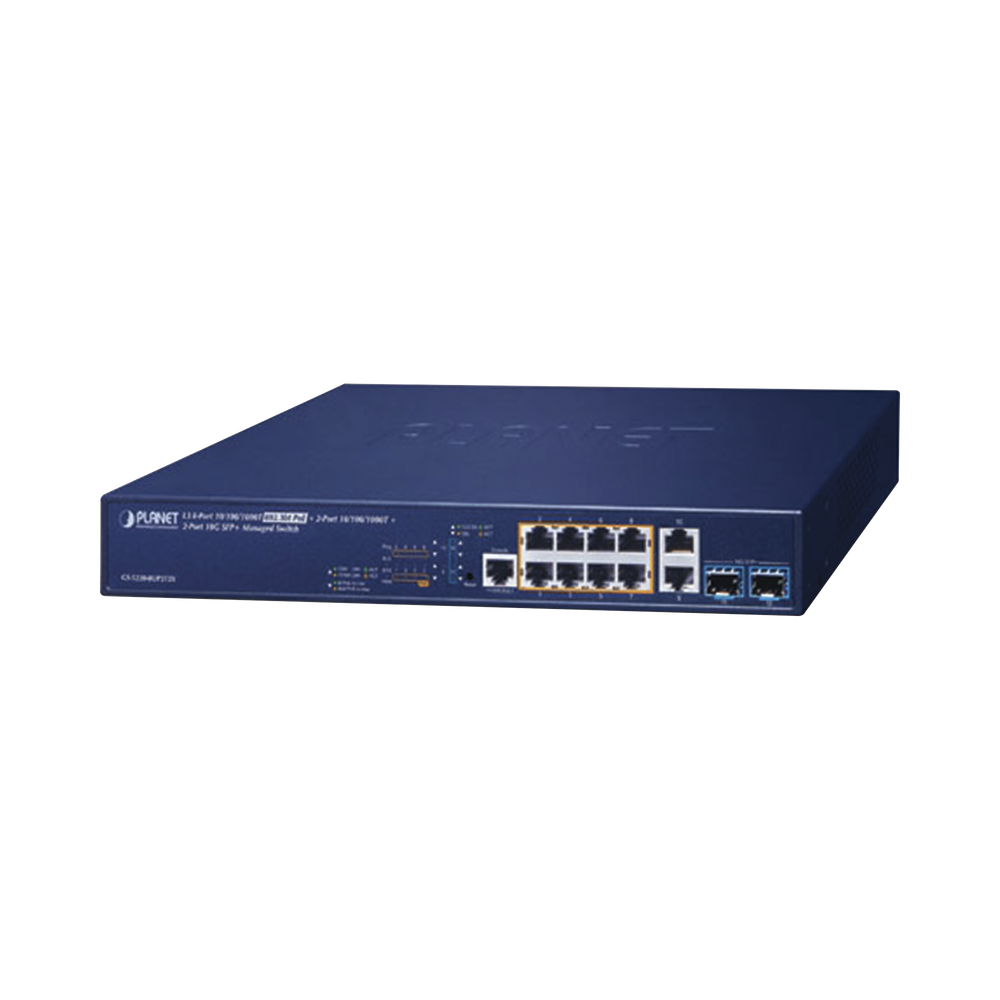

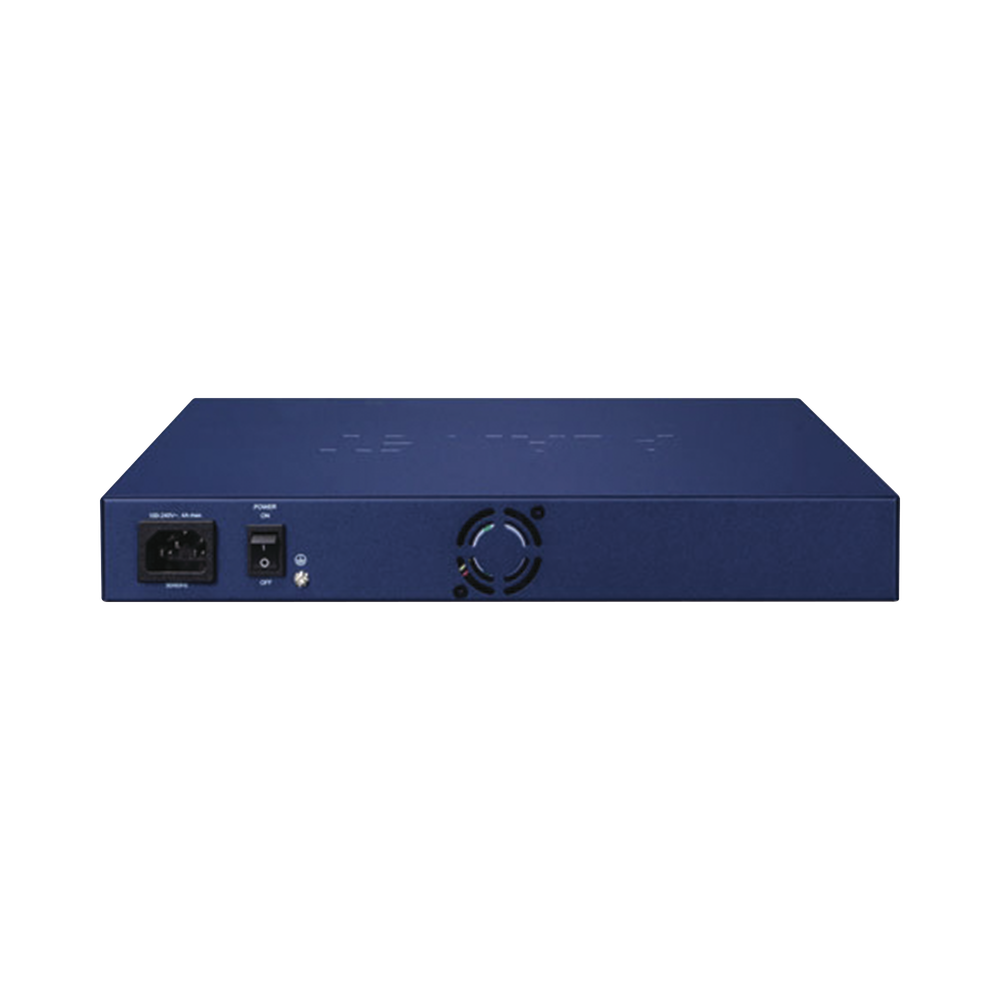

Layer 3 Managed Switch, 8 Ports 10/100/1000 Mbps w/PoE 802.3bt, 2 Gigabit Uplink Ports, 2 SFP+ 10G Ports

Layer 3 Managed Switch, 8 Ports 10/100/1000 Mbps w/PoE 802.3bt, 2 Gigabit Uplink Ports, 2 SFP+ 10G Ports

$3.709.579 COP
$4.057.352 COP $3.709.579 COP
Sale Sold out
Shipping calculated at checkout.

Layer 3 Managed Switch, 8 Ports 10/100/1000 Mbps w/PoE 802.3bt, 2 Gigabit Uplink Ports, 2 SFP+ 10G Ports


Redundant ring, fast recovery for critical network applications

Live testing of the device with smart power

Scheduled power reset



PoE program for energy savings

Extended mode

SMTP/SNMP Trap Event Alert

Hardware specifications
Copper ports Auto-MDI/MDI-X 10 x 10/100/1000BASE-T RJ45 Interface with Port 1 to Port 10
SFP / mini-GBIC slots 2 1G/2.5G/10G BASE-X SFP interfaces with port 11 to port 12
PoE injector port 8-port 802.3bt/at/af PoE injector with port 1 to port 8
Console 1 x RJ45 serial port (115200, 8, N, 1)
Energy requirements 100 ~ 240 V AC, 50/60 Hz
Power consumption (full load) 284 Watts / 969 BTU (max.)
Dimensions
330 x 200 x 43.5 mm
Weight 2.1 kg
PoE Standard 802.3bt PoE++ PSE
Backward compatible with IEEE 802.3at PoE PSE
PoE power supply type 802.3bt
UPoE
End-span
Mid-span
PoE power output By 52V DC port
802.3bt mode, Port-1 to Port-8: maximum 90 Watts in
UPoE mode, Port-1 to Port-8: maximum 95 Watts
Power Mode, Port-1 to Port-8: maximum 60 Watts
End-span mode: maximum 36 Watts
Mid-span mode: maximum 36 Watts
PoE Power Budget 240 Watts (max.) at 25 degrees C
200 Watts (max.) at 50 degrees C
PoE Functions PoE System Management, PoE Port Management, PoE Extended Mode,
Layer 2 Functions
Layer 3 Functions IP Interfaces, Routing Table, Routing Protocols
Basic management interfaces Console; Telnet; Web Browser; SNMP v1, v2c
Secure management interfaces SSHv2, TLSv1.2, SNMPv3
Operating temperature Temperature: 0 ~ 50 degrees C
Relative humidity: 5 ~ 95% (non-condensing)
Storage temperature
Temperature: -10 ~ 70 degrees C
Relative humidity: 5 ~ 95% (non-condensing)
    Supports PoE power up to 95W over 4-pair UTP, Remote power up to 100 meters in standard mode and 250m in extended mode, 2 SFP+ 1G / 2.5G / 10G BASE-X ports, One RS-232 RJ45 console interface for basic configuration and management

Out of stock

MODELO: GS-5220-8UP2T2X
