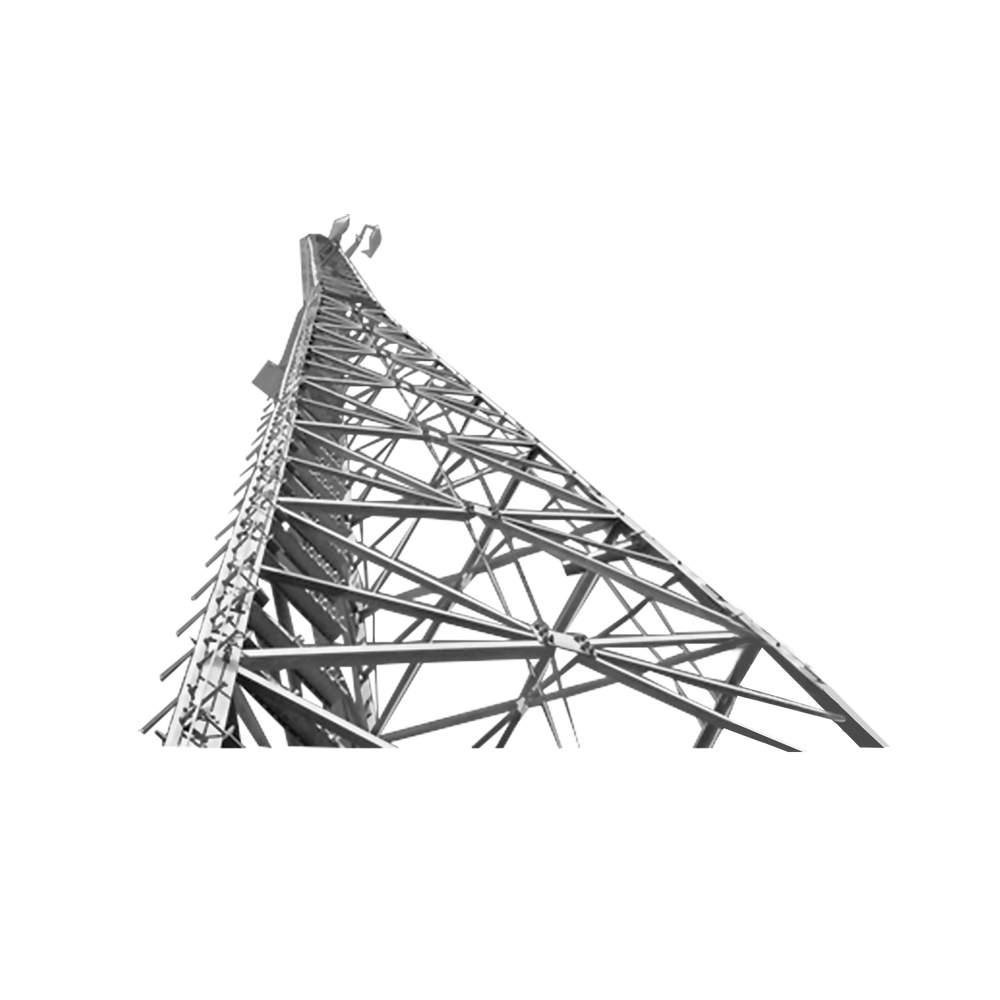

Self-Supporting Tower. 40ft (12.1m) SuperTitan S100 Galvanized, Includes anchor (28 sq ft @ 90 MPH).

Self-Supporting Tower. 40ft (12.1m) SuperTitan S100 Galvanized, Includes anchor (28 sq ft @ 90 MPH).

The SuperTitan KD is a modular tower that can rise up to 190 feet in height. This modular system can be configured to create different types of towers, varying heights and load capacities.
The SuperTitan KD design meets ANSI-TIA-222 F & G standard.


Specs:

-Type: Self-supporting.
-Height of each section: 10' (3.048 m).
-Total Height: 12,192 m (40').
-Model: S-100
-Designed to meet TIA/EIA-222 standard.

Applications:

-Emergency services (police, fire, etc.).
-SCADA systems.
-Ideal for base stations with higher load parameters.
-Towers for base station installation.


Differentiators of the SUPERTITAN Line

-Maximum height of 190 feet.
-New innovative packaging.
-Dramatically reduces freight costs.
-Reduced delivery times.

Additional accessories ( Not included ).

Quantity Model            Description

4 TRY-ST-STEP10 Bolt-on Tower Steps. Sections 1 to 12, 10-piece kit.

1 TRY-ST-LV100 Super Titan Tower Lifeline 30.48 m (100 ft). Safety Trolley (Not included).

1 TRY-STLR Solid Lightning Rod Tip for Tower Structure.

1 TRY-ST-GROUND1 Basic Landing System for Super Titan Towers. For sections 1 to 12.

12 TRYSTBRKT4H 4-Hole Cable Guide Bracket for ST Tower.

1 TRYSTANTIC12          Anti-climb system for Super Titan Towers, sections 1-12.

2 EIGSL HE * Autonomous Obstruction Lamp with red LED and Solar Panel.

2 HLU3TA Base for EIGSLE Obstruction Lamp.

* Two at the tip.

Optimized Packaging System:

Typical Tower Installation:

Installation in Snow Conditions:
