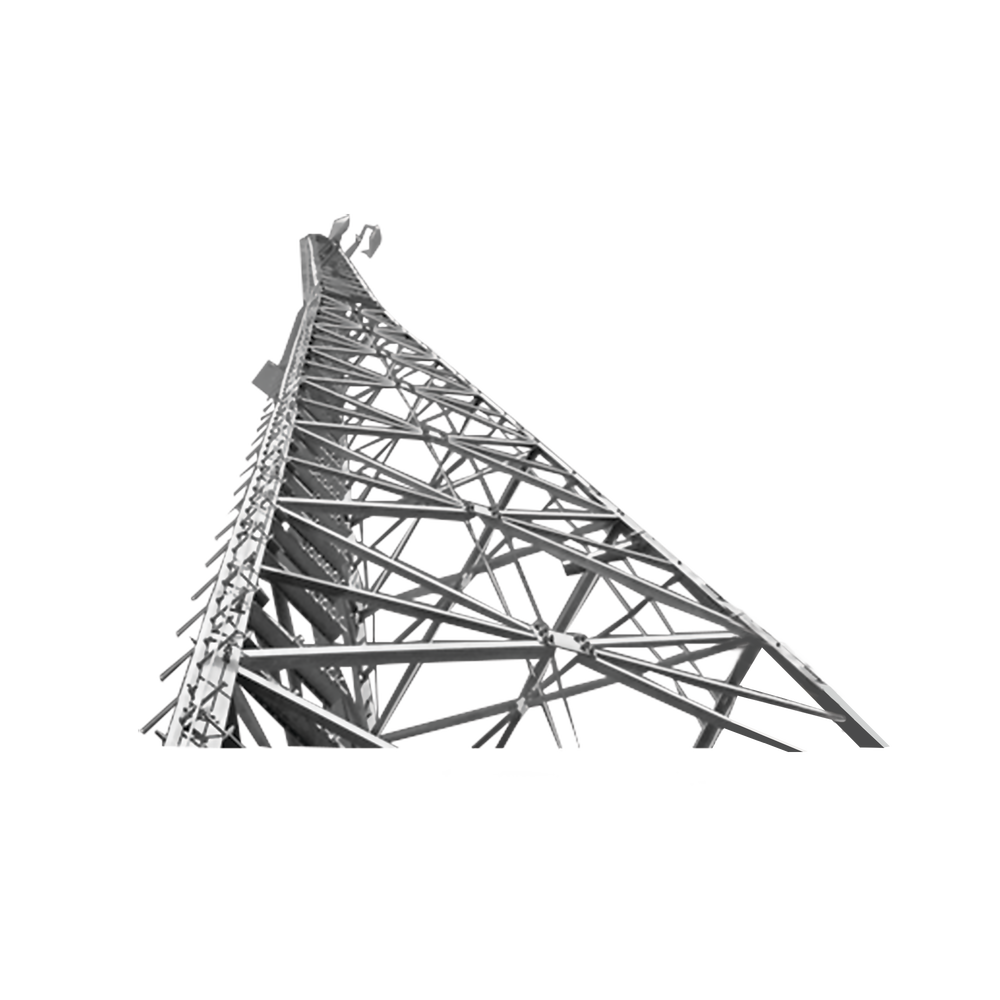

Self-Supporting Tower. 170 ft (51.8 m) SuperTitan S310 Galvanized (includes anchor)

Self-Supporting Tower. 170 ft (51.8 m) SuperTitan S310 Galvanized (includes anchor)

The SuperTitan KD is a modular tower that can rise up to 190 feet in height. This modular system can be configured to create different types of towers, varying heights and load capacities.
The SuperTitan KD design meets ANSI-TIA-222 F & G standard.


Specs:

-Type: Self-supporting.
-Height of each section: 10' (3m).
-Total Height: 51,816 m (170').
-Model: S-410
-Designed to meet TIA/EIA-222 standard.

Applications:

-Emergency services (police, fire, etc.).
- SCADA systems.
-Ideal for base stations with higher load parameters.
-Towers for base station installation.

Differentiators of the SUPERTITAN Line

-Maximum height of 190 feet.
-New innovative packaging.
-Dramatically reduces freight costs.
-Reduced delivery times.

Additional accessories ( Not included ).

Quantity Model            Description

10 TRY-ST-STEP10 Tower Bolt-On Steps. Sections 1 to 12, 10-piece kit.

7 TRY-ST-STEPW 3m Bolt-Type Ladder with Welded Section for Towers. Sections 13 to 21.

1 TRY-ST-LV190 Lifeline up to 57.9 m (190 ft). Compatible with Super Titan line.

1 TRY-TLR Solid Lightning Rod Tip for Tower Structure.

1 TRY-ST-GROUND3 3-Leg Landing System for ST towers.

58 TRYSTBRKT4H 4-Hole Cable Guide Bracket for ST Tower.

1 TRYSTANTIC13 Anti-scale system for tower, sections 13-21.

3 EIGSL HE * Autonomous Obstruction Lamp with red LED and Solar Panel.

3 HLU3TA Base for EIGSLE Obstruction Lamp.

* Two at the tip and 1 to 2/3 parts.

Optimized Packaging System:

Typical Tower Installation:

Installation in Snow Conditions:
