• Kit Extensor HDMI para distancias de 50 metros / Soporta resoluciones 720 y 1080P @ 60 Hz / Cat 6, 6a y 7 / Salida Loop en el Tx para visualización local / Configuración EDID / Soporta control remoto del equipo fuente / Alimente solo el Tx
1 4

EPCOM TITANIUM

HDMI Extender Kit for distances of 50 meters / Supports resolutions 720 and 1080P @ 60 Hz / Cat 6, 6a and 7 / Loop output on the Tx for local display / EDID configuration / Supports remote control of the source equipment / Power only the Tx

HDMI Extender Kit for distances of 50 meters / Supports resolutions 720 and 1080P @ 60 Hz / Cat 6, 6a and 7 / Loop output on the Tx for local display / EDID configuration / Supports remote control of the source equipment / Power only the Tx

$199.936 COP
$218.680 COP $199.936 COP
Sale Sold out
Shipping calculated at checkout.

HDMI Extender Kit for distances of 50 meters / Supports resolutions 720 and 1080P @ 60 Hz / Cat 6, 6a and 7 / Loop output on the Tx for local display / EDID configuration / Supports remote control of the source equipment / Power only the Tx

TT372EDID

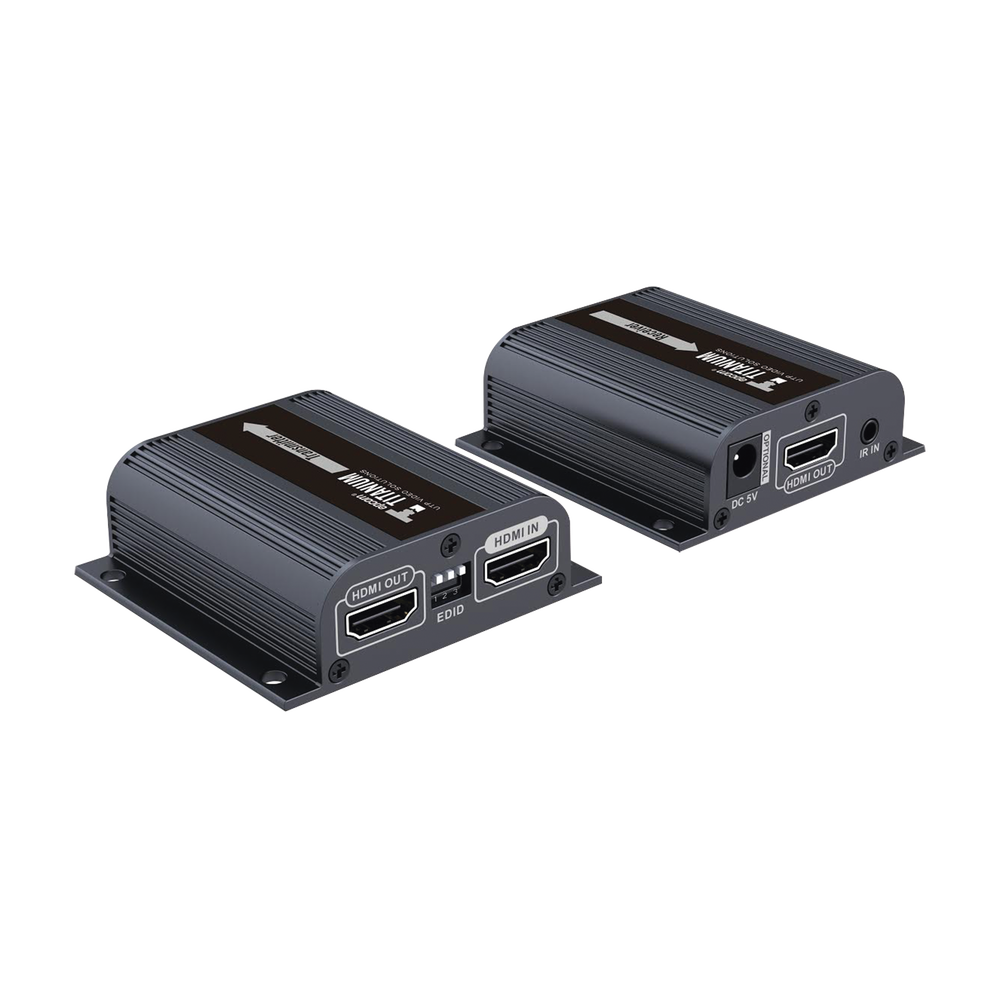

HDMI extender kit via UTP cable up to 50 meters with Cat6 cable.

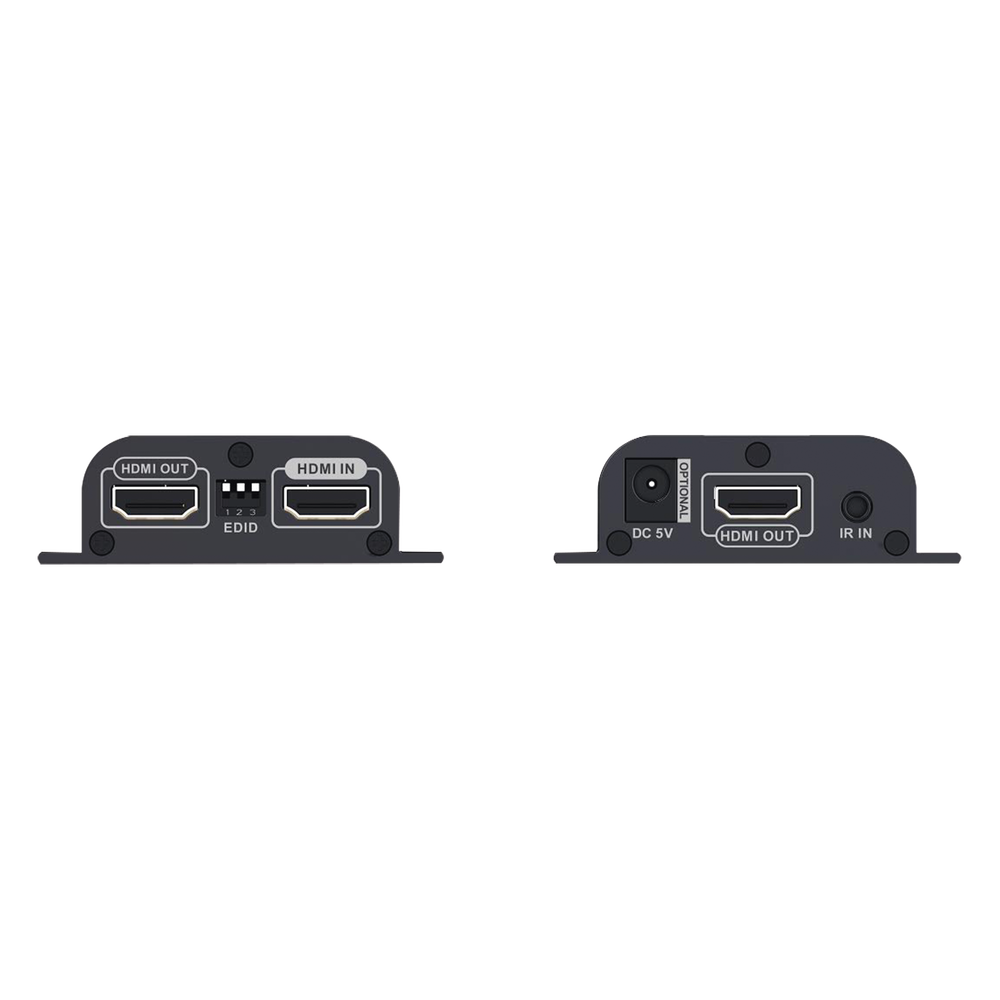

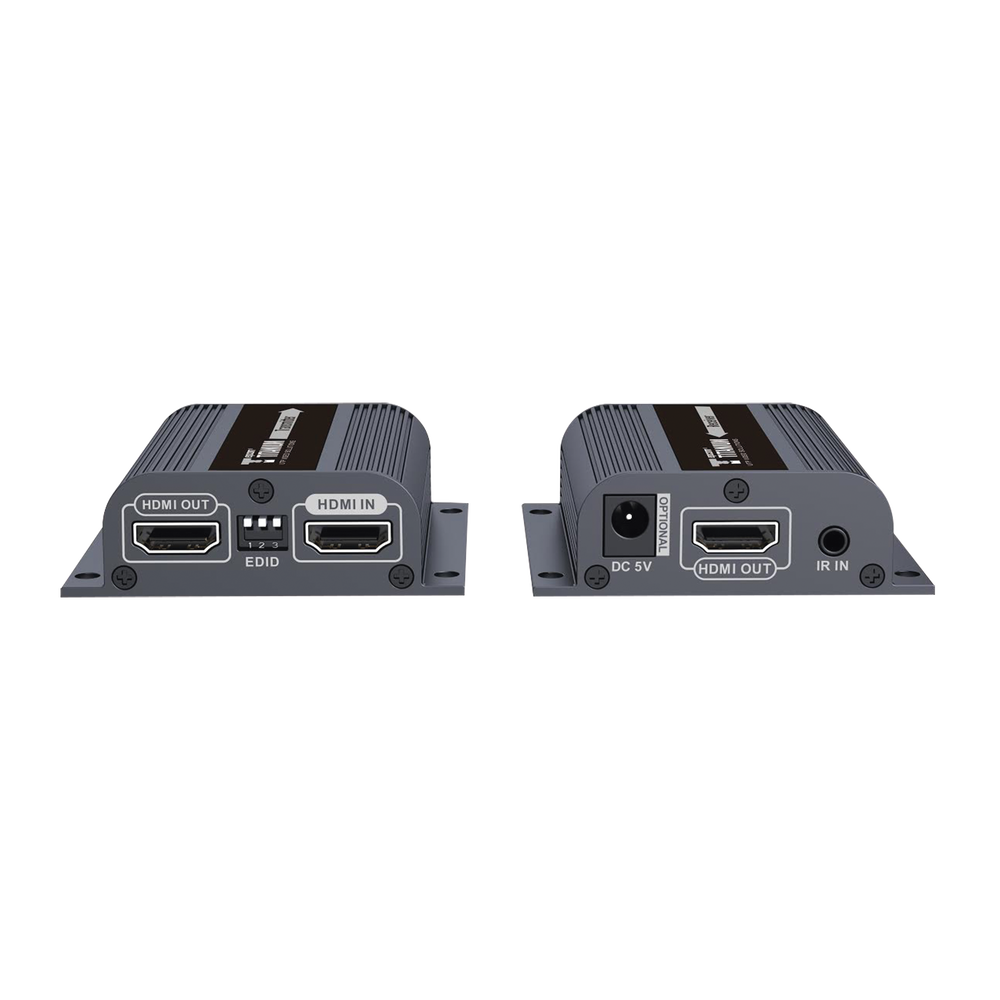

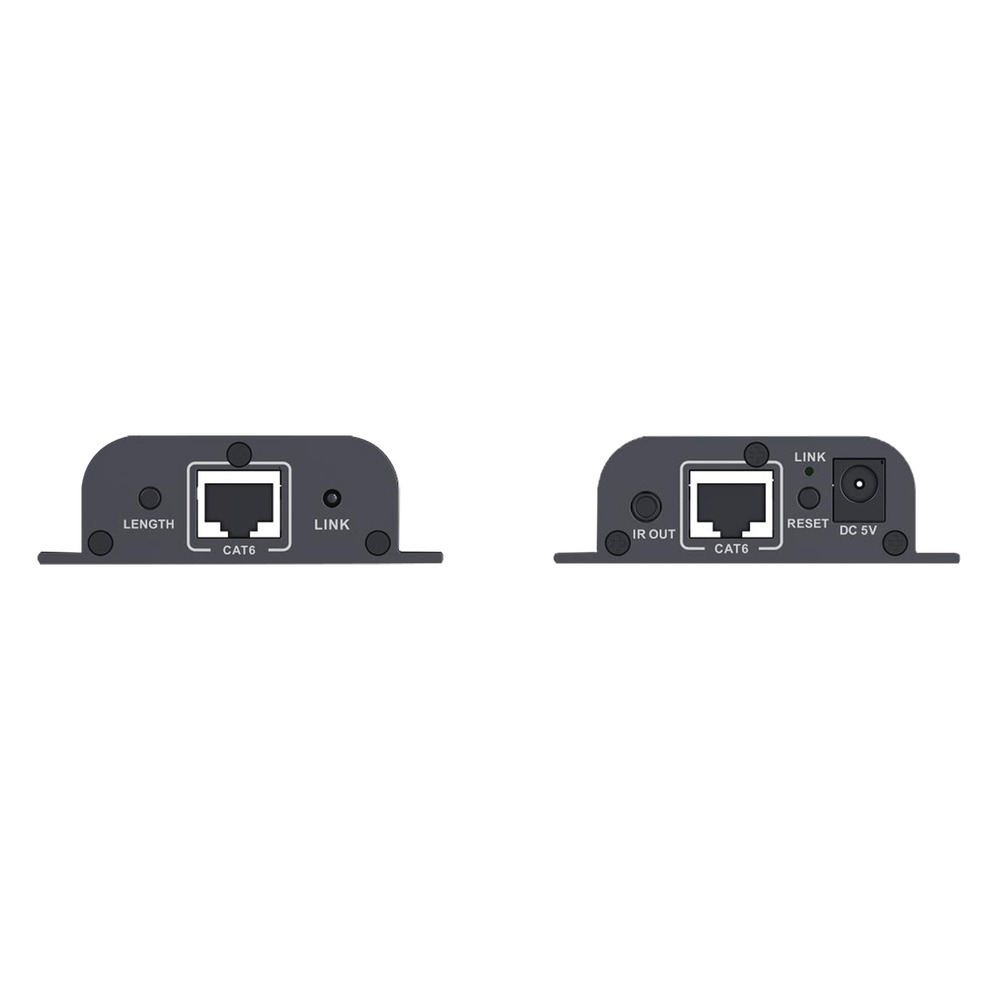

The TT-372-EDID extender kit allows sending video at a distance of 50 meters using Cat6 UTP cable, it has an EDID switch to adapt the transmitted image to the capabilities of the monitor or screen, also with 1 TX blaster and 1 RX blaster which allows us to transmit signals if your source equipment has a remote control, its HDMI Loop output on the transmitter allows you to place a screen locally for the monitoring function, thanks to PoC technology only the transmitting equipment requires power.

...

Main Features:

  • Transmission distance 50 meters with Cat 6 cable for 1080p Full HD @ 50/60 Hz
  • Supports 480I/P〠576I/P〠720P〠1080I/P〠3D resolutions
  • HDMI signal compatible with HDCP
  • Suggested network cable Cat 6, Cat 6A, Cat 7 (100% Copper)
  • HDMI Loop output for local display or monitoring function.

...

Physical and Electrical Characteristics:

  • 5 Vdc, 2 A power supply included
    (only the Transmitter requires power)
  • Weight: TX: 83 g; RX: 83 g
  • Power consumption: TX ≤ 3W; RX ≤ 2W
  • Dimensions TX;RX 71.6 mm (L) x 66.6 mm (W) x 24.8 mm (H)
  • Working temperature 0°C ~ 60°C
  • Black color.

...

Highlighted Features:

  • HDMI 1.4a Compliance
  • HDCP 1.2a Compliance
  • Video bandwidth 225MHz(10.2Gbps)
  • IR frequency range 20-60KHz
  • Supports PCM, AC3, DTS
  • Supports EDID configuration function
  • 1 year warranty against manufacturing defects
  • Compatible receiver TT372EDIDRX.

    52 in stock

    MODELO: TT372EDID
