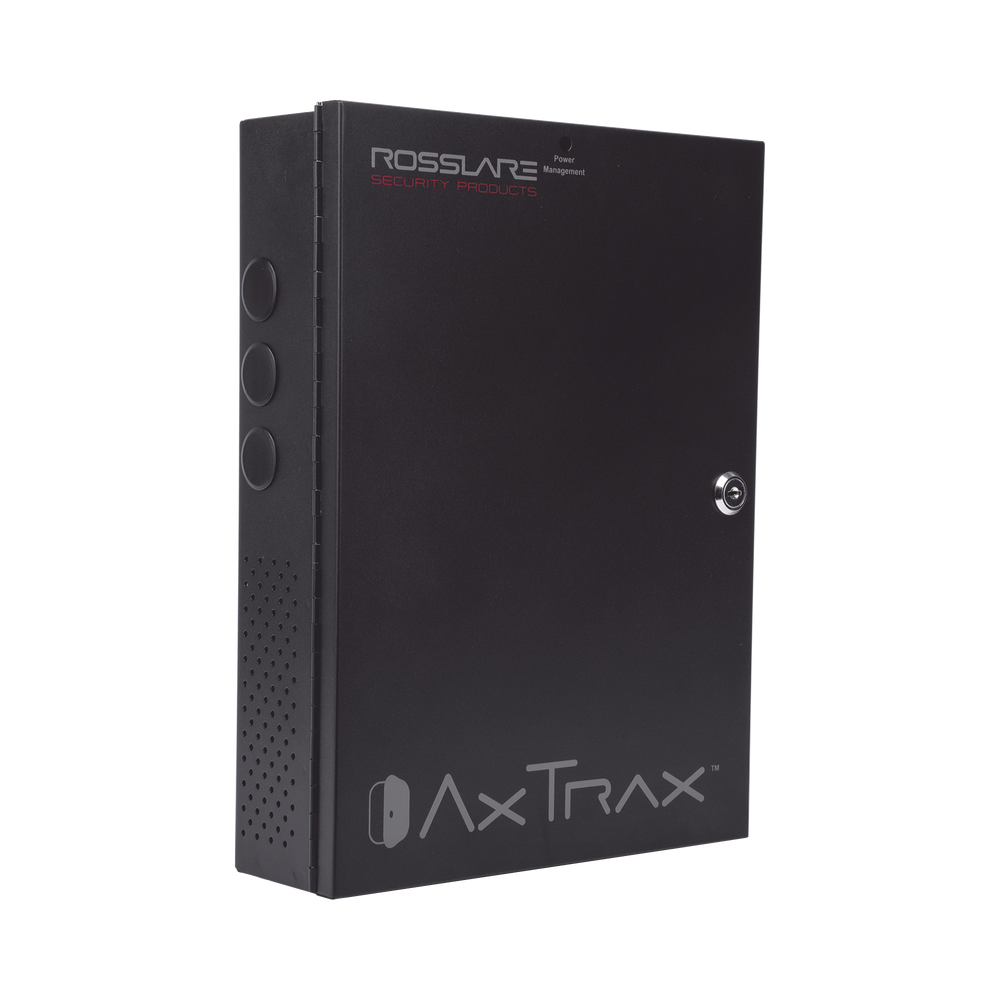

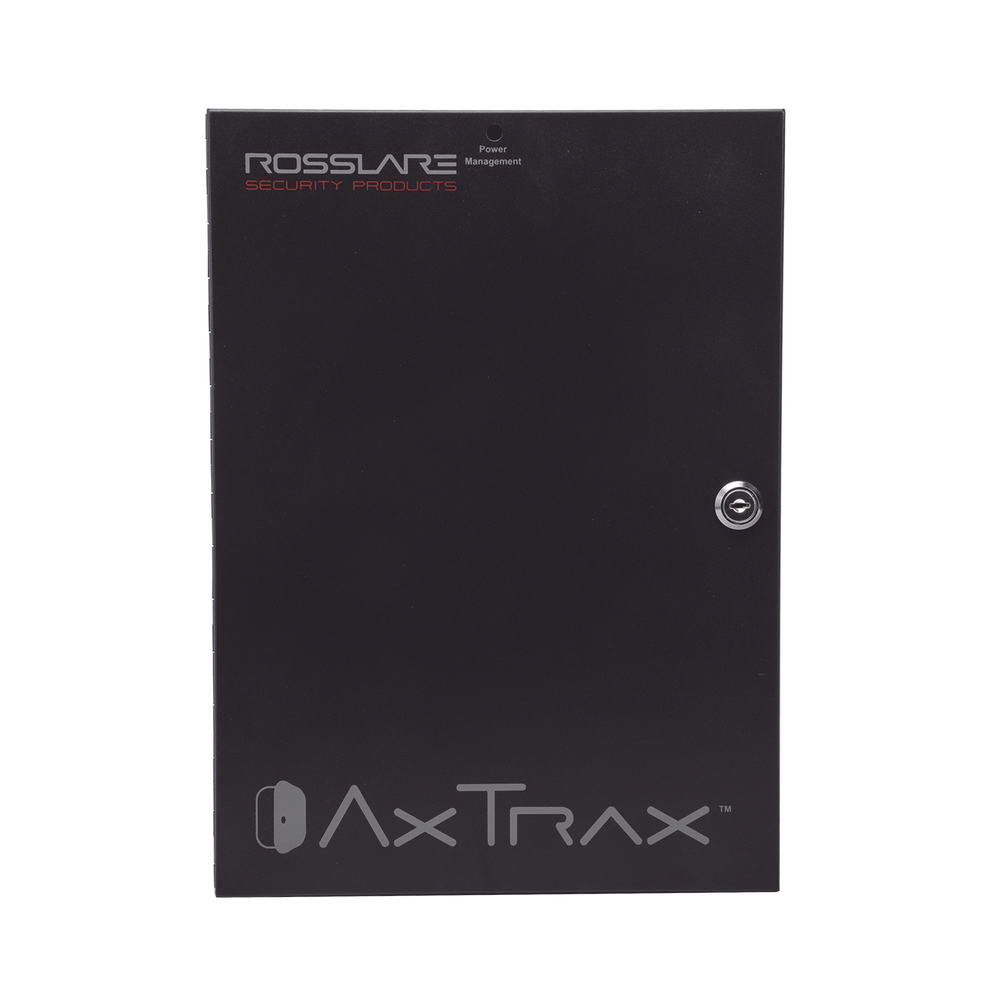

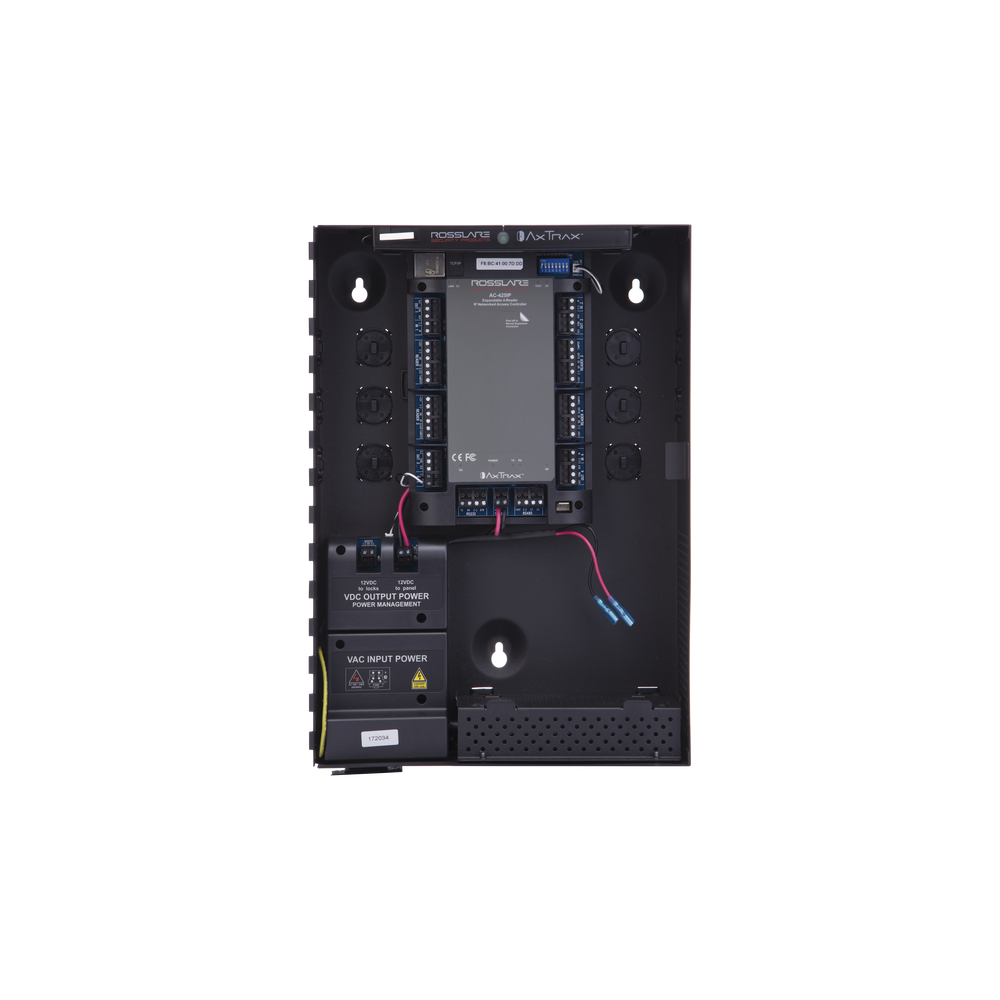

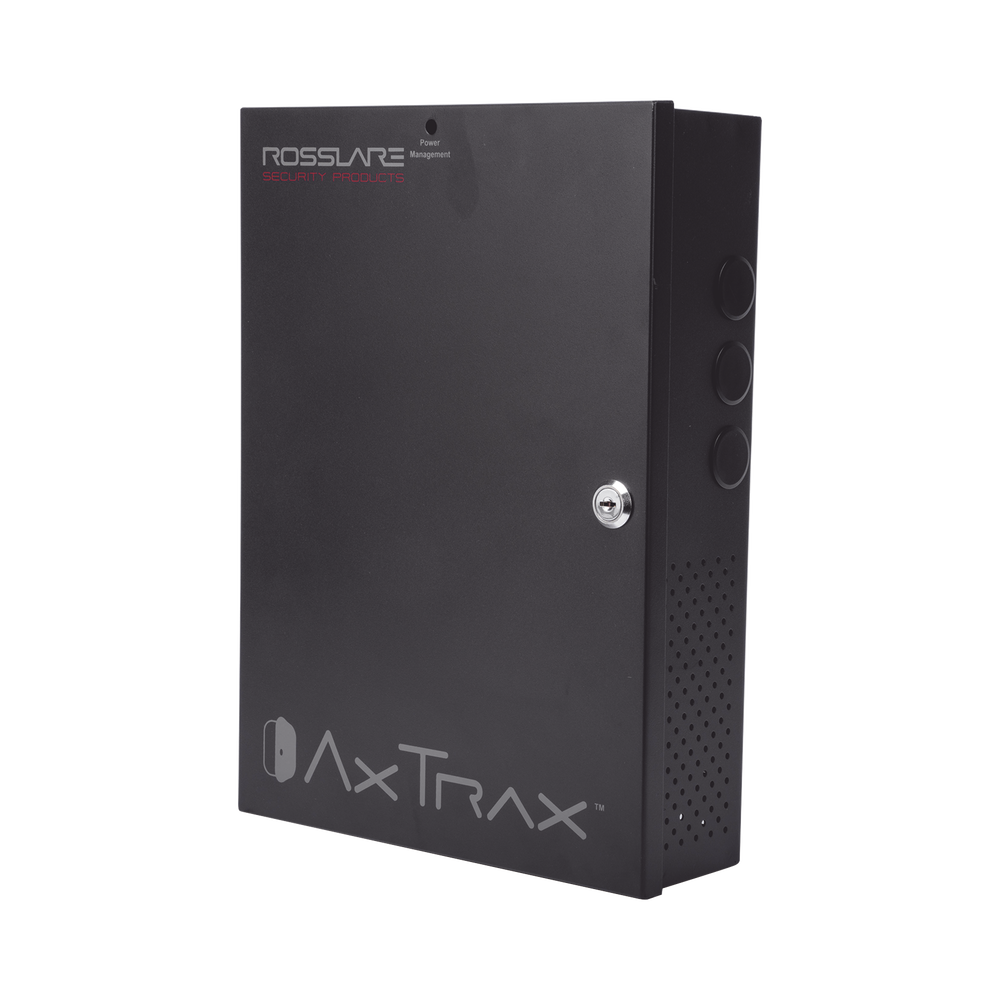

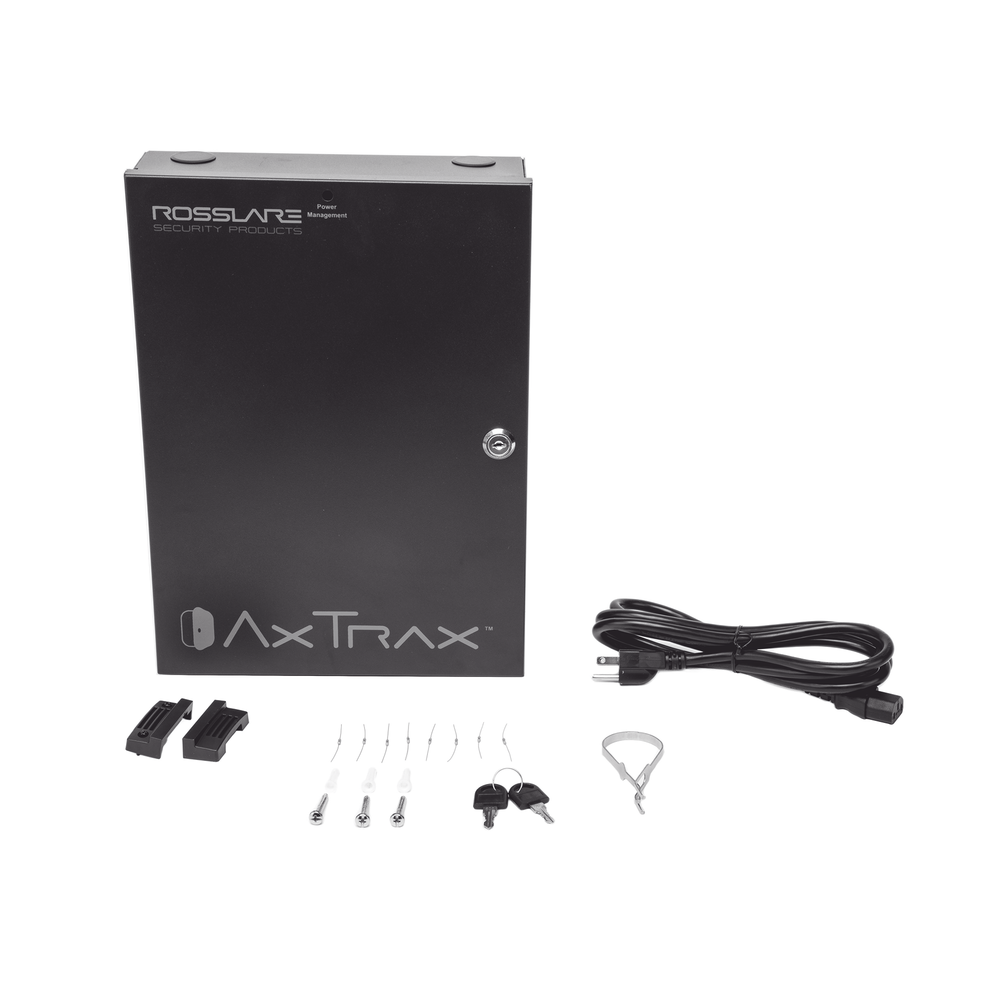

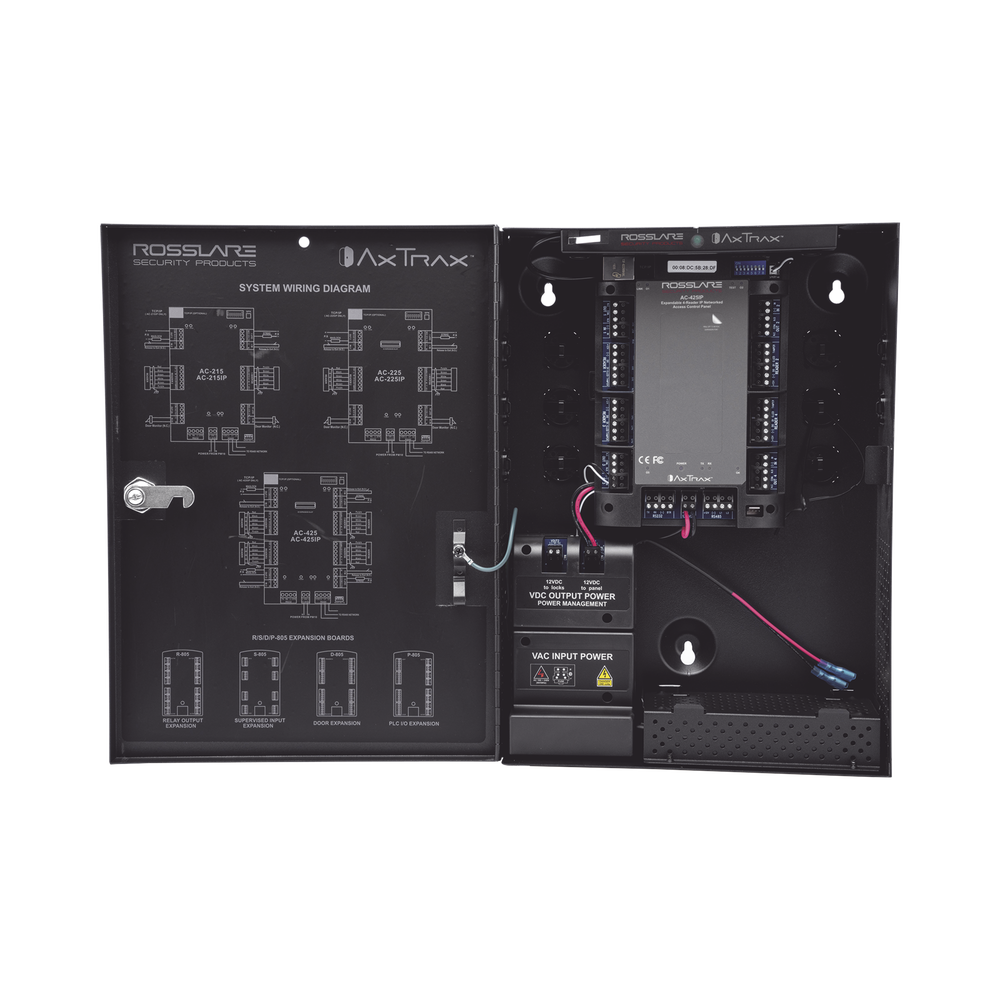

Access Controller for 4 Readers / Expandable to 4 Additional Readers / 30,000 Cards / 20,000 Events / Includes Cabinet and Power Supply / Next Generation!

Access Controller for 4 Readers / Expandable to 4 Additional Readers / 30,000 Cards / 20,000 Events / Includes Cabinet and Power Supply / Next Generation!

CHARACTERISTICS

 Controller

• 30,000 cards.
• 20,000 records (loop memory).
• 4 inputs for reader (Wiegand) 26 bits.
• Configurable for 2 or 4 doors.
• 4 relays for door opening.
• Built-in alarm horn.
• Removable screw terminals.
• Cabinet with power supply (110 Vac input, 12 Vdc output, 1.5 A) with battery charger (not included).
• Dimensions: 326 x 263 x 97 mm.
• Weight 2.4 kg.

Communication

• RS485 (G-BUS).
• TCP/IP.

Compatible software AXTRAXNG version 27.5.7.8

• AXTRAX NG software (level 0) in Spanish/English.
• Suggested Windows 7 Professional for AXTRAXNG versions prior to version 26 , recommended for AXTRAXNG 26.5.4.8 Windows 8 Pro .
• Database in SQL Server.
• Works as a client/server.
• Ability to manage up to 1,023 doors (With licenses*).
• Operator level programming.
• Supports up to 64 controllers (free).
• 32 schedules.
• 128 authorization groups.
• Real-time monitoring.
• Ability to incorporate photographs.
• Antipassback and global antipassback function.
• User-friendly reports by user and department.
• Support for manual and automatic programming.
• Virtual map capacity.

Biometric Readers with Rosslare + AXTRAX. All in One Software

The sale of this equipment requires a certification course provided by SYSCOM

*1 Year warranty.

Notes: Support is only provided for software supplied with the equipment or provided by SYSCOM, provided it uses the same database engine included. Any other implementation to other software or another database version is the responsibility of the integrator or developer in charge.
