Sensitive Fiber Optic Perimeter Security Sensor/ Up to 25 Zones/ From 0 to 800 m of protection

Sensitive Fiber Optic Perimeter Security Sensor/ Up to 25 Zones/ From 0 to 800 m of protection

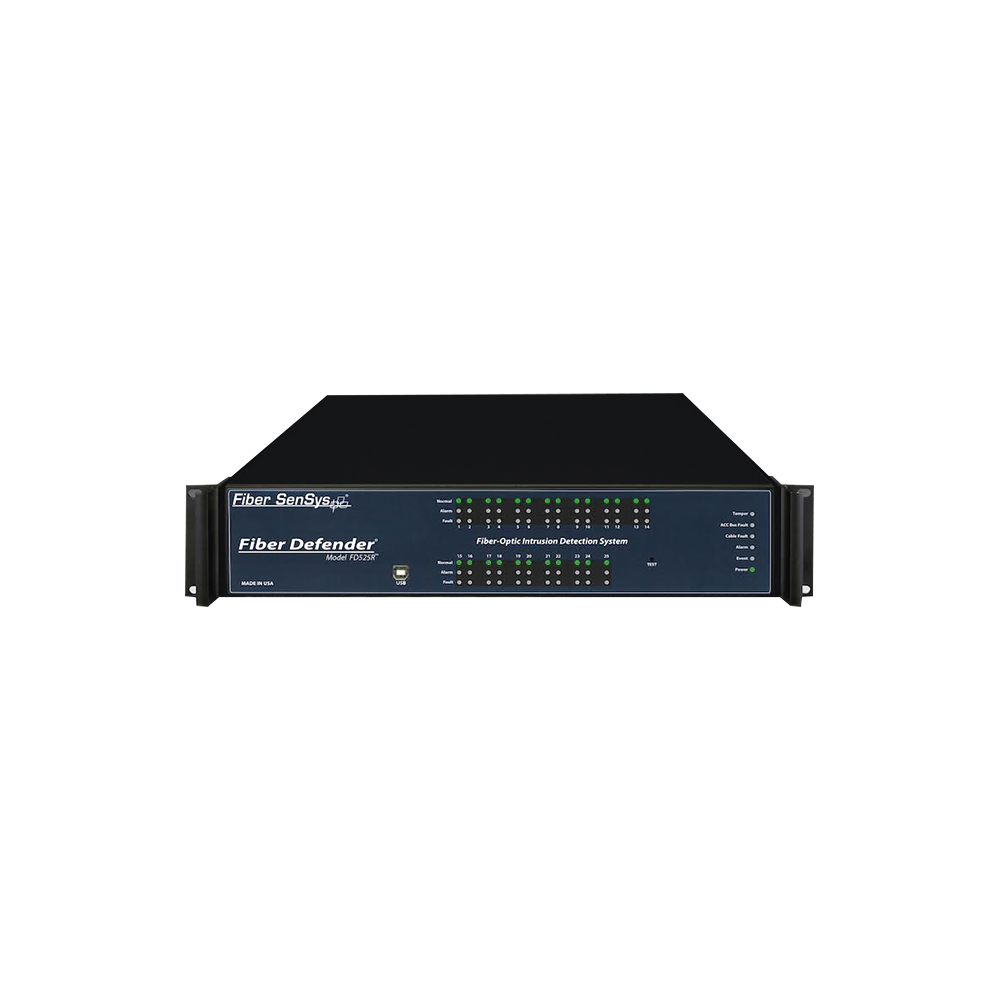

FD525 and FD525R
For security projects requiring the best perimeter protection available, Fiber SenSys FD525 Alarm Processing Units (APUs) are the solution. These all-fiber optic intrusion detection systems are capable of detecting simultaneous intrusion attempts in multiple zones along your perimeter. Know instantly when an intruder or group of intruders attempts to breach your perimeter. The unique capabilities of the FD525s provide the highest perimeter security on the market. The FD525 cable assembly consists of up to 25 individual sensor elements branching from a rugged, insensitive backbone cable. The sensor elements placed along the backbone cable define the location of each zone.

Characteristics

• Supports up to 25 zones, each fully independent and tunable
• Simultaneous intrusion detection report in all zones
• Maximum length of detection cable 500 meters per zone
• Maximum insensitive input cable length from 5 km to 12 km, depending on zone configuration
• XML Message Communications
• The rack-mount APU installs in a standard 19' data center rack and occupies only 2U of rack height
• Optional relay modules available
• Comes with system distribution assembly
• Includes the FD500 series software package

Applications: Large industrial plants, nuclear power plants, critical infrastructure

• 19' rack mount, 2U
• Up to 25 zones
• Cable insensitive to 5 km

Advanced tuning; high reliability and fault tolerance. Typically deployed in a control room.
