Sensitive Fiber Optic Perimeter Security Sensor / Rack Mount (19'') / 8 Protection Zones / From 0 to 800m

Sensitive Fiber Optic Perimeter Security Sensor / Rack Mount (19'') / 8 Protection Zones / From 0 to 800m

The FD508 incorporates Fiber SenSys' proprietary, patent-pending technology, which has been successfully deployed in thousands of sensors worldwide, into a versatile fiber optic sensor. The FD508 detects intruders attempting to climb or cut through fences. Sophisticated algorithms distinguish between intruders and "nuisance alarms," ​​which may be caused by wind, wildlife, or other environmental conditions.

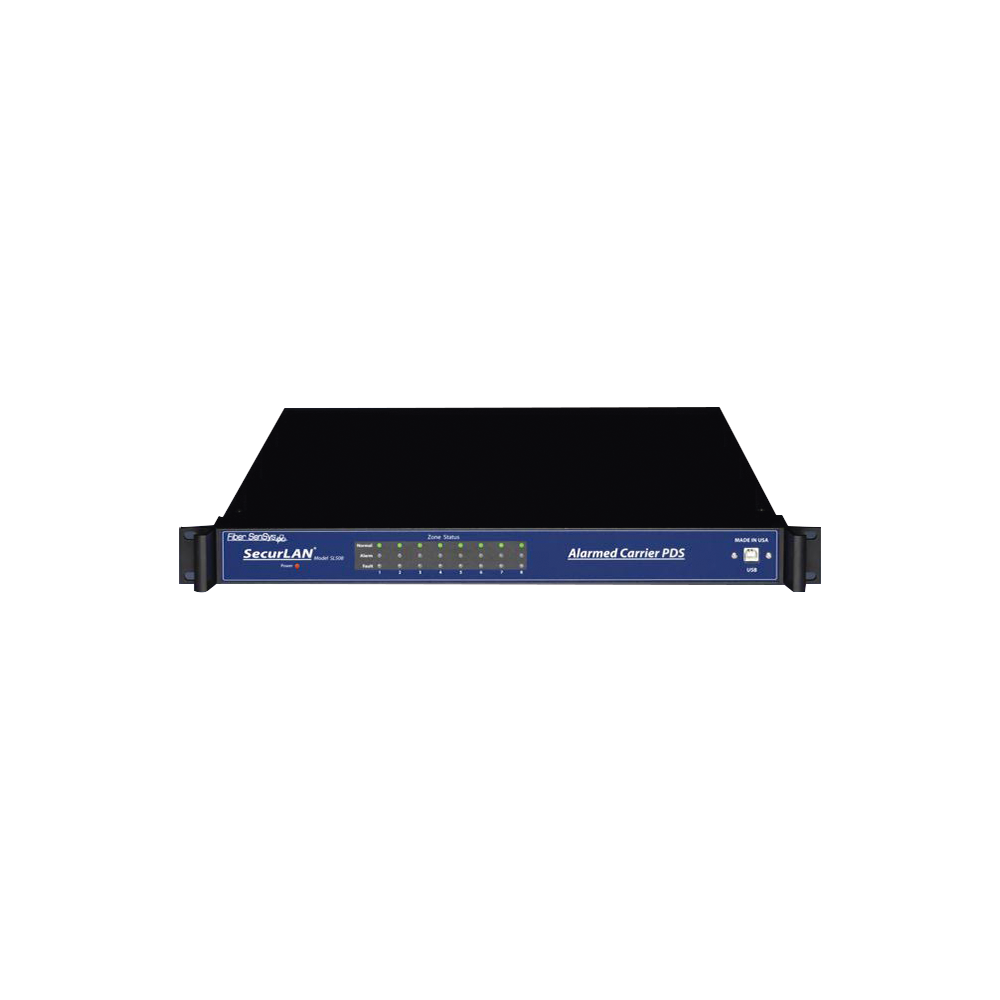

The FD508 monitors up to eight different detection fibers (zones). Each detection fiber can be up to 800 meters long for maximum perimeter protection. Front indicator lights display the status of each zone; a steady green light indicates normal/secure operation. Red lights illuminate during an intrusion attempt (alarm) or if the fiber is cut (fault), providing instant notification of unauthorized physical access.

• Remote APU deployment with input cable insensitive capability
• Nuisance alarm discrimination with built-in adjustment software
• Capability to integrate with head/annunciator panels
• Immune to EMI, RFI and lightning
• Compensation for ambient noise
• Linear and uniform sensitivity
• Ideal for sites with eight to 16 zones
• 800 m of protection per zone

Applications: industrial, medium and commercial substations

• 19' rack mount, 1U
• 8 zones
• Cable insensitive to 5 km
