Full link backhaul at 5 GHz up to 1 Gbps with Ubiquiti AF5XHD radios and Ultra Horn, ultra noise rejection for long, lossless links
Full link backhaul at 5 GHz up to 1 Gbps with Ubiquiti AF5XHD radios and Ultra Horn, ultra noise rejection for long, lossless links
Couldn't load pickup availability
Full link backhaul at 5 GHz up to 1 Gbps with Ubiquiti AF5XHD radios and Ultra Horn, ultra noise rejection for long, lossless links

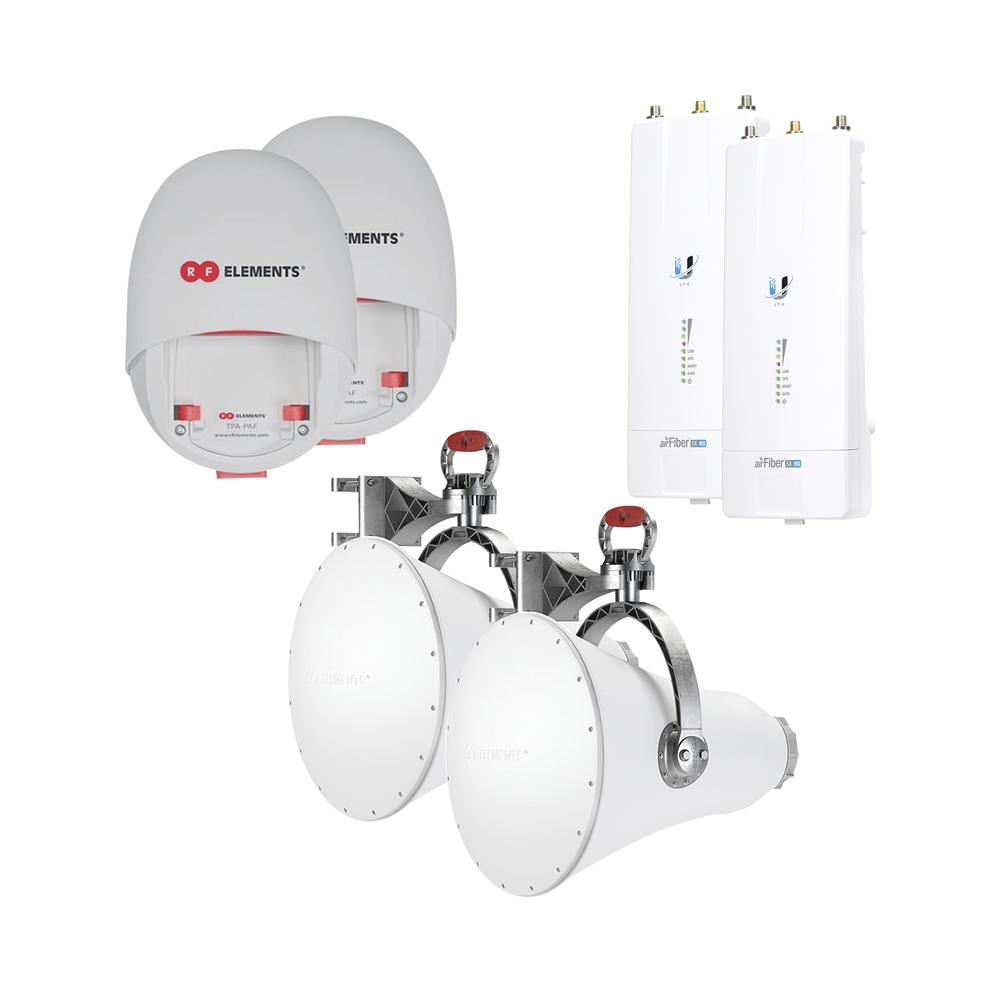

Kit includes the following:
2x AF5XHD
2x TPAPAF
2x UHTP524
*It is recommended to add a surge protector (for each AF5XHD) model TALP-55-1000
The ultimate antenna for long links in high noise environments
UltraHorn™ TP antennas are highly directional scalar horn antennas. They offer all the benefits of scalar horn antennas: ultra-high noise rejection, lossless radio connectivity, and symmetrical transmission without sidelobes. These unique radiation characteristics make them excellent antennas for establishing long-distance links in high-noise environments.
Definitive rejection of noise
UltraHorn™ TP antennas have no sidelobes, allowing them to reject noise. Sidelobes are directly related to noise: radios transmit and also receive interference from all directions. The sidelobes of traditional antennas are enormous, sometimes nearly half the size of the main lobe, and therefore have a huge impact on the antenna's overall performance. UltraHorn™ TP antennas receive significantly less noise, allowing them to perform remarkably well in noisy environments.
No loss
Compatible with the TwistPort™ connector, a patent-pending, quick-assemble waveguide port.
Connectors or coaxial cables are no longer required, making the connection virtually lossless.
Connecting the radio is made brilliantly simple – “twist and assemble” – all with one hand!
Features of the AF5XHD radio:
Ports:
1 10/100/1000 Mbps data port.
1 10/100/1000 Mbps management port.
Bluetooth v4.0.
RF Connectors:
2 x RP-SMA, 1 x GPS.
Operating System:
airOS® F
Characteristics:
Operation mode: Master/Slave.
Throughput: 2 Mpps.
Adjustable channel widths: 10/20/30/40/50/60/80/100 MHz.
OFDM and OFDMA support.
Configuration via Bluetooth.
Proprietary processor: airFiber LTU IC.
AES-256 security.
GPS synchronization.
Dedicated spectrum analysis.
Ultra low latency.
Physical and Electrical Characteristics:
Power supply: 19 - 50 VDC.
Dimensions: 224 x 82 x 48 mm.
Weight: 0.35 Kg.
Operating Temperature: -40°C to 55°C.
Includes:
Gigabit PoE Adapter 24 VDC 1 A.
Warranty:
1 Year.
WARNING: Failure to ground properly will void your warranty.
- Includes the following:, 2x AF5XHD, 2x TPAPAF, 2x UHTP524
Out of stock
MODELO: UH-AF5XHD
