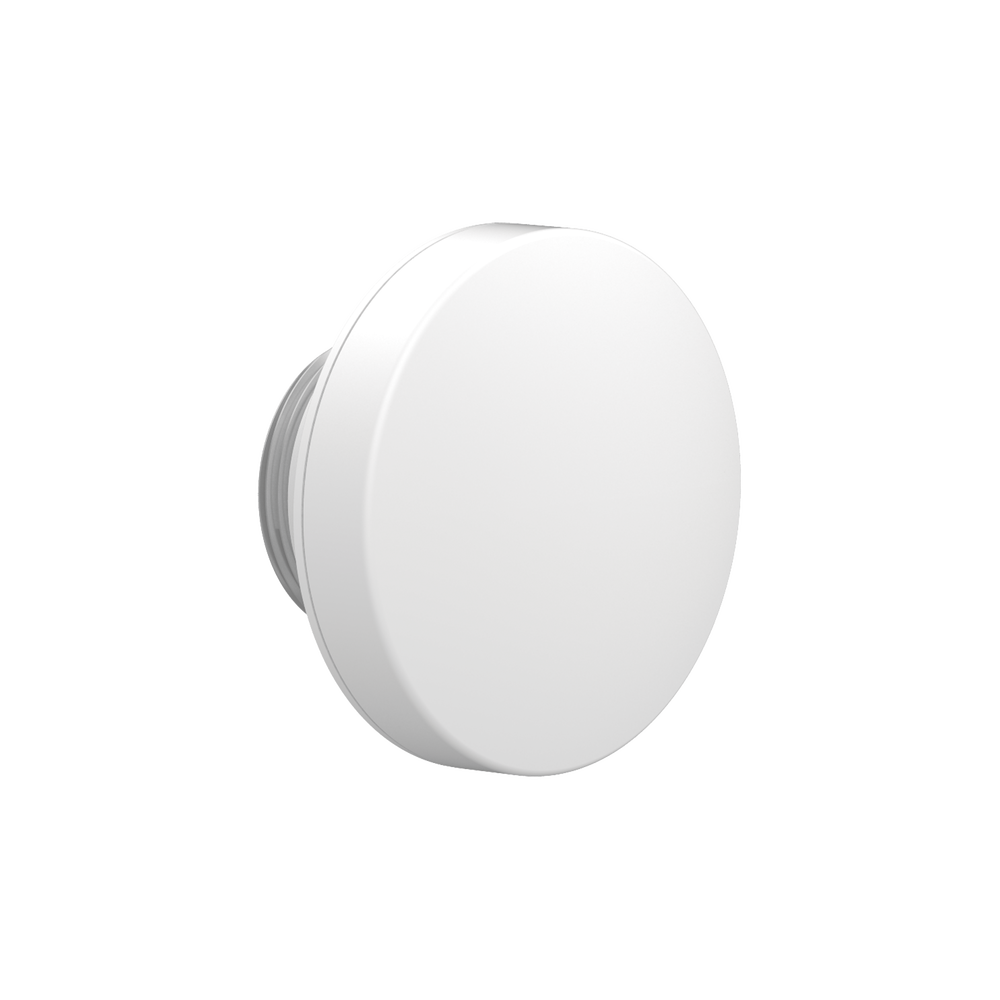

Antena Modular Dual Slant, 4.9 - 6.4 GHz, Dimensiones (7.6 cm), Apertura 45°, Ganancia de 12 dBi, Diseñada para radio C5x

Dual Slant Modular Antenna, 4.9 - 6.4 GHz, Dimensions (7.6 cm), 45° Aperture, 12 dBi Gain, Designed for C5x radio

$131,840
Skip to product information
Antena Modular Dual Slant, 4.9 - 6.4 GHz, Dimensiones (7.6 cm), Apertura 45°, Ganancia de 12 dBi, Diseñada para radio C5x

Dual Slant Modular Antenna, 4.9 - 6.4 GHz, Dimensions (7.6 cm), 45° Aperture, 12 dBi Gain, Designed for C5x radio

$131,840
Shipping calculated at checkout.
Marca
MIMOSA NETWORKS
Referencia / SKU
N5-X12
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Dual Slant Modular Antenna, 4.9 - 6.4 GHz, Dimensions (7.6 cm), 45° Aperture, 12 dBi Gain, Designed for C5x radio

Main features:

Gain : 12 dBi.

Weight : .16kg (.35lbs)

Frequency range : 4.9-6.4 Ghz

Front-to-Back: 29dB

Diameter: 76mm



C5x

CLIENT/BACKHAUL

Modular and
Flexible

The Mimosa C5x is the industry's most versatile integrated radio, featuring four modular antenna options. This ultra-rugged solution provides extended frequency operation from 4.9 to 6.4 GHz, with best-in-class noise immunity. Offering the ultimate in flexibility and cost efficiency, the C5x ​​is the ideal PTP or PTMP solution for 5 GHz deployments.

THE BASICS

N5-X12

C5x Horn

12 dBi 29 dB F/B 27 dB F/S

N5-X16

C5x Horn

16 dBi 50 dB F/B 43 dB F/S

N5-X20

C5x Horn

20 dBi 35 dB F/B 37 dB F/S

N5-X25

C5x Horn

25 dBi 40 dB F/B >45 dB F/S

APPLICATIONS

Supplier of

broadband services

Public safety networks

Business and campus connectivity

Multipoint distribution for security

Smart cities and WiFi

UPGRADABLE

Ultimate flexibility

By supporting both PTP and PTMP modes, the entry-level C5x can be easily upgraded with key feature enhancements. Out of the box, the C5x ​​can be used as a PTMP client at Ethernet link speeds of 100 Mbps. With the purchase of a single feature key, you can easily boost client speeds up to 500 Mbps. To operate in PTP mode, a feature key purchased for each radio unlocks point-to-point speeds of up to 700 Mbps.

FLEXIBLE

Incredible RF performance

Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x ​​reduces localized noise and provides interference immunity with revolutionary front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

BROADBAND

Extended Frequency

To escape the noise, the C5x ​​lets you take advantage of public safety applications on 4.9 GHz and authorized frequencies up to 6.4 GHz, where local regulations allow. Custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.

DESIGNED

Ultra Resistant

The C5x, with its die-cast aluminum housing, bipolar mounts, and industrial-grade screw-on antenna options, is optimized to reduce noise, withstand the elements, and stay mounted in extreme weather conditions.

    N5-X Twist-on Waveguide Mount, Dual Slant 45°, Lossless Coaxial Cable Management, Noise Reduction
