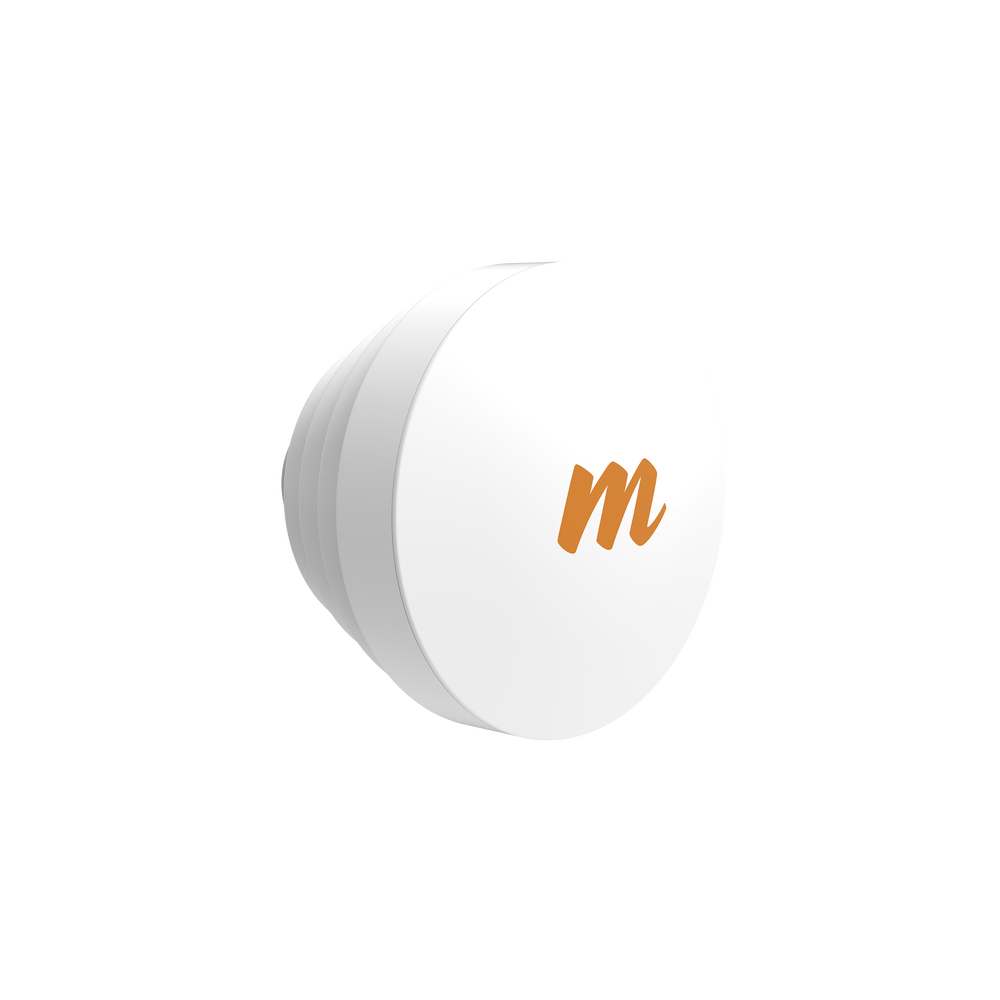

Dual Slant Modular Antenna, 4.9 - 6.4 GHz, Dimensions (16 cm), 45° Aperture, 16 dBi Gain, With Noise Rejection, Designed for C5x Radio
- Marca
- MIMOSA NETWORKS
- Referencia / SKU
-
N5-X16
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones
Dual Slant Modular Antenna, 4.9 - 6.4 GHz, Dimensions (16 cm), 45° Aperture, 16 dBi Gain, With Noise Rejection, Designed for C5x Radio
Main features:
Gain : 16 dBi.
Weight : 0.61kg (1.35lbs)
Frequency range : 4.9-6.4 Ghz
Front-to-Back: 50dB
Diameter: 160mm
C5x
CLIENT/BACKHAUL
Modular and
Flexible
The Mimosa C5x is the industry's most versatile integrated radio, featuring four modular antenna options. This ultra-rugged solution provides extended frequency operation from 4.9 to 6.4 GHz, with best-in-class noise immunity. Offering the ultimate in flexibility and cost efficiency, the C5x is the ideal PTP or PTMP solution for 5 GHz deployments.
THE BASICS

N5-X12
C5x Horn

N5-X16
C5x Horn

N5-X20
C5x Horn

N5-X25
C5x Horn
APPLICATIONS

UPGRADABLE
Ultimate flexibility
By supporting both PTP and PTMP modes, the entry-level C5x can be easily upgraded with key feature enhancements. Out of the box, the C5x can be used as a PTMP client at Ethernet link speeds of 100 Mbps. With the purchase of a single feature key, you can easily boost client speeds up to 500 Mbps. To operate in PTP mode, a feature key purchased for each radio unlocks point-to-point speeds of up to 700 Mbps.

FLEXIBLE
Incredible RF performance
Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides interference immunity with revolutionary front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.
BROADBAND
Extended Frequency
To escape the noise, the C5x lets you take advantage of public safety applications on 4.9 GHz and authorized frequencies up to 6.4 GHz, where local regulations allow. Custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.


DESIGNED
Ultra Resistant
The C5x, with its die-cast aluminum housing, bipolar mounts, and industrial-grade screw-on antenna options, is optimized to reduce noise, withstand the elements, and stay mounted in extreme weather conditions.
- N5-X Twist-on Waveguide Mount, Dual Slant 45°, Lossless Coaxial Cable Management, Noise Reduction
