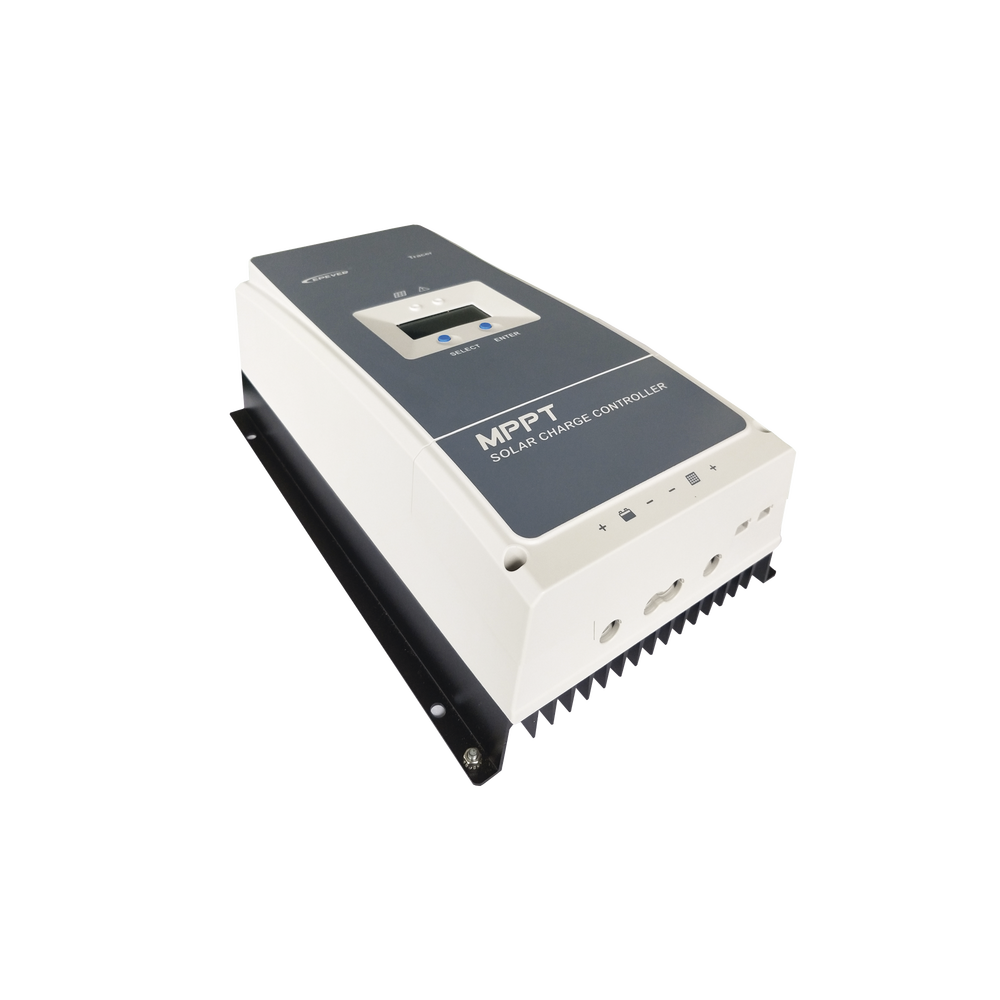

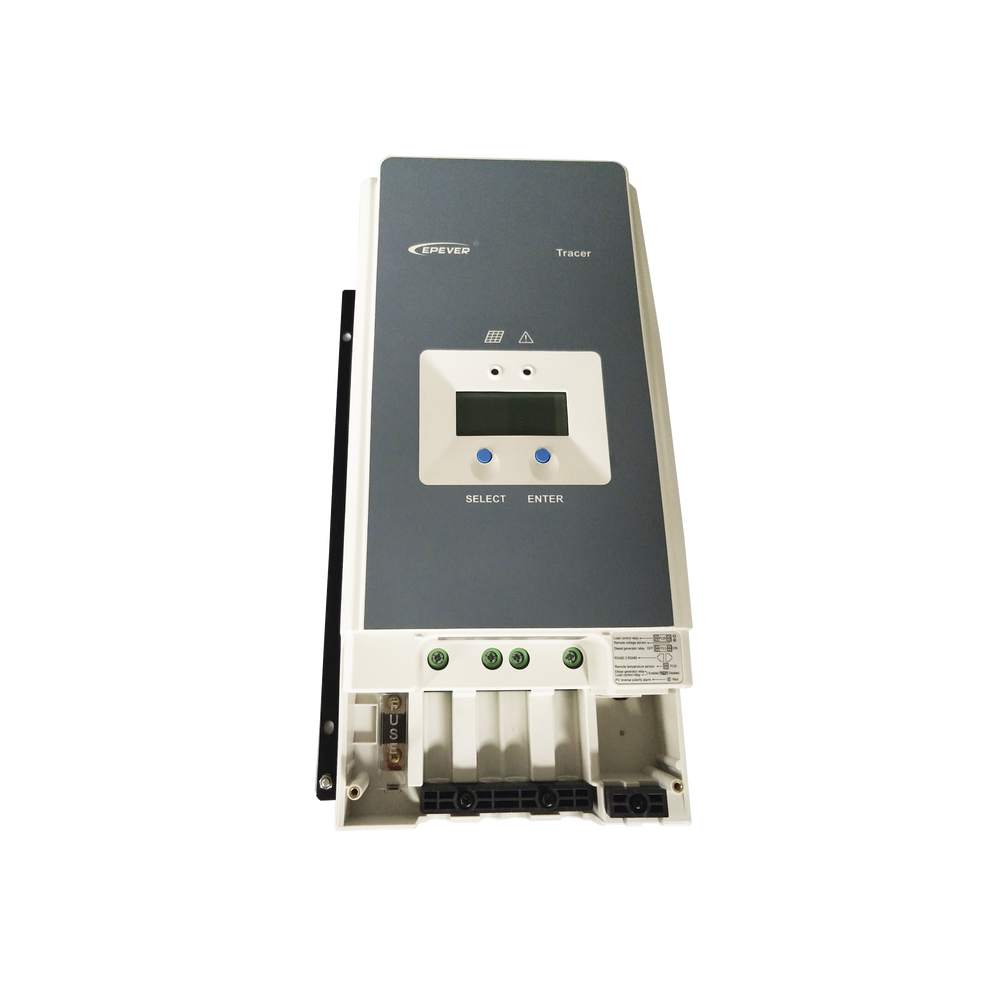

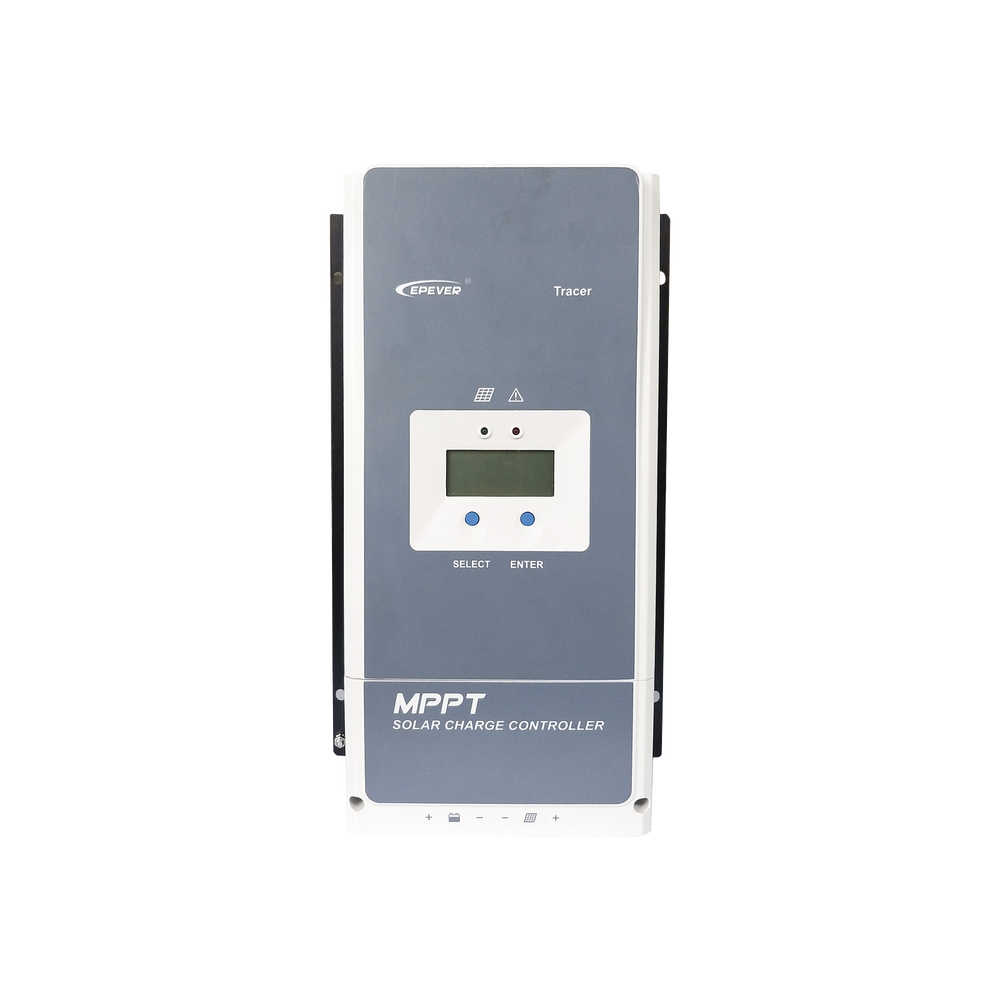

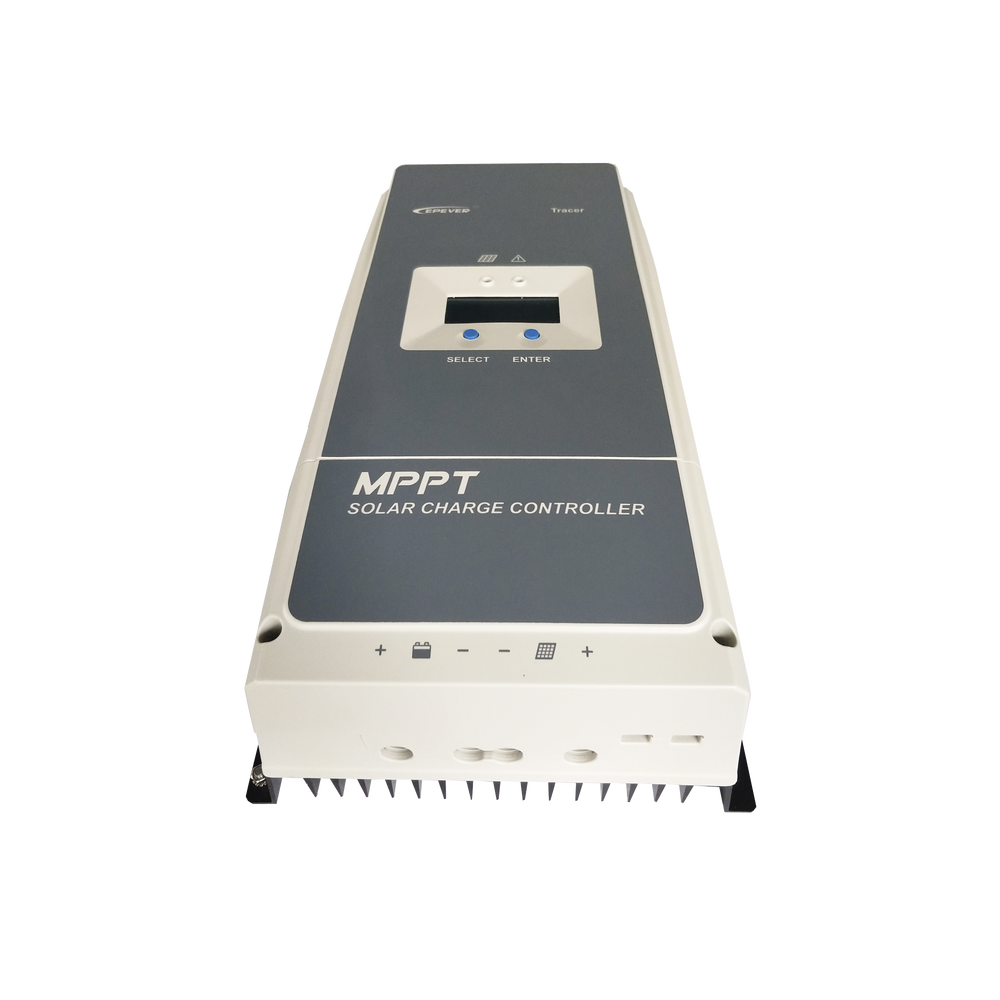

MPPT Solar Controller 80A 12/24/36/48V / Maximum Open Circuit Voltage Voc 150Vdc / Configurable for Lithium Batteries

MPPT Solar Controller 80A 12/24/36/48V / Maximum Open Circuit Voltage Voc 150Vdc / Configurable for Lithium Batteries

Characteristics:

• CE Certification (LVD EN/IEC62109,EMC EN61000-6-1/3)
• Advanced MPPT technology and ultra-fast tracking speed are guaranteed up to 99.5%.
• The maximum DC/DC transfer efficiency is as high as 98.7%
• Advanced MPPT control algorithm will minimize MPP loss rate and loss time.
• Accuracy of recognition and tracking at the highest point of multi-peak MPP.
• The widest MPP operating voltage range.
• Automatic control system to prevent charging power and current from exceeding the rated value.
• 4 charging options: Sealed, Gel, Flooded and User.
• Battery temperature compensation function.
• Real-time energy recording and statistical function.
• Automatic power reduction function due to overheating.
• Supports up to 8 units in parallel to expand the system.
• Remote voltage and temperature sensors will collect accurate battery temperature and voltage data.

Protection functions:

• PV Overcurrent/Power • PV Short Circuit • PV Reverse Polarity • Night Reverse Charging • Battery Reverse Polarity • Battery Overvoltage • Battery Overdischarge • Battery Overheat • Controller Overheat • TVS High Voltage Transients

To configure charging parameters, a monitor or the EPEVER communication cable is required:

• MT-50 Remote Monitor for EPEVER controllers.
• CC-USB-485-150U Communication cable for EPEVER controllers.
