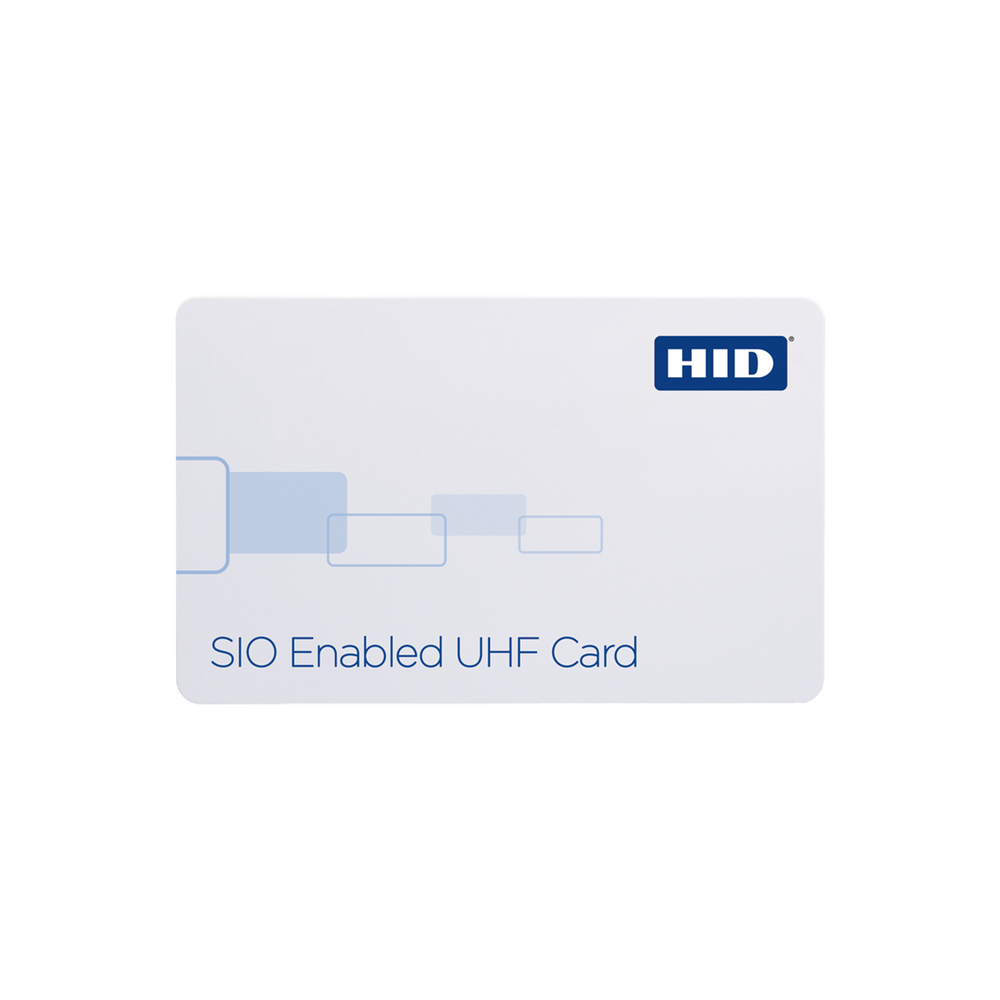

UHF Card Programmed with HID Secure Object

UHF Card Programmed with HID Secure Object

Characteristics:

• Material: PVC Compound: 40% Polyester, 60% PVC
• Data retention: 100,000 cycles
• Duration of the deed: 50 years.
• Typical reading range: Up to 5 m. depending on installation conditions.
• Compatible with RDRSEU90 reader
• Operating temperature: -40° to 70° C
• Operating Frequency: 860-960 MHz
• Dimensions: 5.40 x 8.57 x 0.084 cm
• Weight: 5.7 g.
• Lifetime Warranty.

Purchase conditions:

• Requires a minimum order of 100 pcs.
• It is essential to process any purchase order:
• For open formats:
  • Format: Confirm that it is H10301, that is, 26 bits.
• • Site Code (Site Code / Facility Code): (0 to 255, if it is 26-bit H10301 format).
  • Consecutive (range): The numbering that the cards will have (Between 0-65535 if it is 26 bits H10301).
  • Finally, indicate whether you want the card number printed on it.
  • You can fill out the following form and send it to your sales representative to process your request.
  • In formats other than H10301 (26 bits) it is necessary to request validation and delivery time from the engineering department.
  • For corporate formats, you must quote MC-1000 and follow the process described there.
  • Any variation in the model or format, the estimated delivery time is 3 weeks.
  • All purchases of this model through this portal are subject to the submission of the necessary information to process the purchase.
  • It is recommended that if you have an existing card, you send it to SYSCOM for identification prior to purchase.

Learn what Corporate 1000 is.

• Add a user-controlled format.
• Available in SYSCOM at 48 bits.
• For Corporate 1000 formats, additional documentation must be completed at the time of purchase:
  • New project: Credential Program Application
  • Existing projects
• An additional cost must be considered when requesting this Corporate format, to the list price of the card add the MC-1000 model corresponding to a charge per card to be programmed in C1000.
