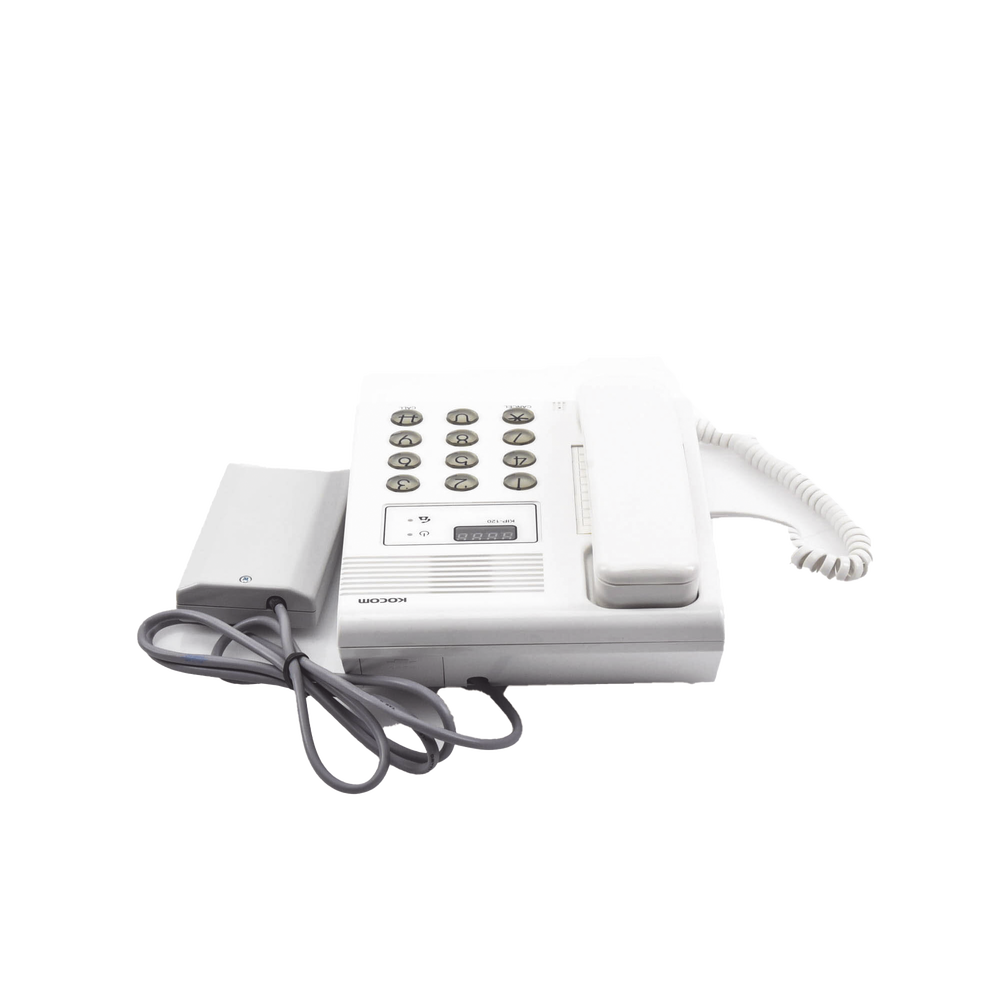

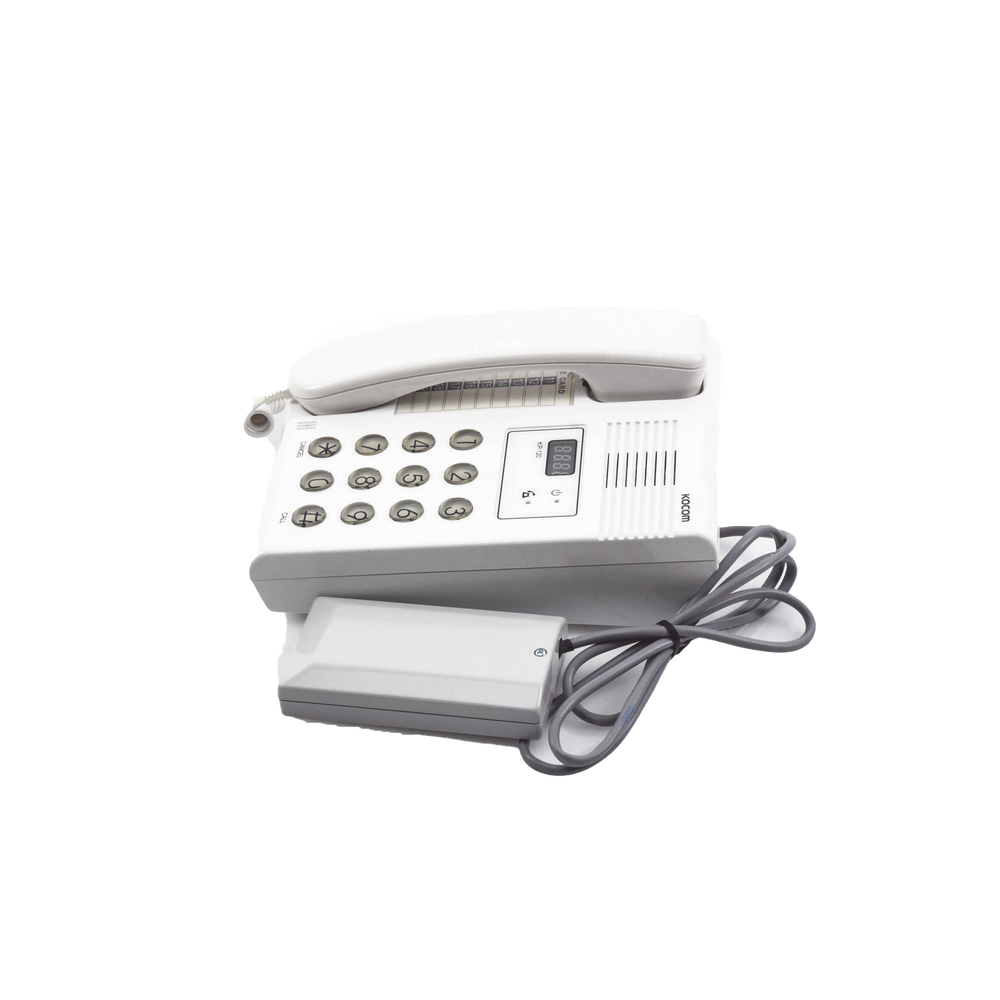

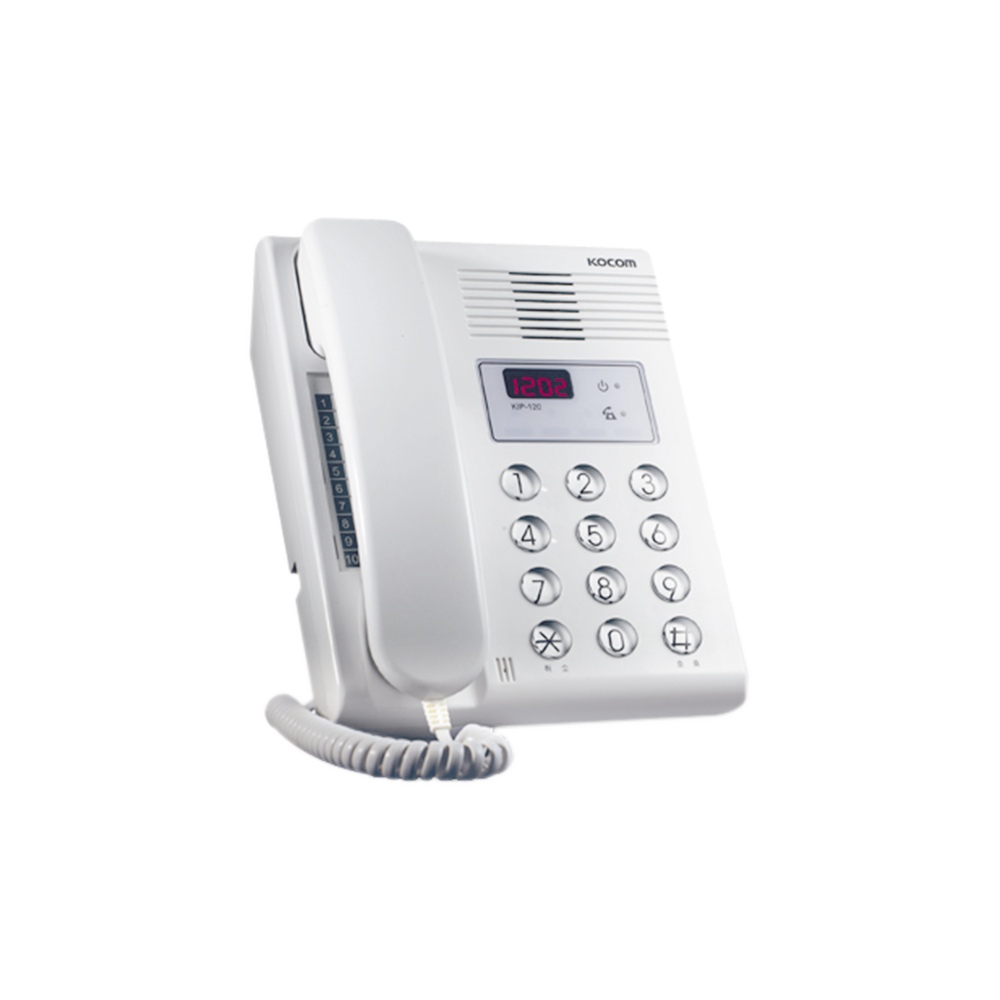

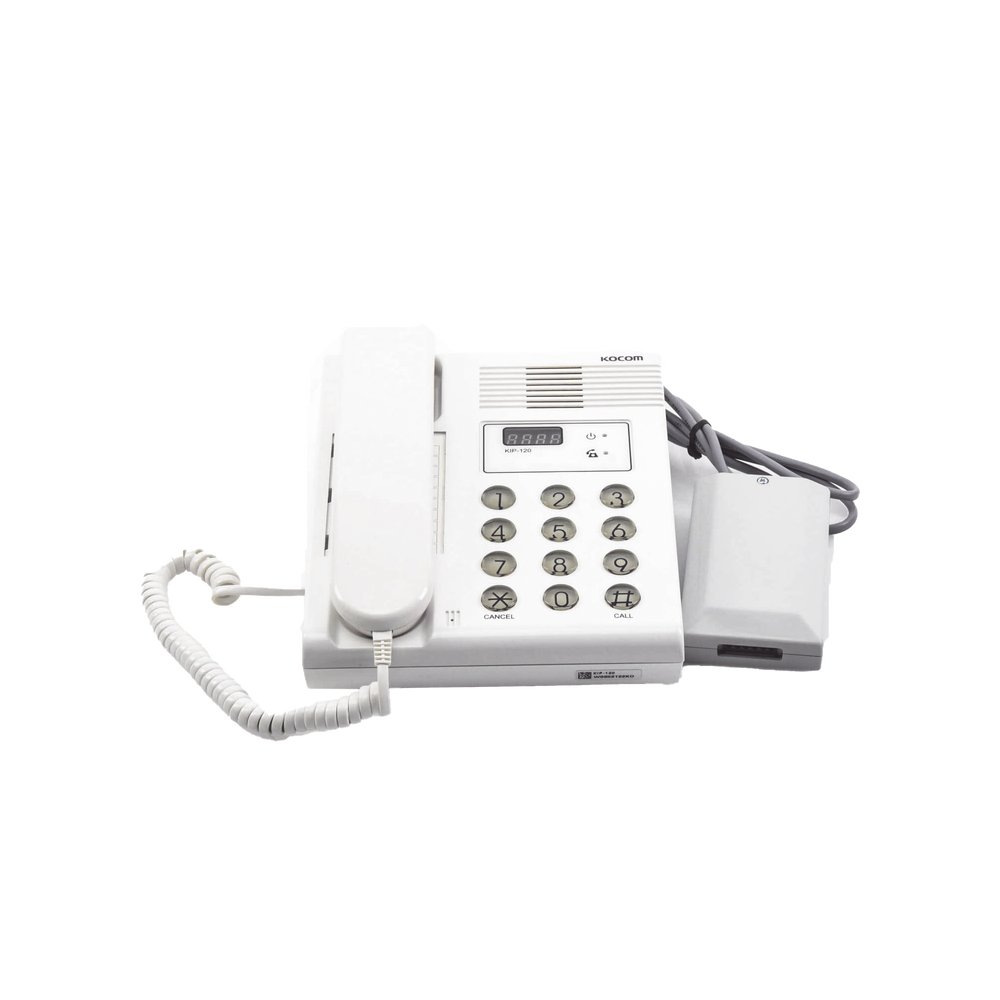

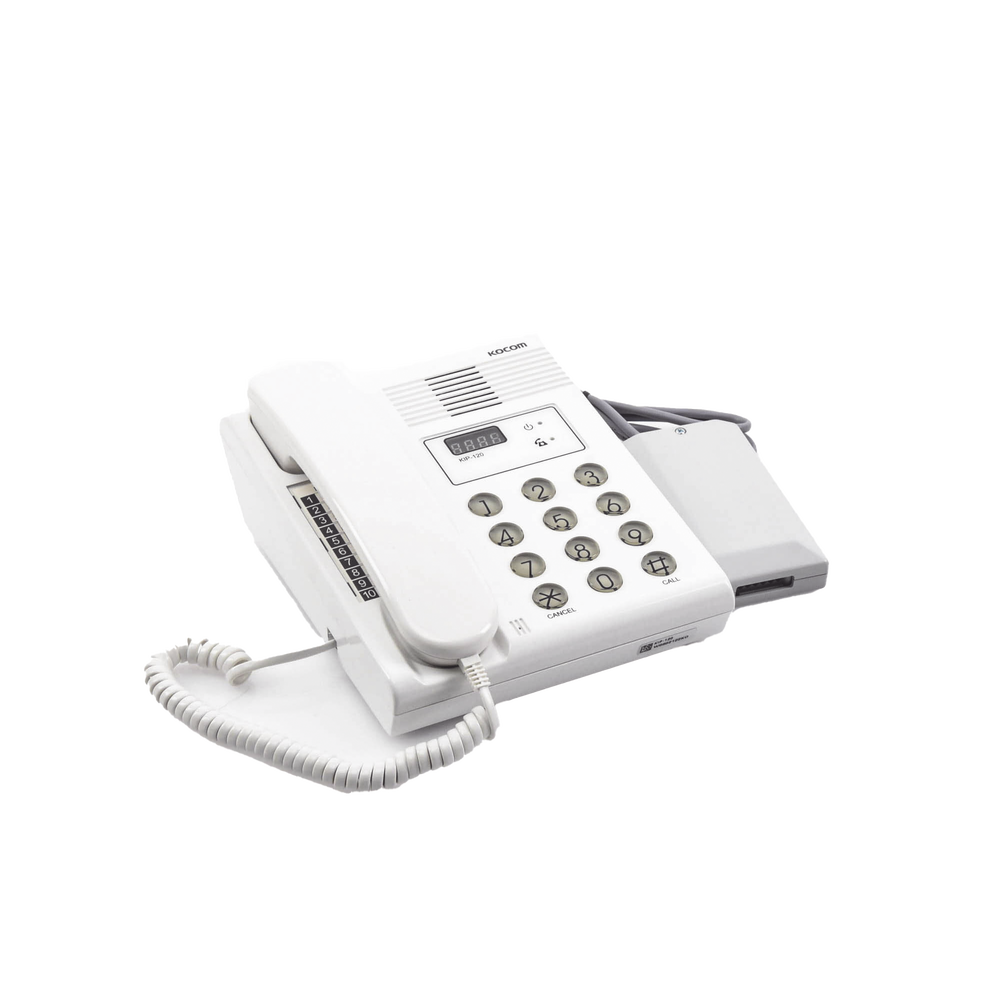

Guard station compatible with KLPD410

• Compatible with KLPD410 and KDP603 headsets
• Indoor use.
• 5-wire wiring.
• Door opening function.
• Electronic sound.

• 15 VDC power supply (Not included, Use PSM2 or compatible).
• Dimensions of W (165mm) x H (220mm) x D (80mm)

The KLPD-410 audio intercom systems are very cost-effective since they are analog devices and are very simple and reliable to install. For these devices, we recommend using 18-gauge, 100% copper cable, preferably shielded, to ensure the greatest distance and audio quality.

Suggested cables 9274 1119-5501/500 92-70 ACCESS-184/500

Grades

- The devices are connected in cascade, star connection is not possible.

- The maximum distance is 300m from the street front to the last of the headphones
