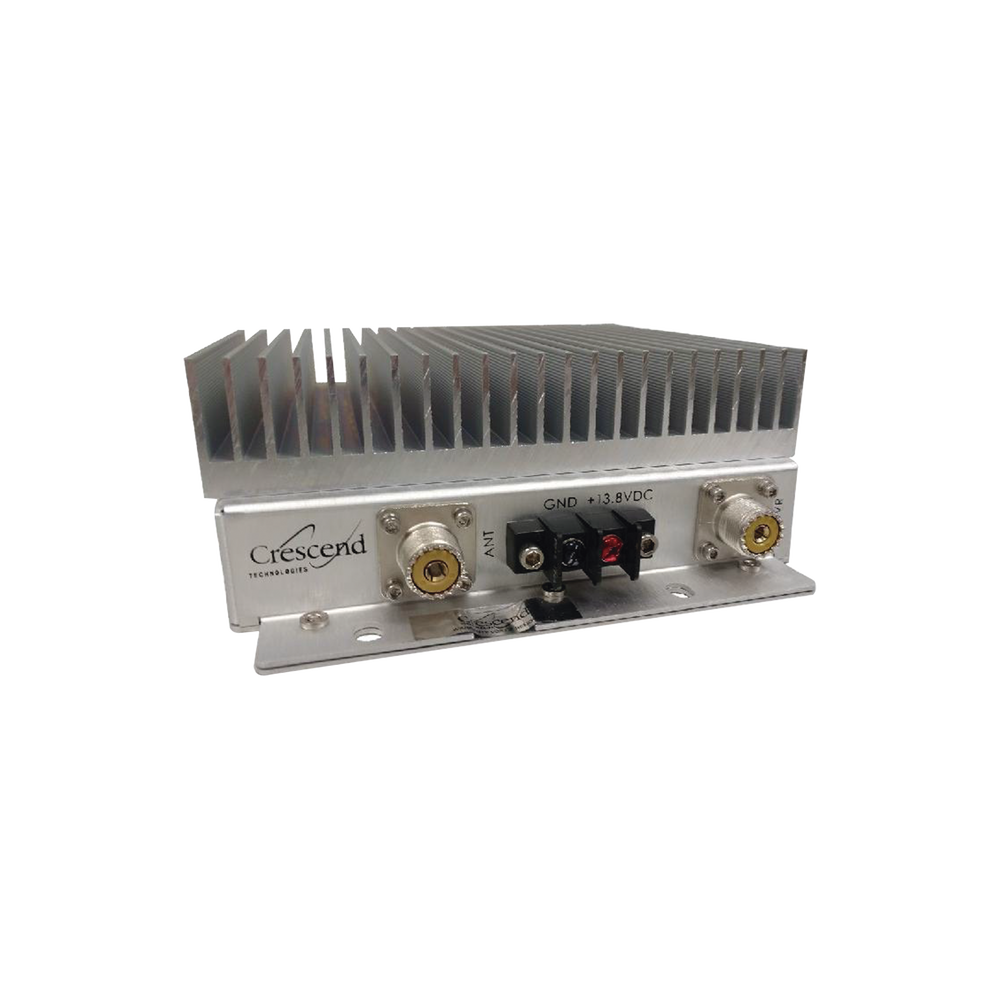

Vehicle Amplifier, 403-450 MHz, 1-5 Watt Input / 50 Watt Output, 11 Amp., UHF Females.

Vehicle Amplifier, 403-450 MHz, 1-5 Watt Input / 50 Watt Output, 11 Amp., UHF Females.

Vehicular Amplifier 403-450 MHz, Ent. 1 -5 Watt / Out. 50 Watt, 11A, UHF Hem.

• Frequency range: 403-450 MHz.
• Transmission current flow: 11 A (nominal at rated power).
• Input power: 1-5 Watt.
• Carrier output power: 50 Watt nominal.
• Spurious and Harmonics: Meets FCC specifications.
• Operating Voltage: 13.8 Vdc nominal.
• Duty cycle: 30% (maximum PTT of 3 minutes).
• Load VSWR Tolerance: VSWR protected.
• Over temperature: Over temperature protected (unit goes into By-pass mode when activated).
• T/R switching: PIN diode, 600 us nominal switching time.
• Input/Output Impedance: 50 ohm nominal.
• Operating temperature range: -30 ºC to +60 ºC.
• Input/Output Connectors: UHF (SO-239), others optional.
• Dimensions (mm): 172.72 Width x 69.58 Height x 195.58 Depth.
• Weight: 0.908 kg.

*Ask for delivery time.
