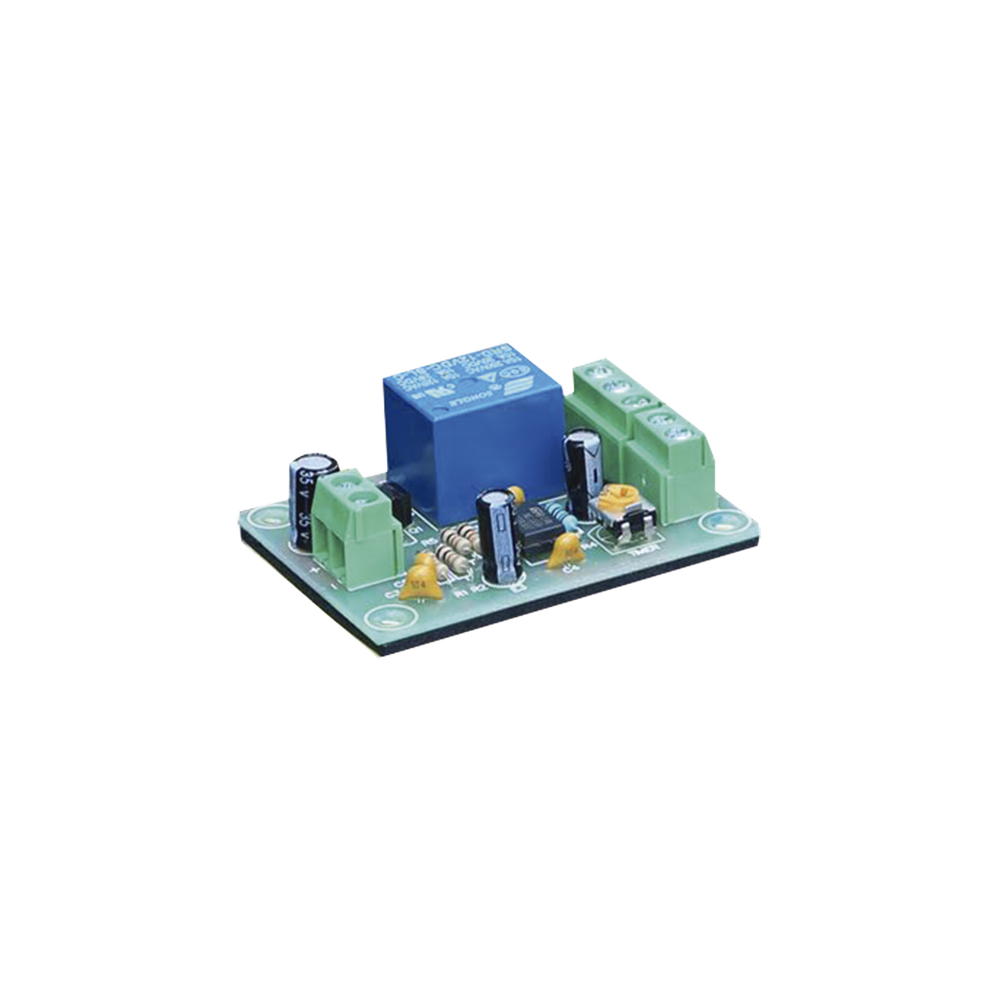

Time delay module for exit buttons / delay 1 to 30 sec / with voltage output

Time delay module for exit buttons / delay 1 to 30 sec / with voltage output

Adjustable delay module from 1 to 30 seconds. Can be used on exit buttons.

The device receives a momentary dry contact pulse (from a button for example) and activates an output for a time previously configured through the potentiometer (Adjustable from 0 to 30 seconds).

Characteristics :

Voltage: 12VDC

Consumption current: 40mA

Relay output: NO(12VDC) COM(GND) and NC (12VDC).

Time Delay: 0-30 seconds (Adjustable by potentiometer).

Operating temperature: -20 to 70°C

Weight: 0.04 Kg.
