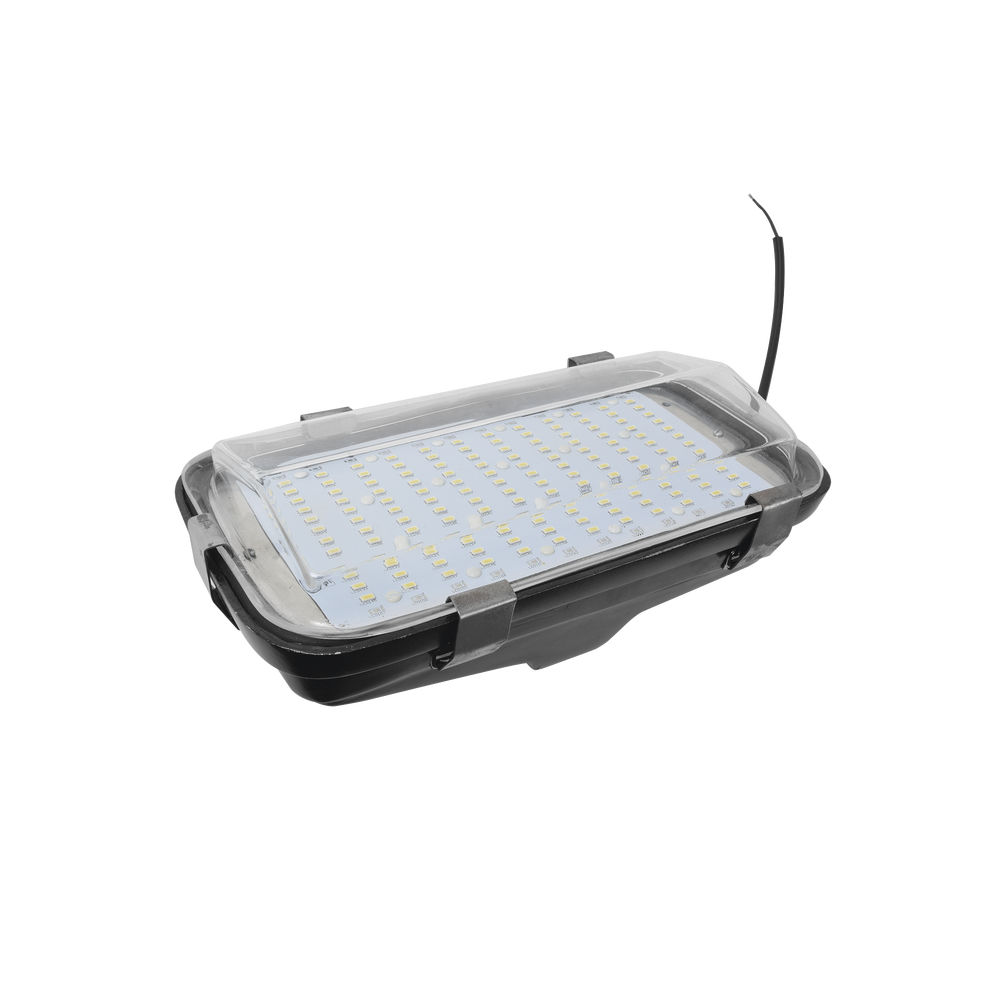

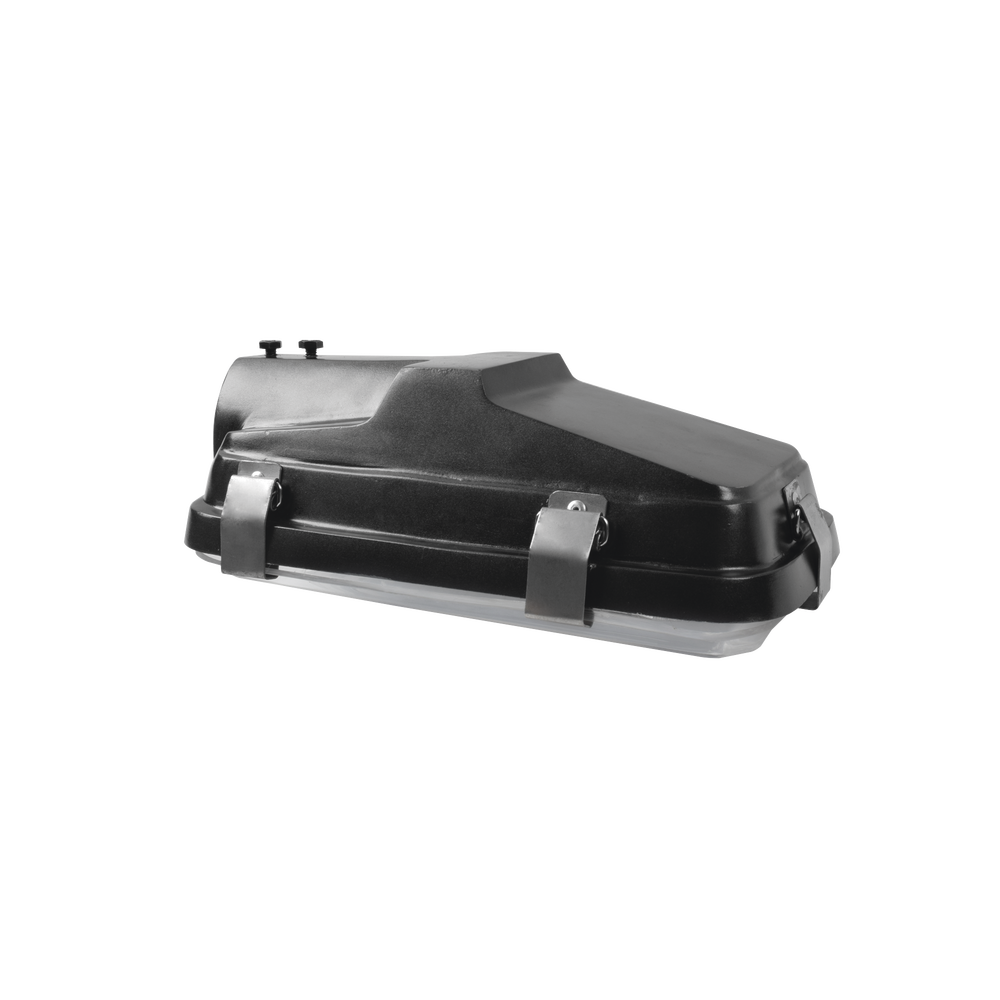

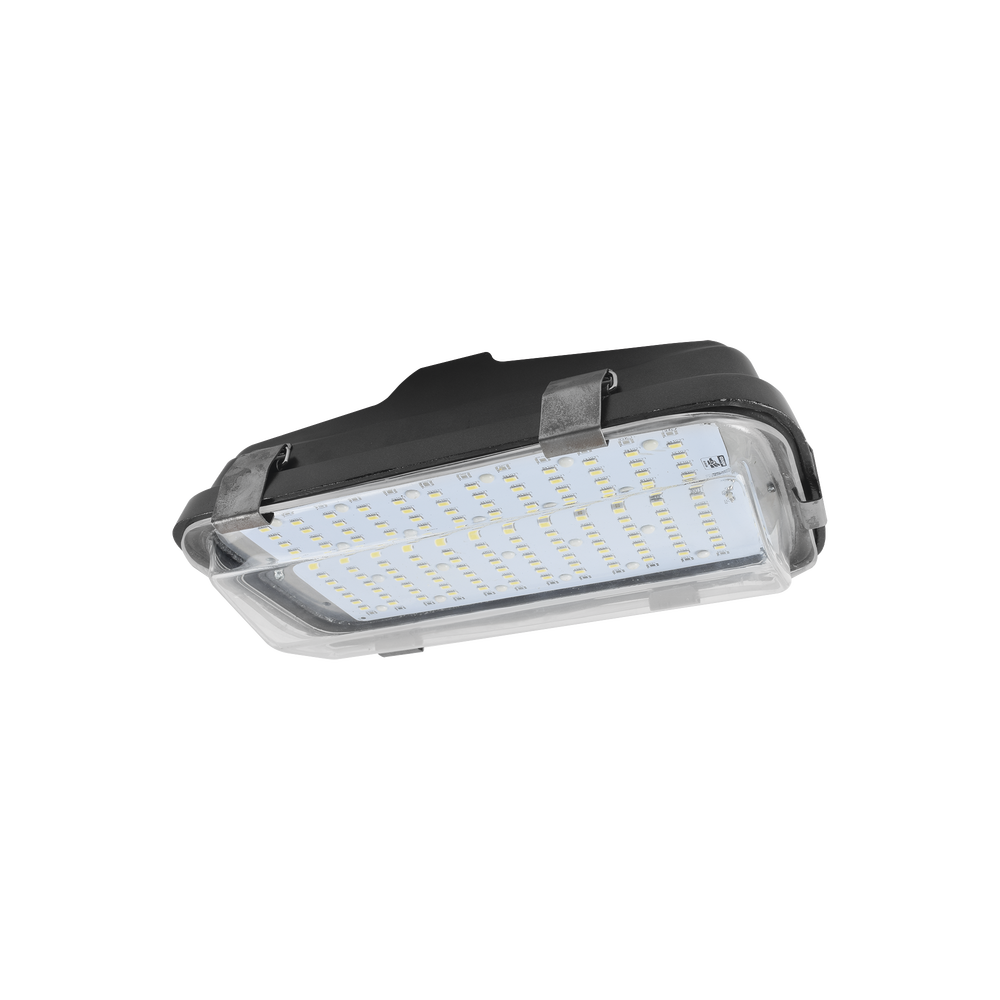

45-watt 12/24 VDC LED street lighting fixture with timer, 5040 Lm
45-watt 12/24 VDC LED street lighting fixture with timer, 5040 Lm
Couldn't load pickup availability
45-watt 12/24 VDC LED street lighting fixture with timer, 5040 Lm
Easy Led 45 includes SCT120MC Time Controller
Easy-to-install luminaire with high-intensity LED technology of up to 45W, ideal for solar, pedestrian, residential and park applications.
The Easy Led luminaire includes an LED driver specially designed for high-efficiency LED luminaires, achieving an efficiency of up to 93% and a luminous flux of up to 112 Lm/W, achieving great precision and stability in current control to obtain the longest useful life of the LED luminaire.
Technical specifications
-Dimensions: 300x165x125 mm
-Weight: 3.5 Kg
-Connection: Cable gauge 20 AGW, 30 cm
-Protections: IP 68
-Electronic protections: reverse polarity, short circuit, overcurrent.
-Lifespan: 50,000 hrs
- Mounting: circular arm 2” diameter
| Guy | Easyled-45 | |||
| Pot salt. (Max.) | 45 | W | ||
| V ent | 11 - 30 | VCD | ||
| I ent (Max.) | 5.0 | TO | ||
| I ent = 12V | 4.8 | TO | ||
| I ent = 24V | 2.1 | TO | ||
| Electrical efficiency (up to) | 90 | % | ||
| Color temperature | 5300 | â °K | ||
| Color rendering | 80 | CRI | ||
| Luminous efficiency (up to) | 112 | Lm/W | ||
| Luminous flux | 5040 | Lm | ||
| Operating Temperature | -20 to 50 | °C | ||
- 45 Watt Led luminaire at 12/24Vcd.
Share
Out of stock
MODELO: EASYLED45
