GPON ONU with 4 Gigabit Ethernet ports + 2 POTS + 1 USB + 1 CATV (RF) + WiFi 2.4 GHz, SC/APC connector

GPON ONU with 4 Gigabit Ethernet ports + 2 POTS + 1 USB + 1 CATV (RF) + WiFi 2.4 GHz, SC/APC connector

The FiberHome HG6244C terminal is a GPON ONT for FTTH architectures. It provides users with communication and entertainment services in the form of data, voice, video, and more, to meet the integrated access demands of families and small businesses.

Characteristics:

• Central Wavelength: Tx: 1310 nm, Rx: 1490 nm
• Tx Optical Power: 0.5 dBm to 5.0 dBm
• Rx Optical Power Range: -8 dBm to -29 dBm

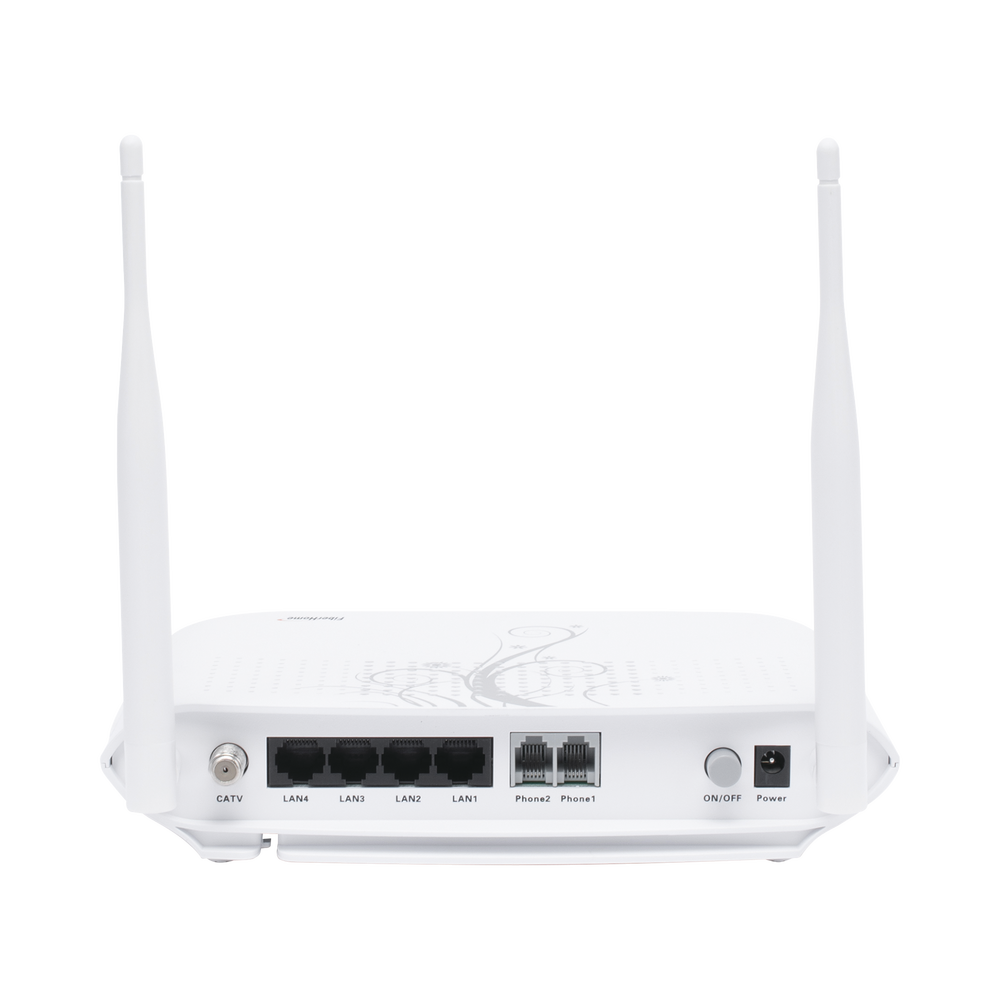

Interfaces:

• 1 GPON port ITU-T G.984, Class B+, SC/APC connector
• 4 Gigabit Ethernet Ports
• 2 POTS ports (RJ11)
• 1 USB port
• 1 CATV (RF) port
• WiFi IEEE 802.11 b/g/n, 2.4 GHz, 4 SSIDs
