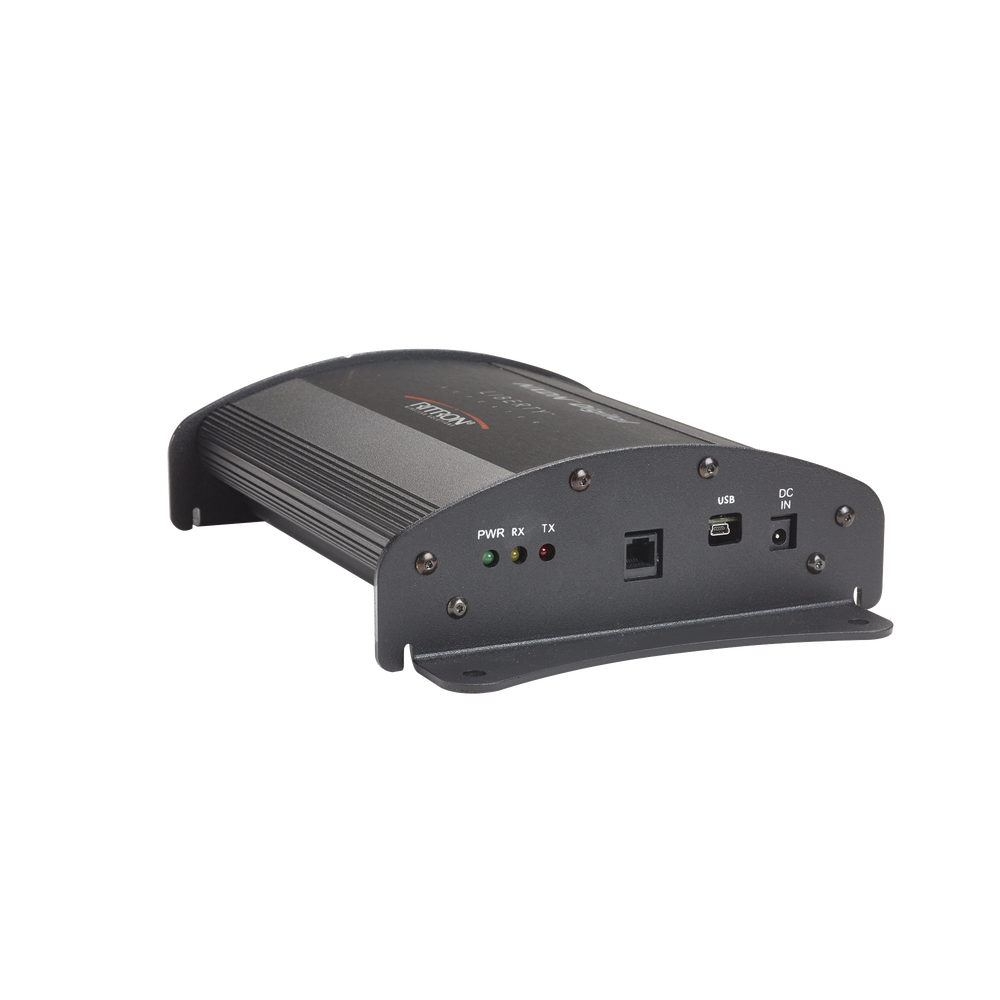

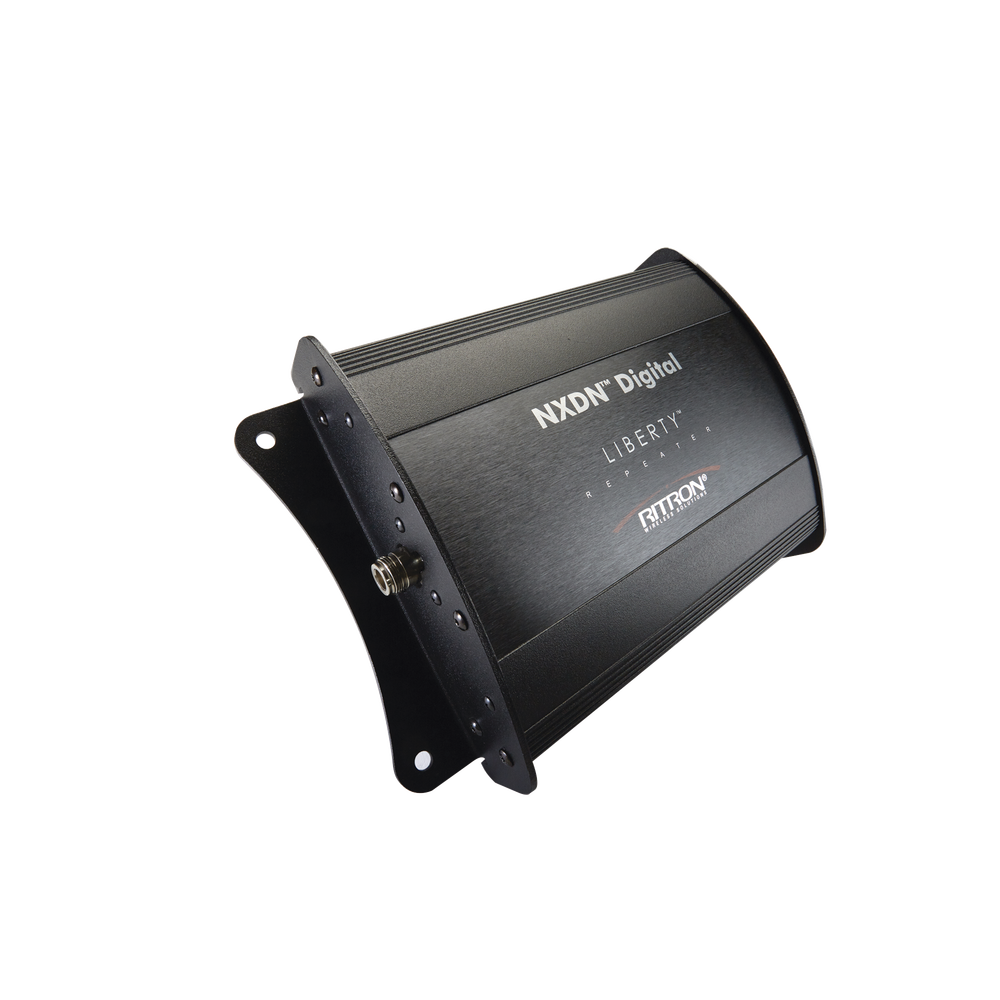

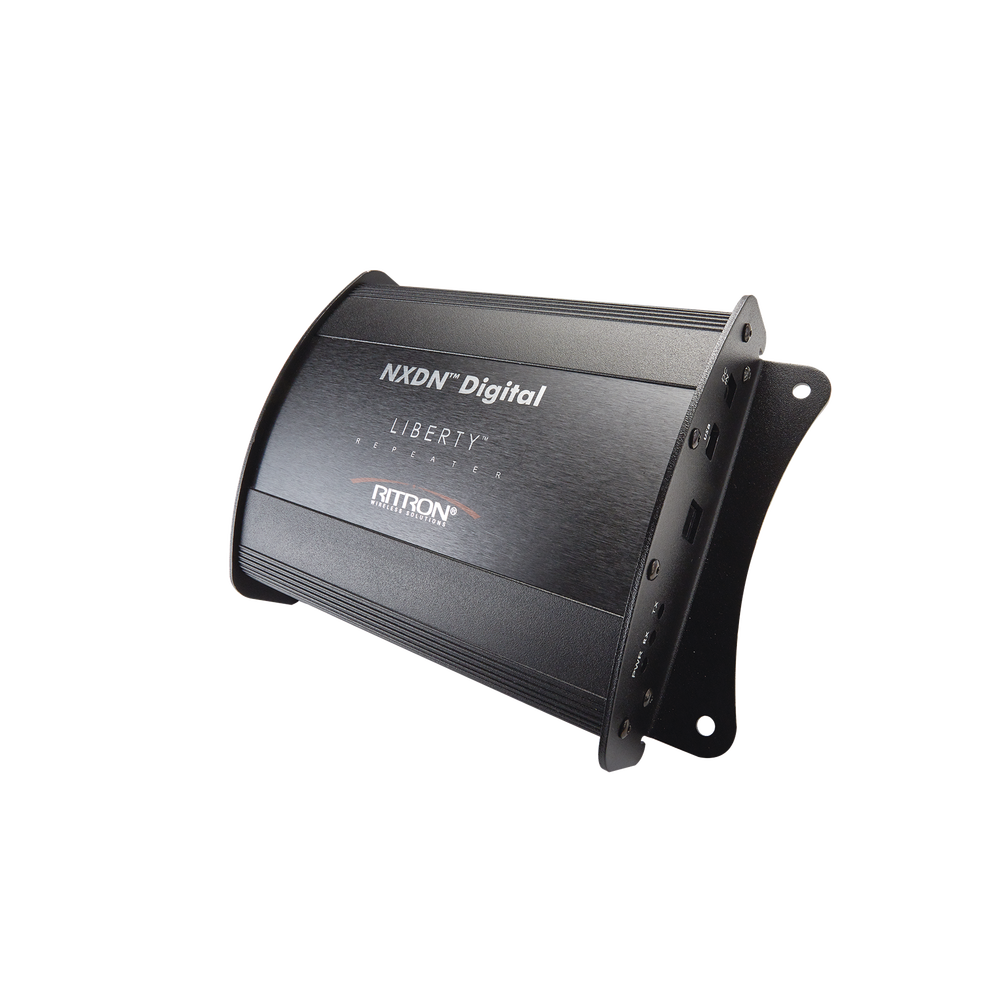

Ultra Compact NXDN Digital Repeater with Source and Duplexer Included / UHF 440-460 MHz

Ultra Compact NXDN Digital Repeater with Source and Duplexer Included / UHF 440-460 MHz

The Liberty NXDN digital repeater is the perfect solution thanks to its ultra-compact design and easy installation to meet your communication needs.

Thanks to its 10 Watts of power, with a suitable antenna, the Ritron Liberty repeater can provide a solid digital signal compatible with any NXDN two-way radio.

Ideal for removing spots with no or intermittent coverage.

Applications

• Schools • Hospitals • Shopping Centers • Industrial Warehouses • Warehouses • Special Events.

General Characteristics:

• Conventional digital NXDN, compatible with ICOM and KENWOOD digital radios.
• 2-10 W power.
• 6.25 kHz digital channel spacing.
• Up to 10 RAN codes.
• It has a built-in duplexer.
• Includes 110 Vac to 13.8 Vdc power supply.
• PC programmable , programming kit model RLRPCPK1 .
• Manual tuning is required for a specific frequency.

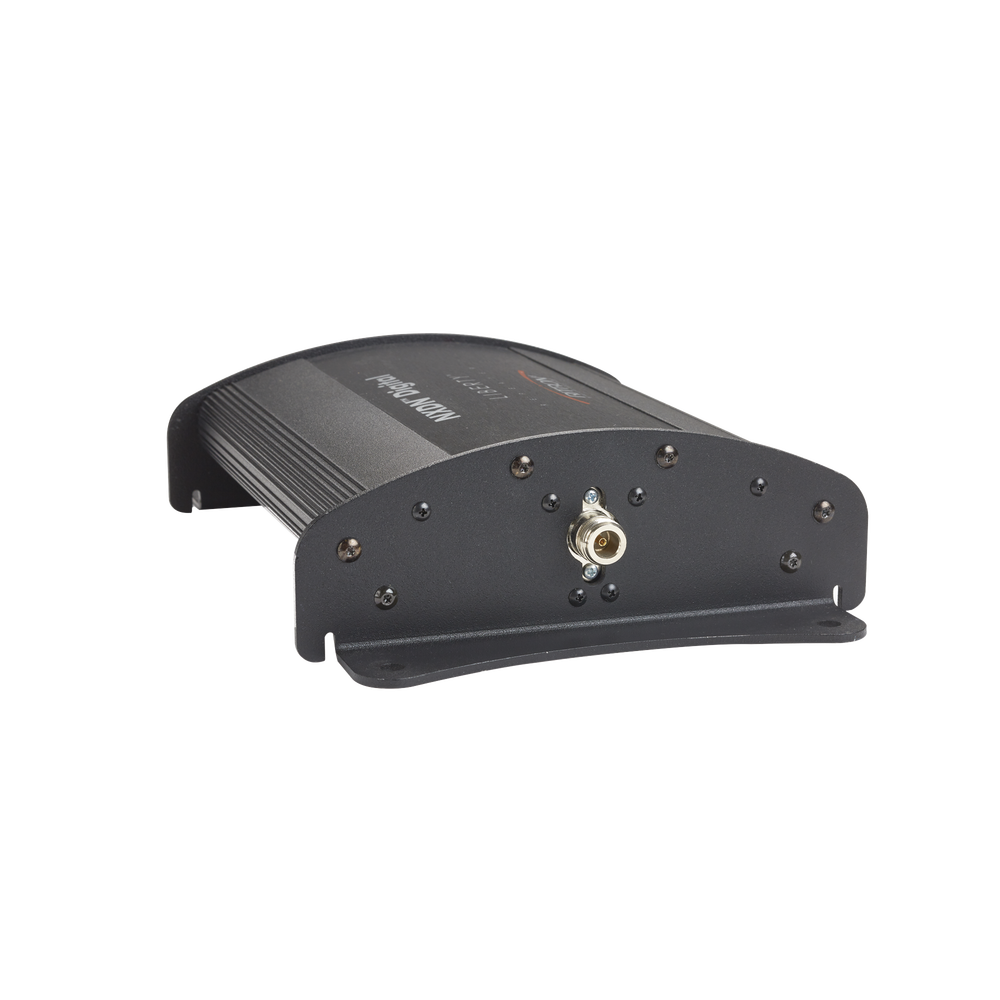

• N type female connector.
• 1 Year Warranty

Specs:

• Frequency range: 440-460 MHz.
• Power: 10 W, adjustable up to 2 W.
• Power supply: 13.8 Vdc, 2.5 A.
• Frequency separation: Tx/Rx 5 MHz.
• Impedance: 50 Ohms.
• Modulation: 4FSK.
• Dimensions: 20.4 x 14.6 x 5.4 cm
• Weight: 1.58 kg.

Includes

• Built-in four-cavity duplexer.
• RPS-1500 13.8VDC @ 4 amp power supply.

Includes power supply and duplexer, Compatible with Kenwood and ICOM digital devices
