Router Industrial 4G LTE, 2 SIM Card, 1 puerto WAN, 3 Puertos LAN

4G LTE Industrial Router, 2 SIM Card, 1 WAN port, 3 LAN Ports

Sale price  $2,781,561 Regular price  $3,432,162
Skip to product information
Router Industrial 4G LTE, 2 SIM Card, 1 puerto WAN, 3 Puertos LAN

4G LTE Industrial Router, 2 SIM Card, 1 WAN port, 3 LAN Ports

Sale price  $2,781,561 Regular price  $3,432,162
Shipping calculated at checkout.
Marca
PLANET
Referencia / SKU
ICG-2420-LTE-US
Disponibilidad
Agotado por ahora
Descripción y especificaciones

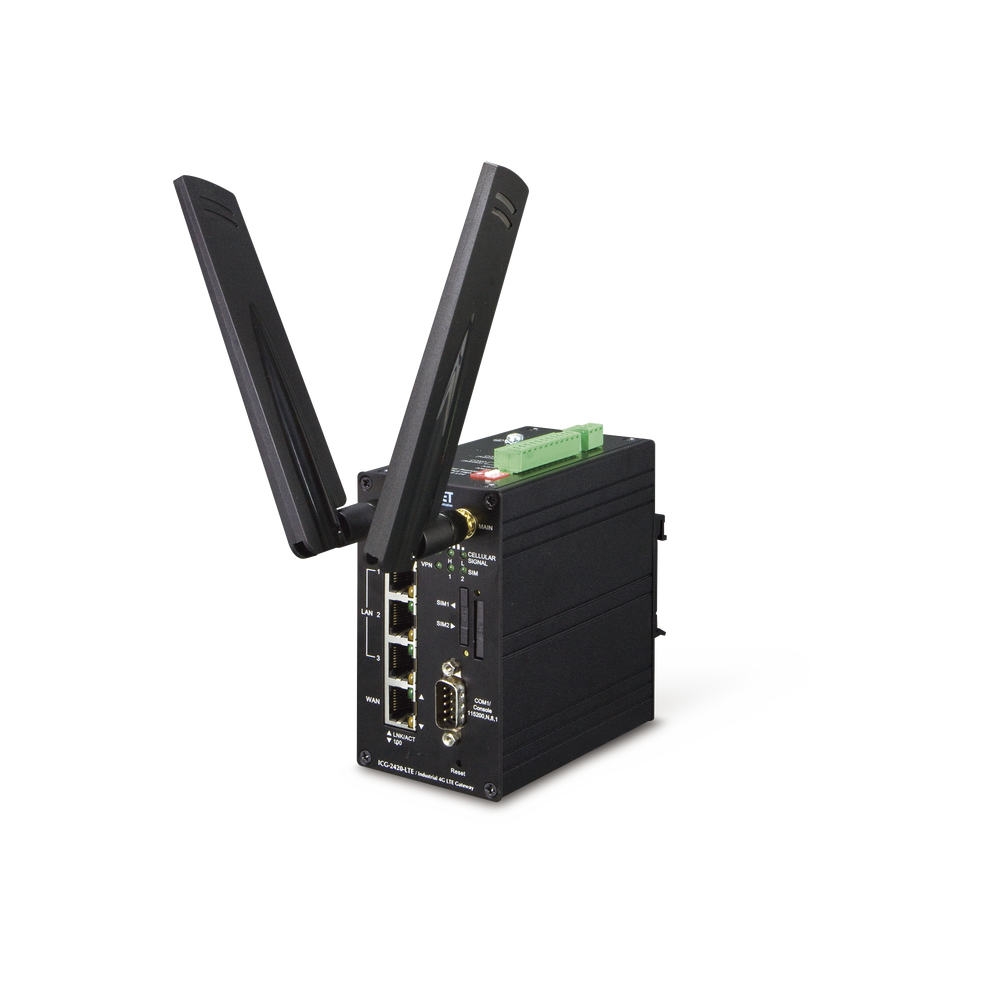

4G LTE Industrial Router, 2 SIM Card, 1 WAN port, 3 LAN Ports



Facilitate network connection with the 4G LTE cellular gateway The series
PLANET ICG-2420-LTE is a highly reliable and secure cellular communications gateway for industrial networks. Featuring four Ethernet ports (3 LAN and 1 WAN) and 4G LTE (Long Term Evolution), the ICG-2420-LTE offers cellular connectivity for at least 3 devices. In addition, it supports LTE 2x1 DL MIMO technology that can achieve download speed (DL) up to 150Mbps and upload speed (UL) of 50Mbps . The Cellular Gateway also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications and vertical machine-to-machine ( M2M ) platforms. The ICG-2420-LTE is specially designed to deploy cellular communications networks for heavy industrial use with a wide temperature range from -20 to 70 degree C.


Dual SIM designed
To enhance reliability, the ICG-2420-LTE series is equipped with dual SIM slots that support failover and roaming to ensure uninterrupted connectivity for mission-critical cellular communications. It provides a more flexible and easier way for users to create instant network sharing via 4G LTE when in public places, such as transit, outdoor events, and more.

4G LTE Cellular Communication Solution The series
PLANET ICG-2420-LTE adopts 4G LTE cellular technology and thus breaks the 100m limitation of RJ45 transmission. Moreover, wherever there is a cell site, the data speed can be transmitted over the far distance. To avoid data loss affected by unexpected failure connection by ISP, ICG-2420-LTE series has dual SIM card slots, which means it can support two different ISPs for redundancy.


Physical port

  • 3 10/100BASE-TX RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
  • 1 10/100BASE-TX RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
  • 2 4G LTE 2dBi antennas
  • 2 SIM card slots
  • 3 console interfaces (2 RS232 and 1 RS485)
  • A DIP switch to improve communication of RS485 networks

Cellular interfaces

  • Supports multi-band connectivity with FDD LTE/TDD LTE/WCDMA/GSM/LTE Cat4
  • Built-in dual SIM for network redundancy
  • Two detachable antennas for protection against radio interference
  • LED indicators for connection and data transmission status


Industrial structure

  • IP40 aluminum box
  • DIN-rail design
  • Power: 10~32V DC (Not include power supply)
  • Supports EFT protection for 2000V DC power and 6000V DC Ethernet ESD protection
  • -20 to 70 degrees C operating temperature
