(BaseBox 6) Access Point and Client Connectorized in 6 GHz, It has a miniPCIe Slot for an Extra Wireless Card

(BaseBox 6) Access Point and Client Connectorized in 6 GHz, It has a miniPCIe Slot for an Extra Wireless Card

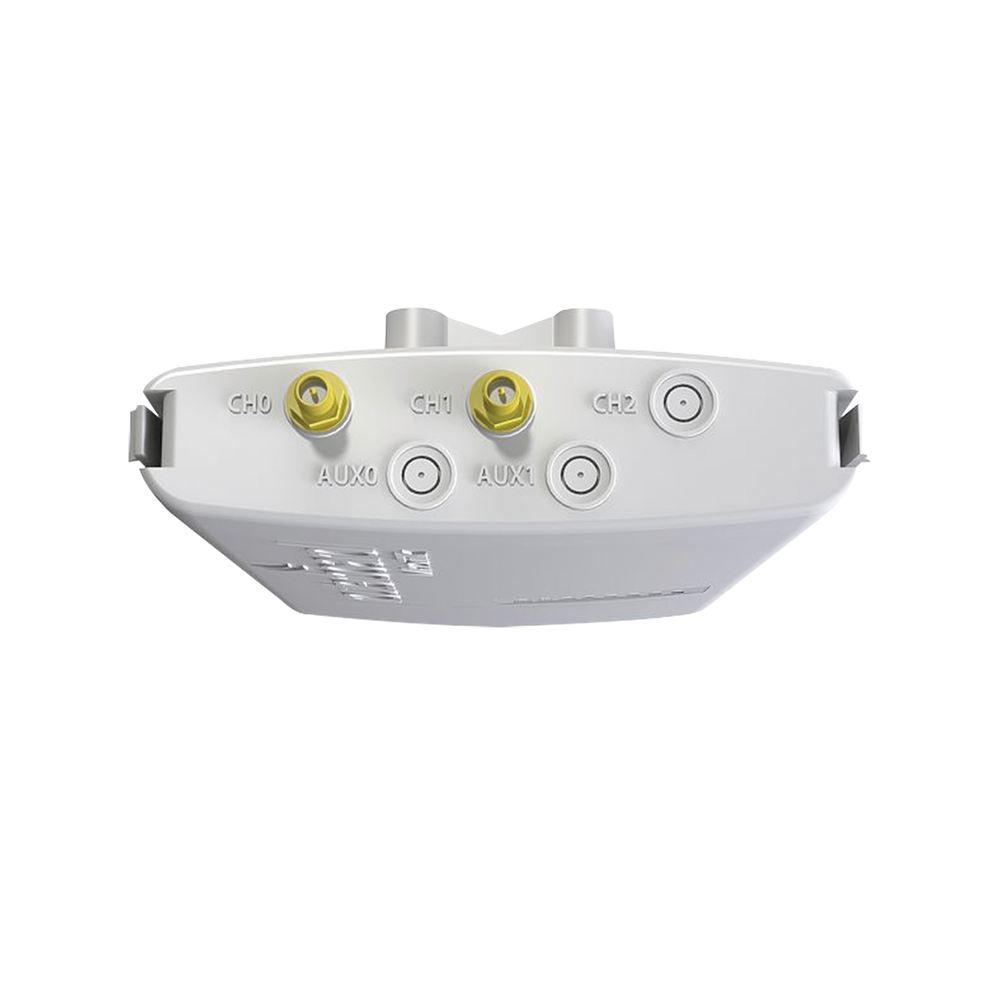

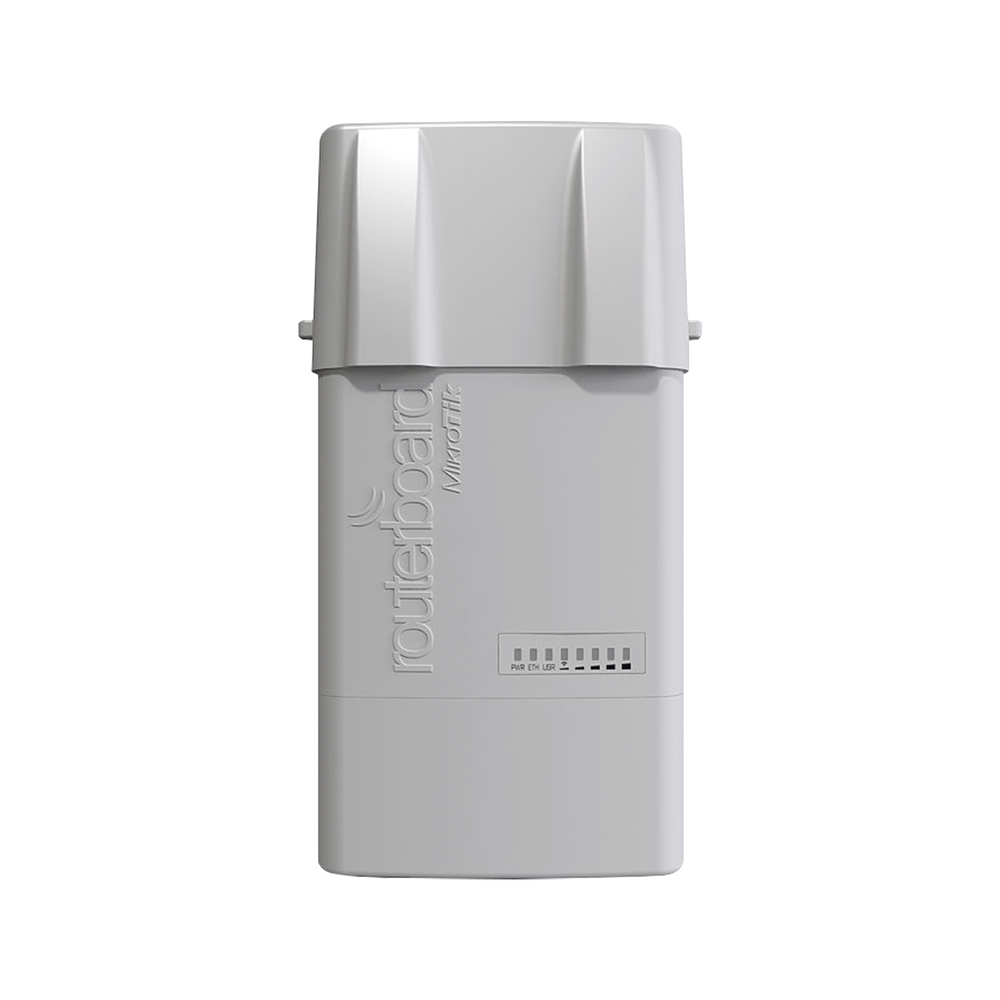

The BaseBox 6 is an outdoor wireless device based on our popular RB912 model, equipped with two SMA connectors for connecting external antennas, and features a cover or lid to protect the connectors from moisture. It also features additional preparation for antenna connectors, should you wish to use the BaseBox miniPCIe slot for an additional wireless interface, creating a dual-band device or a 3G/4G modem.

This device is designed for use as a 6GHz AP with our 6GHz CPEs, such as DynaDish 6 and SXT 6.

This product is not suitable for unlicensed ISM bands. Use of the device is subject to country regulations.

Ethernet Test Results

1. All testing is performed using Xena Networks' dedicated testing equipment (XenaBay) and is performed in accordance with RFC2544 (Xena2544)
2. Maximum throughput is determined over 30 seconds of attempts with 0.1% packet loss tolerance on packet sizes of 64, 512, 1518 bytes.
3. Test results show maximum device performance and are achieved using the mentioned hardware and software configuration, different configurations will most likely result in lower results.

Accessories included:

•
  24V 1.2A power adapter
•
  DIN mount (K-27)
•
  Plastic zip tie
•
  Metal ring (one)
•
  Gigabit PoE injector

License Level 4, Frequency Range 5.9 - 6.4 GHz, Includes 24V PoE
